Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03

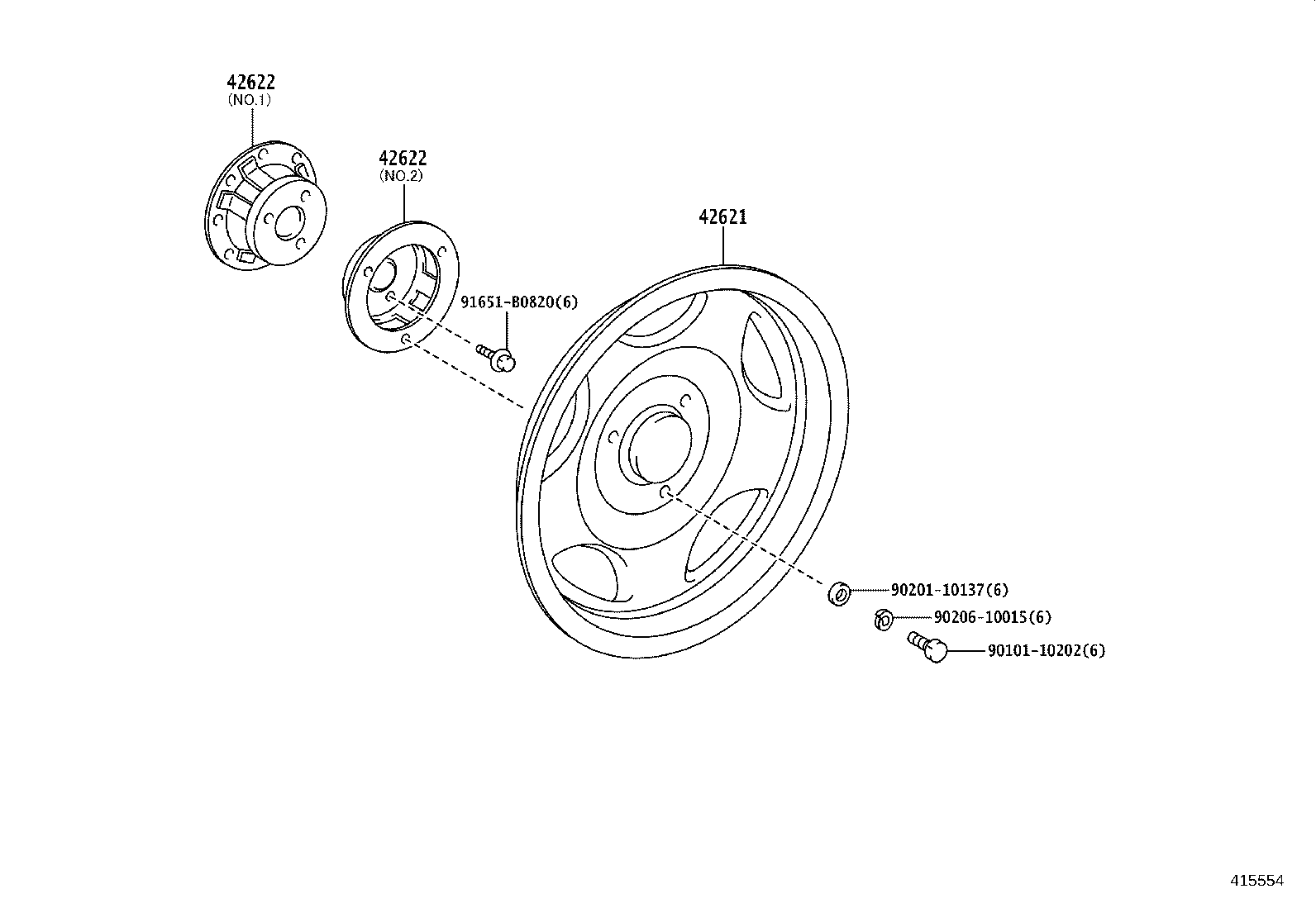

Disc Wheel & Wheel Cap
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42618 | Retainer, Wheel Cap |
| 42621 | Cap, Wheel |
| 42622 | Holder, Wheel Cap |
| 42631A | Bolt, Double Wheel Stop, RH |
| 42632A | Bolt, Double Wheel Stop, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
