Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03
Parking Brake & Cable

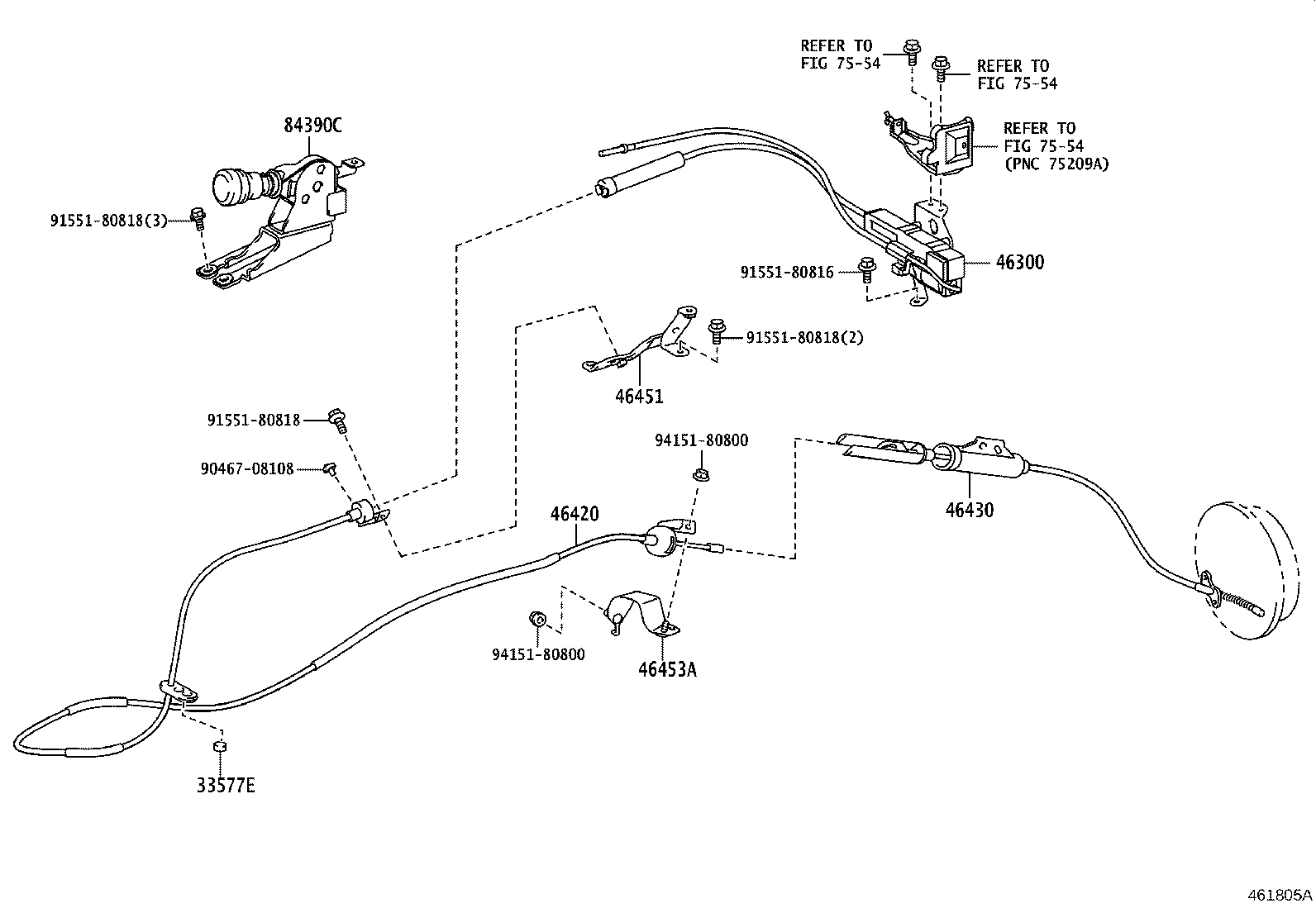

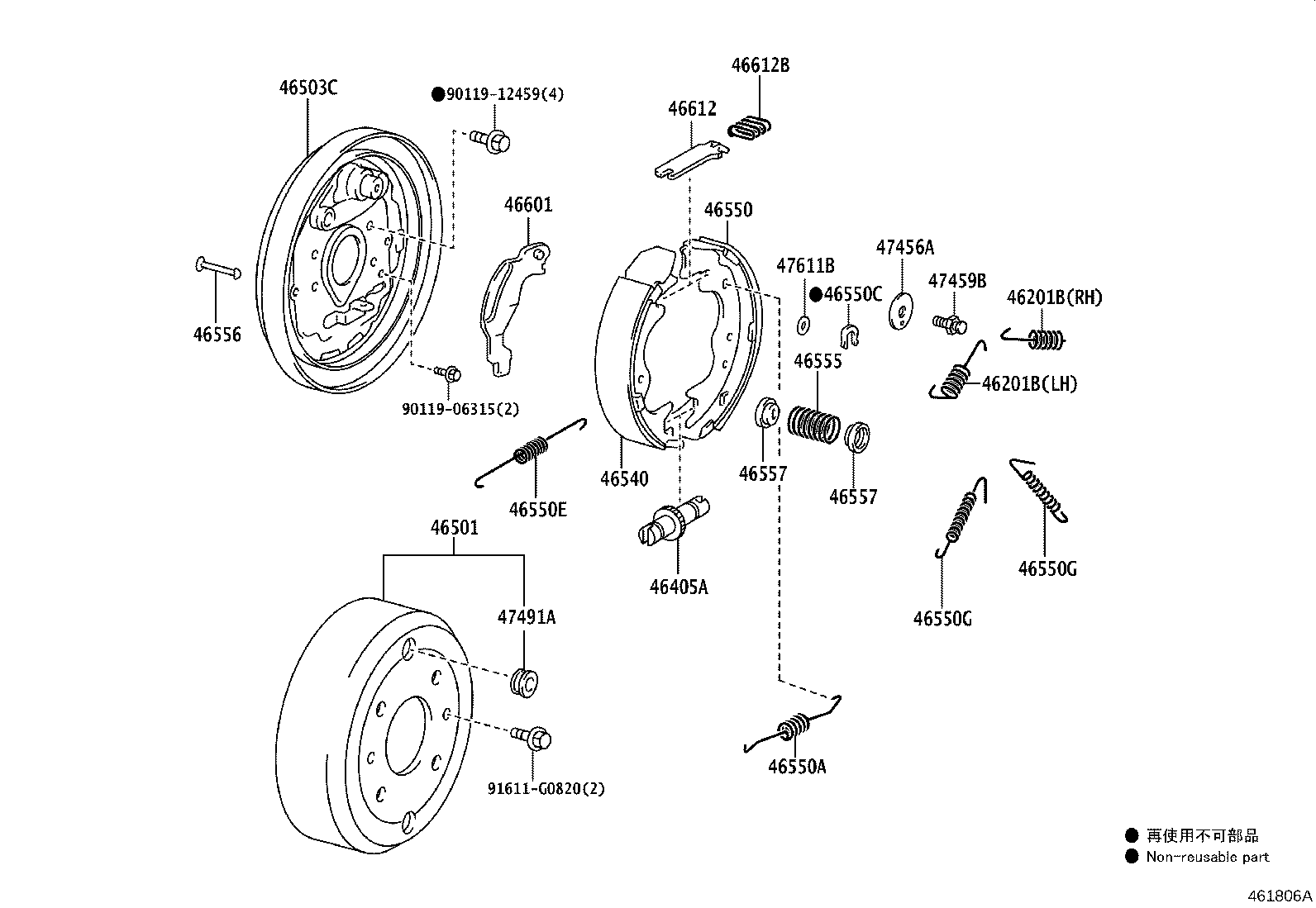

28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33577E | Grommet, Shift Cable |
| 46201B | Spring, Tension |
| 46210 | Lever Assy, Parking Brake |
| 46300 | Actuator Assy, Parking Brake W/Bracket |
| 46405A | Screw Set, Shoe Adjusting, RH |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46451 | Bracket, Cable Support |
| 46453A | Bracket, Cable Support, NO.3 |
| 46501 | Drum Sub-assy, Parking Brake |
| 46503C | Plate Sub-assy, Parking Brake |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46556 | Pin, Shoe Hold Down Spring |
| 46557 | Cup, Brake Shoe Hold Down |
| 46601 | Lever Sub-assy, Parking Brake Shoe |
| 46612 | Strut, Parking Brake Shoe Lever |
| 46612B | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47491A | Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE) |
| 47611B | Shim(FOR PARKING BRAKE SHOE LEVER) |
| 84390C | Switch Assy, Electric Parking Brake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
