Toyota Dyna HV

2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

13 part groups · 2 illustrations

Illustrations

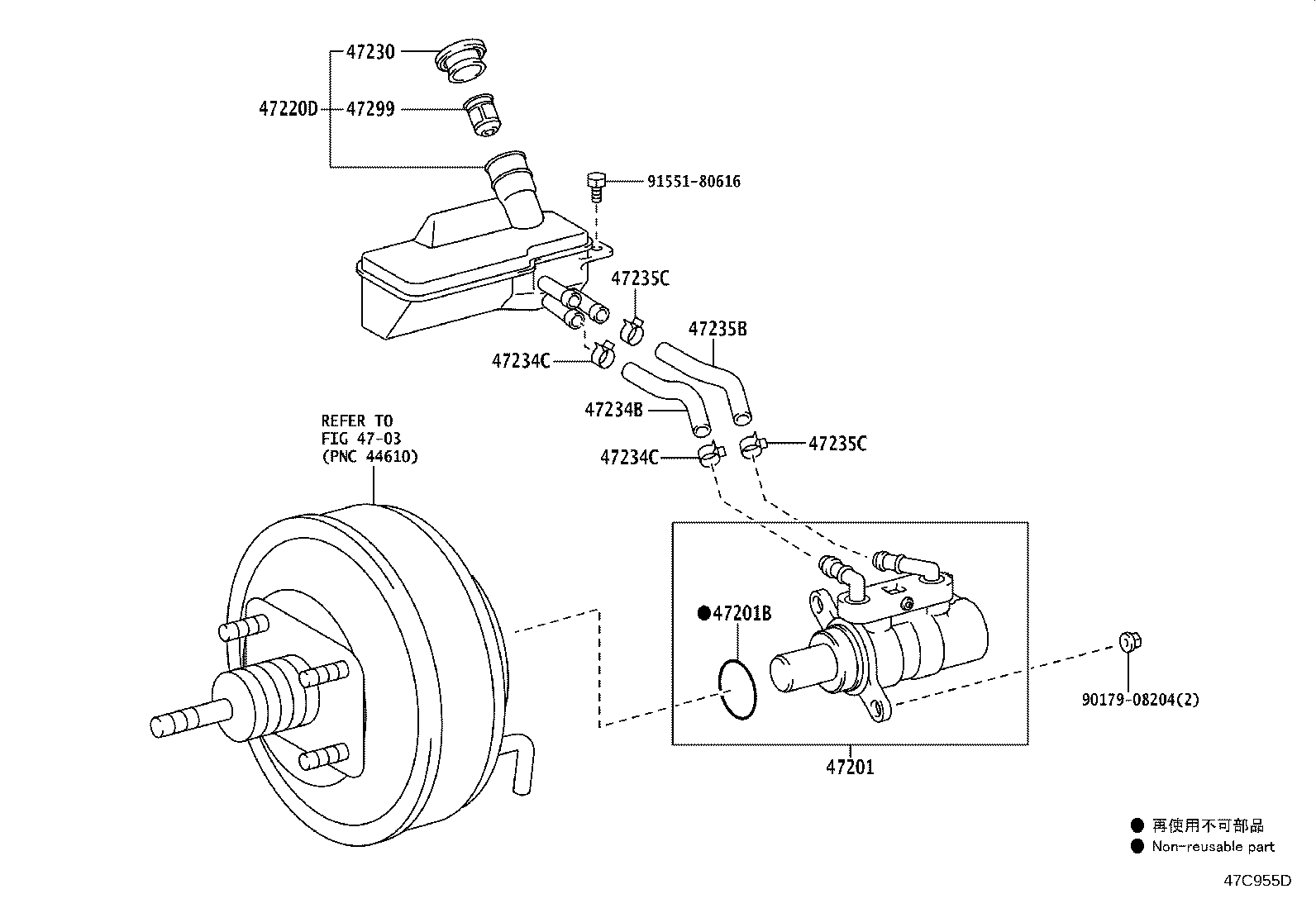

Figure 47C954D 47C954D 2021-03 → — Figure 47C955D 47C955D 2021-03 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47201D Union, Brake Master Cylinder, NO.1
47207 Cylinder Sub-assy, Brake Master Less Reservoir Tank
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234B Tube, Reservoir, NO.1
47234C Clip(FOR RESERVOIR TUBE NO.1)
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47235C Clip(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
47255 Grommet, Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
