Toyota Dyna HV

2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

32 part groups · 3 illustrations

Illustrations

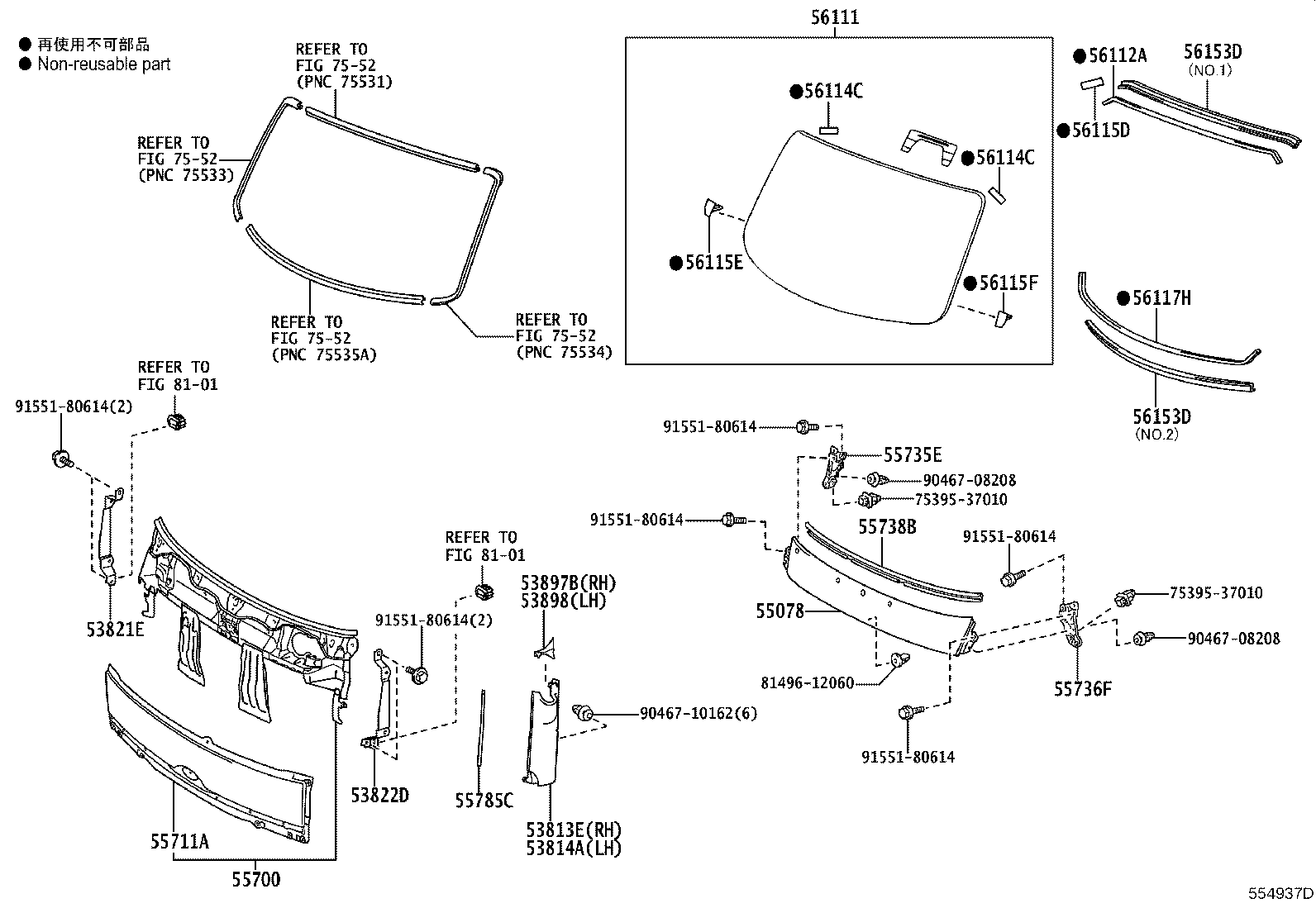

Figure 554936B 554936B 2021-03 → — Figure 554937D 554937D 2021-03 → — Figure 554938B 554938B 2021-03 → —

Part groups

PNCDescription
53813E Panel, Front Side, RH
53814A Panel, Front Side, LH
53821E Bracket, Front Fender, Rear RH
53822D Bracket, Front Fender, Rear LH
53897B Plate, Front Pillar TO Front Side Seal, RH
53898 Plate, Front Pillar TO Front Side Seal, LH
55078 Cover Sub-assy, Front Panel
55700 Panel Assy, Front
55711A Panel, Front, Lower
55735E Reinforcement, Cowl Body Mounting, RH
55736F Reinforcement, Cowl Body Mounting, LH
55738B Protector, Front Panel Cover, NO.1
55785C Pad, Front Panel Cover
56111 Glass, Windshield
56112A Dam, Window Glass Adhesive
56114C Retainer, Windshield Glass
56115D Stopper, Windshield Glass
56115E Stopper, Windshield Glass
56115F Stopper, Windshield Glass
56117H Dam, Window Glass Adhesive
56121 Weatherstrip, Windshield
56153D Moulding, Front Window, Inner Center
63273S Retainer, Roof Window Hinge
63787B Pad, Roof Air Deflector, NO.1
74306A Support Sub-assy, Front Visor
74310D Visor Assy
74321B Visor, Front
74325B Support, Front Visor, RH
74326B Support, Front Visor, LH
74327A Pad, Front Visor
74328A Pad, Front Visor, NO.2
74328B Pad, Front Visor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
