Toyota Dyna HV

2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan

Supported model Data version 2021-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

43 part groups · 4 illustrations

Illustrations

Figure 651450B

651450B 2021-03 → —

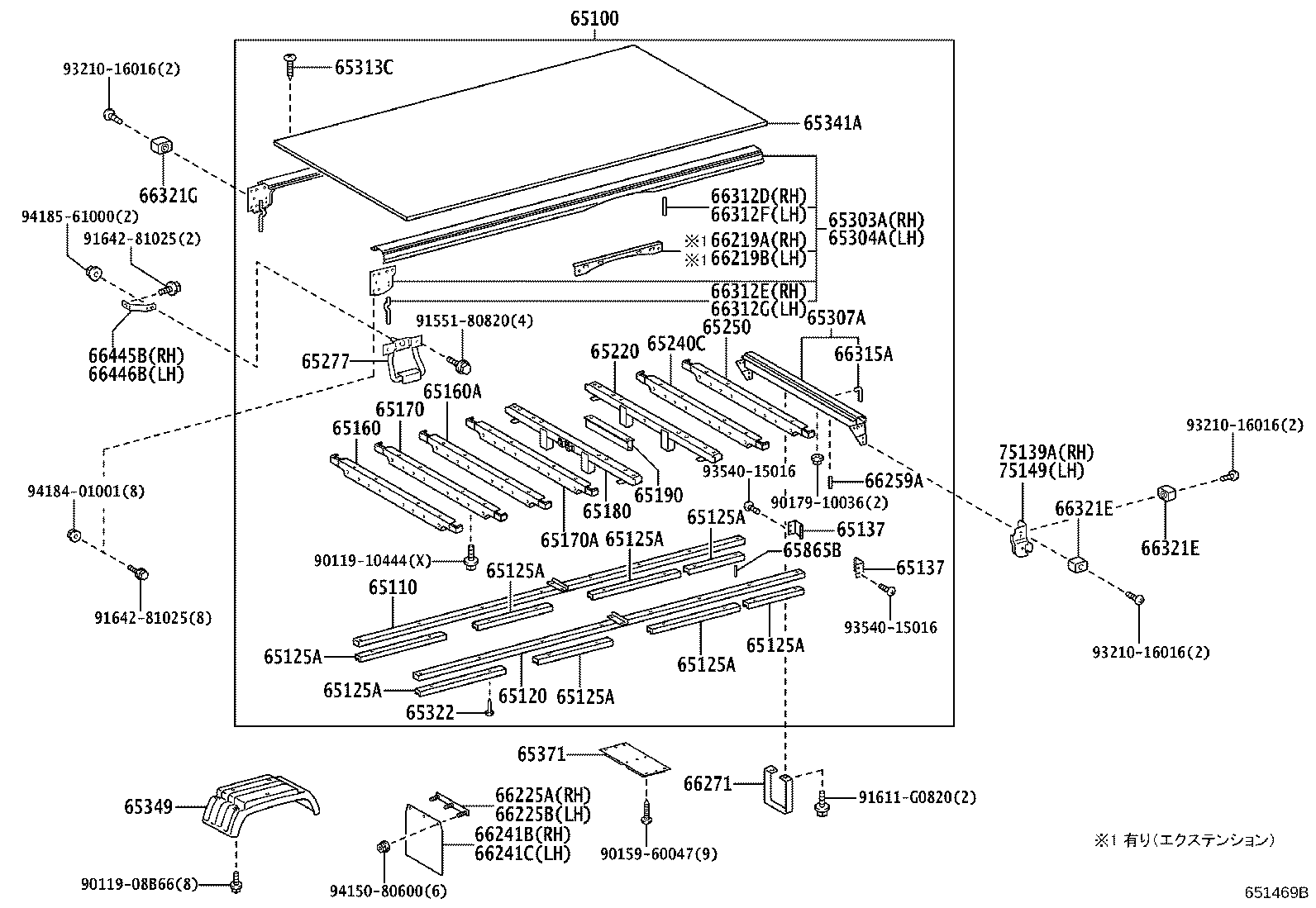

Figure 651469B

651469B 2021-03 → —

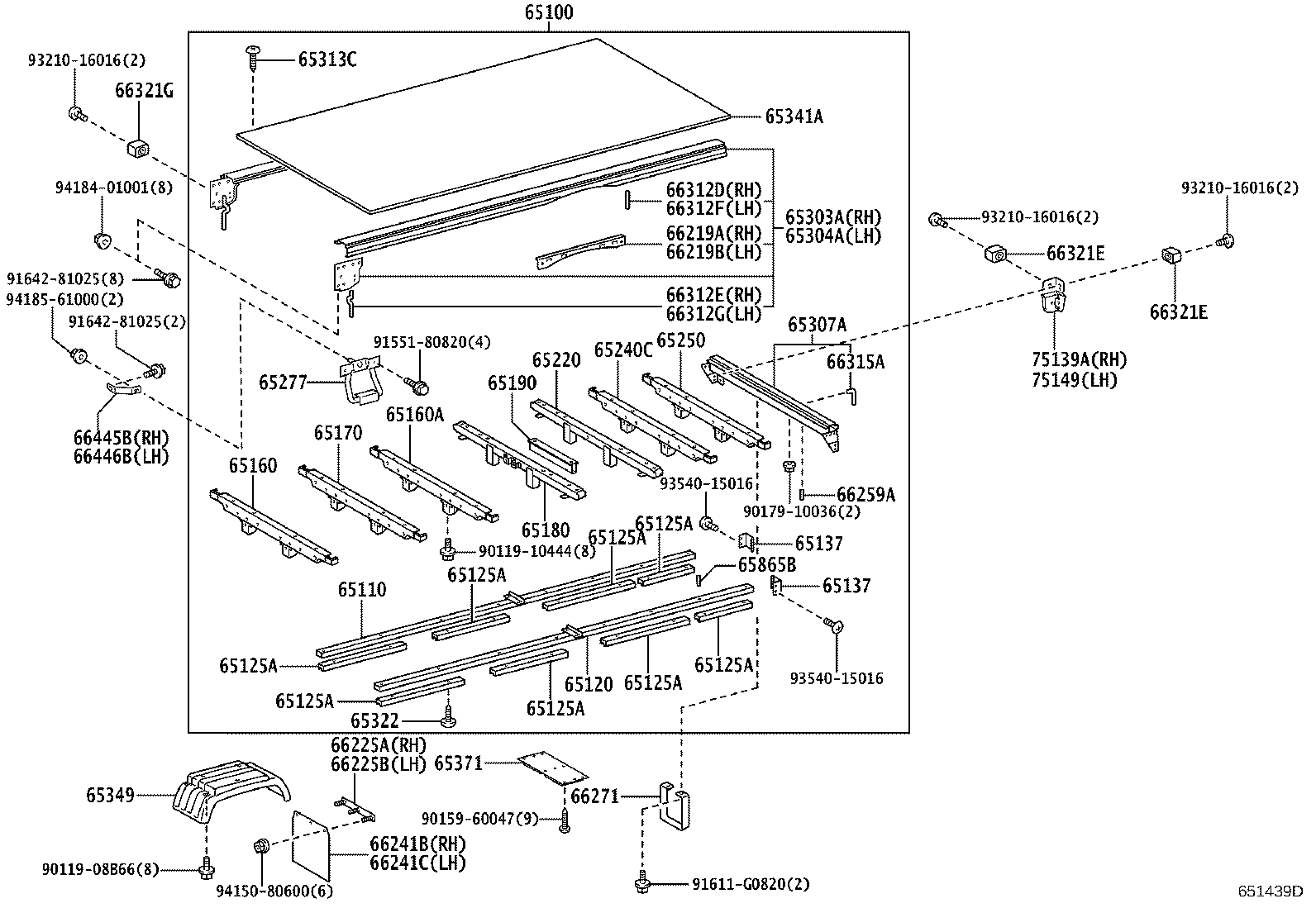

Figure 651439D

651439D 2021-03 → —

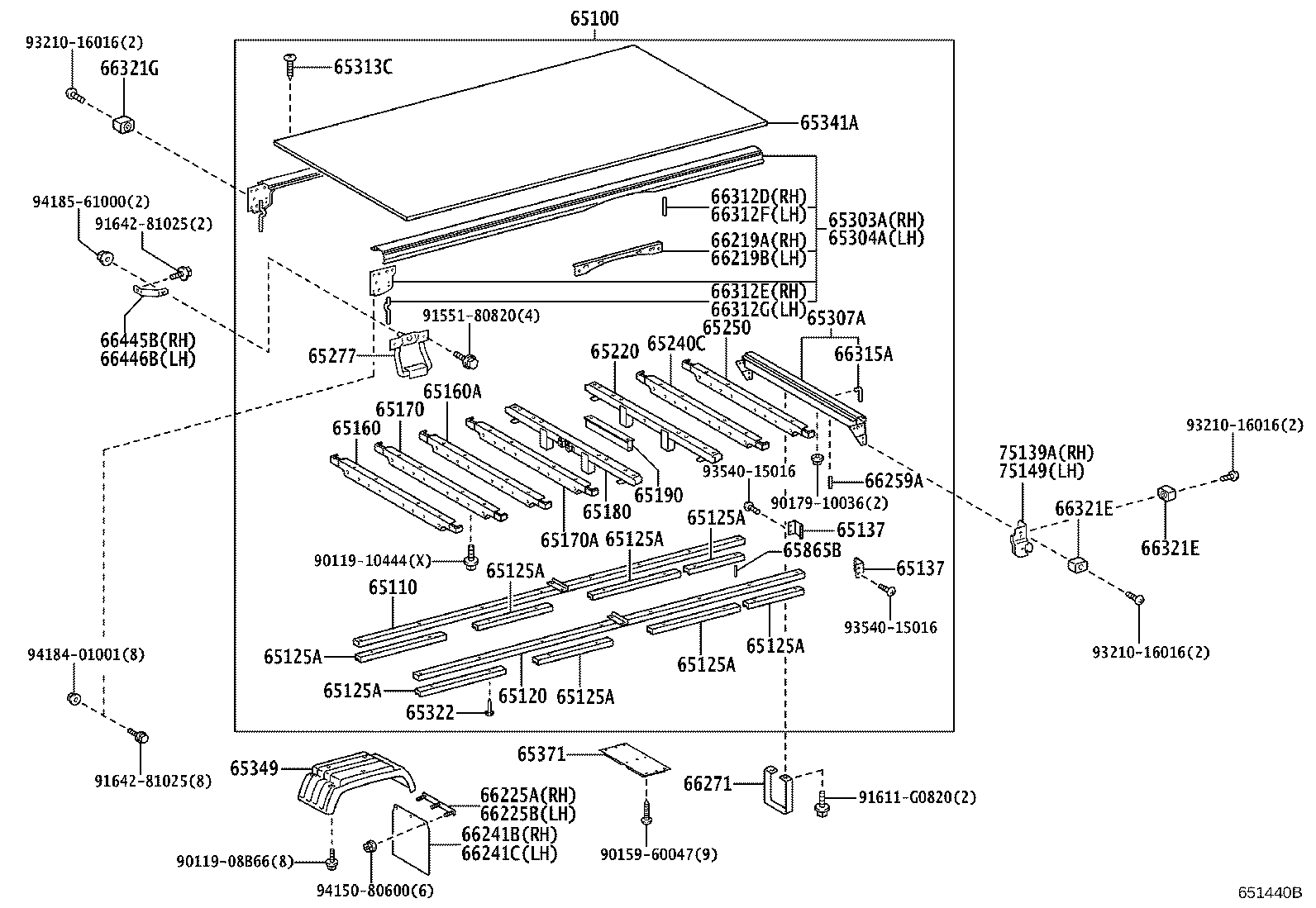

Figure 651440B

651440B 2021-03 → —

Part groups

PNC	Description
65100	Floor Assy, Rear Body
65110	Sill Assy, Main, RH
65120	Sill Assy, Main, LH
65125A	Shim, Main Sill, Lower NO.1
65137	Cover, Main Sill End
65160	Sill Assy, Cross, NO.2
65160A	Sill Assy, Cross, NO.2
65170	Sill Assy, Cross, NO.2
65170A	Sill Assy, Cross, NO.3
65180	Sill Assy, Cross, NO.4
65190	Sill Assy, Cross, NO.5
65220	Sill Assy, Cross, NO.4
65240C	Sill Assy, Cross, NO.9
65250	Sill Assy, Cross, NO.2
65277	Step, Side, Front
65303A	Frame Sub-assy, Floor Side, RH
65304A	Frame Sub-assy, Floor Side, LH
65307A	Frame Sub-assy, Floor, Rear
65313C	Screw(FOR FLOOR BOARD)
65322	Nail
65341A	Board, Floor, NO.1
65349	Fender, Floor Side
65371	Insulator, Rear Floor
65865B	Pin, Cover Top Guide
66219A	Extension, Rear Fender
66219B	Extension, Rear Fender
66225A	Support, Baffle Rubber
66225B	Support, Buffle Rubber
66241B	Baffle, Rubber
66241C	Buffle, Rubber
66259A	Cover, Rear Body Floor, Rear
66271	Step, Rear Body
66312D	Hook, Rope, NO.2
66312E	Hook, Rope, NO.2
66312F	Hook, Rope, NO.2
66312G	Hook, Rope, NO.2
66315A	Hook, Rope
66321E	Bumper, Gate Rubber
66321G	Bumper, Gate Rubber
66445B	Brace, Frame TO Rear Body
66446B	Brace, Frame TO Rear Body, NO.2
75139A	Bracket, Reflex Reflector, RH
75149	Bracket, Reflex Reflector, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
