Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03

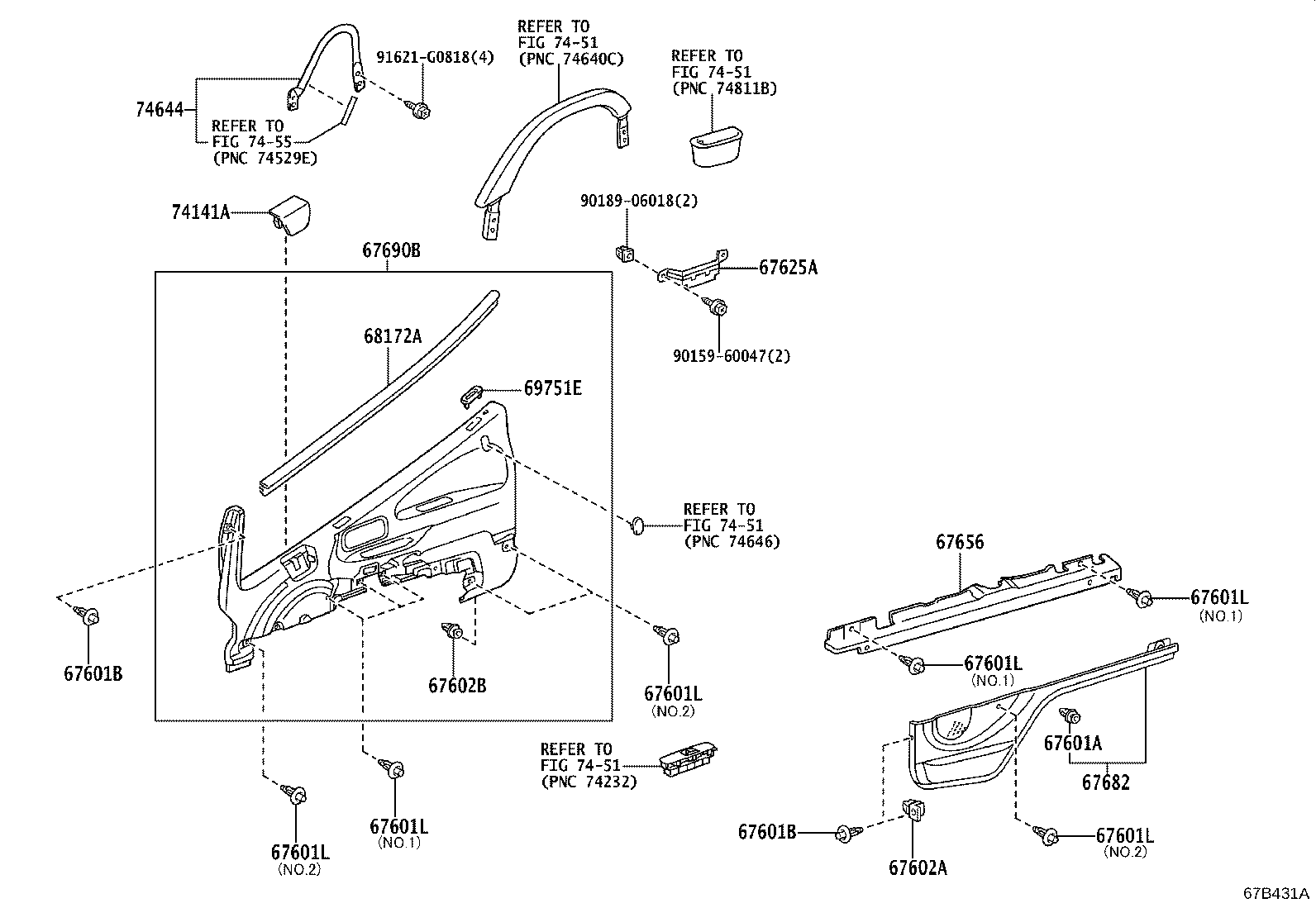

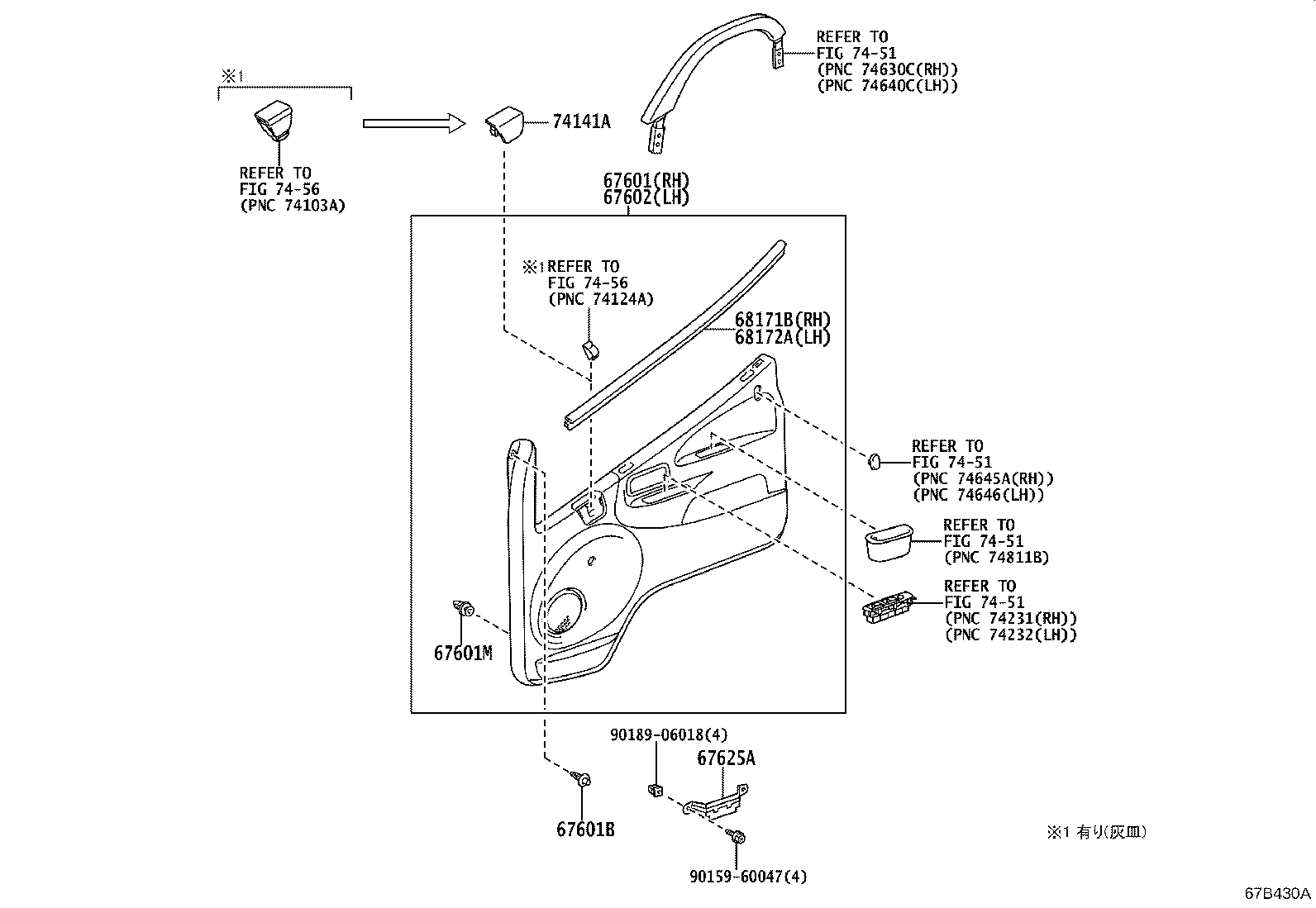

Front Door Panel & Glass
52 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53866F | Seal, Front Fender TO Cowl Side, RH |
| 53867F | Seal, FR Fender TO Cowl Side, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67259C | Reflector, Front Slide Door |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67495A | Cover, Front Door Front Lower Frame, Upper RH |
| 67496A | Cover, Front Door Front Lower Frame, Upper LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67499B | Retainar, Front Door Lower Frame Bracket Garnish, NO.2 |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601M | Retainer, Door Trim, NO.2 |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67602B | Retainer, Door Trim, NO.2 LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67625C | Bracket, Door Trim, NO.1 |
| 67656 | Garnish, Door Trim, LH |
| 67682 | Board, Slide Door Trim, Lower LH |
| 67690B | Board Assy, Slide Door Trim, Upr LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863B | Weatherstrip, Front Door, NO.2 RH |
| 67863D | Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67863G | Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67864B | Weatherstrip, Front Door, NO.2 LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
| 68618E | Bracket, Front Door Check Arm |
| 69751E | Holder, Front Door Lock Control Knob |
| 74141A | Garnish, Front Ash Receptacle, NO.1 |
| 74644 | Reinforcement, Door Assist Grip, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
