Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03

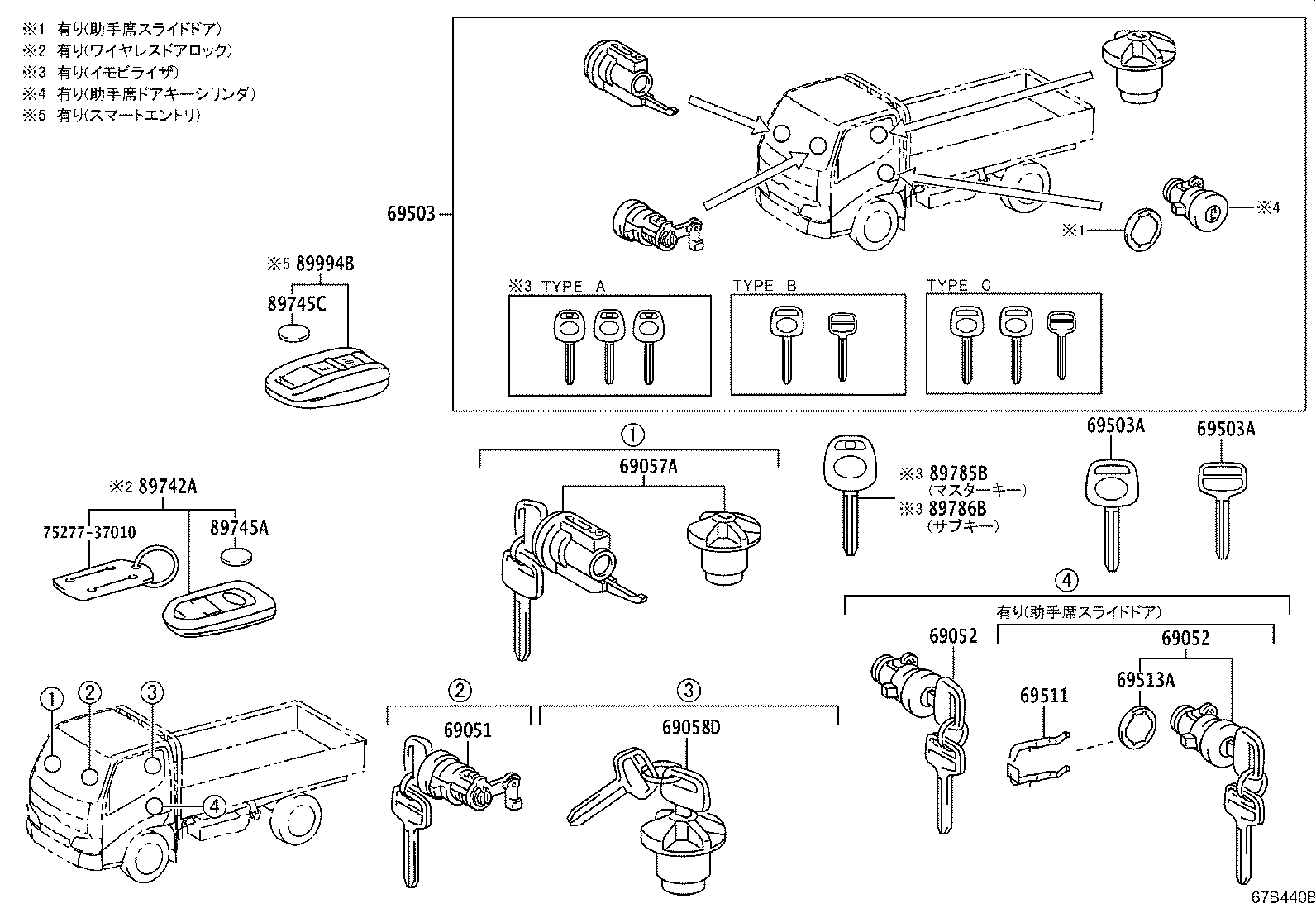

Lock Cylinder Set
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058D | Cylinder & Key Set, Fuel Tank Filler |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69513A | Pad, Door Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 77310D | Cap Assy, Fuel Tank |
| 89742A | Transmitter, Door Control |
| 89745A | Battery, Transmitter |
| 89745C | Battery, Transmitter |
| 89785B | Transmitter, Transponder Key Master |
| 89786B | Transmitter, Transponder Key Sub |
| 89994B | Transmitter, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
