Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03

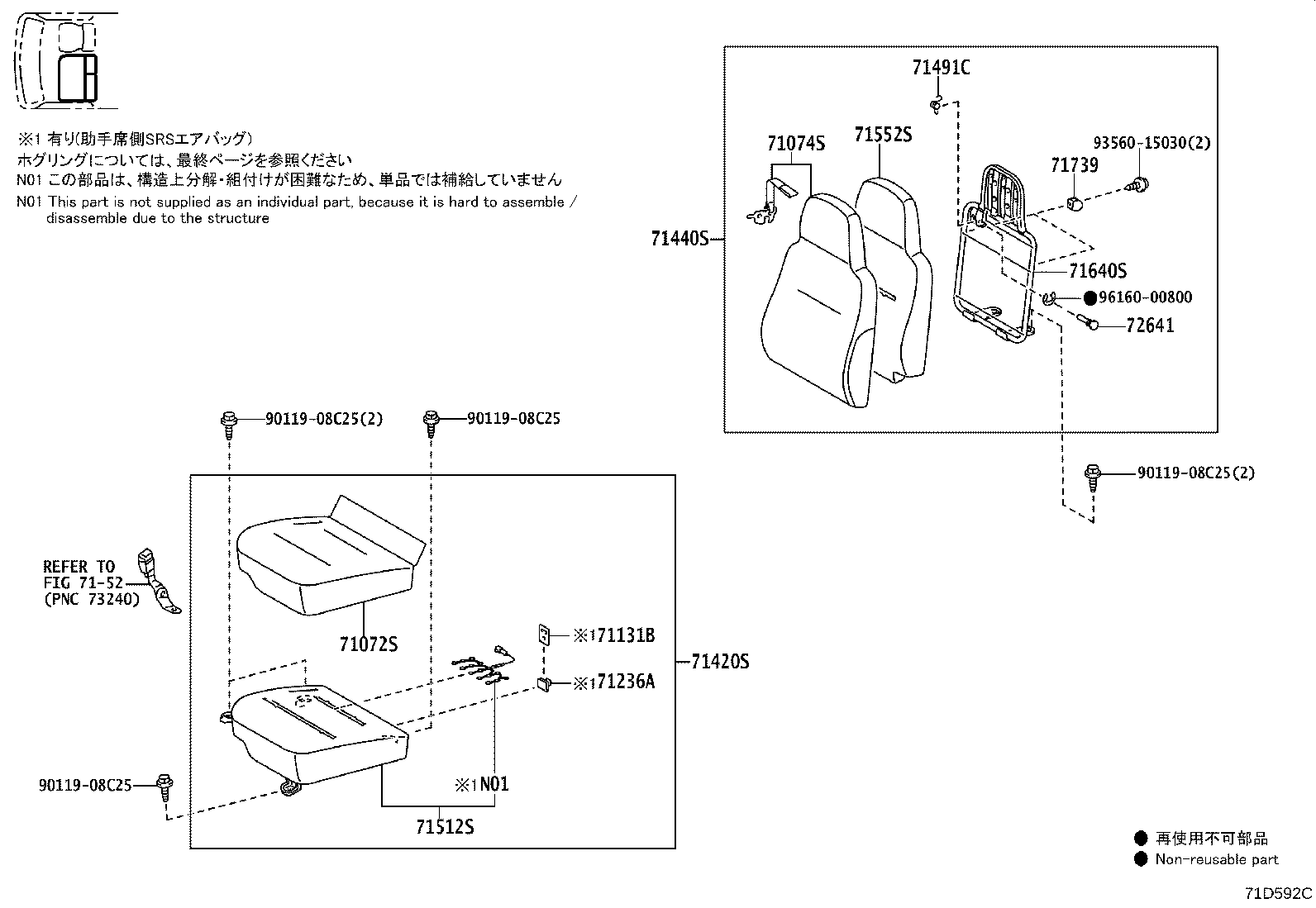

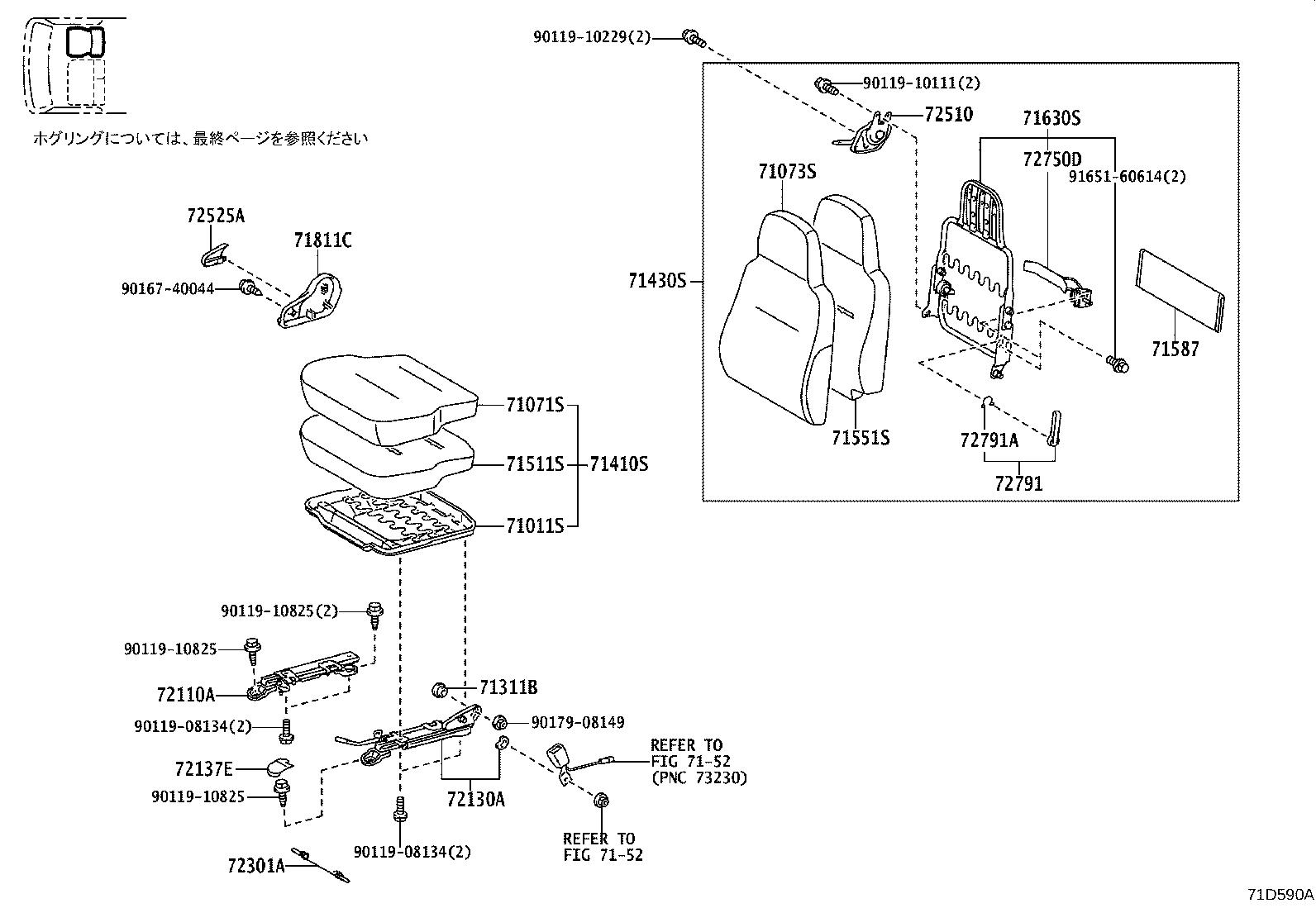

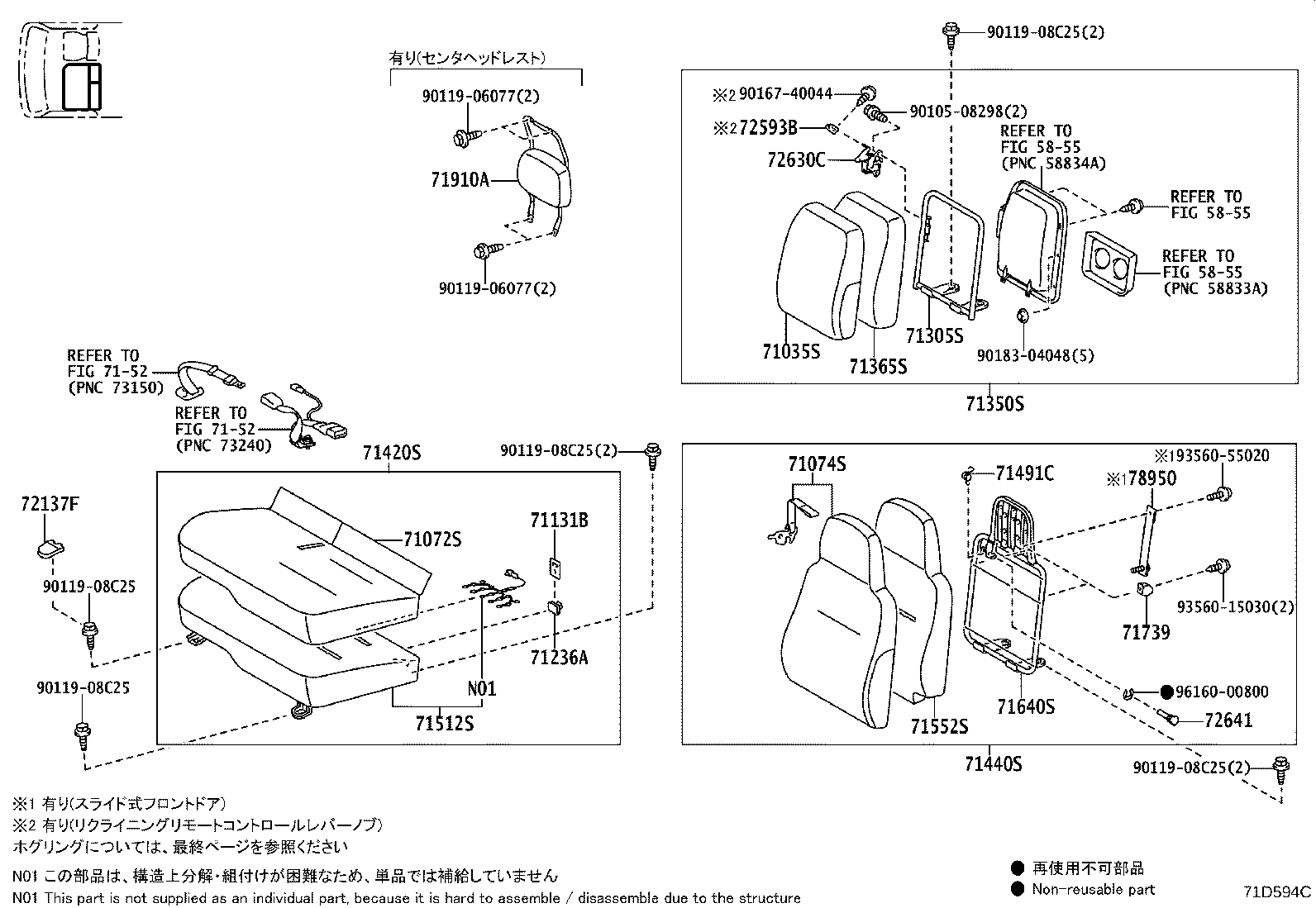

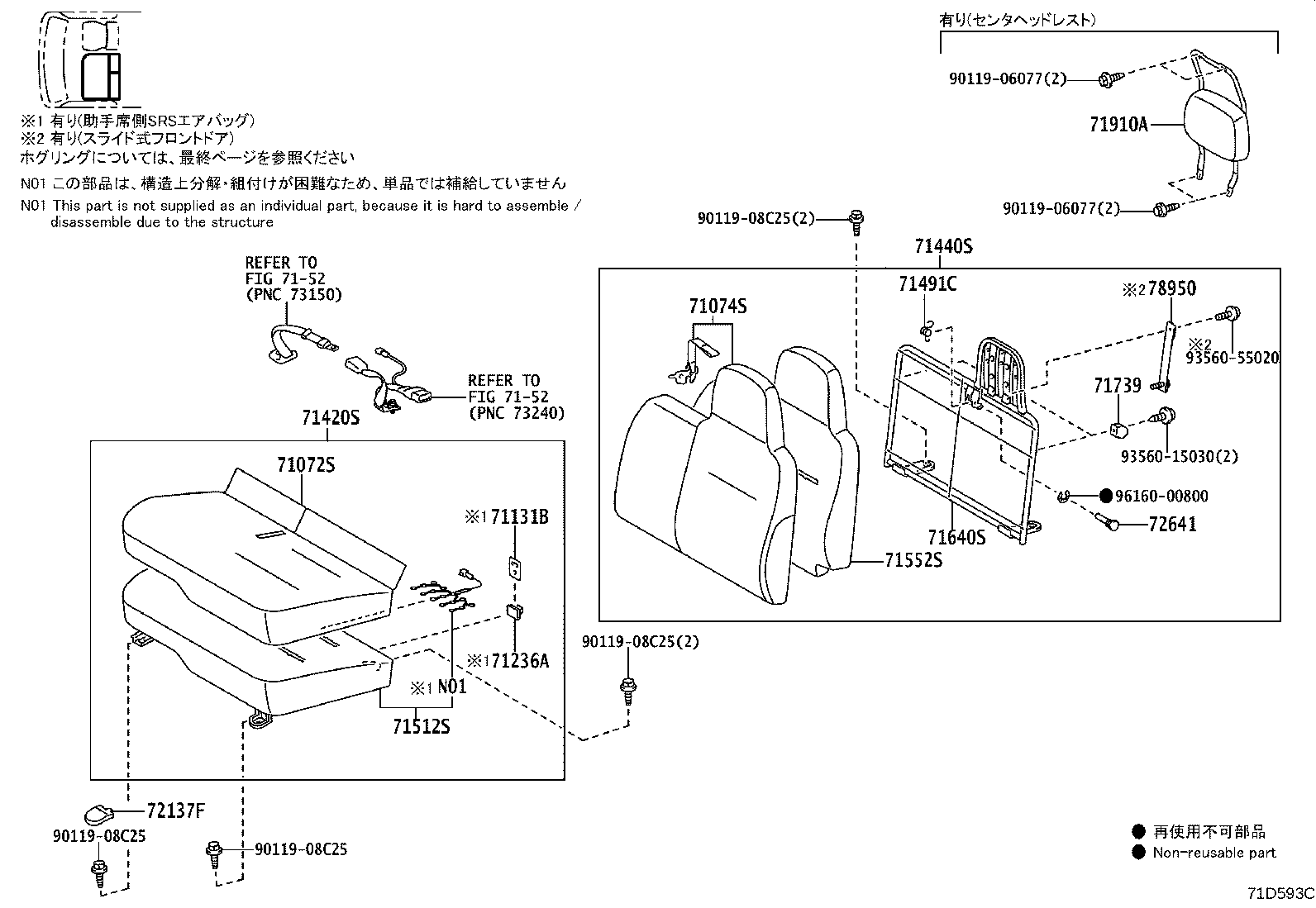

Seat & Seat Track
44 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71131B | Plate, Front Seat Cushion, NO.1 |
| 71236A | Clamp, Rear Seat Cushion Spring |
| 71305S | Frame Sub-assy, Center Seatback |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71350S | Back Assy, Front Seat, Center |
| 71365S | Pad, Center Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71491C | Spring, Rear Seat Set |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71739 | Cushion, Seat Support |
| 71811C | Cover, Reclining Adjuster, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71910A | Headrest Assy, Front Seat |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137E | Cover, Seat Track, NO.1 |
| 72137F | Cover, Seat Track, NO.2 |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72593B | Knob, Reclining Remote Control Lever, RH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72641 | Pin, Rear Seatback Lock |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
