Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03
Wiring & Clamp
47 part groups · 8 illustrations

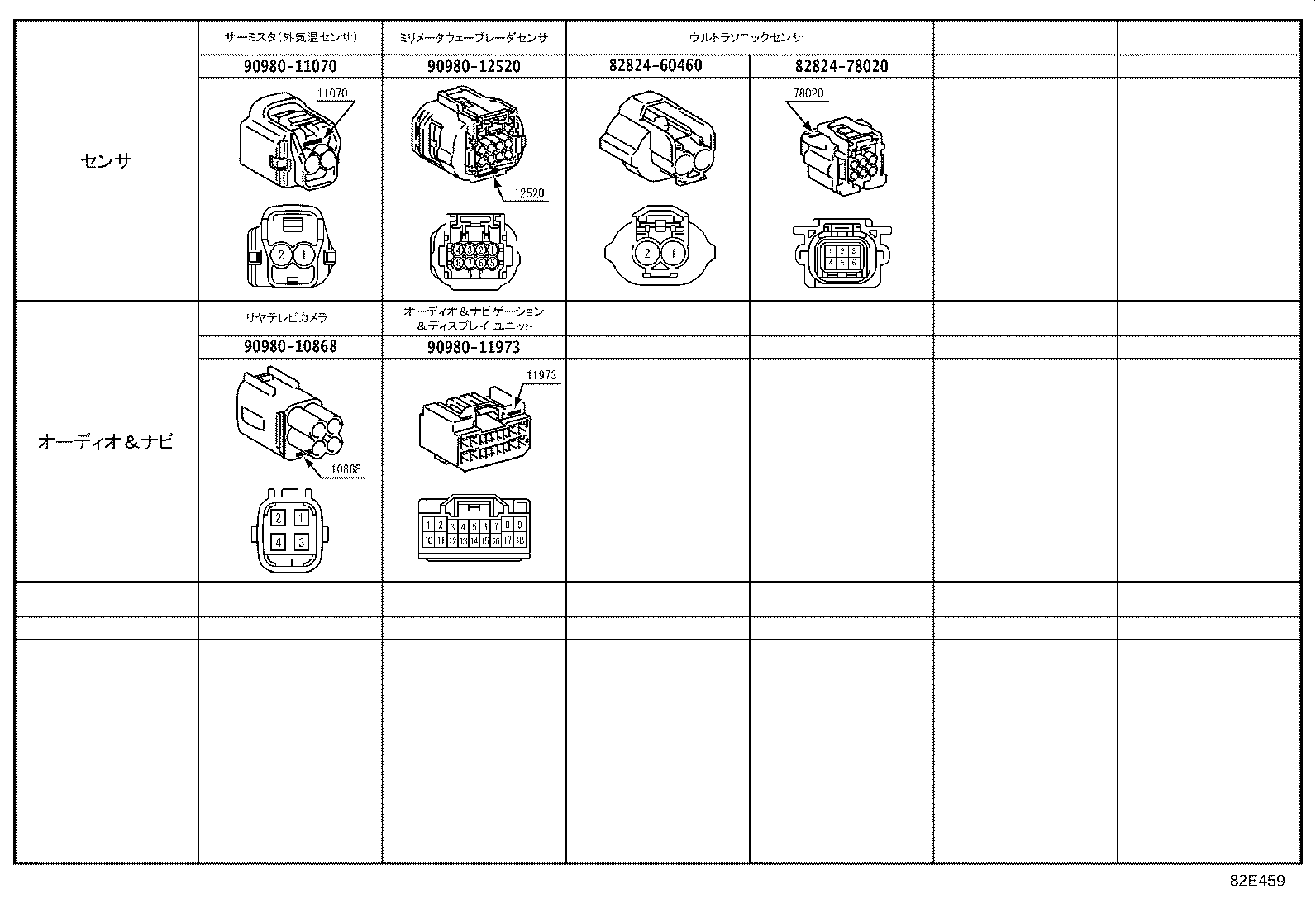

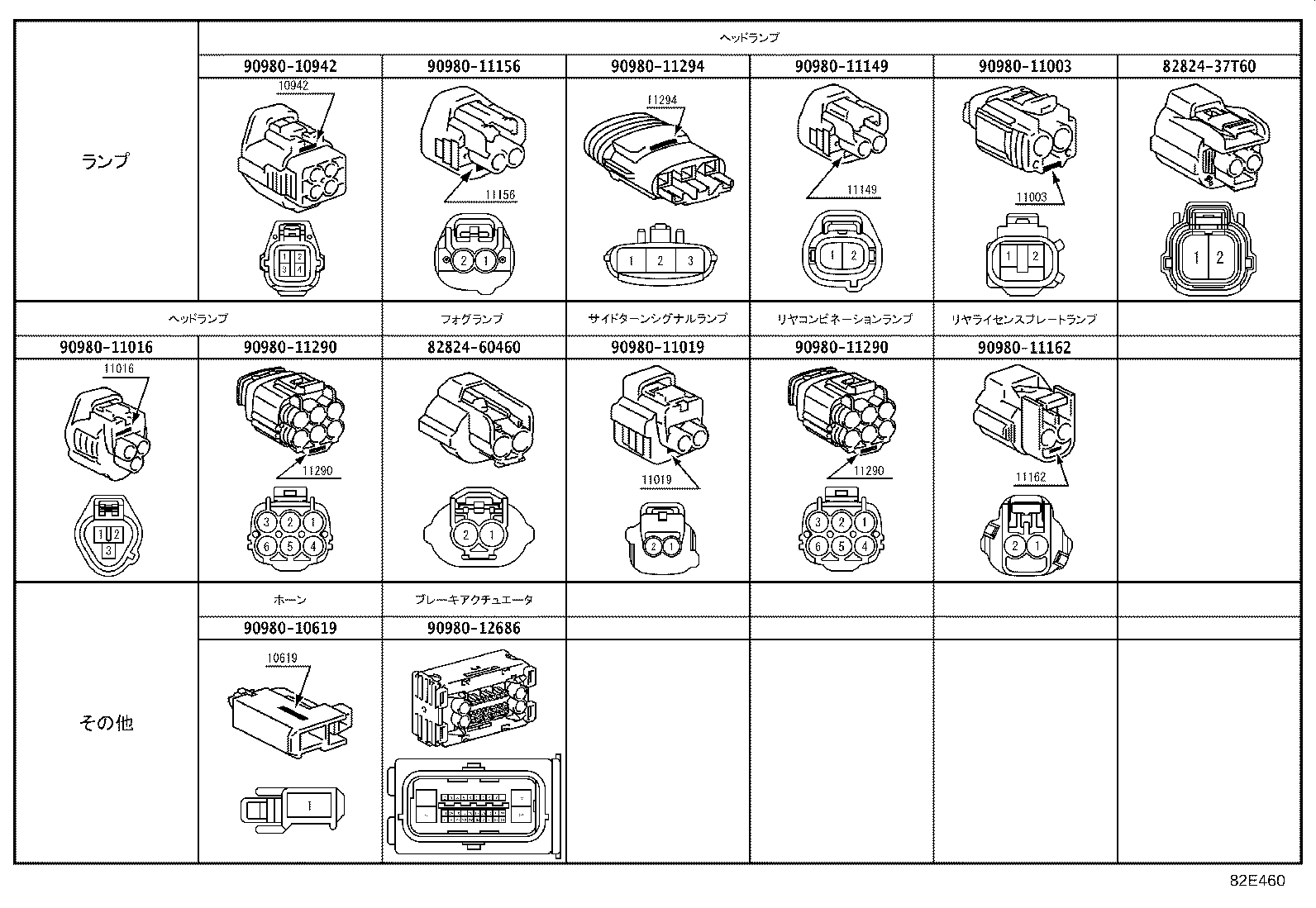

Part groups

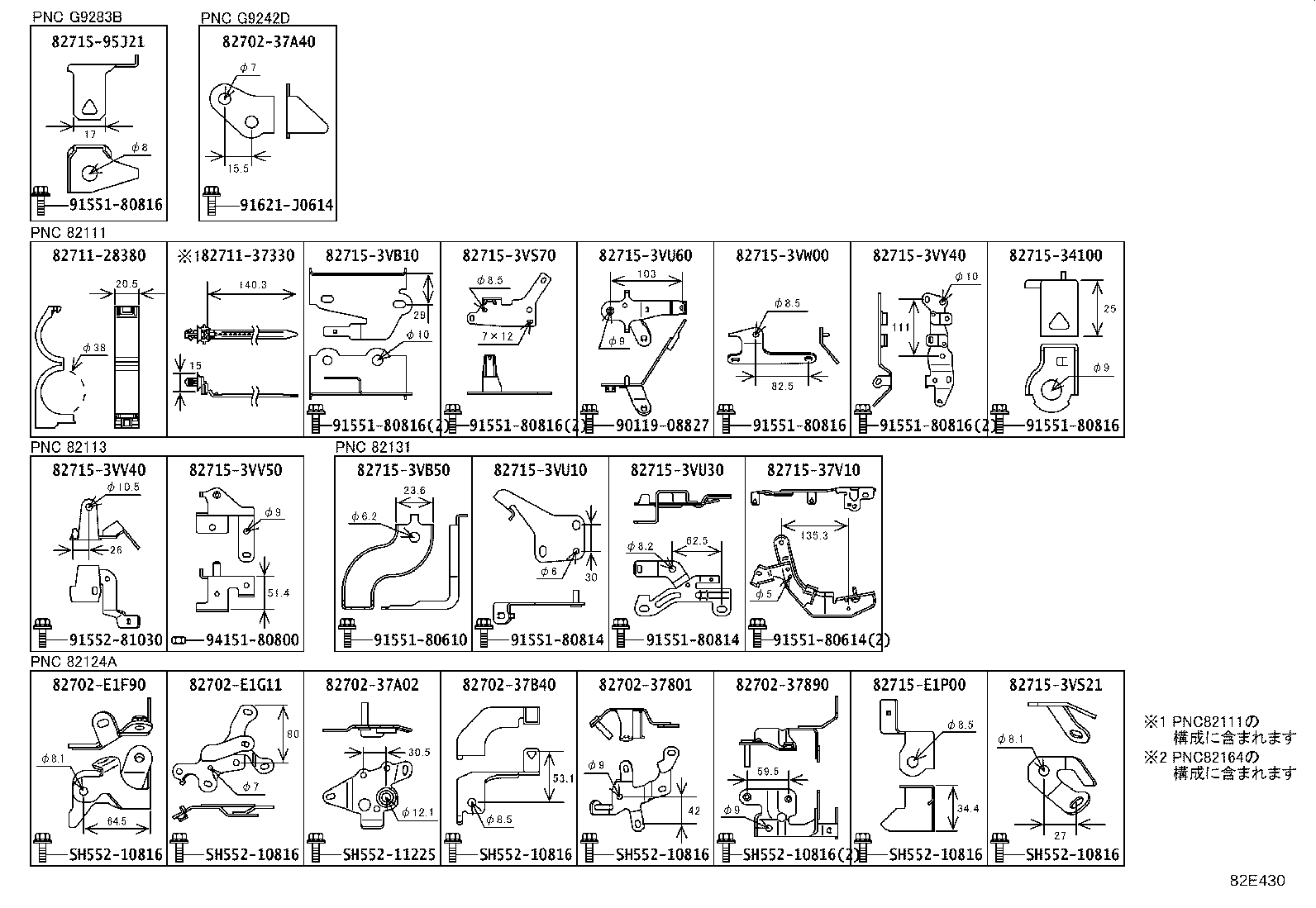

| PNC | Description |
|---|---|
| 82046D | Wire, Body Ground |
| 82050 | Wire Assy, Engine |
| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |
| 82119C | Wire, Engine Room, NO.5 |
| 82121 | Wire, Engine |
| 82124 | Wire, Engine, NO.4 |
| 82124A | Wire, Engine, NO.5 |
| 82125 | Wire, Transmission |
| 82126A | Wire, Engine, NO.6 |
| 82128A | Wire, Engine, NO.8 |
| 8212A | Wire, Engine, NO.9 |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82134 | Wire, Cowl, NO.4 |

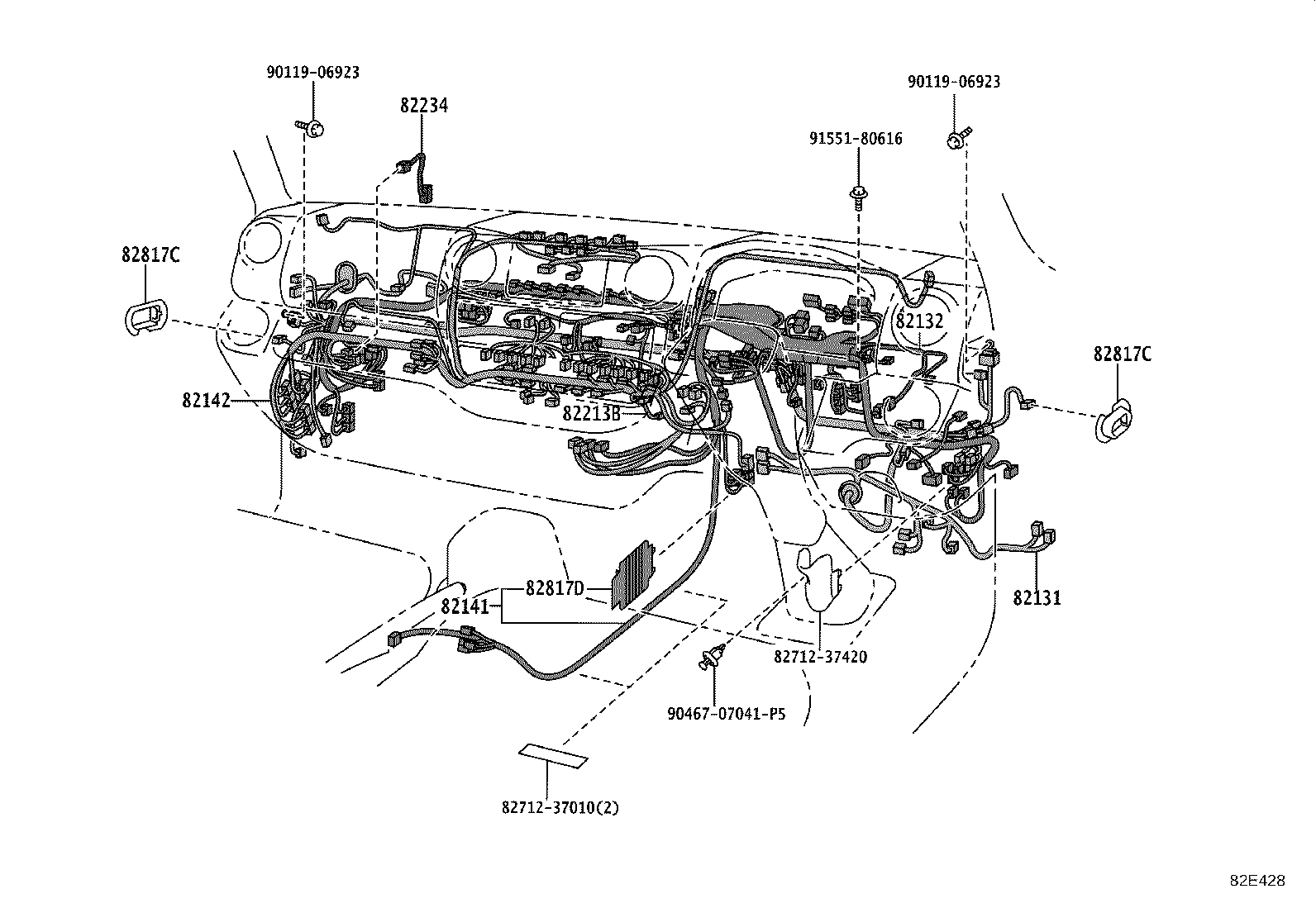

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

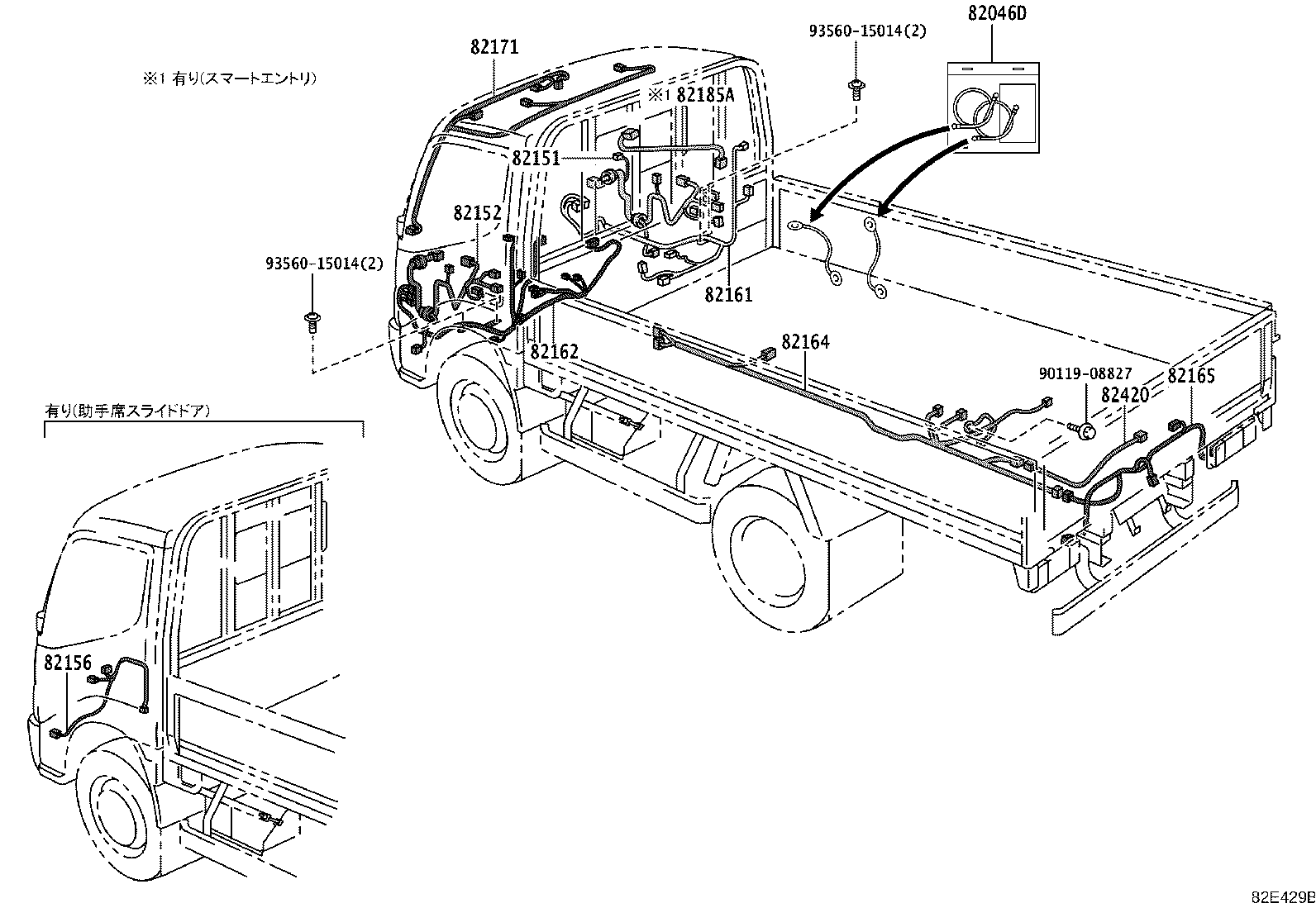

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82156 | Wire, Slide Door |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82185A | Wire, Smart Door, Front RH |
| 82213B | Wire, Heater |
| 82221 | Wire, Oil Pressure Switch |
| 82234 | Wire, Computer, NO.2 |
| 82284 | Wire, Earth |
| 82420 | Wiring Assy, Chassis |

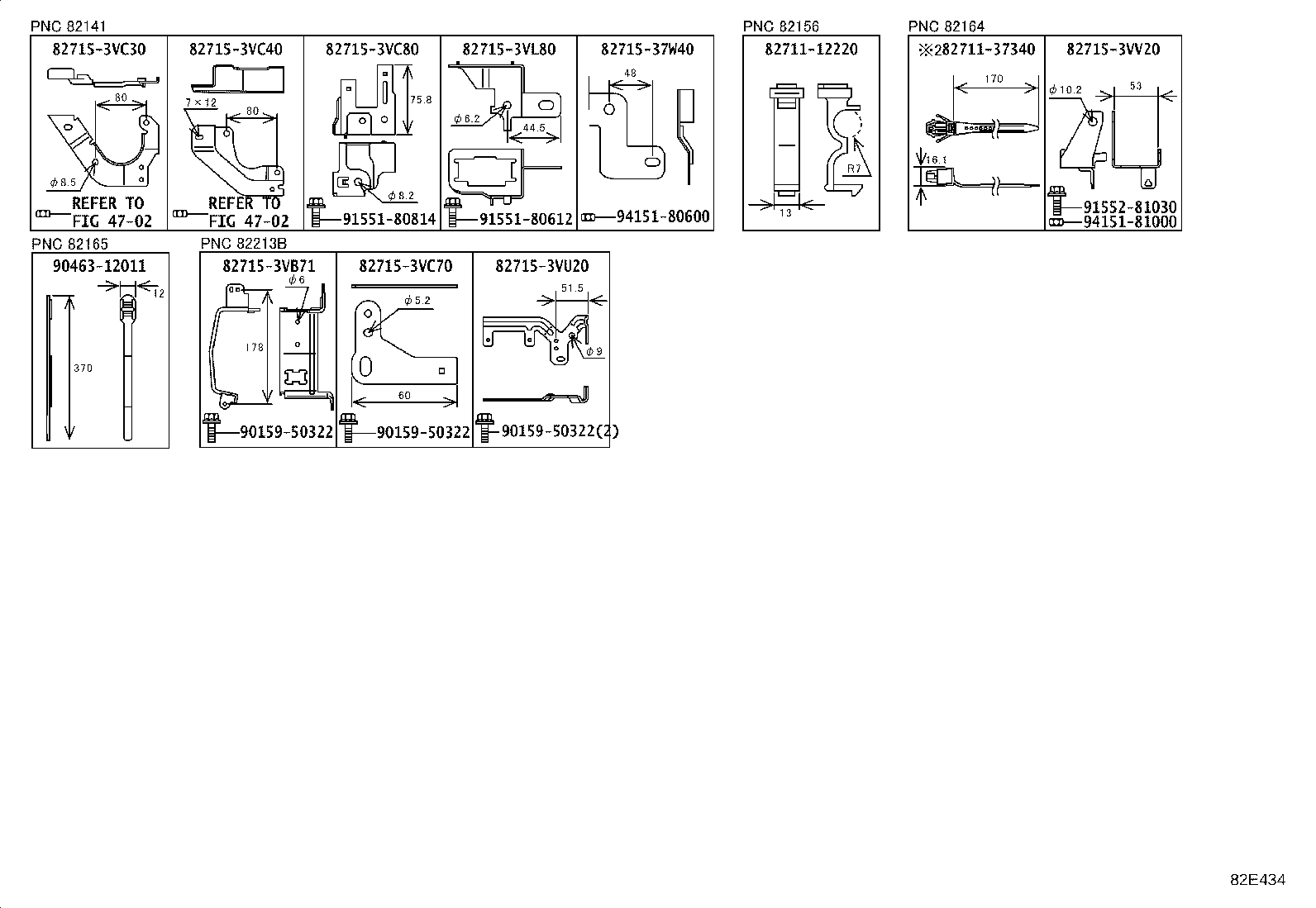

| 82712A | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82821A | Cover, Connector |
| 82823B | Cap, Terminal, NO.3 |

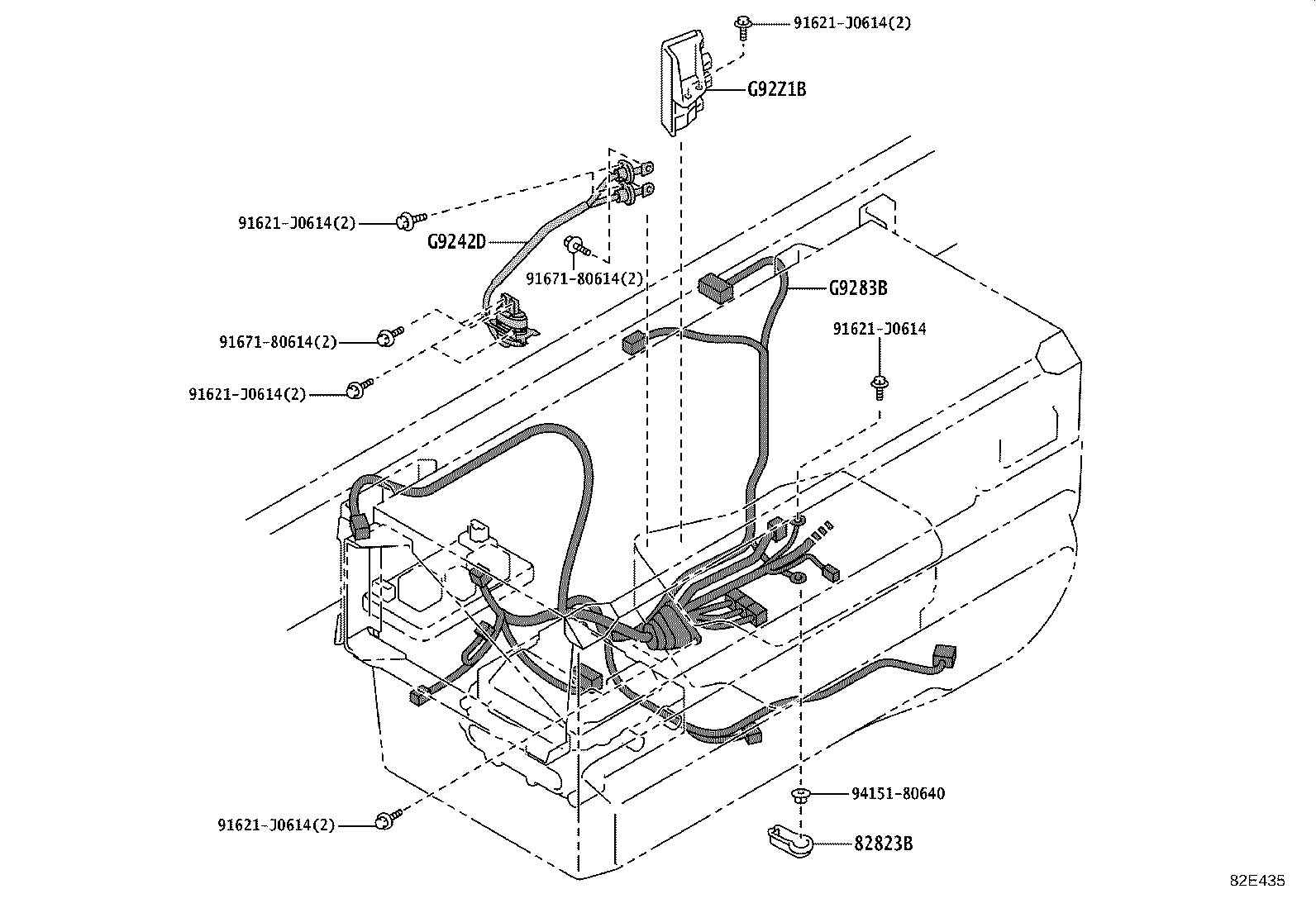

| G9242D | Cable, Main Battery, NO.1 |
| G9283B | Wire, Hybrid Battery |
| G92Z1B | Block, HV Battery Junction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
