Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03

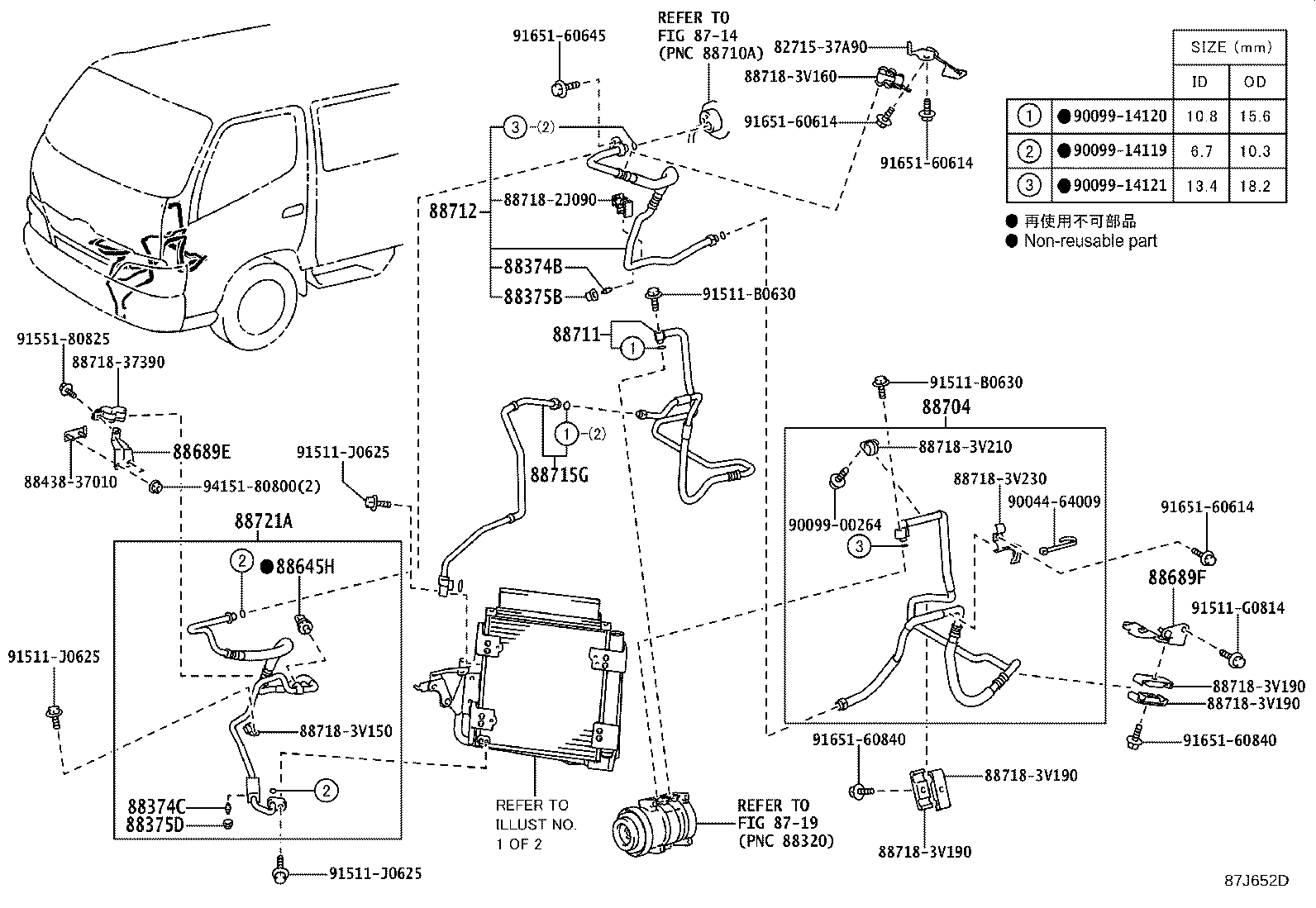

Heating & Air Conditioning - Cooler Piping
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88453A | Fan, Cooling |
| 88454A | Shroud, Fan |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88461A | Core, Cooler Condenser |
| 88461B | Cover, Cooler Condenser |
| 88474 | Dryer, Cooler |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88645H | Switch, Pressure NO.1 |
| 88689E | Bracket, Cooler, NO.1 |
| 88689F | Bracket, Cooler, NO.2 |
| 88704 | Hose Sub-assy, Suction |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715G | Tube, Discharge, G |
| 88721A | Hose, Liquid, A |
| 88892C | Plate, Condenser, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
