Toyota Dyna HV
2021-03 → present · chassis XKC605,XKU6## · catalogue 753130 · Japan
Supported model
Data version 2021-03
Heating & Air Conditioning - Compressor

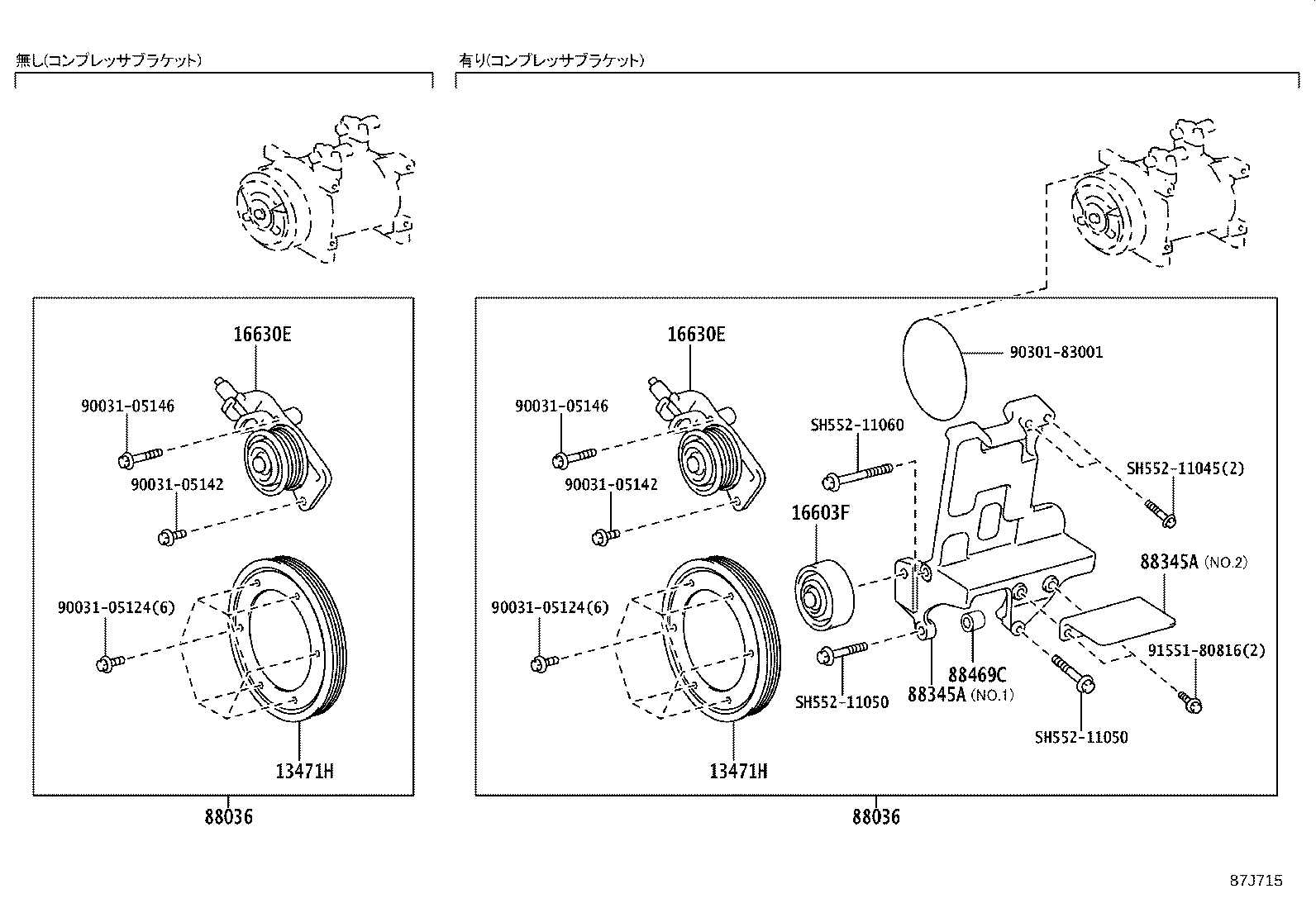

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13471H | Pulley, Crankshaft |
| 16603F | Pulley Sub-assy, Idler |
| 16630E | Pulley Assy, Idler |
| 88036 | Compressor Mounting Set |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88345A | Bracket, Compressor Mounting |
| 88410 | Clutch Assy, Magnet |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88469C | Spacer |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
