Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

9 part groups · 2 illustrations

Illustrations

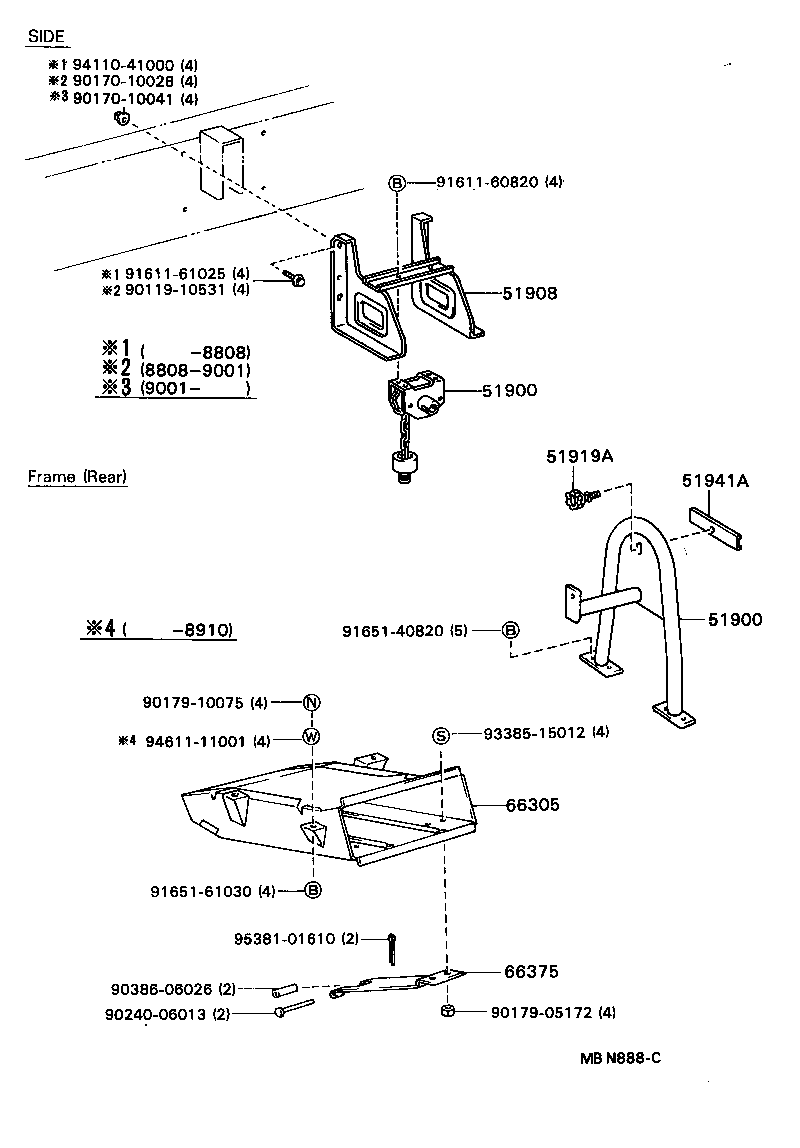

Figure MBK294B MBK294B 1986-01 → 1987-08 Figure MBN888C MBN888C 1987-08 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51919A Plate, Spare Wheel Mounting
51941A Bracket, Spare Wheel Carrier
66305 Box Sub-assy, Hand Truck
66308 Stopper Sub-assy, Hand Truck
66309 Hinge Sub Assy, Hand Truck Stopper
66373 Packing, Stopper Hinge Male
66375 Catch, Hand Truck Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
