Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

25 part groups · 3 illustrations

Illustrations

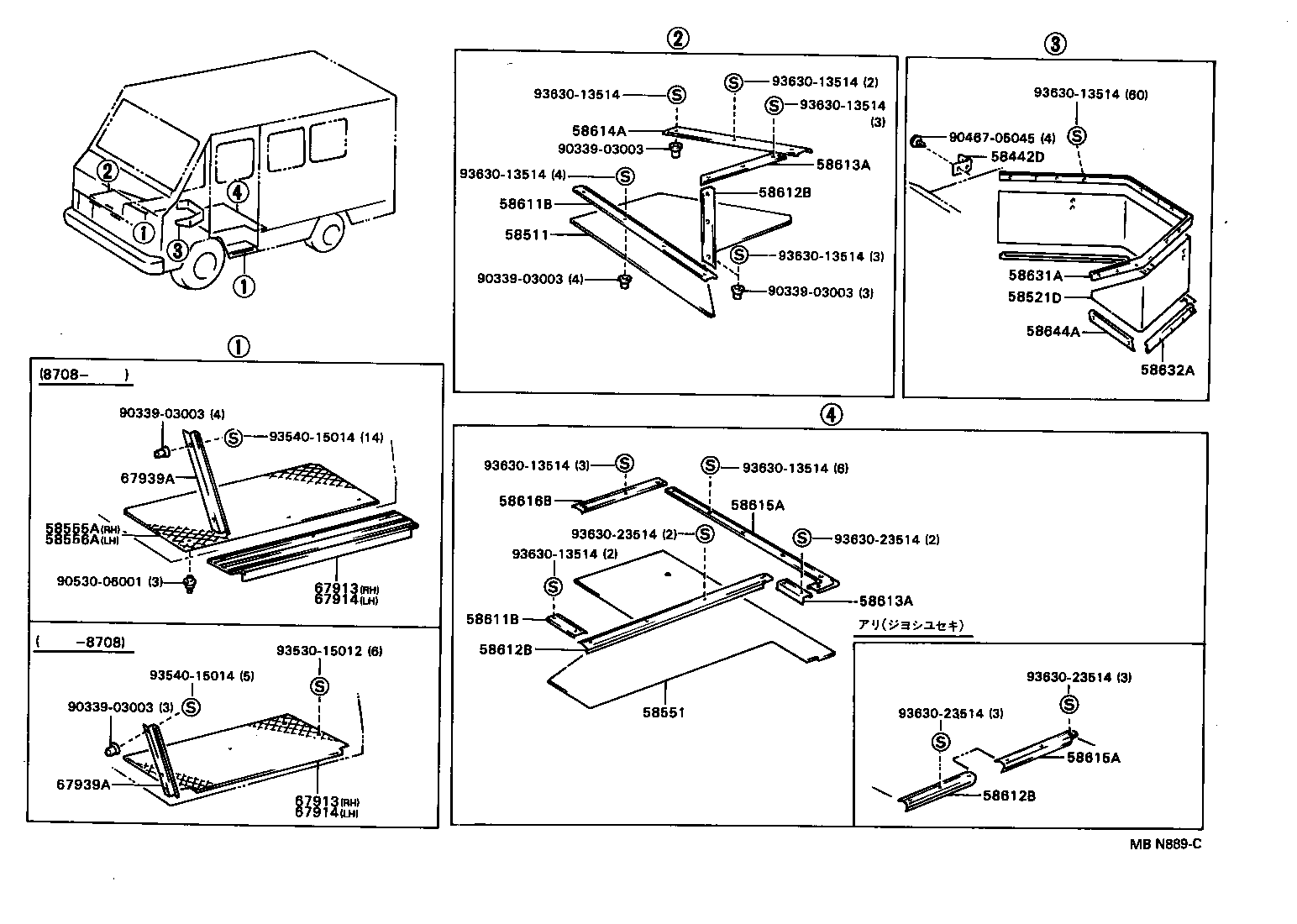

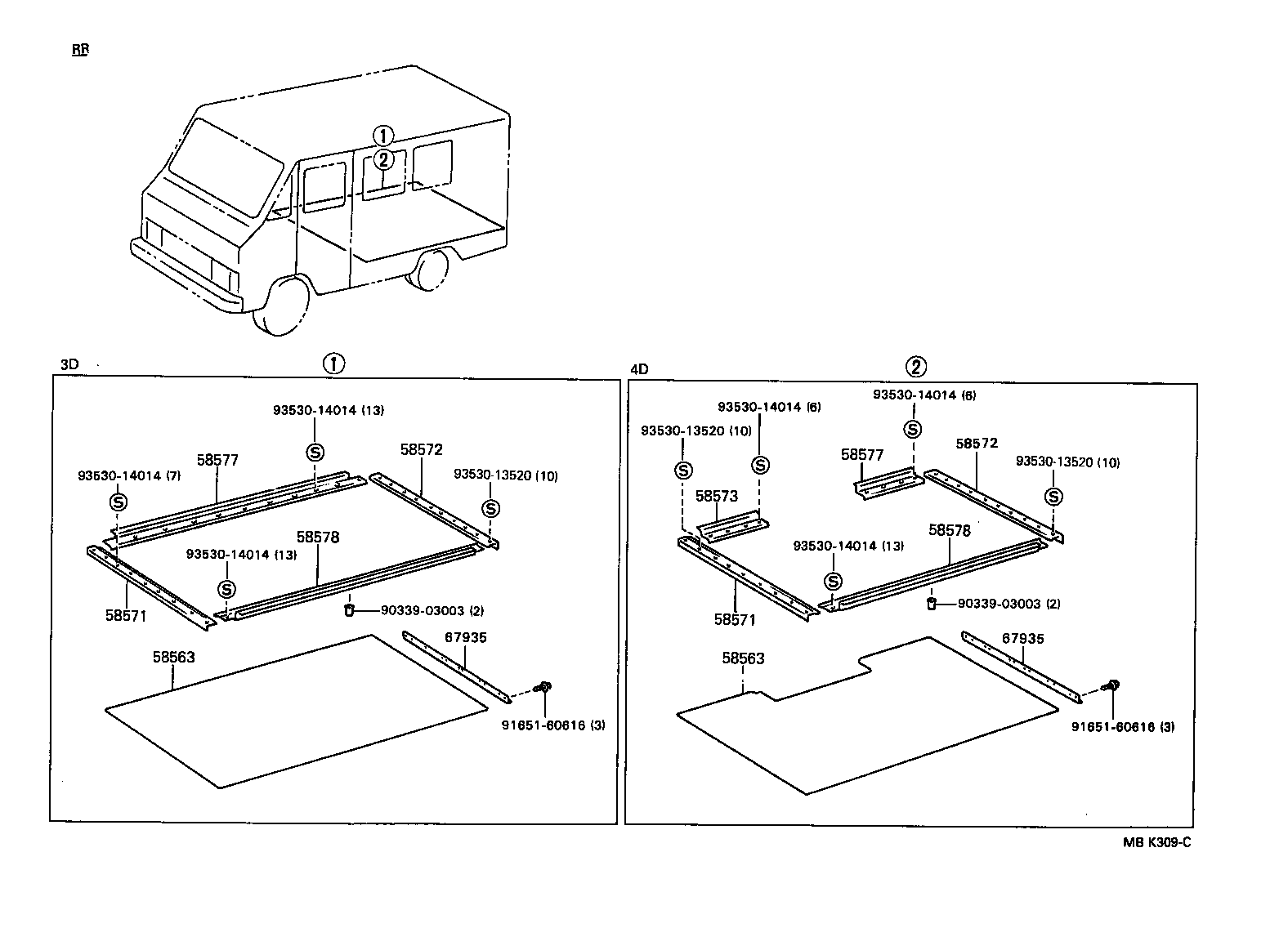

Figure MBK308D MBK308D 1986-01 → 1987-04 Figure MBN889C MBN889C 1987-04 → — Figure MBK309C MBK309C 1986-01 → —

Part groups

PNCDescription
58442D Cover, Jack
58511 Mat, Floor, Front
58521D Mat, Engine Service Hole Cover
58551 Mat, Floor, Rear
58555A Mat, Front, RH
58556A Mat, Front, LH
58563 Mat, Rear Floor
58571 Set Plate, Rear Floor Mat, Front
58572 Set Plate, Rear Floor Mat, Rear
58573 Set Plate, Rear Floor Mat Side, Front RH
58577 Set Plate, Rear Floor Mat Side, Rear RH
58578 Set Plate, Rear Floor Mat Side, Rear LH
58611B Plate, Mat Set, NO.1
58612B Plate, Mat Set, NO.2
58613A Plate, Mat Set, NO.3
58614A Plate, Mat Set, NO.4
58615A Plate, Mat Set, NO.5
58616B Plate, Mat Set, NO.6
58631A Plate, Engine Service Hole Mat, Front
58632A Plate, Engine Service Hole Mat, Rear
58644A Plate, Engine Service Hole Mat, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67935 Plate, Back Door Scuff
67939A Protector, Front Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
