Toyota Dyna/Toyoace Quick
1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan
Discontinued model
Data version 1995-11

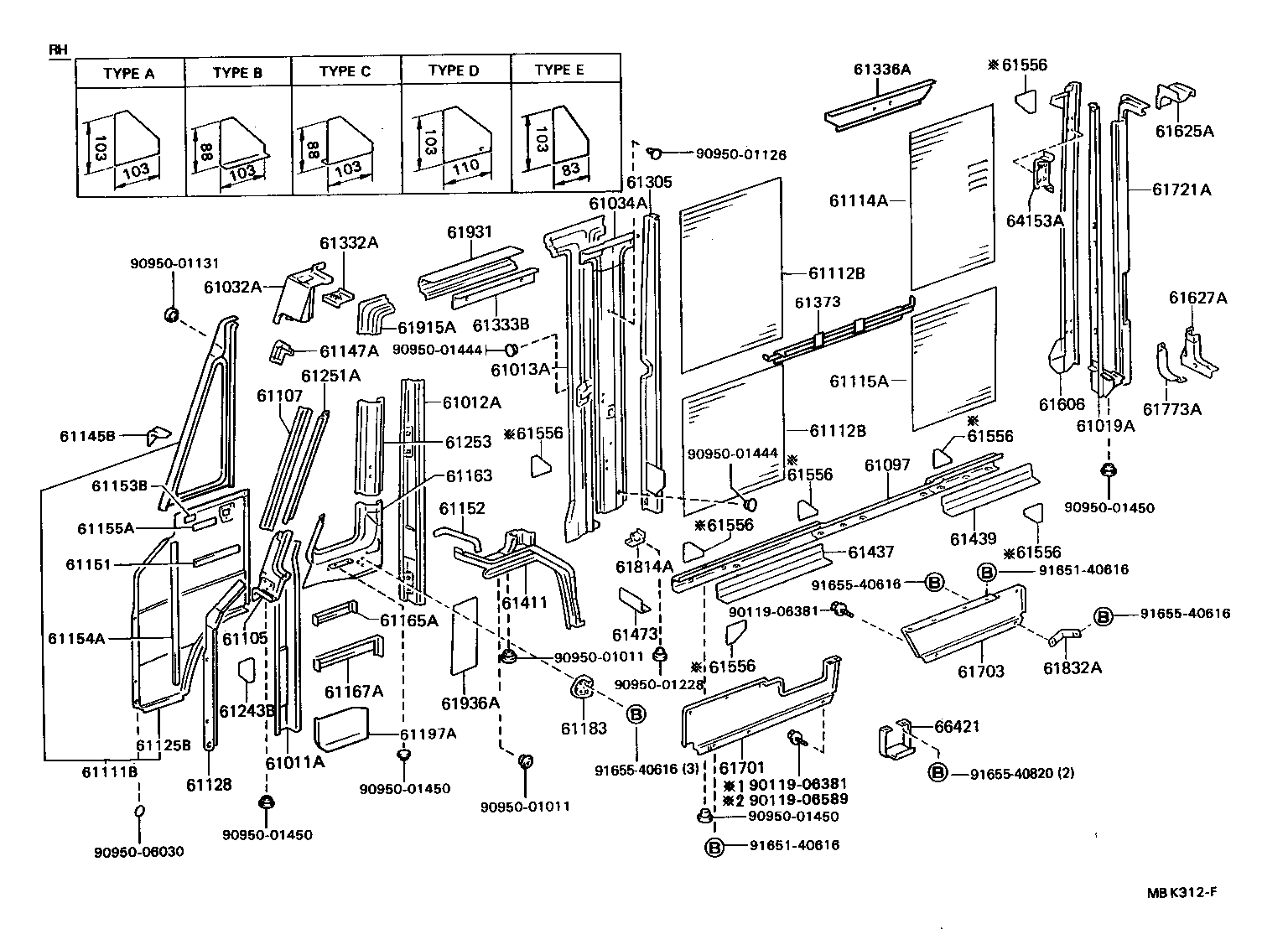

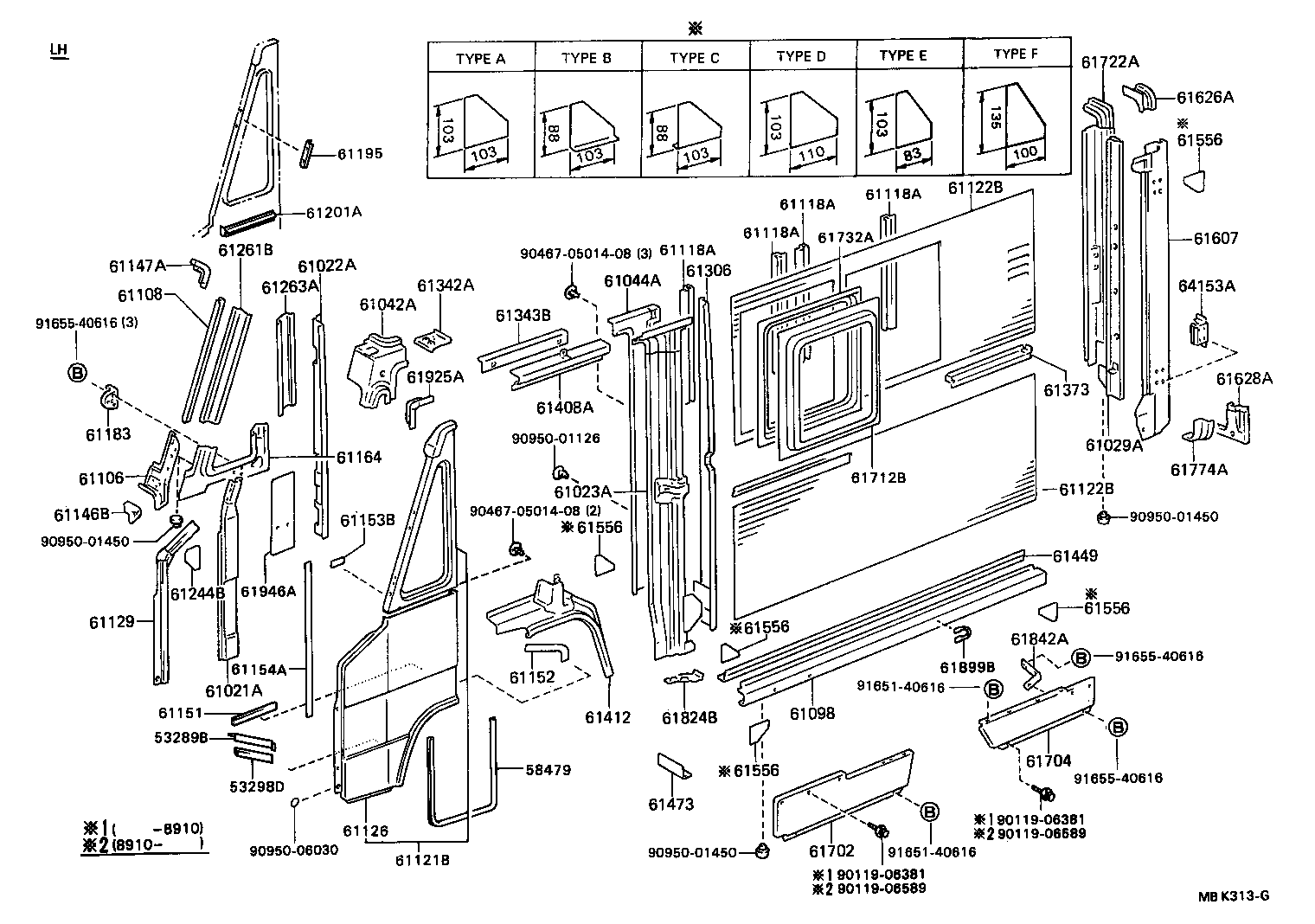

Side Member
124 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 53289B | Bracket, Cool Air Intake Guard, NO.3 |
| 53298D | Cushion, Cool Air Intake Bracket |
| 57396 | Plate, Front Step, NO.2 LH |
| 58479 | Protector, Tool Bag |
| 61011A | Pillar Sub-assy, NO.1 RH |
| 61012A | Pillar Sub-assy, NO.2 RH |
| 61013A | Pillar Sub-assy, NO.3 RH |
| 61014A | Pillar Sub-assy, NO.4 RH |
| 61015A | Pillar Sub-assy, NO.5 RH |
| 61019A | Pillar Sub-assy, NO.9 RH |
| 61021A | Pillar Sub-assy, NO.1 LH |
| 61022A | Pillar Sub-assy, NO.2 LH |
| 61023A | Pillar Sub-assy, NO.3 LH |
| 61024A | Pillar Sub-assy, NO.4 LH |
| 61025 | Pillar Sub-assy, NO.4 RH |
| 61029A | Pillar Sub-assy, NO.9 LH |
| 61032A | Pillar Sub-assy, NO.1 Inner, RH |
| 61034A | Pillar Sub-assy, NO.3 Inner, RH |
| 61036B | Pillar Sub-assy, NO.5 Inner, RH |
| 61042A | Pillar Sub-assy, NO.1 Inner, LH |
| 61044A | Pillar Sub-assy, NO.3 Inner, LH |
| 61047 | Reinforce Sub-assy, Center Body Pillar, Center |
| 61053A | Rail Sub-assy, NO.1 Center, Inner |
| 61063D | Rail Sub-assy, NO.1 Center, Inner LH |
| 61085A | Rail Sub-assy, NO.3 Upper Outer, LH |
| 61097 | Rail Sub-assy, NO.5 Lower Outer, RH |
| 61098 | Rail Sub-assy, NO.5 Lower Outer, LH |
| 61105 | Pillar Sub-assy, Front Body Lower Outer, RH |
| 61106 | Pillar Sub-assy, Front Body Lower Outer, LH |
| 61107 | Pillar Sub-assy, Front Body Outer, RH |
| 61108 | Pillar Sub-assy, Front Body Outer, LH |
| 61111B | Panel, NO.1 Side, RH |
| 61112B | Panel, NO.2 Side, RH |
| 61114A | Panel, NO.3 Side, RH |
| 61115A | Panel, NO.4 Side, RH |
| 61117A | Gusset, Side Panel Relief, NO.1 |
| 61118A | Gusset, Side Panel Relief, NO.2 |
| 61121B | Panel, NO.1 Side, LH |
| 61122B | Panel, NO.2 Side, LH |
| 61125B | Panel, Cowl Side, Front RH |
| 61126 | Panel, Cowl Side, Front LH |
| 61128 | Reinforcement, Cowl Side Panel, RH |
| 61129 | Reinforcement, Cowl Side Panel, LH |
| 61145B | Gusset, Front Body Pillar, Lower RH |
| 61146B | Gusset, Front Body Pillar, Lower LH |
| 61147A | Extension, Front Body Pillar, Upper Outer |
| 61151 | Cushion, Side Panel Stiffener, NO.1 |
| 61152 | Cushion, Side Panel Stiffener, NO.2 |
| 61153B | Cushion, Side Panel Stiffener, NO.3 |
| 61154A | Cushion, Side Panel Stiffener, NO.4 |
| 61155A | Cushion, Side Panel Stiffener, NO.5 |
| 61163 | Pillar, Front Body, Inner RH |
| 61164 | Pillar, Front Body, Inner LH |
| 61165A | Stiffener, Side Panel, Upper NO.5 |
| 61167A | Stiffener, Side Panel, Lower RH |
| 61171B | Stiffener, Side Panel, Lower NO.2 |
| 61183 | Bracket, Instrument Panel Side |
| 61195 | Retainer, Outer Side Mirror, LH |
| 61197A | Cover, Front Pillar, RH |
| 61201A | Stiffener Sub-assy, Side Panel, NO.1 |
| 61243B | Plate, Front Body Pillar End, RH |
| 61244B | Plate, Front Body Pillar End, LH |
| 61251A | Pillar, NO.1 Inner, RH |
| 61253 | Pillar, NO.2 Inner, RH |
| 61256 | Pillar, NO.4 Inner, RH |
| 61261B | Pillar, NO.1 Inner, LH |
| 61263A | Pillar, NO.2 Inner, LH |
| 61301F | Rail Sub-assy, NO.1 Center, Outer RH |
| 61302F | Rail Sub-assy, NO.1 Center, Outer LH |
| 61303A | Rail Sub-assy, NO.2 Center, Outer RH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61332A | Rail, NO.1 Upper Inner, Rear RH |
| 61333B | Rail, NO.2 Upper Inner, RH |
| 61334B | Rail, NO.3 Upper Inner, RH |
| 61336A | Rail, NO.5 Upper Inner, RH |
| 61342A | Rail, NO.1 Upper Inner, Rear LH |
| 61343B | Rail, NO.2 Upper Inner, LH |
| 61344B | Rail, NO.3 Upper Inner, LH |
| 61356 | Channel, Roof Drip Side, Front RH |
| 61366A | Channel, Roof Drip Side, Front LH |
| 61372A | Rail, NO.2 Center, Inner RH |
| 61373 | Rail, NO.3 Center, Inner |
| 61408A | Rail Sub-assy, NO.1 Upper Outer, LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61437 | Rail, NO.7 Lower Inner, RH |
| 61439 | Rail, NO.5 Lower Inner, RH |
| 61449 | Rail, NO.5 Lower Inner, LH |
| 61473 | Plate, Pillar NO.3, Lower |
| 61556 | Gusset, Pillar TO Rail, NO.1 |
| 61606 | Frame Sub-assy, Back Door Opening Side, RH |
| 61607 | Frame Sub-assy, Back Door Opening Side, LH |
| 61625A | Extension Sub-assy, Quarter Panel, RH |
| 61626A | Extension Sub-assy, Quarter Panel, LH |
| 61627A | Extension, Quarter Panel, Lower RH |
| 61628A | Extension, Quarter Panel, Lower LH |
| 61701 | Skirt Sub-assy, Quarter Panel, Front RH |
| 61702 | Skirt Sub-assy, Quarter Panel, Front LH |
| 61703 | Skirt Sub-assy, Quarter Panel, Rear RH |
| 61704 | Skirt Sub-assy, Quarter Panel, Rear LH |
| 61711B | Panel, Side Window, Outer RH |
| 61712B | Panel, Side Window, Outer LH |
| 61721A | Panel, Quarter Inner Corner, RH |
| 61722A | Panel, Quarter Inner Corner, LH |
| 61731A | Panel, Side Window, Inner RH |
| 61732A | Panel, Side Window, Inner LH |
| 61773A | Patch, Back Door Opening, Lower RH |
| 61774A | Patch, Back Door Opening, Lower LH |
| 61814A | Plate, Dust Proof, NO.2 RH |
| 61824B | Plate, Dust Ploof, NO.2 LH |
| 61832A | Stay, Side Panel, NO.2 RH |
| 61842A | Stay, Side Panel, NO.2 LH |
| 61899B | Bracket, Side Catch Door Stay |
| 61915A | Pillar, NO.2 Outer, Upper RH |
| 61925A | Pillar, NO.2 Outer, Upper LH |
| 61931 | Strength, Upper Rail, NO.1 RH |
| 61933 | Strength, Upper Rail, NO.3 RH |
| 61936A | Pillar, NO.2 Inner, Lower |
| 61946A | Pillar, NO.2 Inner, Lower LH |
| 64153A | Reinforcement, Back Frame |
| 65057 | Reinforcement Sub-assy, Side Panel, C RH |
| 65058 | Reinforcement Sub-assy, Side Panel, C LH |
| 66421 | Step, Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
