Toyota Dyna/Toyoace Quick
1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan
Discontinued model
Data version 1995-11

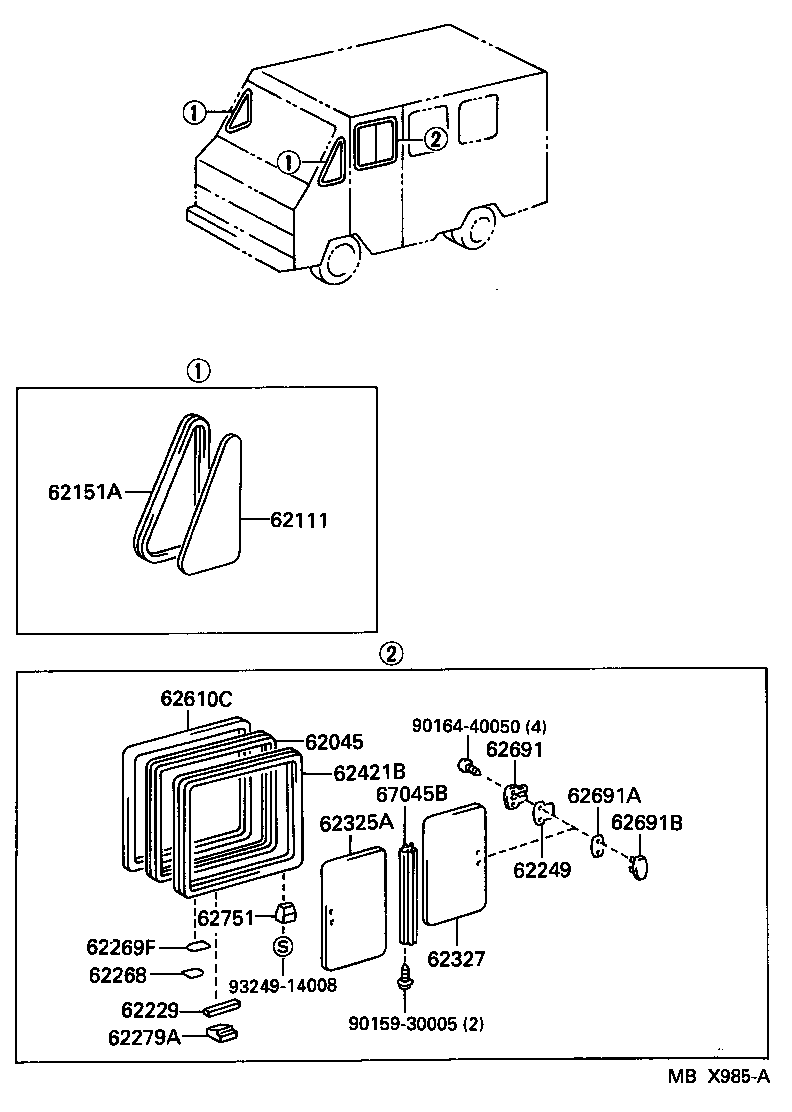

Side Window
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62045 | Frame Sub-assy, Front Door Window, Outer LH |
| 62111 | Glass, Front Side Window |
| 62151A | Weatherstrip, Front Side Window |
| 62229 | Packing, Side Window |
| 62249 | Plate, Side Window, RH |
| 62268 | Film, Side Window Frame, B |
| 62269F | Film, Side Window Frame |
| 62275C | Cover, Side Window |
| 62279A | Spacer, Side Window Frame |
| 62325A | Glass, Front Door Window, Front LH |
| 62327 | Glass, Front Door Window, Rear LH |
| 62421B | Run, FR0NT Door Window, LH |
| 62610C | Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE) |
| 62620C | Clip, Side Window Outer Sash, NO.2 (FOR SLIDE TYPE) |
| 62691 | Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE) |
| 62691A | Packing, Side Window Lock, NO.1 |
| 62691B | Retainer, Side Window Lock, NO.1 |
| 62692 | Lock, Side Window, NO.2 Glass (FOR SLIDE TYPE) |
| 62692A | Packing, Side Window Lock, NO.2 |
| 62692B | Retainer, Side Window Lock, NO.2 |
| 62715 | Glass, Side Window, NO.1(FOR FIXED TYPE) |
| 62751 | Stop, Side Window Fix Glass |
| 62755 | Weatherstrip, Side Window, NO.1(FOR FIXED TYPE) |
| 62883 | Guard Assy, Side Window |
| 67045 | Frame Sub-assy, Slide Window, Center |
| 67045B | Frame Sub-assy, Side Front Window, Center |
| 68113A | Glass, Rear Door, Front |
| 68114A | Glass, Rear Door, Rear |
| 68142B | Run, Rear Door Window, RH |
| 68152B | Run, Rear Door Window, LH |
| 68203 | Frame Sub-assy, Rear Door Window, Outer RH |
| 68204A | Frame Sub-assy, Rear Door Window, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
