Toyota Dyna/Toyoace Quick
1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan
Discontinued model
Data version 1995-11
Inside Trim Board

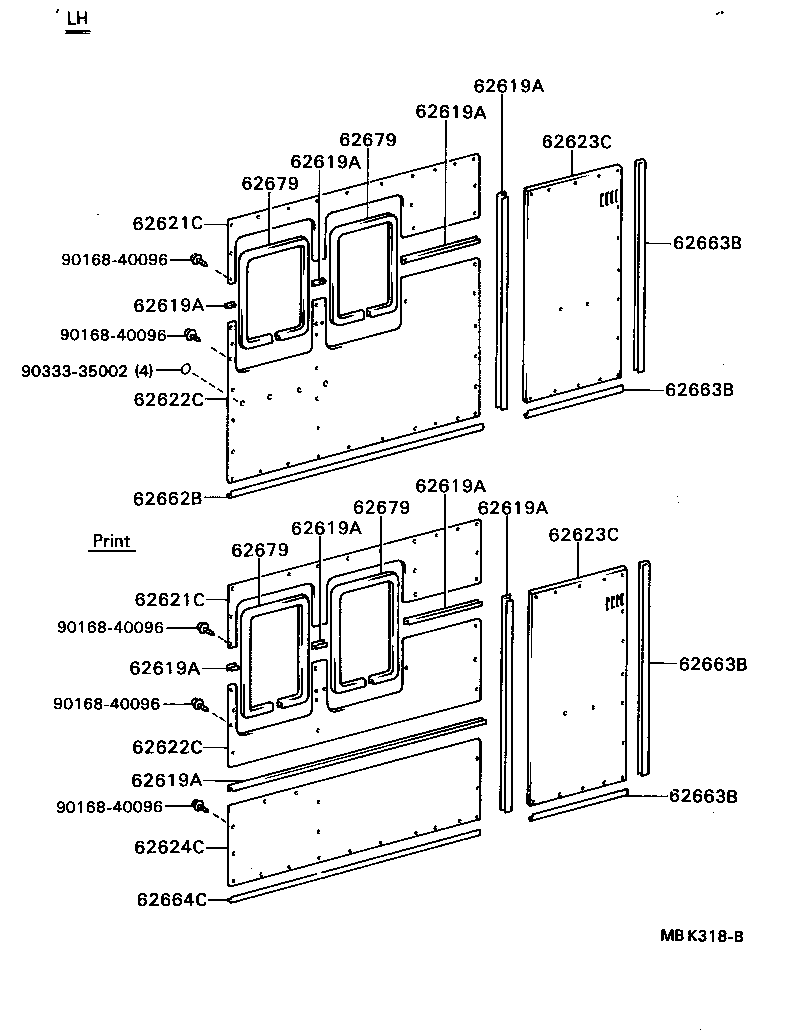

16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62545 | Silencer, Side Trim NO.1 |
| 62611C | Board, Side Trim NO.1, RH |
| 62612C | Board, Side Trim NO.2, RH |
| 62613C | Board, Side Trim NO.3, RH |
| 62614C | Board, Side Trim NO.4, RH |
| 62619A | Plate, Side Trim Set |
| 62621C | Board, Side Trim NO.1, LH |
| 62622C | Board, Side Trim NO.2, LH |
| 62623C | Board, Side Trim NO.3, LH |
| 62624C | Board, Side Trim NO.4, LH |
| 62647 | Base, Side Board Switch Hole |
| 62661B | Trim, Side Board, NO. 1 |
| 62662B | Trim, Side Board, NO.2 |
| 62663B | Trim, Side Board, NO.3 |
| 62664C | Trim, Side Board, NO.4 |
| 62679 | Moulding, Side Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
