Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

28 part groups · 2 illustrations

Illustrations

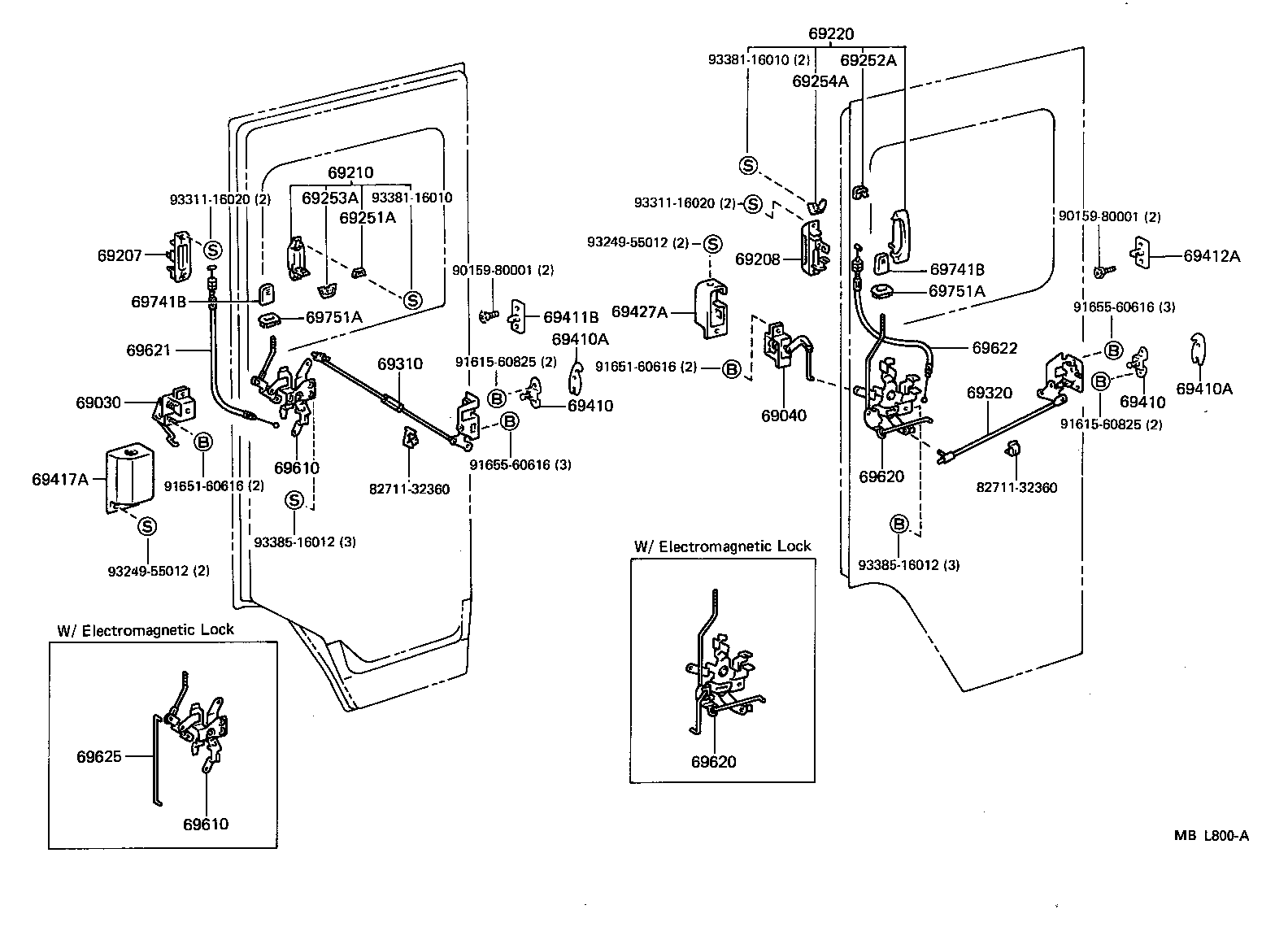

Figure MBK322 MBK322 1986-01 → 1987-08 Figure MBL800A MBL800A 1987-08 → —

Part groups

PNCDescription
69030 Lock Assy, Front Slide Door Open, RH
69040 Lock Assy, Front Slide Door Open, LH
69207 Handle Sub-assy, Front Door Inside, RH
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69235A Plug, Front Slide Door Inside Handle Case
69251A Pad, Front Door Outside Handle, NO.1 RH
69252A Pad, Front Door Outside Handle, NO.1 LH
69253A Pad, Front Door Outside Handle, NO.2 RH
69254A Pad, Front Door Outside Handle, NO.2 LH
69267A Seal, Front Slide Door Inside Handle, NO.1
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69410A Shim, Front Door Lock Striker Plate
69411B Striker, Front Slide Door Open, RH
69412A Striker, Front Slide Door Open, LH
69417A Cover, Slide Door Open Stop, RH
69427A Cover, Slide Door Open Stop, LH
69610 Control Assy, Front Slide Door Lock Remote, RH
69620 Control Assy, Front Slide Door Lock Remote, LH
69621 Wire, Front Slide Door Lock Control, RH
69622 Wire, Front Slide Door Lock Control, LH
69624 Rod, Front Slide Door Lock Control Push, LH
69625 Rod, Front Slide Door, Lock Control
69741B Knob, Front Door Lock Control
69751A Holder, Door Locking(FOR FRONT DOOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
