Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

8 part groups · 2 illustrations

Illustrations

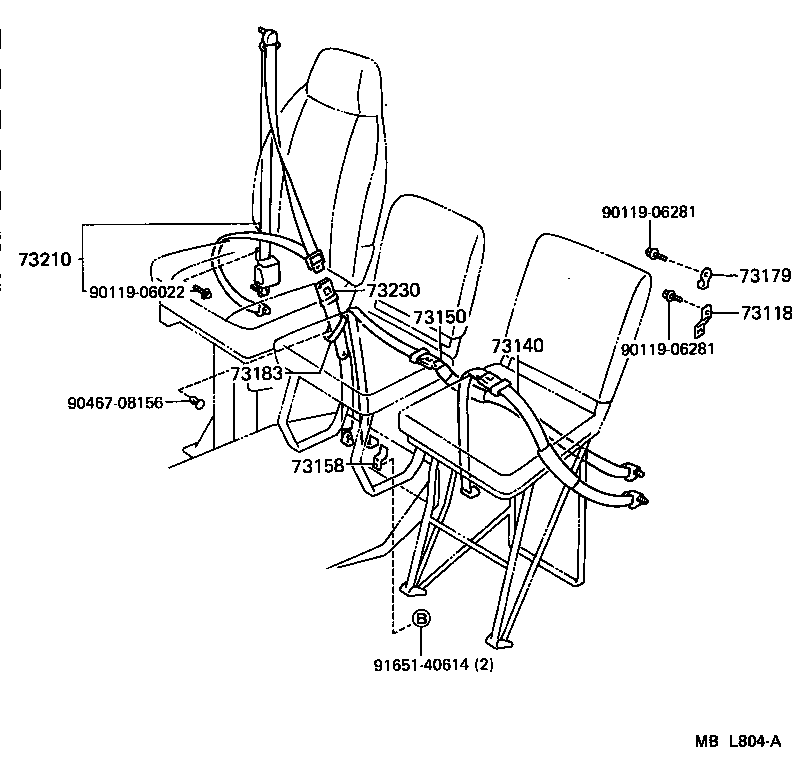

Figure MBK336 MBK336 1986-01 → 1987-08 Figure MBL804A MBL804A 1987-08 → —

Part groups

PNCDescription
73118 Plate, Belt Support
73140 Belt Assy, Front Seat Lap Type, LH
73150 Belt Assy, Front Seat Lap Type, Center
73158 Bracket, Seat Belt Guide Set
73179 Hanger, Front Seat Lap Belt, LH
73183 Guide, Front Seat Lap Belt, Inner
73210 Belt Assy, Front Seat Outer, RH
73230 Belt Assy, Front Seat Inner, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
