Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 2 illustrations

Illustrations

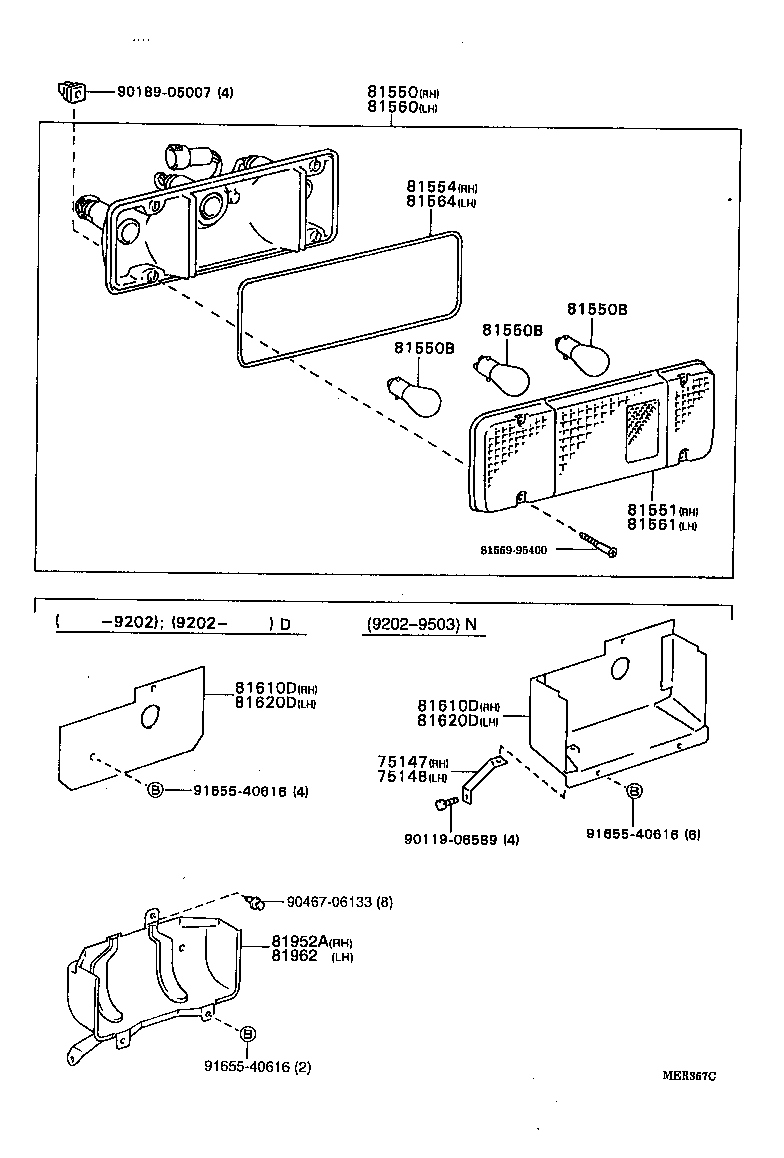

Figure MEG831B MEG831B 1986-01 → 1990-08 Figure MER357C MER357C 1990-08 → —

Part groups

PNCDescription
75147 Plate, Rear Combination Lamp Guard, RH
75148 Plate, Rear Combination Lamp Guard, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
81610D Cover, Rear Combination Lamp, RH
81620D Cover, Rear Combination Lamp, LH
81952A Cover, Rear Lamp, RH
81962 Cover, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
