Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 4 illustrations

Illustrations

Figure MEG835D

MEG835D 1986-01 → 1988-08

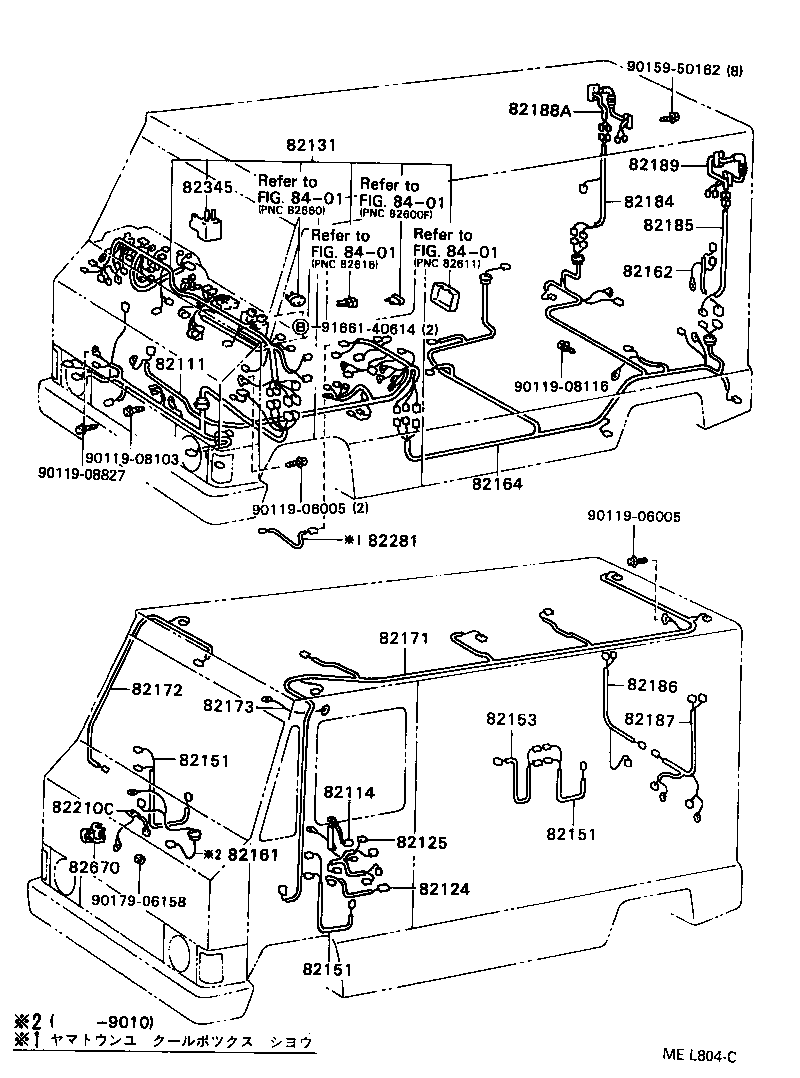

Figure MEL804C

MEL804C 1988-08 → —

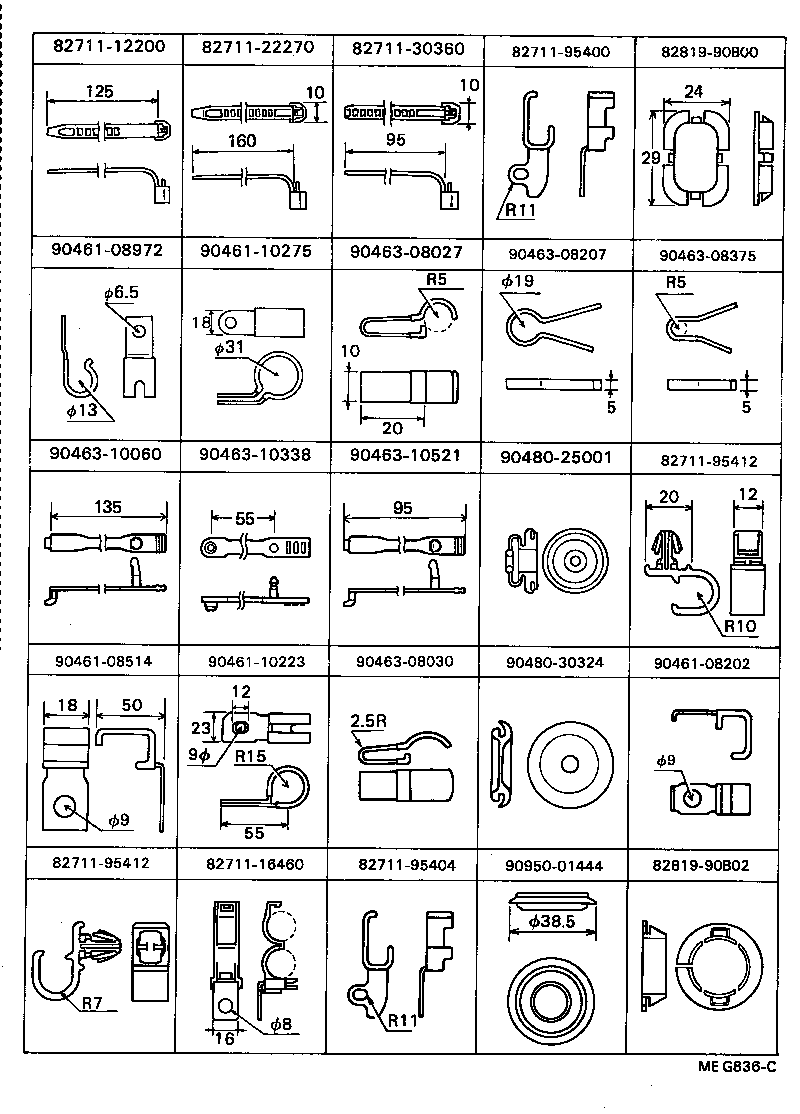

Figure MEG836C

MEG836C 1986-01 → —

Figure MEL805B

MEL805B 1986-01 → —

Part groups

PNC	Description
82111	Wire, Engine Room Main
82114	Wire, Engine Room, NO.4
82124	Wire, Engine, NO.4
82125	Wire, Transmission
82131	Wire, Cowl
82151	Wire, Front Door, RH
82153	Wire, Rear Door, NO.1
82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82171	Wire, Roof, NO.1
82172	Wire, Roof, NO.2
82173	Wire, Roof, NO.3
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82188A	Wire, Back Door, NO.3
82189	Wire, Back Door, NO.4
82210C	Fusible Link
82281	Wire, Gage
82345	Diode
82670	Block Assy, Junction, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
