Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

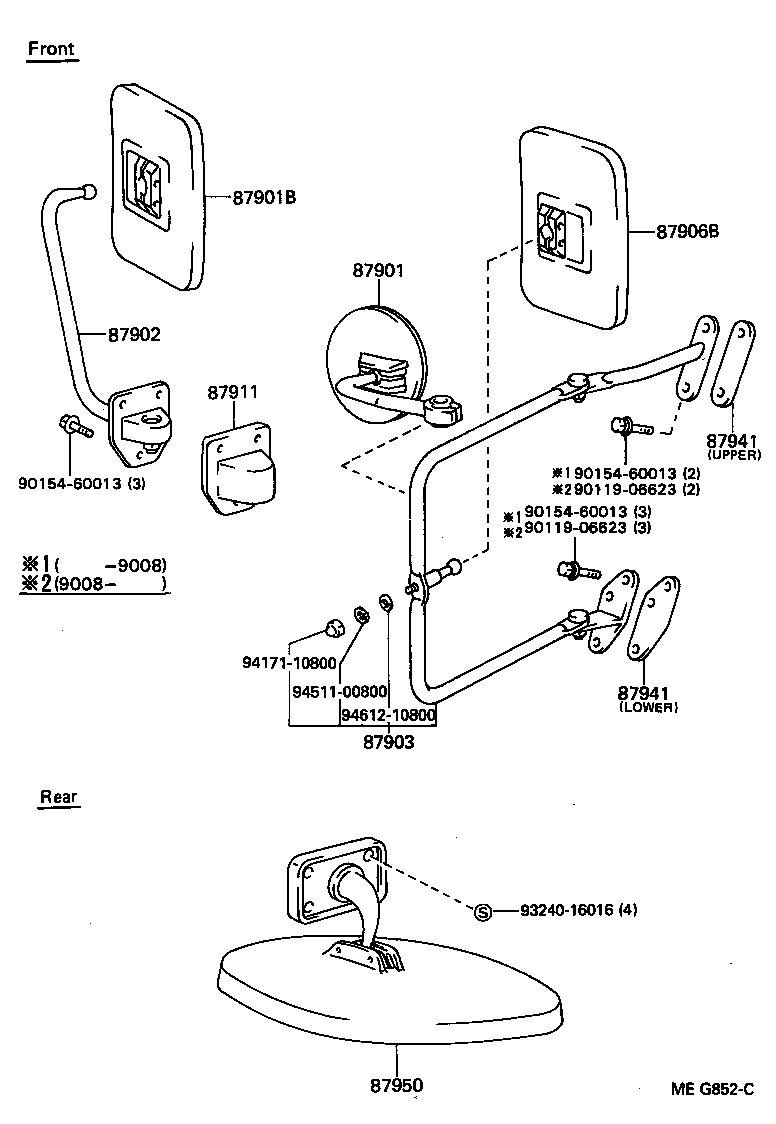

Figure MEG851B MEG851B 1986-01 → — Figure MEG852C MEG852C 1986-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87834 Cover, Inner Rear View Mirror Stay Holder
87901 Mirror Sub-assy, Outer Under View
87901B Mirror Sub-assy, Outer Rear View, RH
87902 Support, Rear View Outside Mirror, RH
87903 Support, Rear View Outside Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87911 Gasket, Outer Rear View Mirror, RH
87941 Gasket, Outer Rear View Mirror, LH
87950 Mirror Assy, Outer Under Rear View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
