Heating & Air Conditioning - Cooler Unit

18 part groups · 3 illustrations

Illustrations

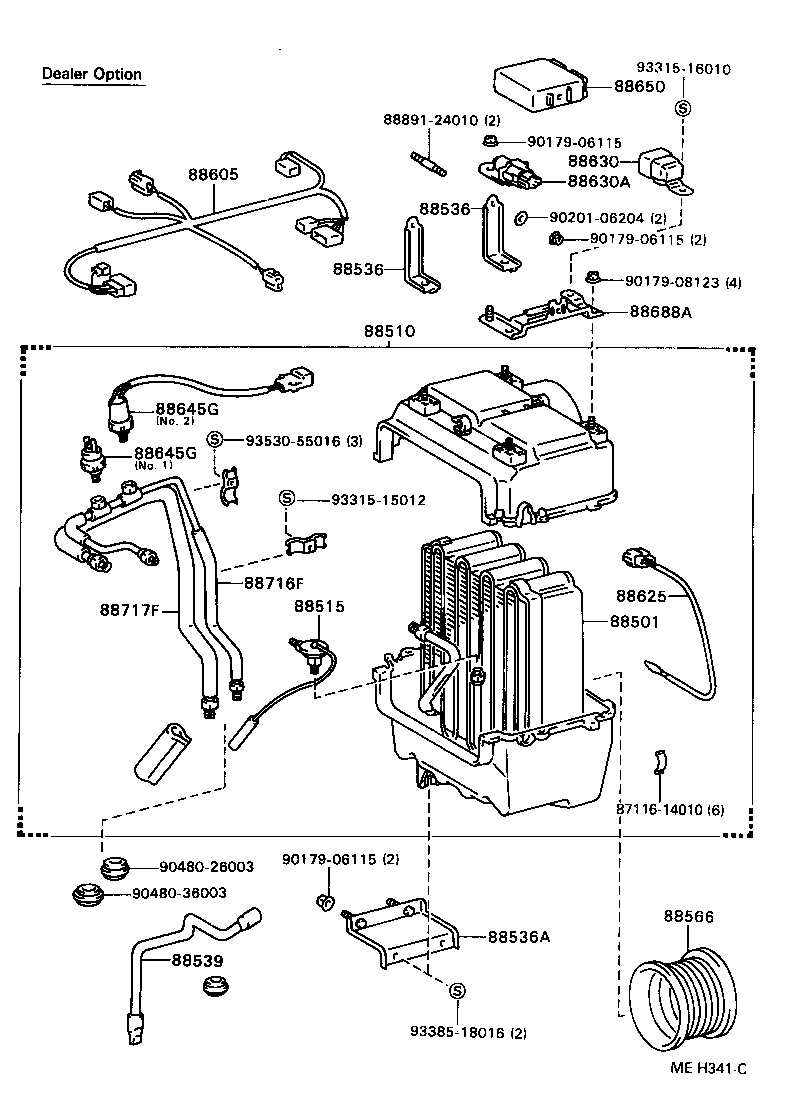

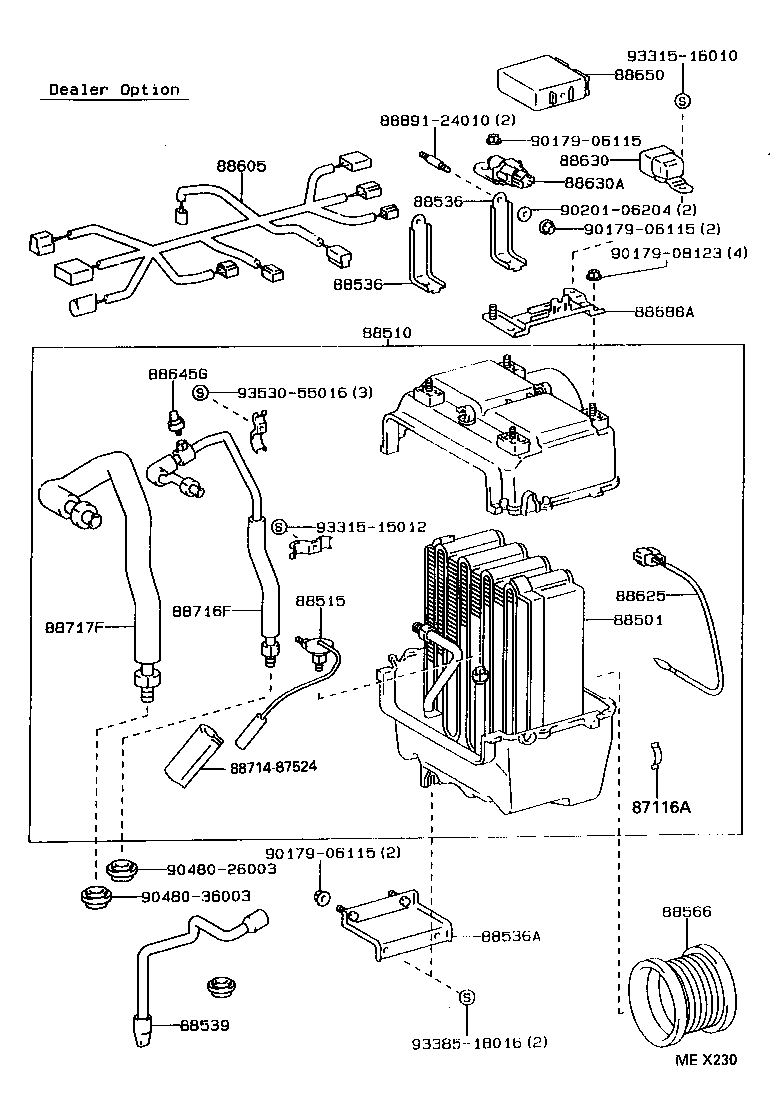

Figure MEG855D MEG855D 1986-01 → 1993-09 Figure MEH341C MEH341C 1986-01 → 1993-09 Figure MEX230 MEX230 1993-09 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88594 Bracket, Cooler Relay
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88716F Pipe, Cooler Refrigerant Liquid, F
88717F Pipe, Cooler Refrigerant Suction, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
