Toyota Dyna/Toyoace Quick

1986-01 → 1995-05 · chassis BU60 · catalogue 761110 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

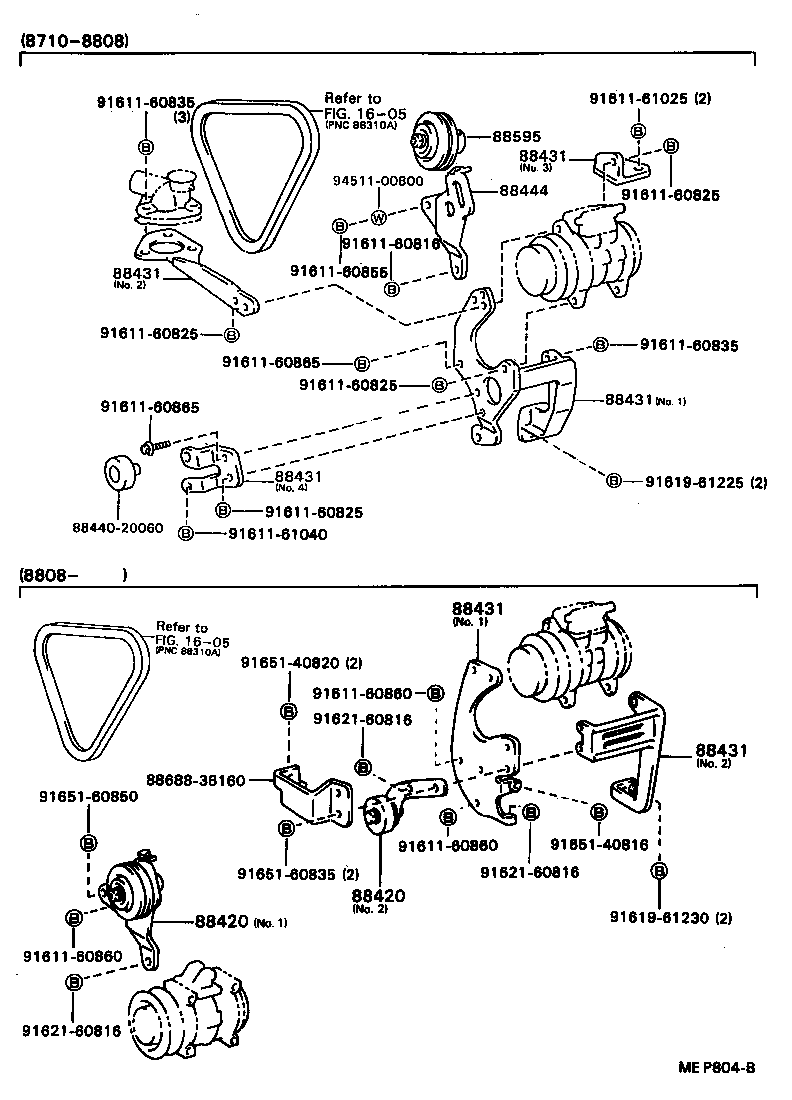

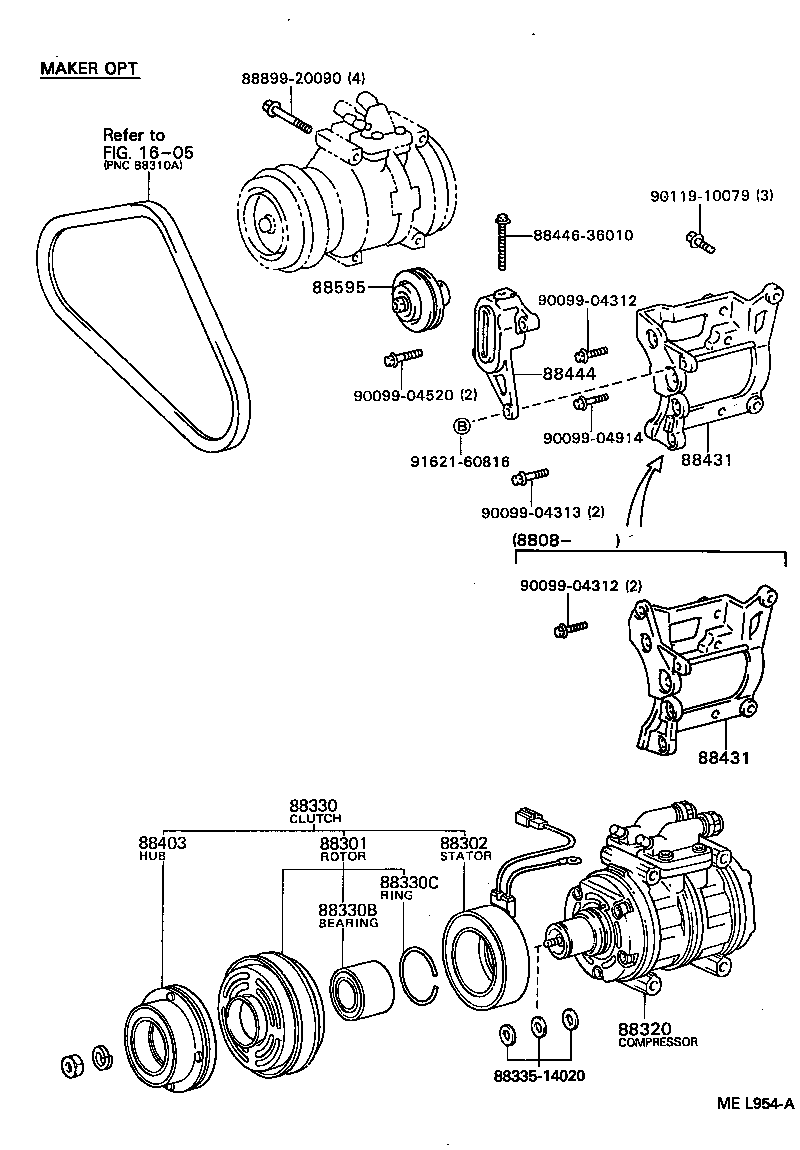

Figure MEG861D MEG861D 1986-01 → — Figure MEL954A MEL954A 1988-08 → — Figure MEP804B MEP804B 1987-10 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
