Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

17 part groups · 8 illustrations

Illustrations

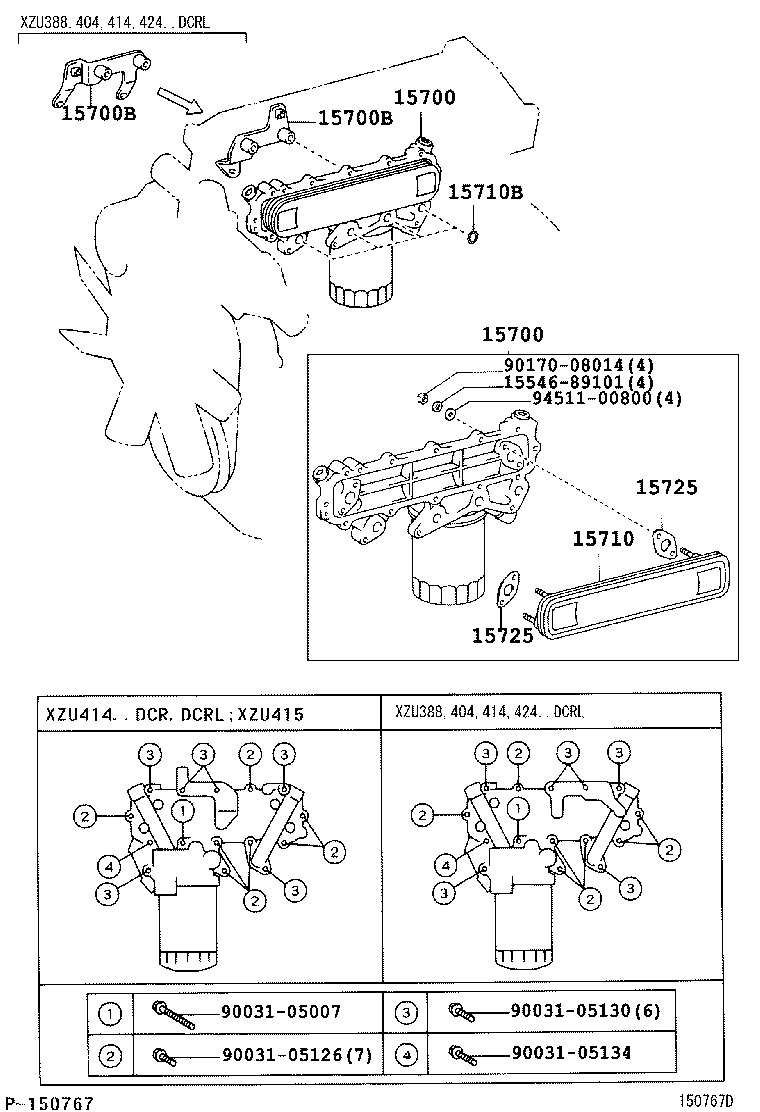

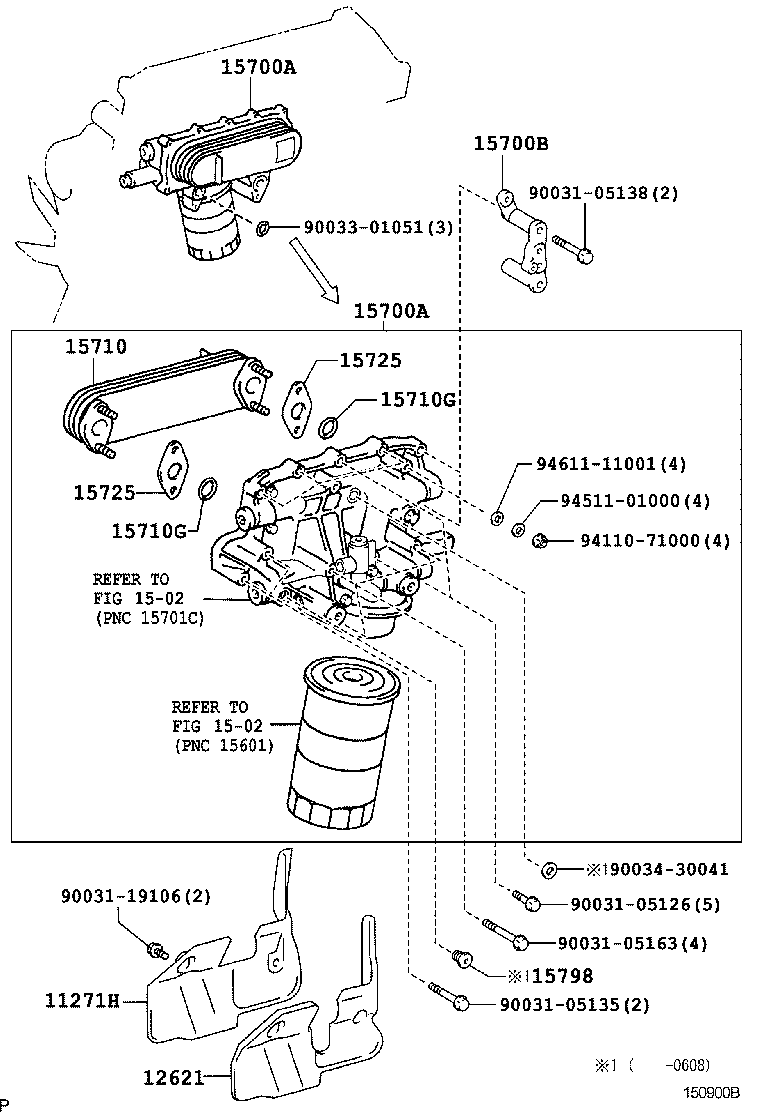

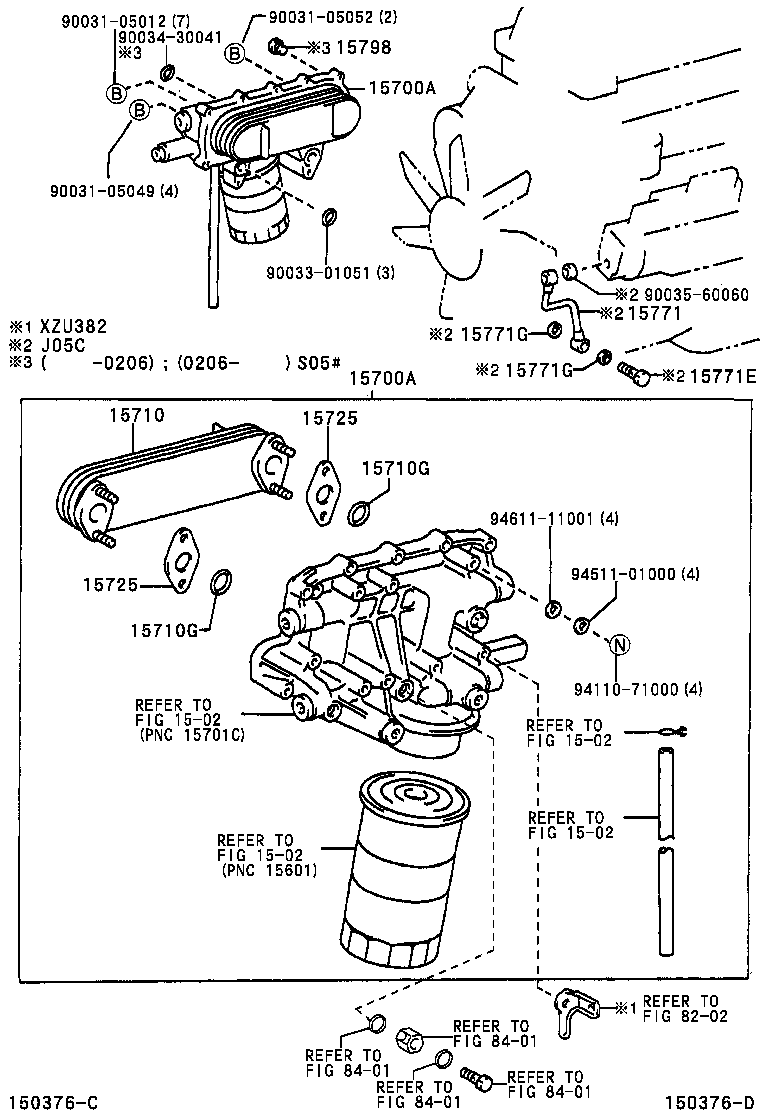

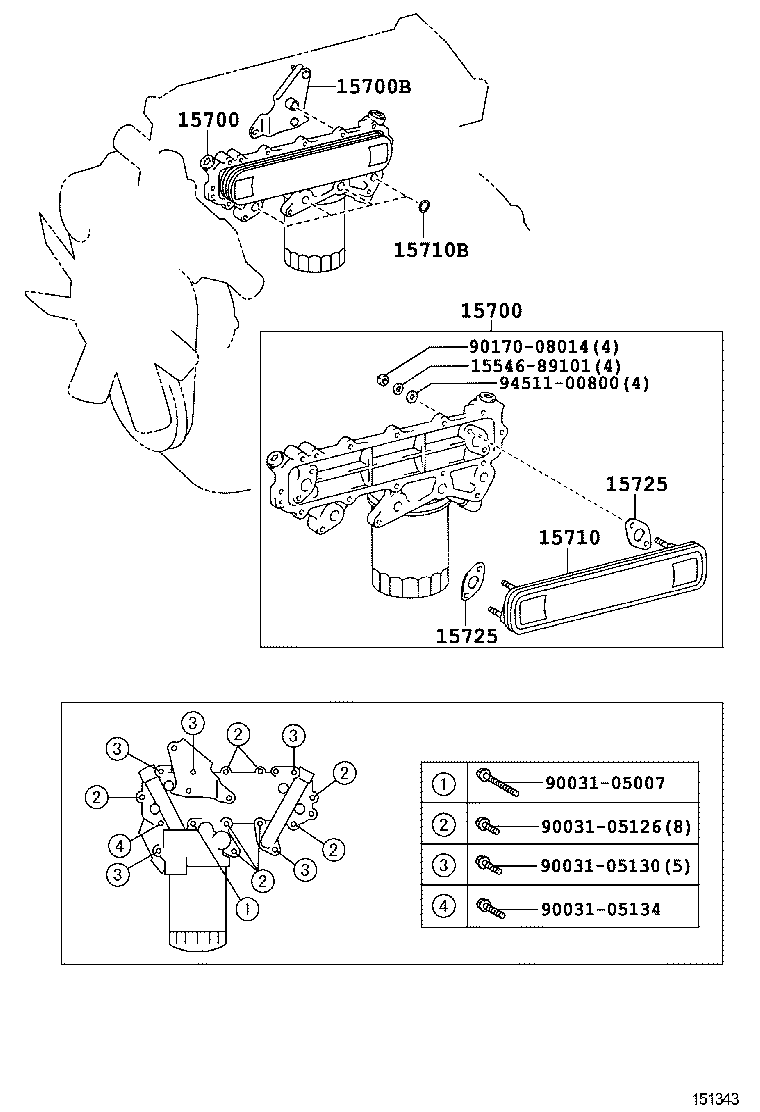

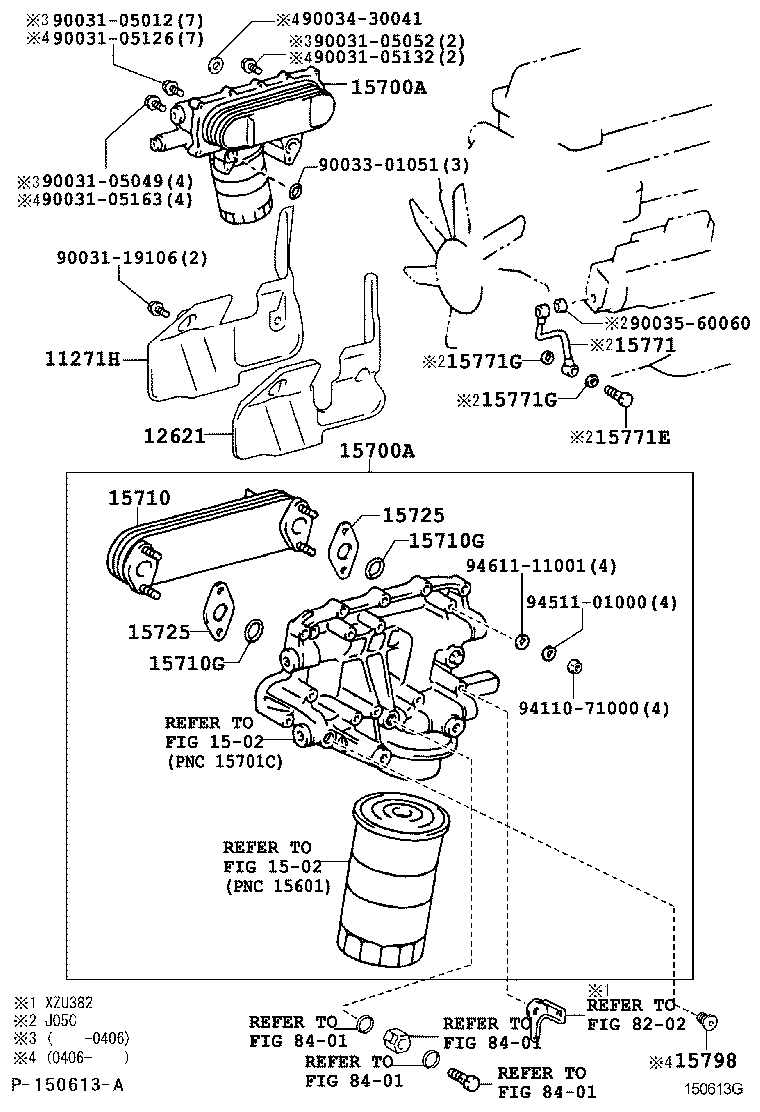

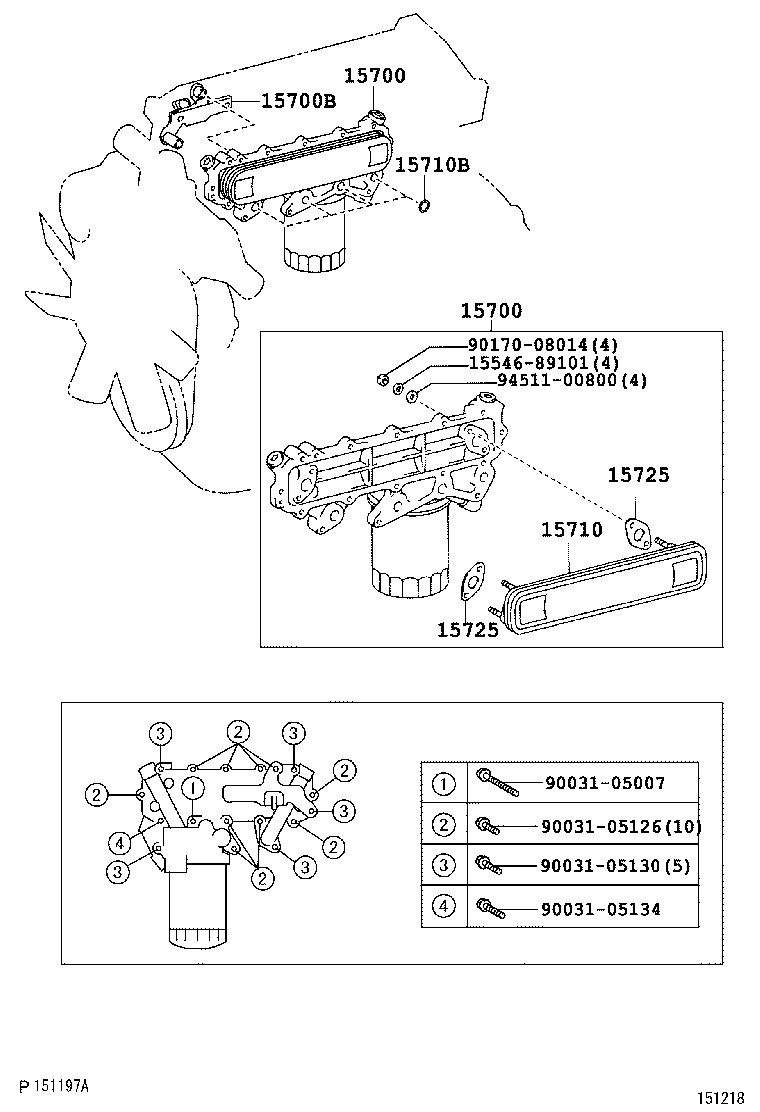

Figure 150720A 150720A 1999-08 → — Figure 150376D 150376D 1999-05 → 2002-06 Figure 150613G 150613G 2002-06 → — Figure 150900B 150900B 2004-06 → — Figure 150403A 150403A 2000-11 → — Figure 150767D 150767D 2003-10 → — Figure 151218 151218 2006-10 → — Figure 151343 151343 2007-05 → —

Part groups

PNCDescription
11271H Cover, Cylinder Block Side
12621 Silencer, Engine Cover, NO.1
15529A Plug
15700 Cooler Assy, Oil W/Bracket
15700A Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15710G Ring, O, NO.2
15722 Gasket, Oil Cooler
15725 Gasket, Oil Cooler Cover
15771 Pipe, Oil, NO.1
15771E Bolt, Union(FOR OIL PIPE)
15771G Gasket
15791 Case, Oil Cooler
15798 Plug, Oil Nozzle Union Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
