Toyota Dyna/Toyoace
1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan
Discontinued model
Data version 2012-01

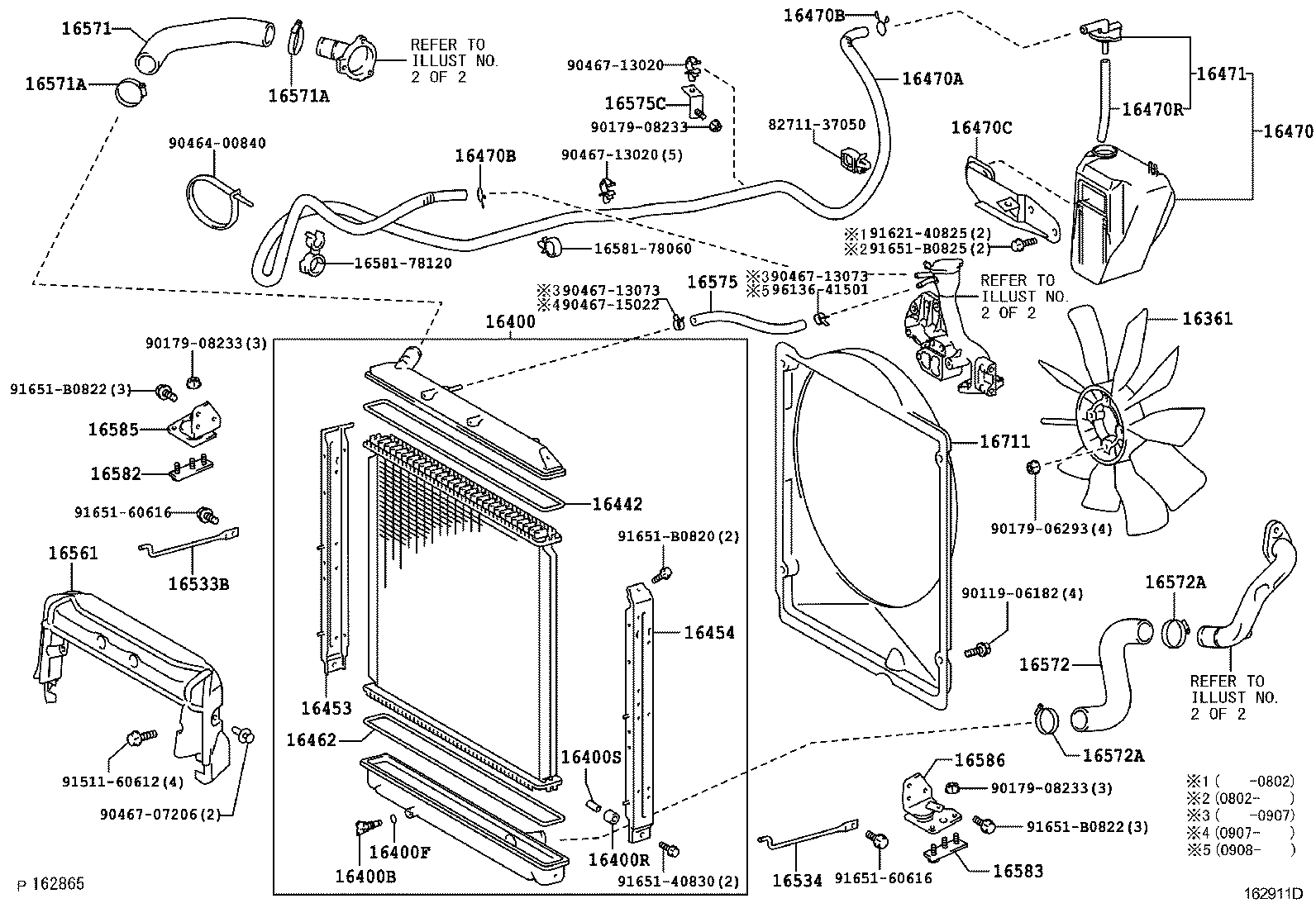

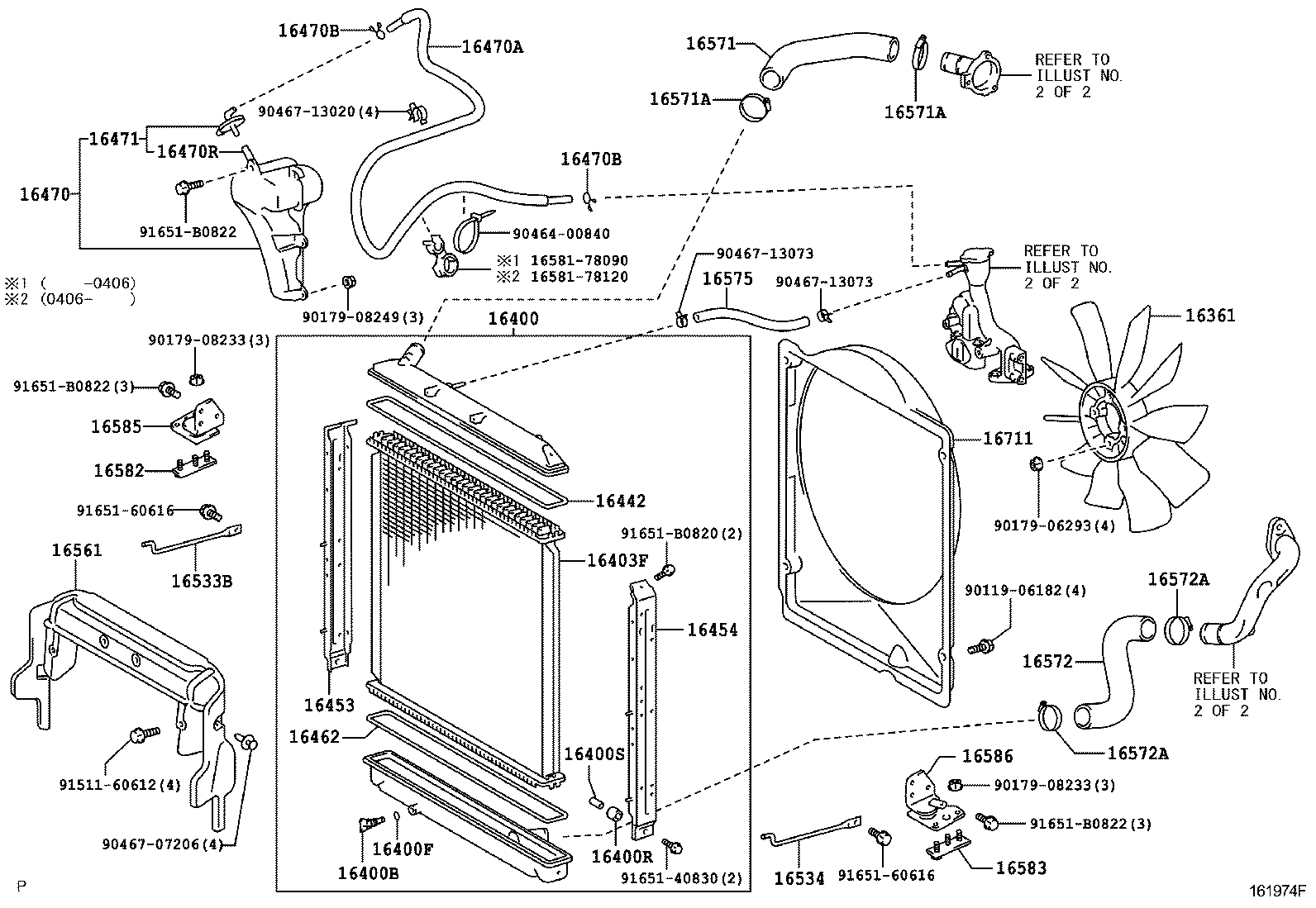

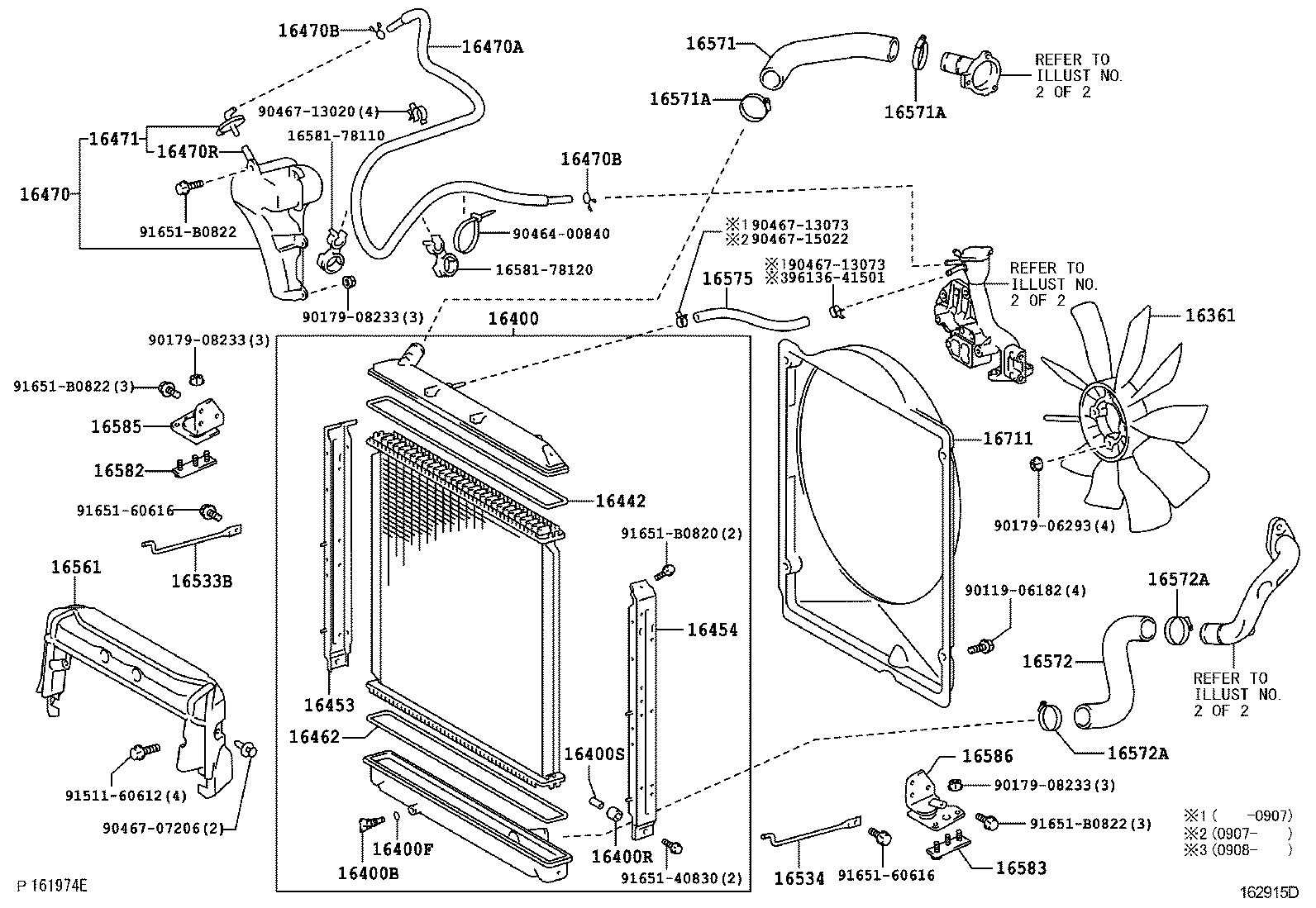

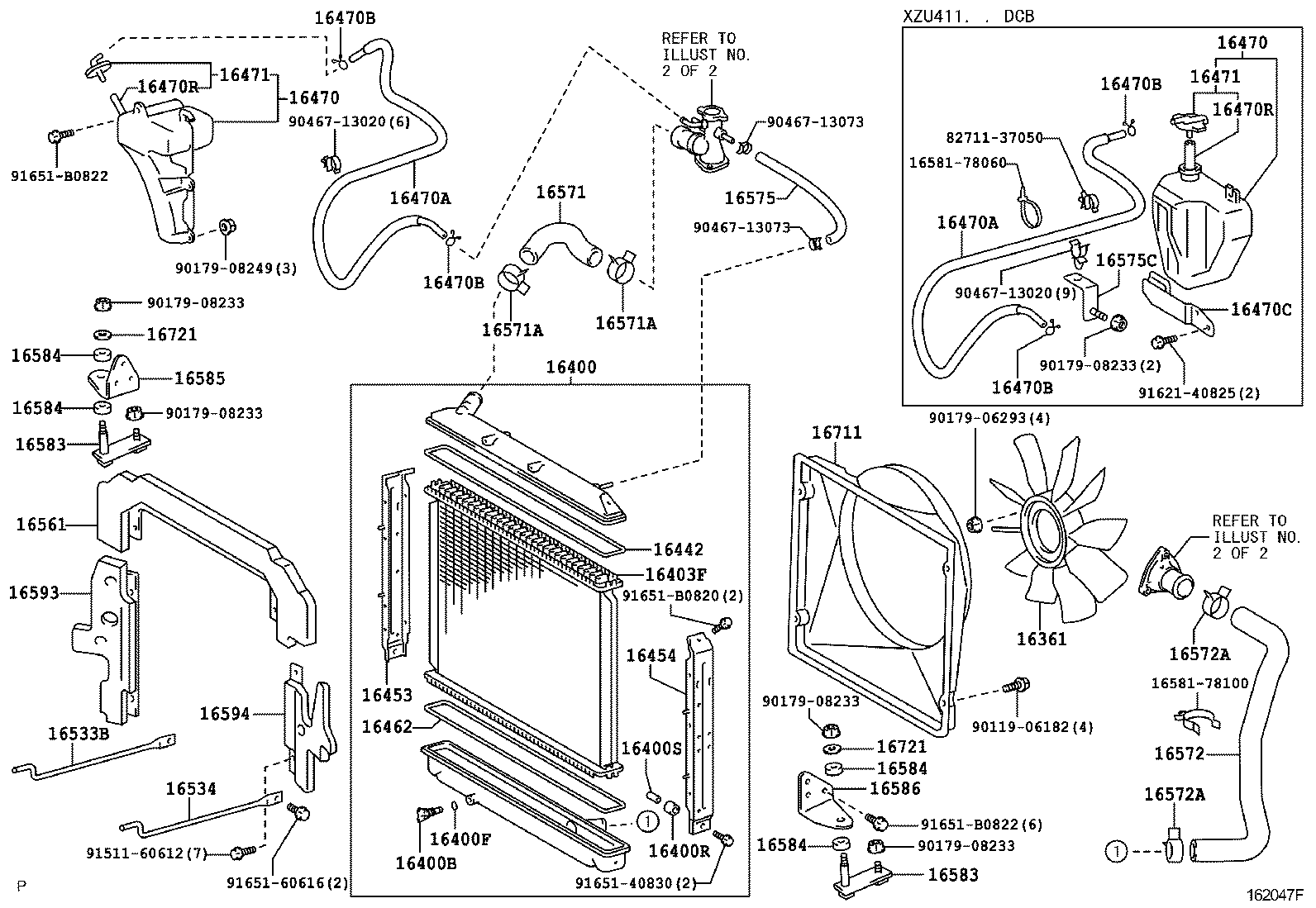

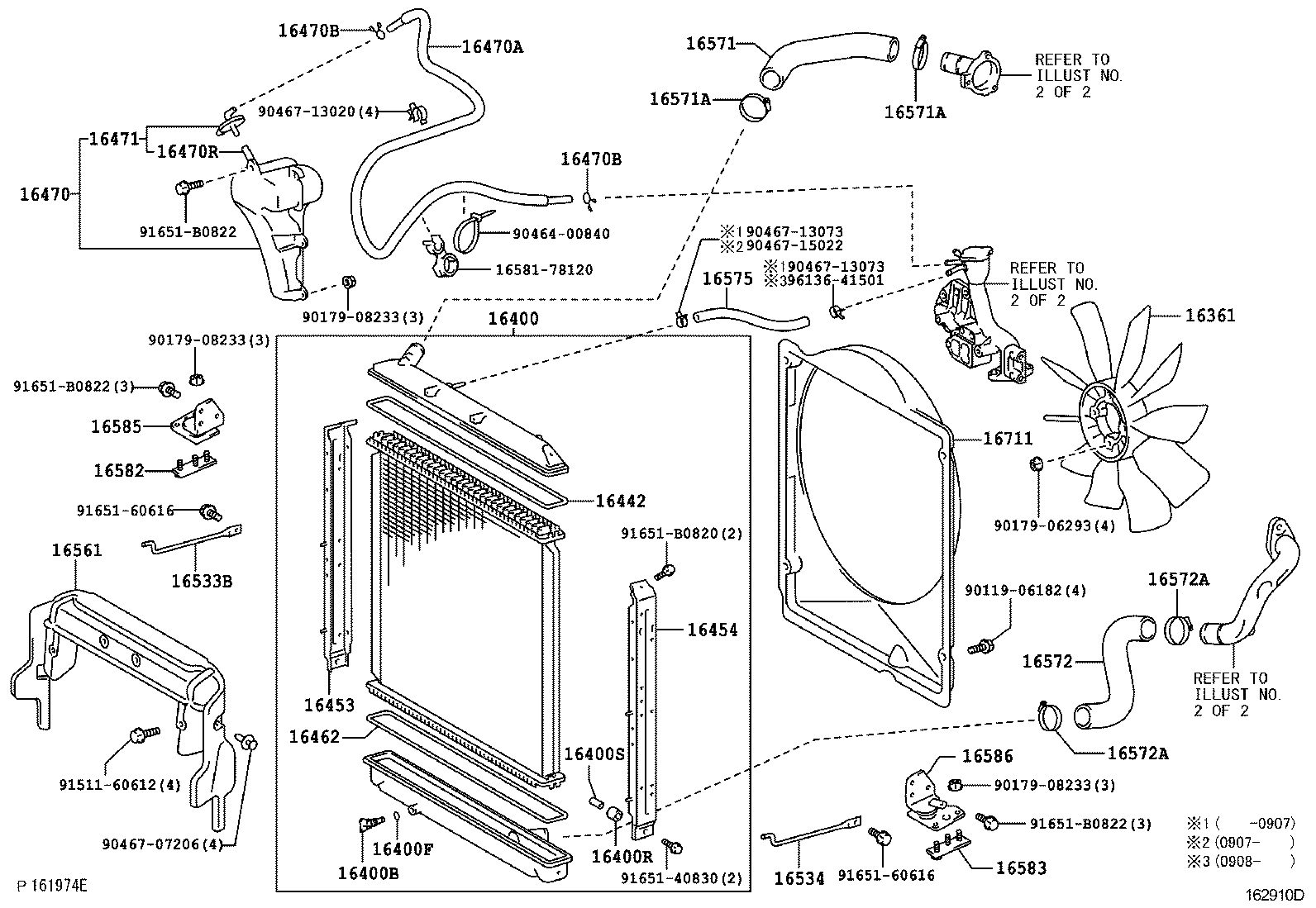

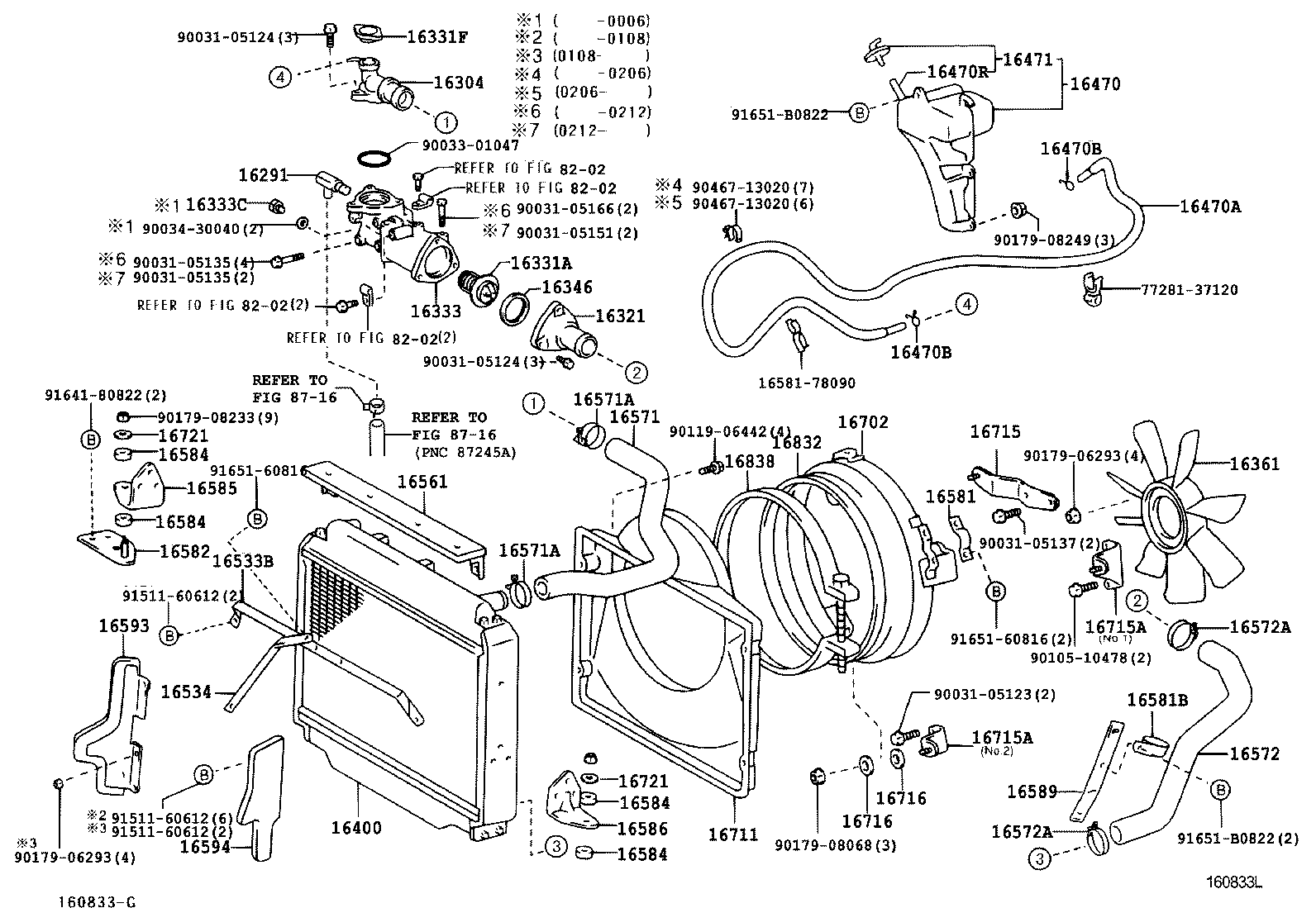

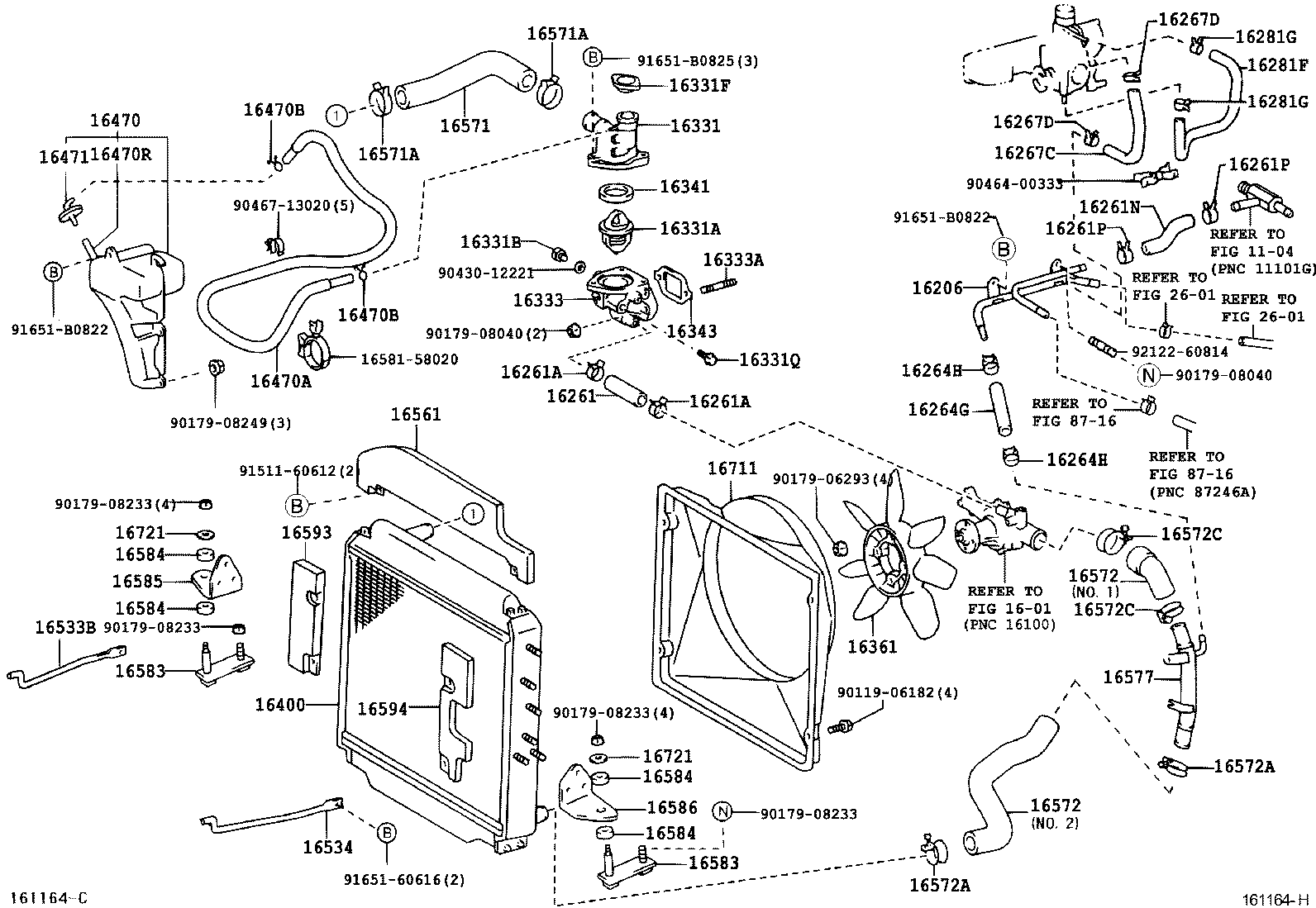

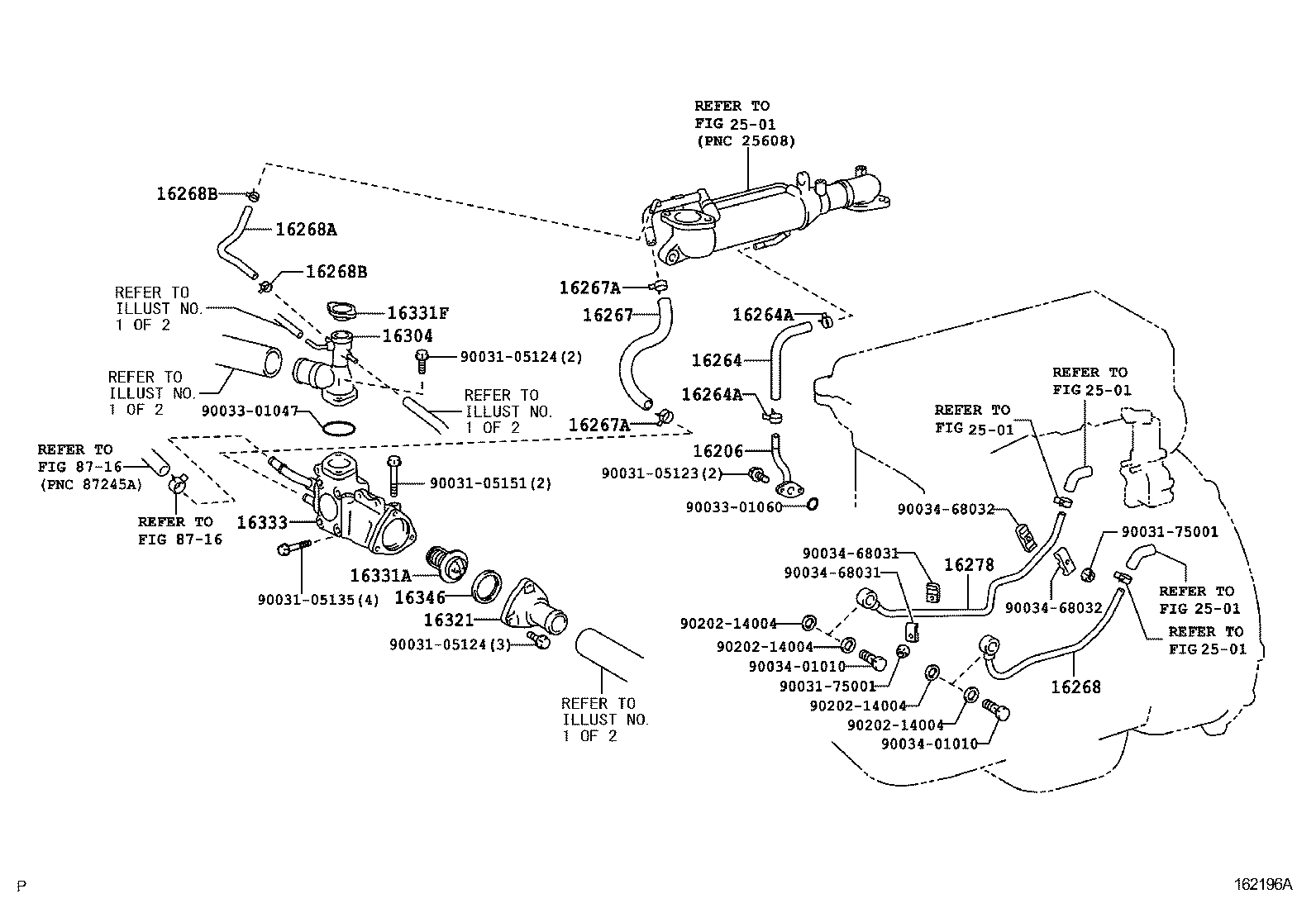

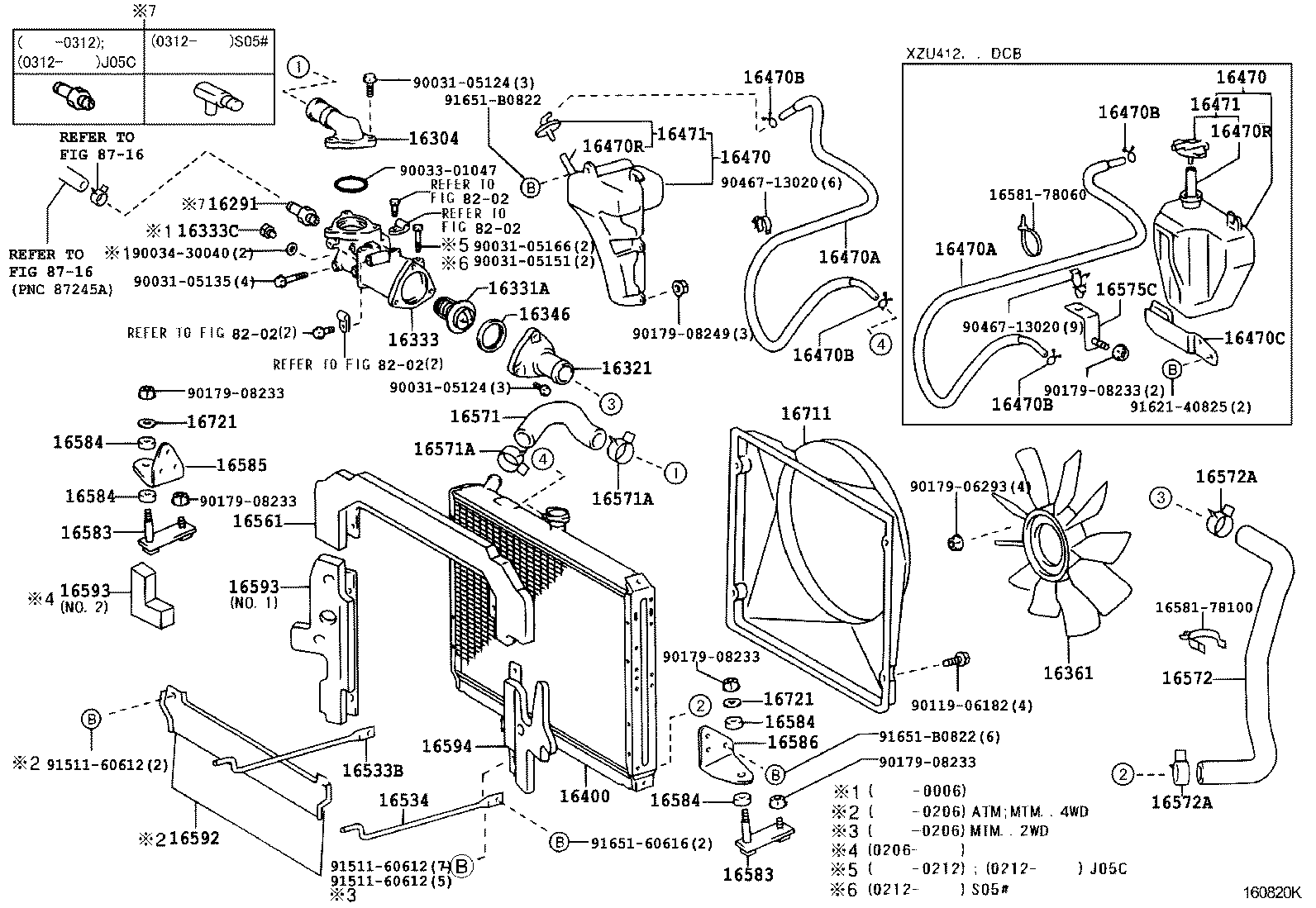

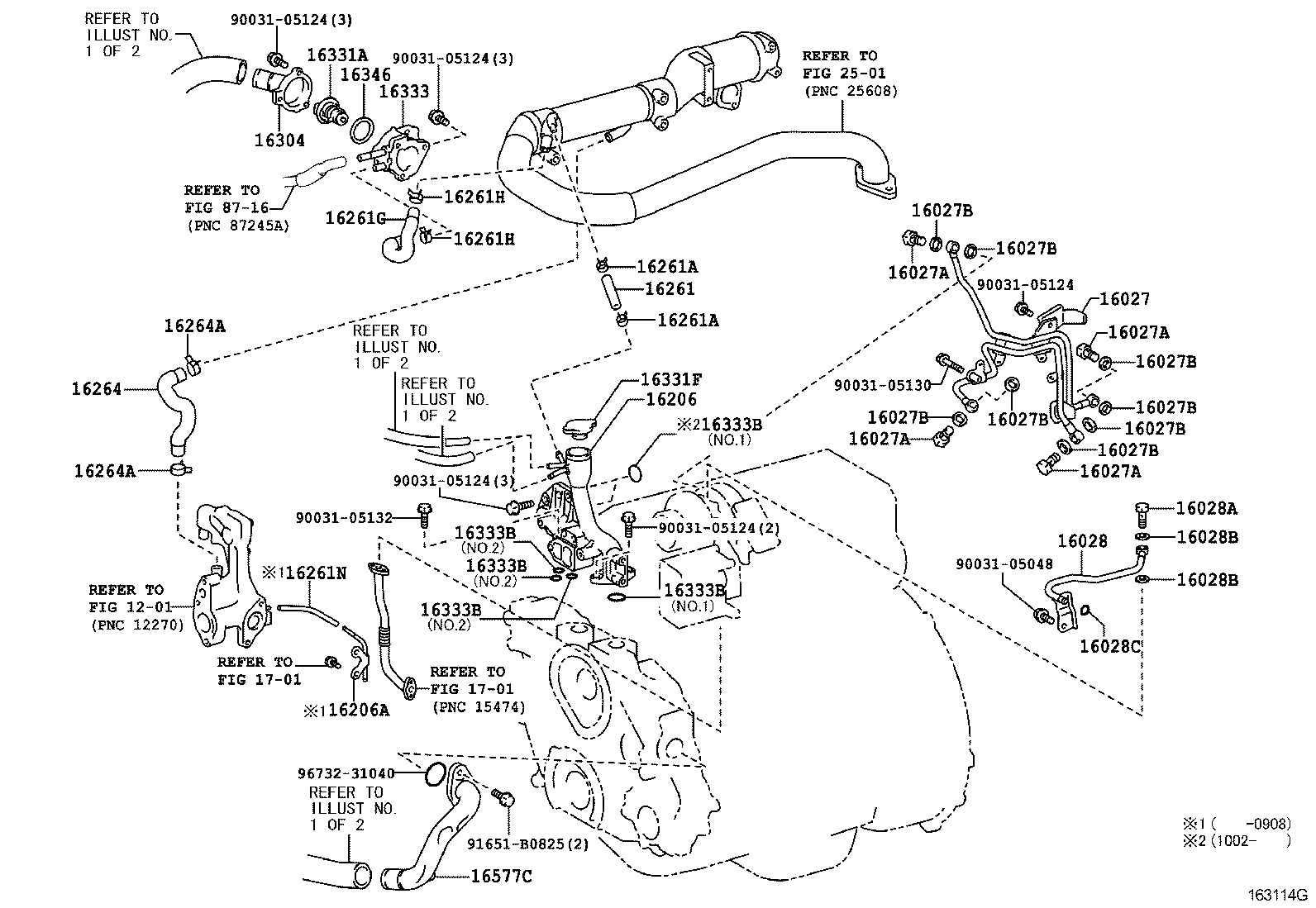

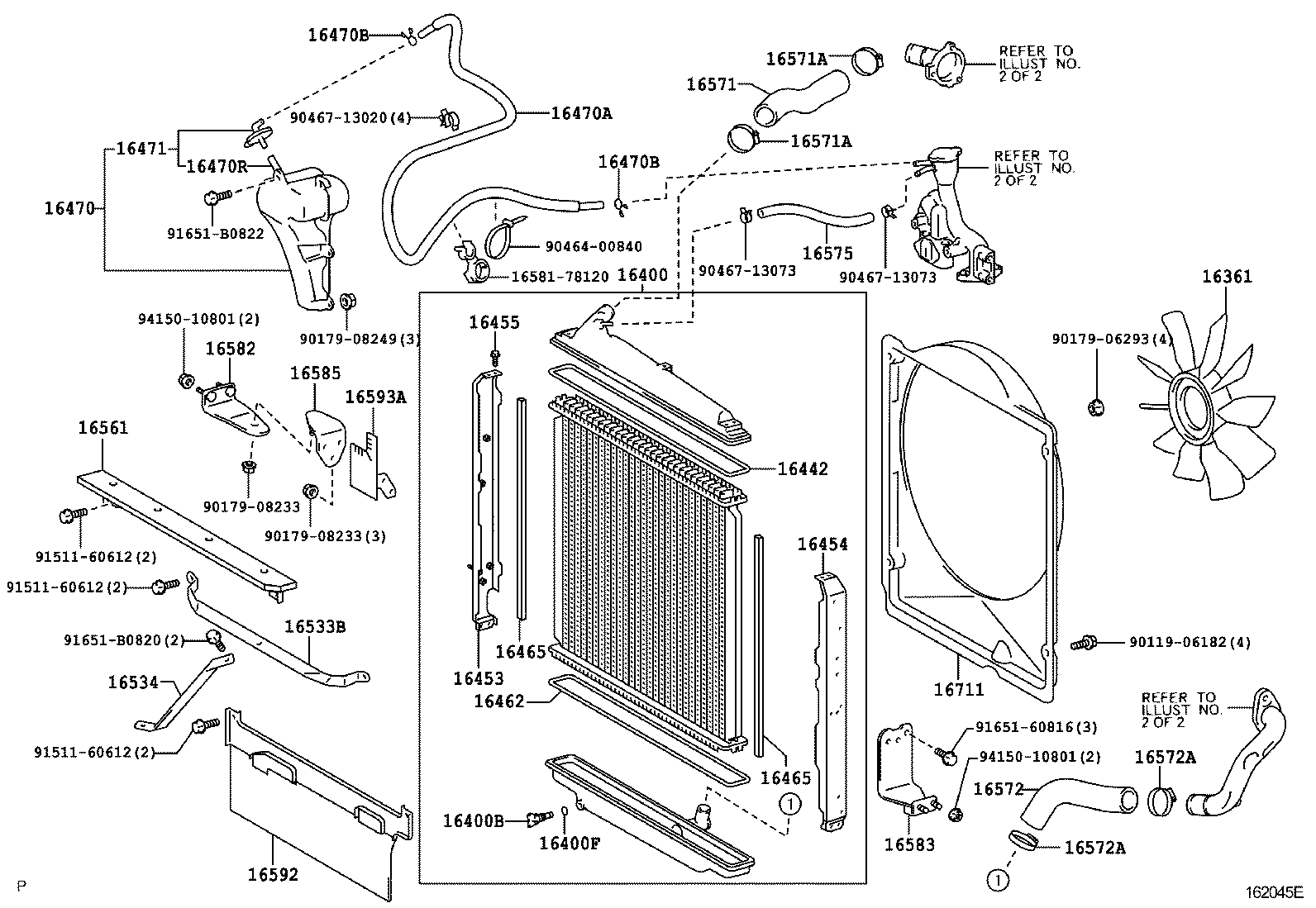

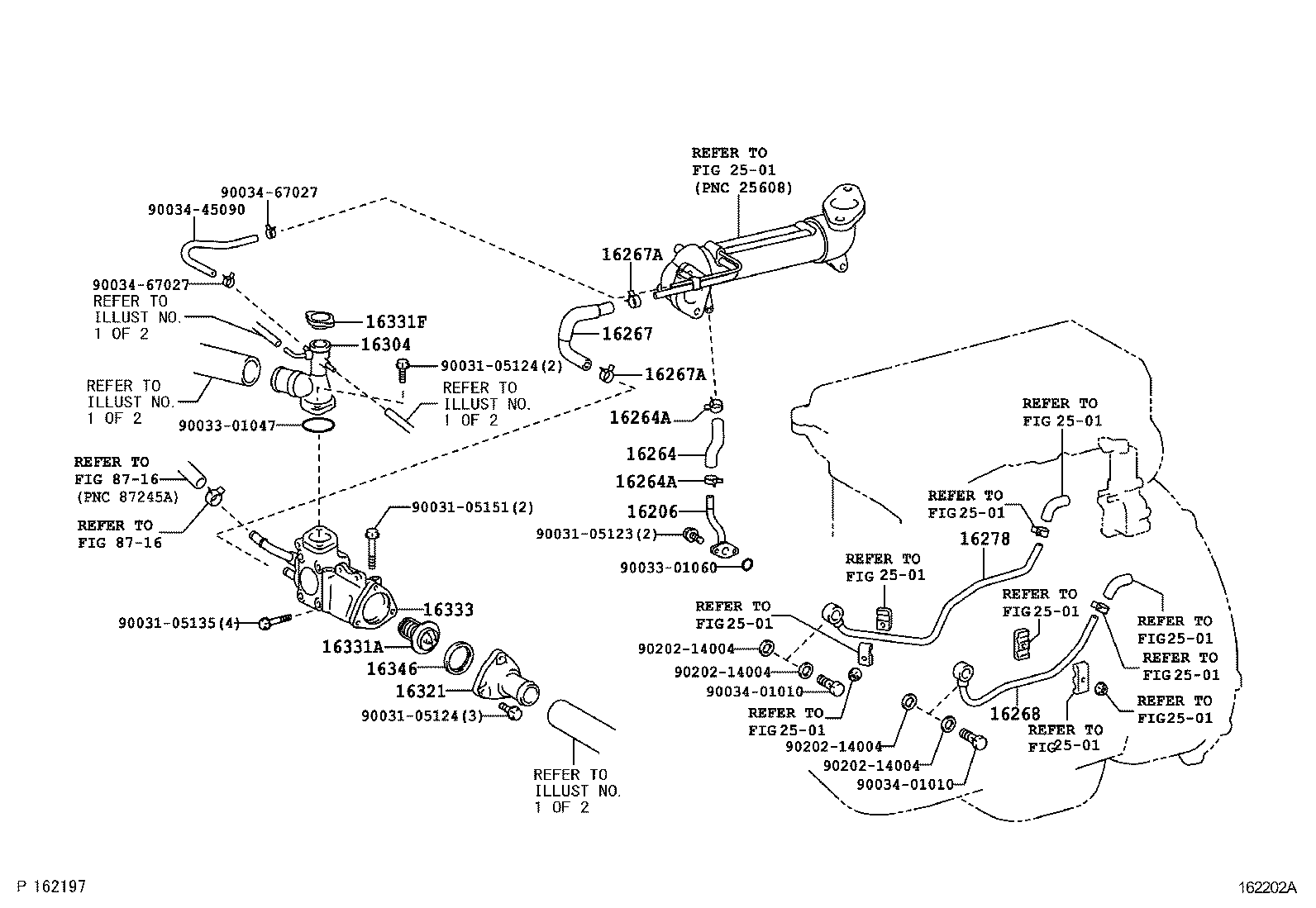

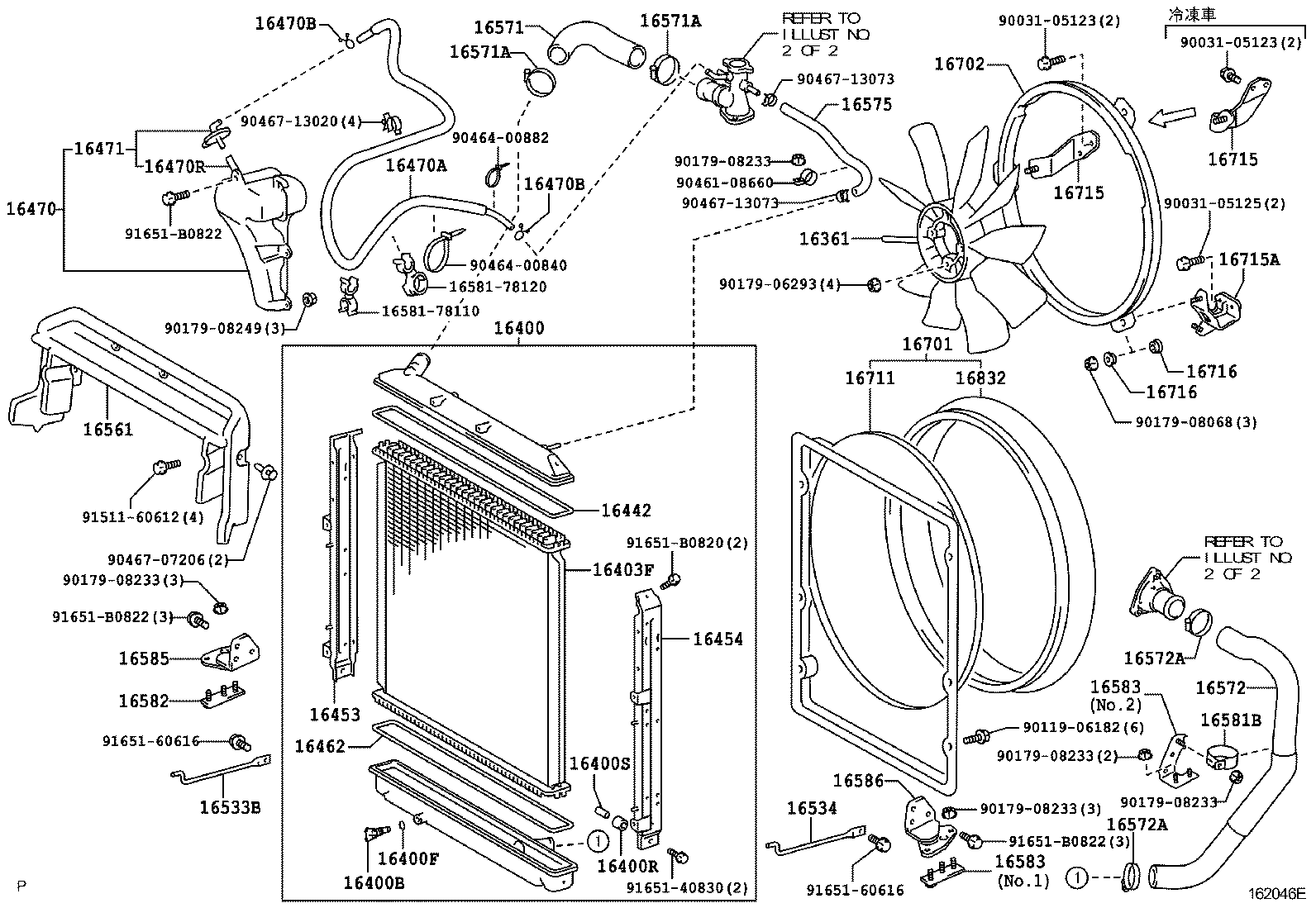

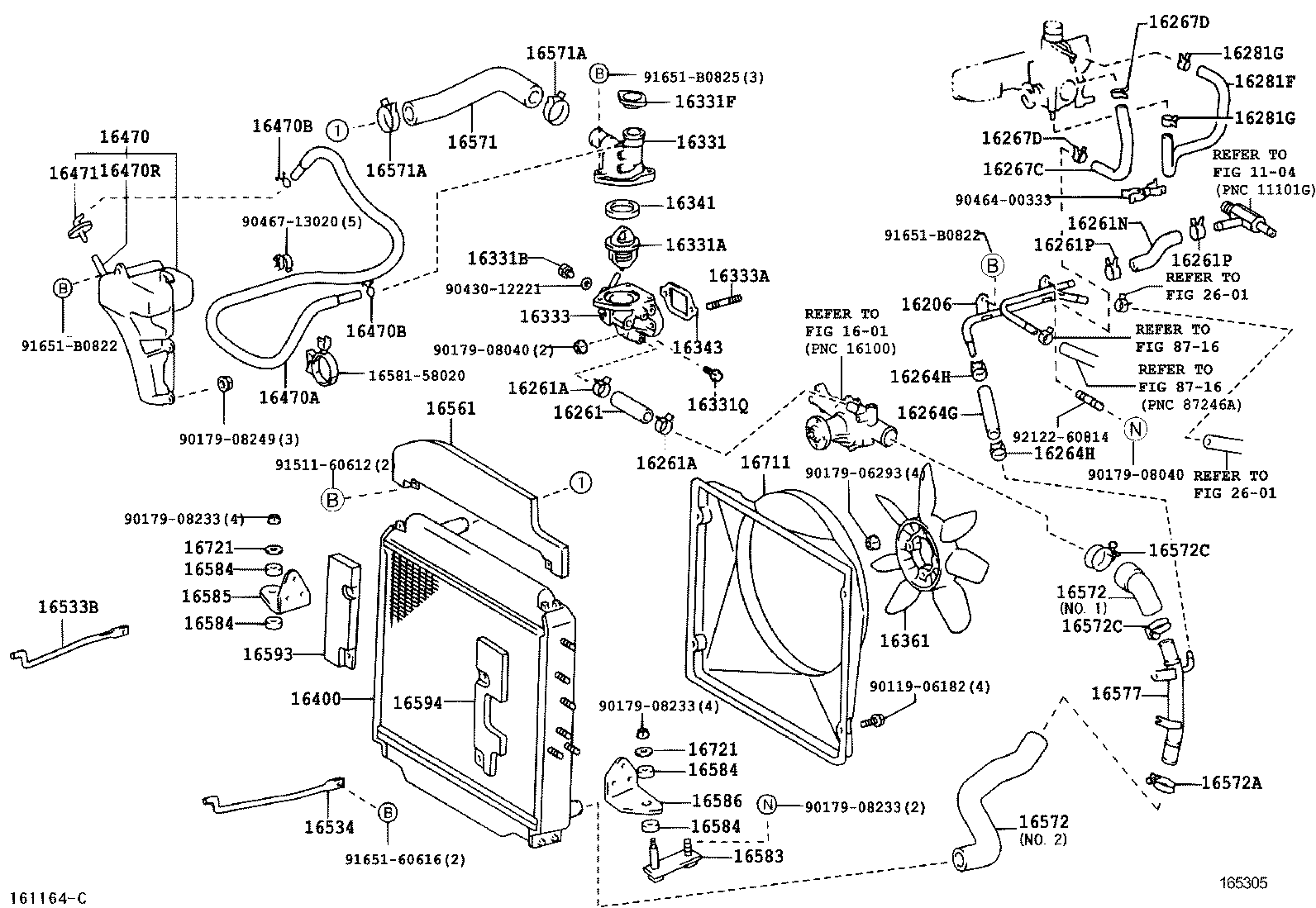

Radiator & Water Outlet
111 part groups · 22 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

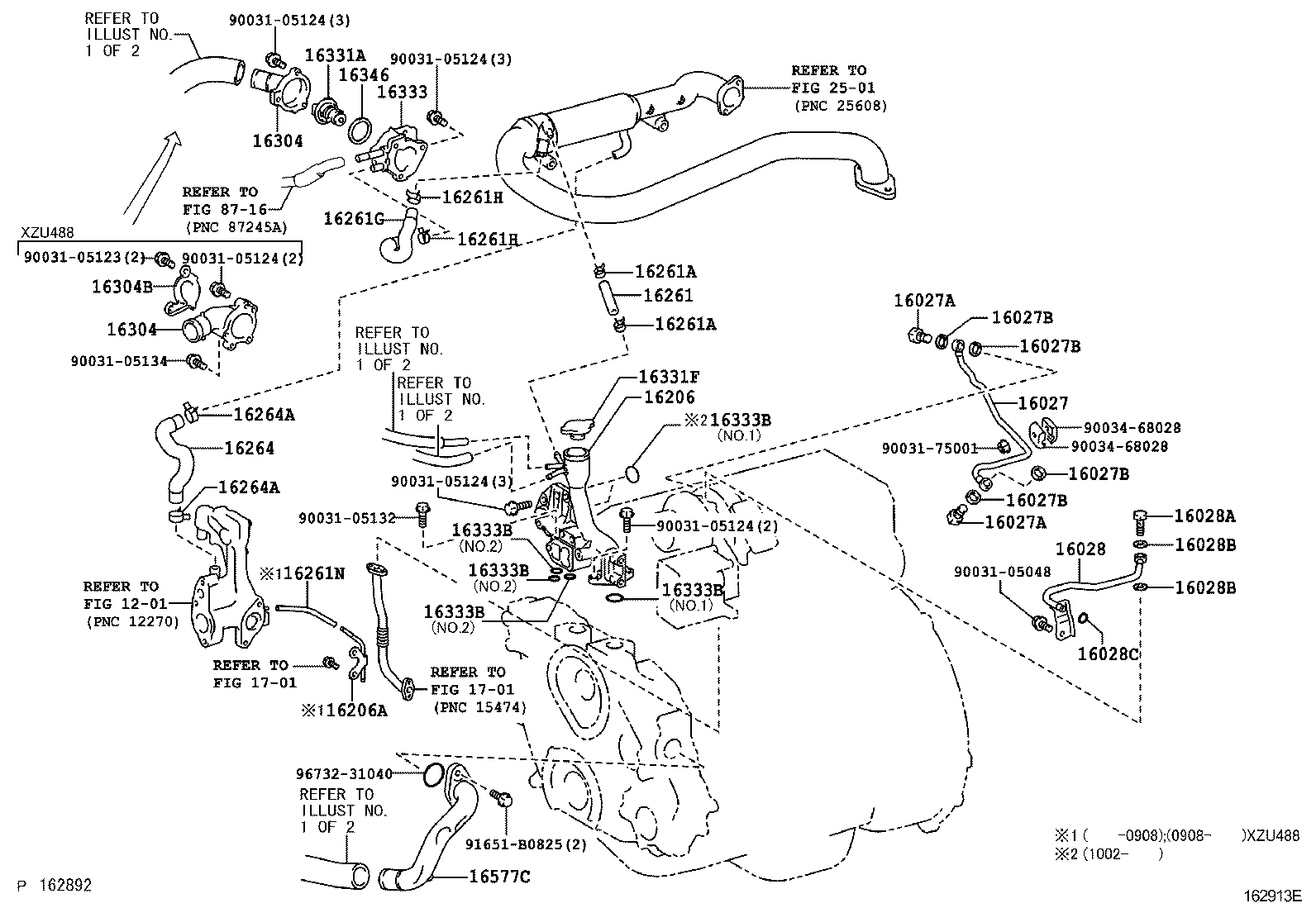

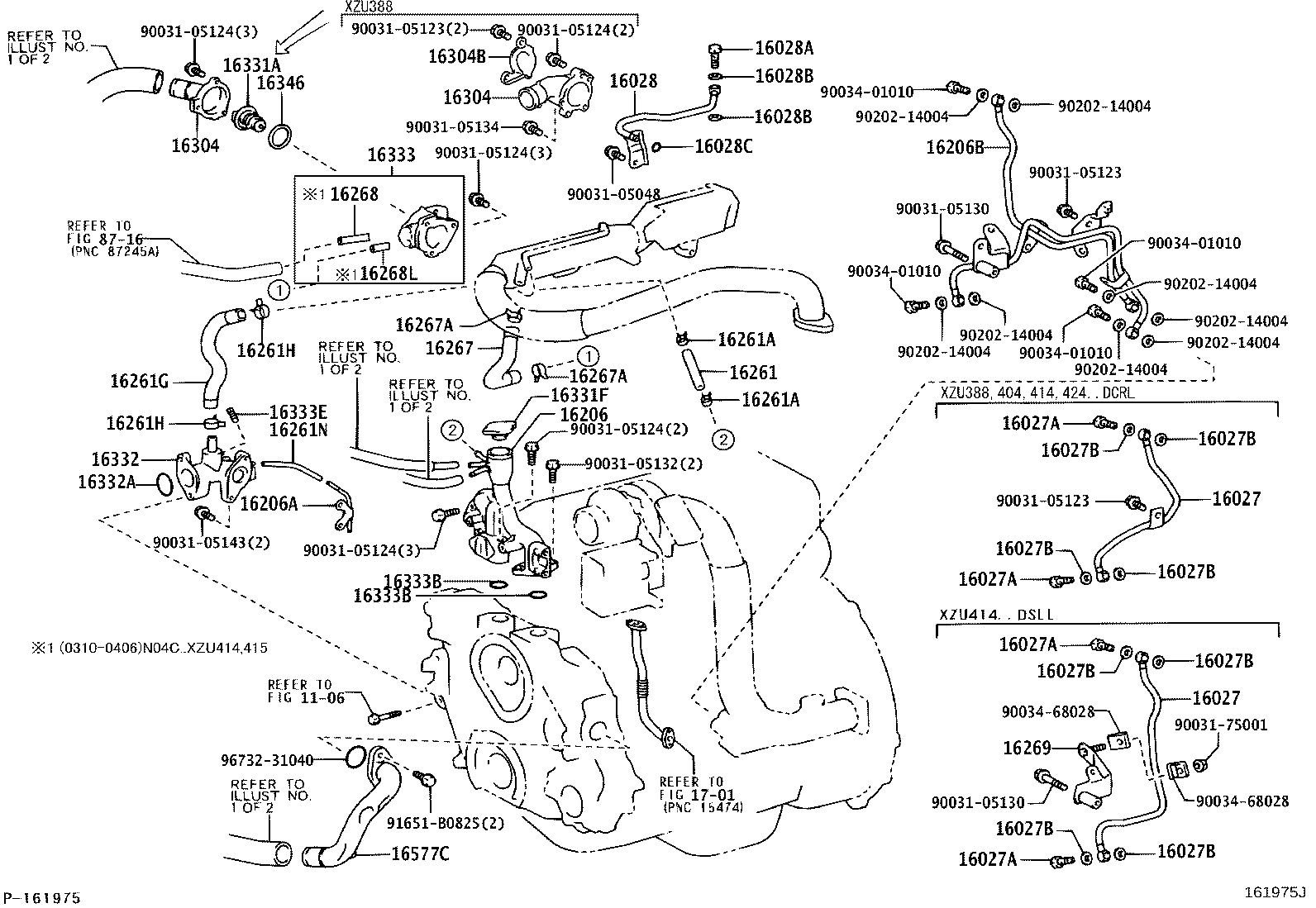

| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16027A | Bolt, Union(FOR TURBO WATER PIPE) |
| 16027B | Gasket(FOR TURBO WATER PIPE) |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16028A | Bolt, Union(FOR TURBO WATER PIPE NO.2) |
| 16028B | Gasket(FOR TURBO WATER PIPE NO.2) |
| 16028C | Ring, O(FOR TURBO WATER PIPE) |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16206A | Pipe Sub-assy, Water By-pass, NO.2 |
| 16206B | Pipe Sub-assy, Water By-pass, NO.3 |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264G | Hose, Water By-pass, NO.3 |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267C | Hose, Water By-pass, NO.4 |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268A | Hose(FOR WATER BY-PASS PIPE) |
| 16268B | Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) |
| 16268L | Pipe, Water By-pass |
| 16269 | Support, Water By-pass Pipe |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16283C | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16291 | Joint, Water Hose |
| 16304 | Outlet Sub-assy, Water |
| 16304B | Cover Sub-assy, Water Outlet |
| 16321 | Inlet, Water |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16331F | Cap Sub-assy(FOR WATER OUTLET) |
| 16331Q | Plug(FOR WATER OUTLET) |
| 16332 | Pipe, Water Outlet, NO.1 |
| 16332A | Ring, O(FOR WATER OUTLET PIPE) |
| 16333 | Housing, Water Outlet |
| 16333A | Bolt, Stud(FOR WATER OUTLET HOUSING) |
| 16333B | Ring, O(FOR WATER OUTLET HOUSING) |
| 16333C | Plug, W/Head Taper Screw |
| 16333E | Plug, Drain Cock |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16346 | Gasket, Thermostat |
| 16361 | Fan |

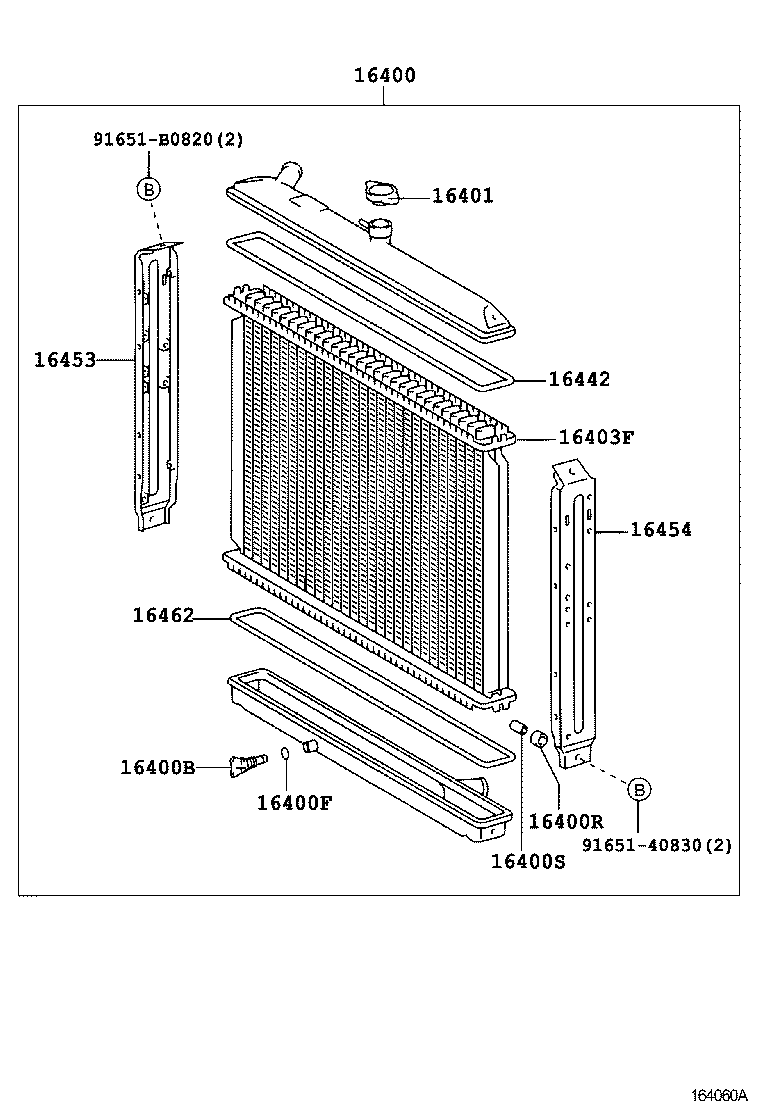

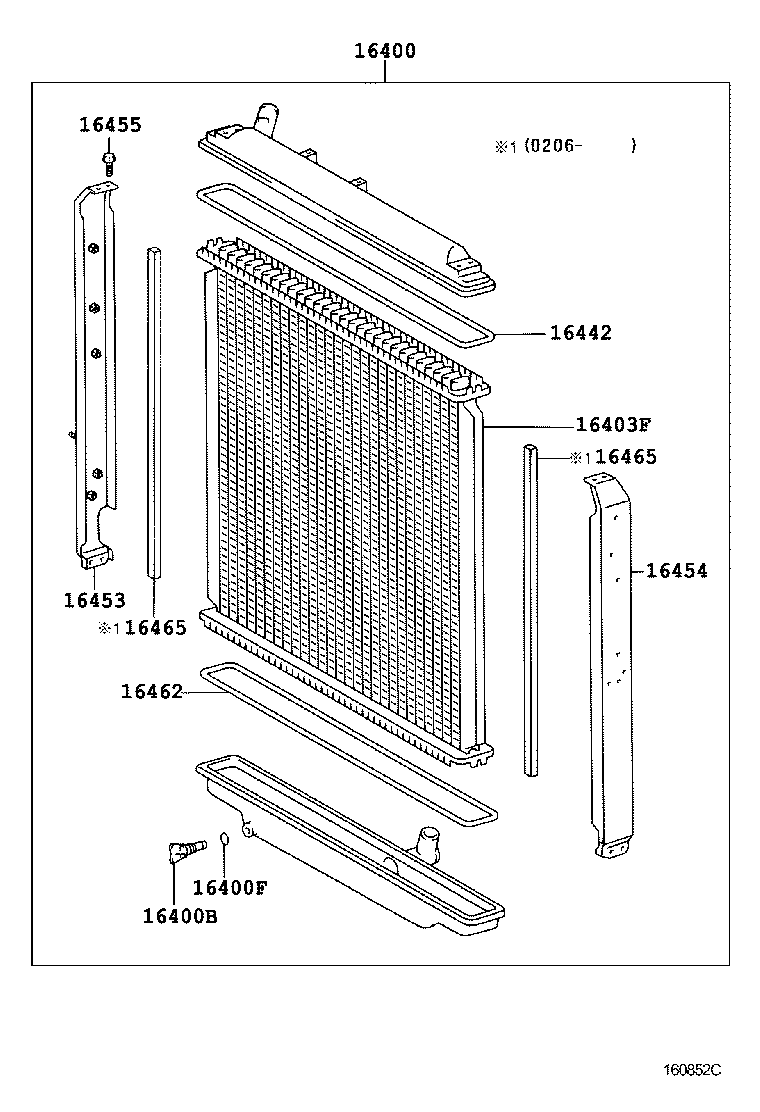

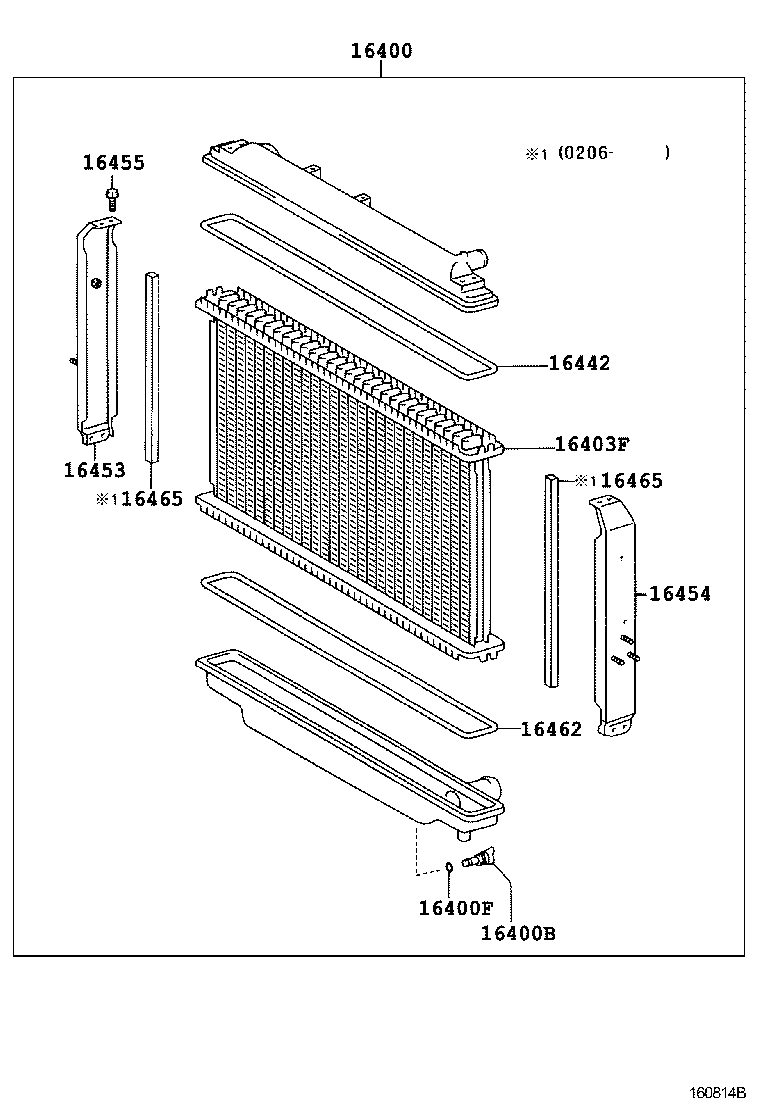

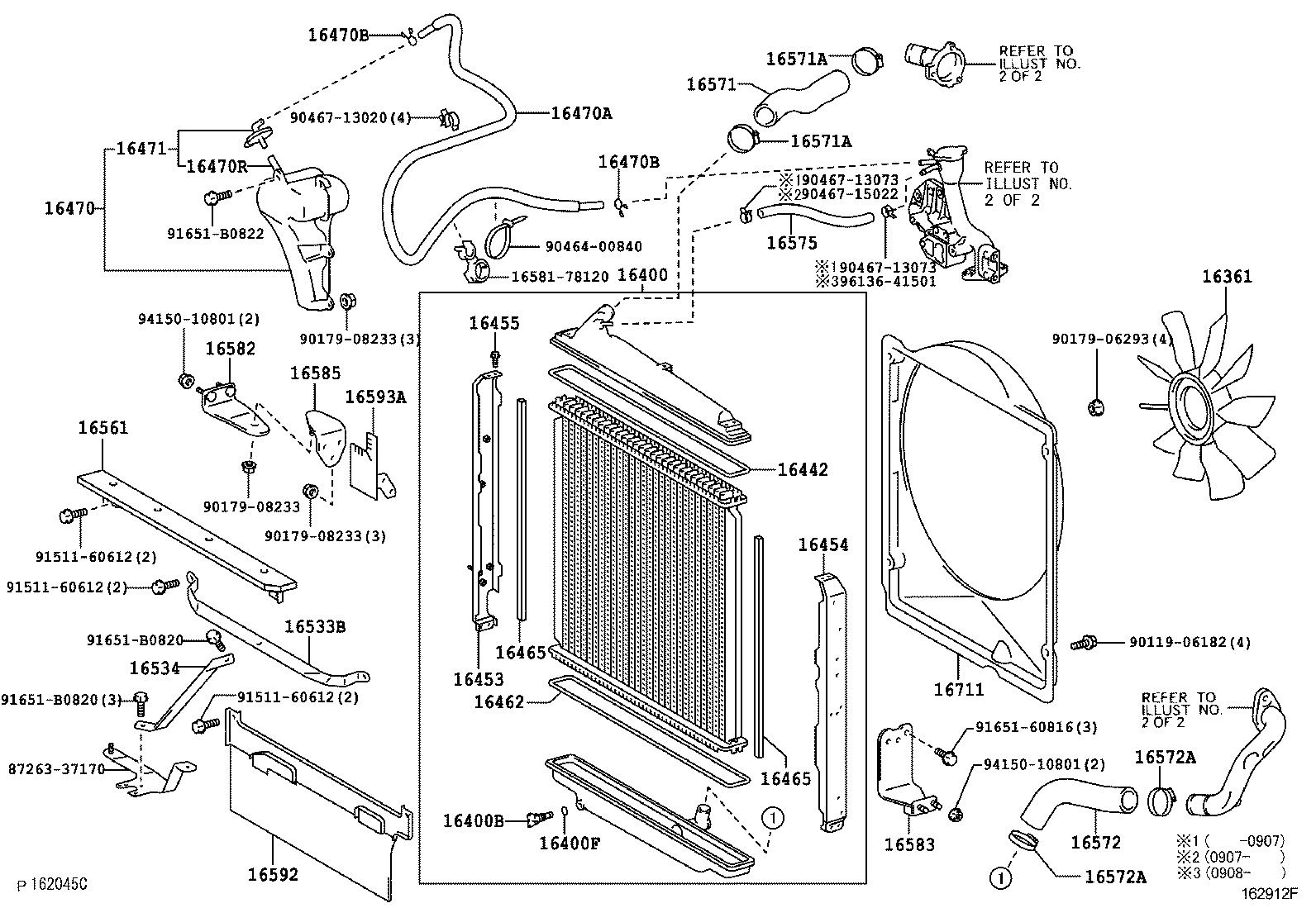

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400R | Bushing(FOR RADIATOR) |
| 16400S | Collar(FOR RADIATOR) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16455 | Bolt, Radiator Side Support Plate |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16465 | Packing, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16470R | Hose, NO.2(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16533B | Support, Radiator, NO.1 |
| 16534 | Support, Radiator, NO.2 |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16575 | Hose, Radiator, NO.5 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577 | Pipe, Radiator, NO.7 |
| 16577C | Pipe, Radiator |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16582 | Bracket, Radiator, NO.1 |
| 16583 | Bracket, Radiator, NO.2 |
| 16584 | Insulator, Radiator Mounting |
| 16585 | Bracket, Radiator, NO.3 |
| 16586 | Bracket, Radiator, NO.4 |
| 16589 | Stay, Pipe Clamp |
| 16592 | Guide, Radiator Air, NO.3 |
| 16593 | Guide, Radiator Air, NO.1 |
| 16593A | Guide, Radiator Air, NO.1 RH |
| 16594 | Guide, Radiator Air, NO.2 |
| 16701 | Shroud Sub-assy, Fan |
| 16702 | Shroud Sub-assy, Fan, NO.2 |
| 16711 | Shroud, Fan |
| 16715 | Bracket, Fan Shroud |
| 16715A | Bracket, Fan Shroud, NO.2 |
| 16716 | Cushion, Fan Shroud |
| 16721 | Plate, Holder |
| 16832 | Seal, Fan Shroud |
| 16838 | Clamp, Fan Shroud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
