Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 9 illustrations

Illustrations

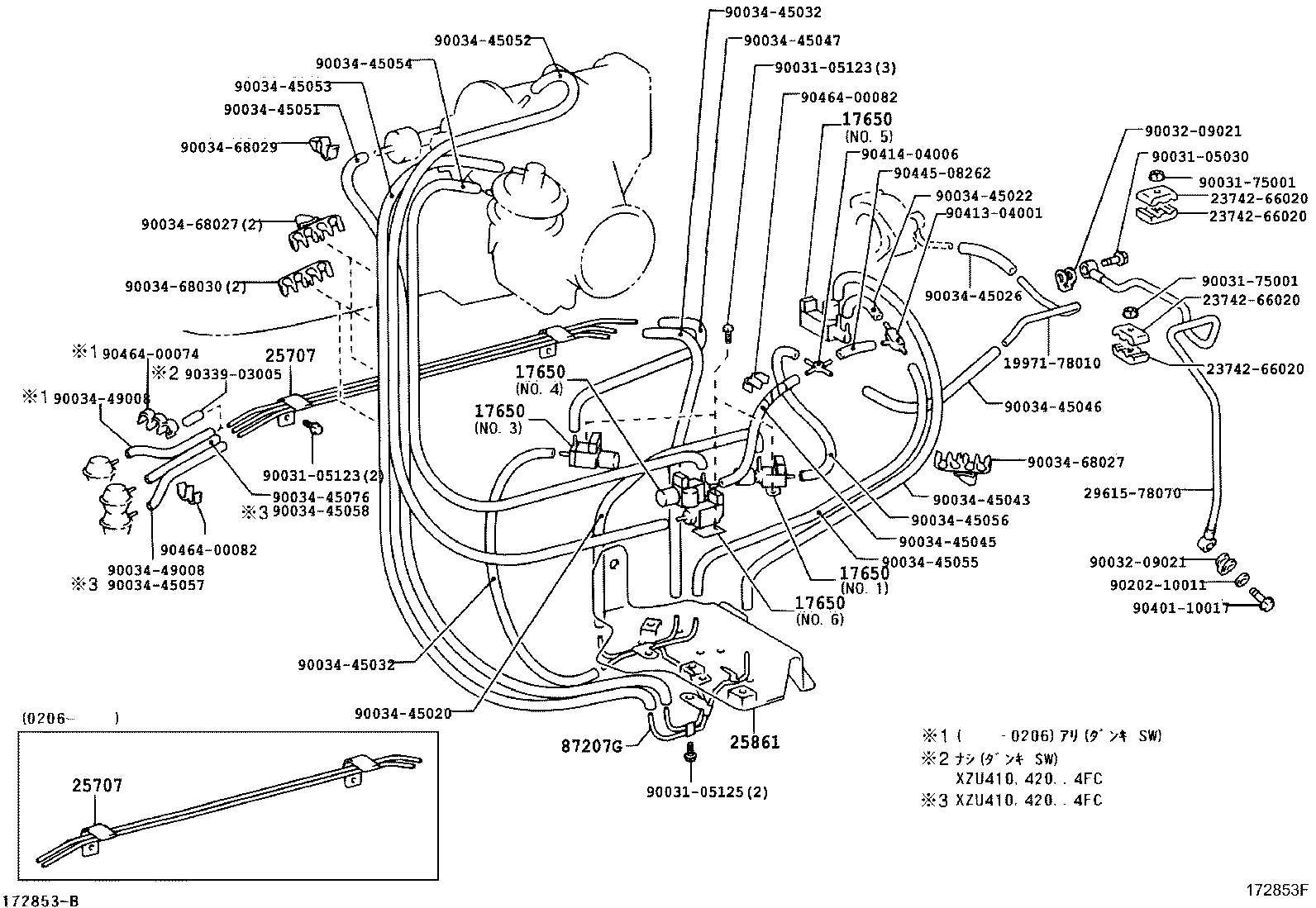

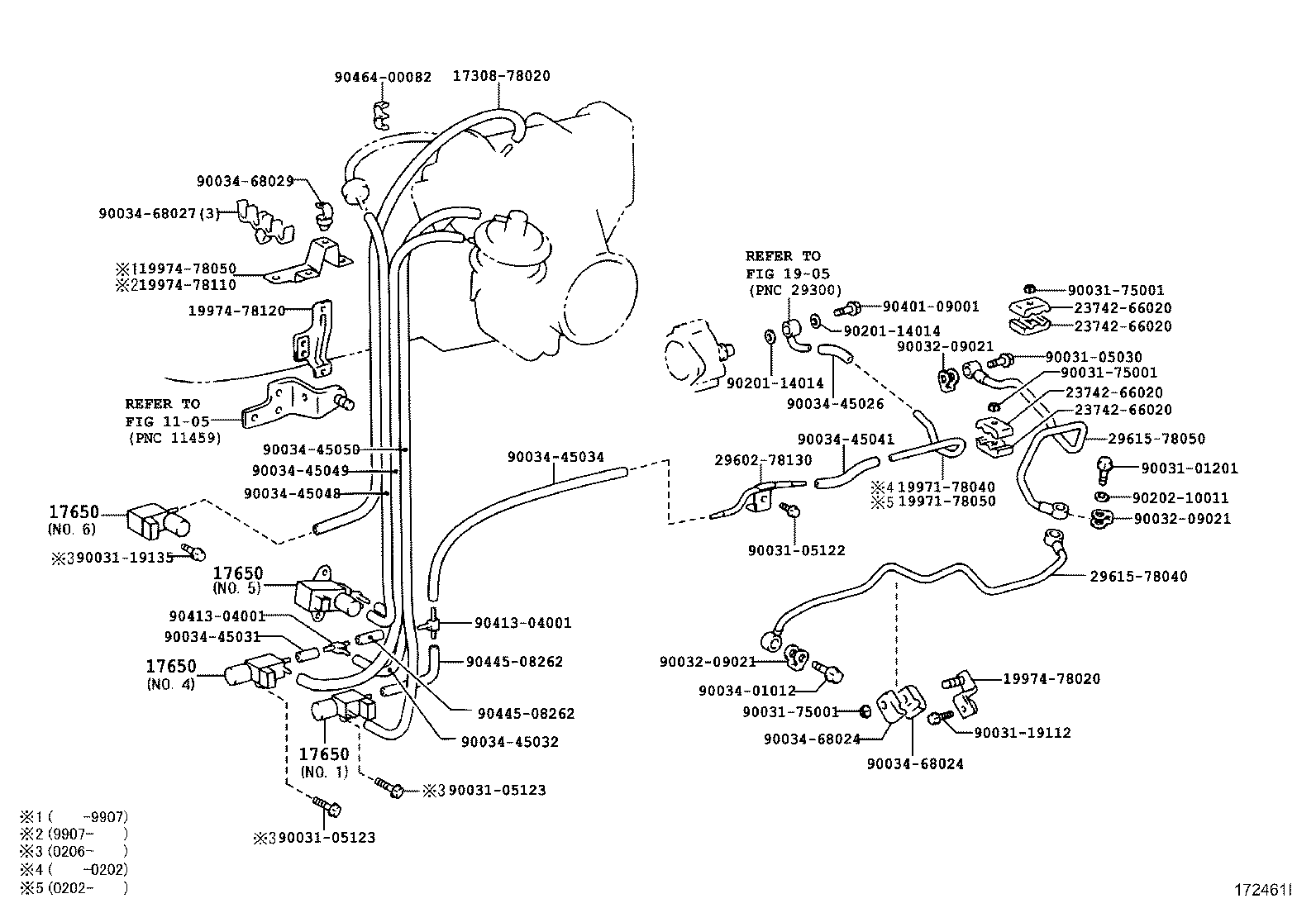

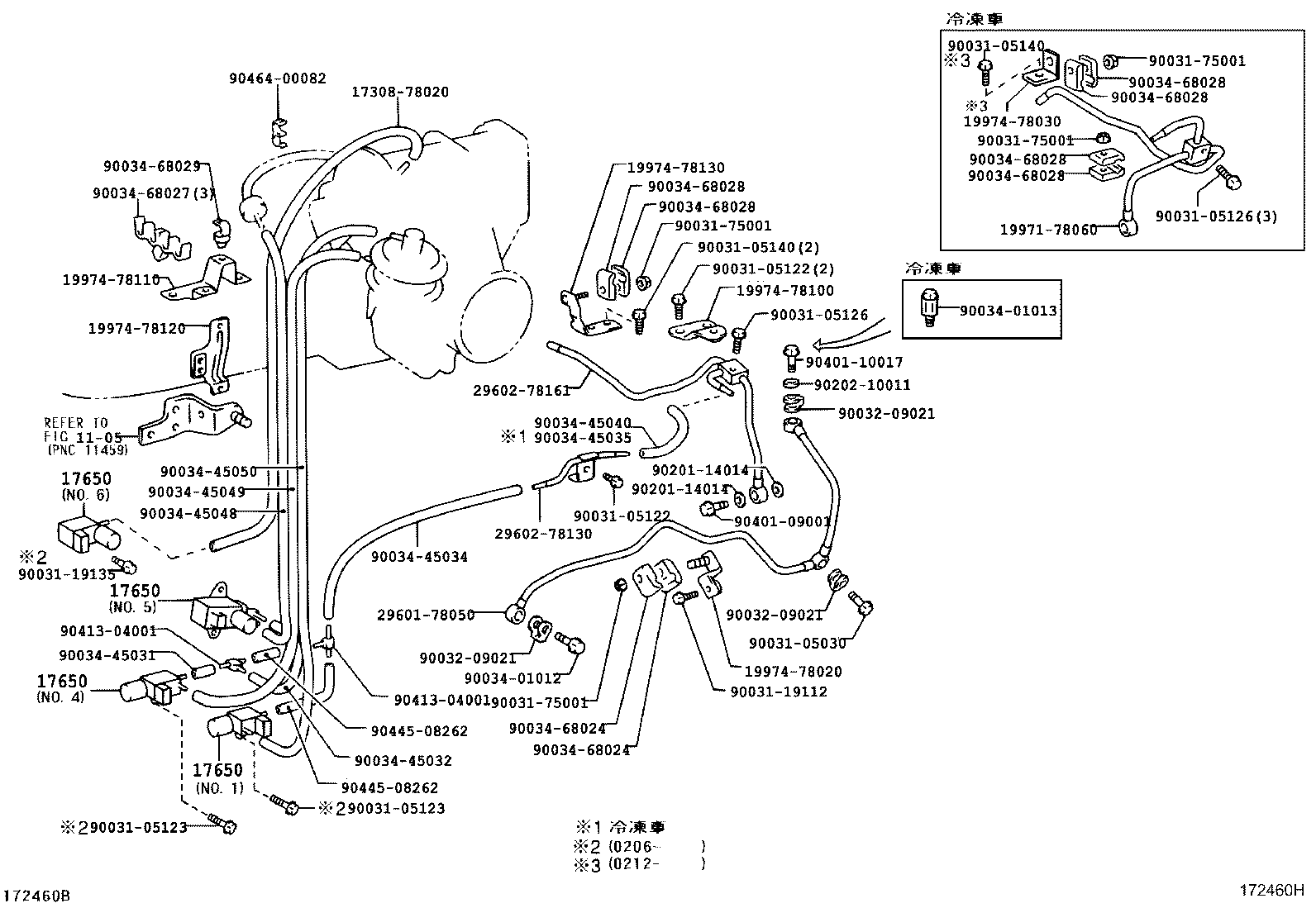

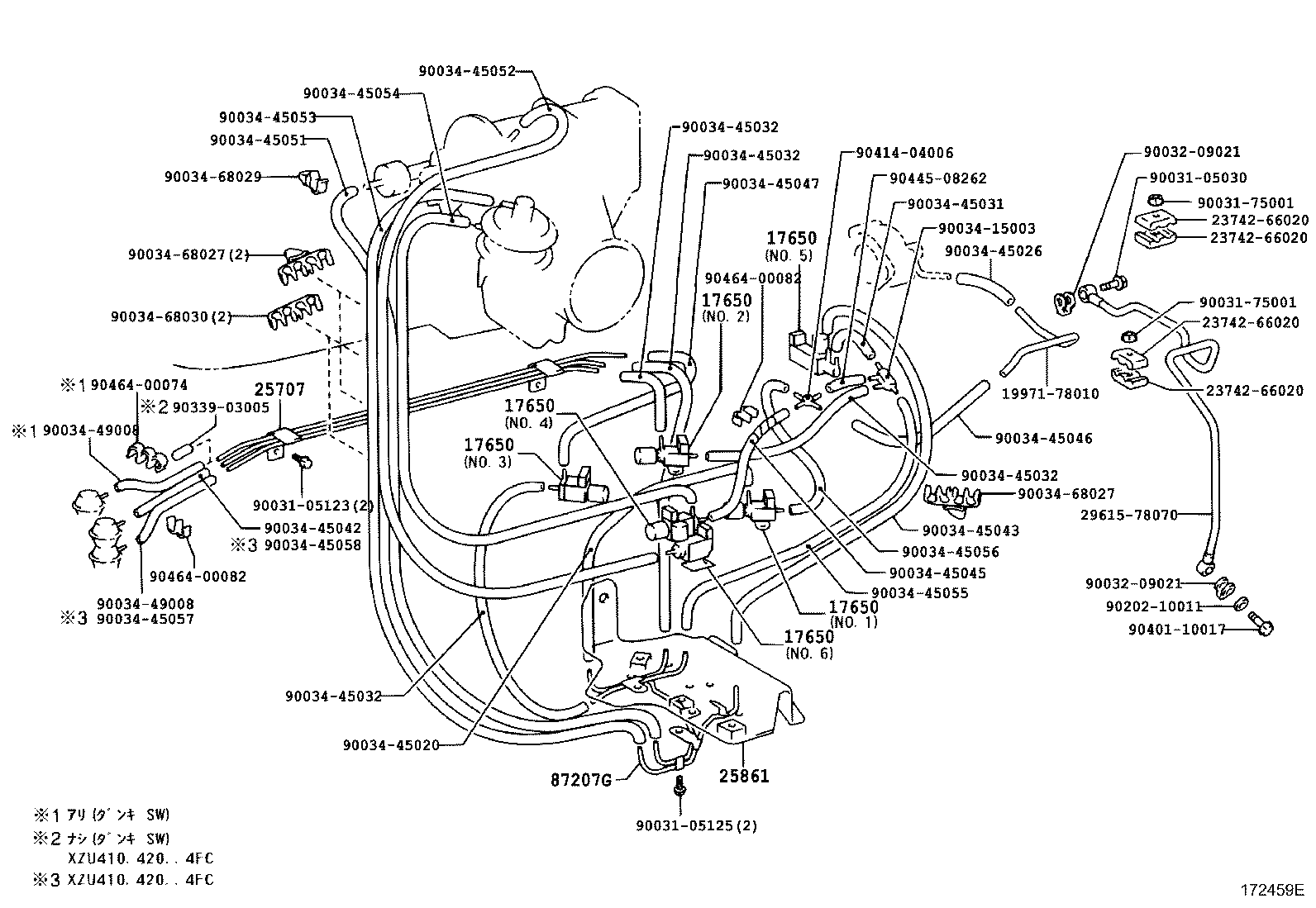

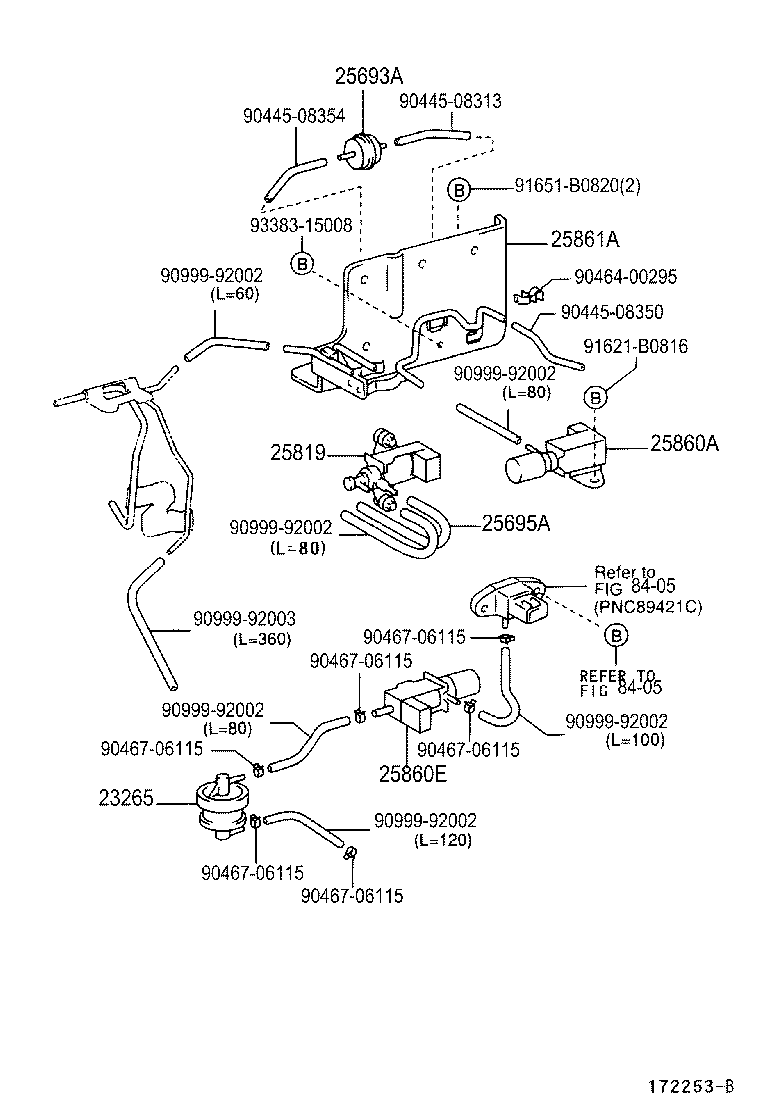

Figure 170020 170020 1999-05 → — Figure 172253B 172253B 1999-08 → 2004-06 Figure 172483B 172483B 2003-06 → — Figure 172459E 172459E 1999-05 → 2000-06 Figure 172853F 172853F 2000-06 → — Figure 172461I 172461I 1999-05 → — Figure 172461I 172461I 1999-05 → — Figure 172460H 172460H 1999-08 → — Figure 172483B 172483B 2000-11 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
22233 Hose, Lpg Auxiliary Air Valve, NO.1
22233A Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22270K Valve Assy, Lpg Idle Speed Control
22278A Gasket, Lpg Idle Speed Control Valve
23265 Filter, Gas, NO.1
23288 Jet, NO.1
25693A Damper, Egr Vacuum Modulator
25695A Hose, Egr Vacuum Modulator
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25819 Valve Assy, Vacuum Regulating
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
87207G Pipe Sub-assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
