Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

14 part groups · 7 illustrations

Illustrations

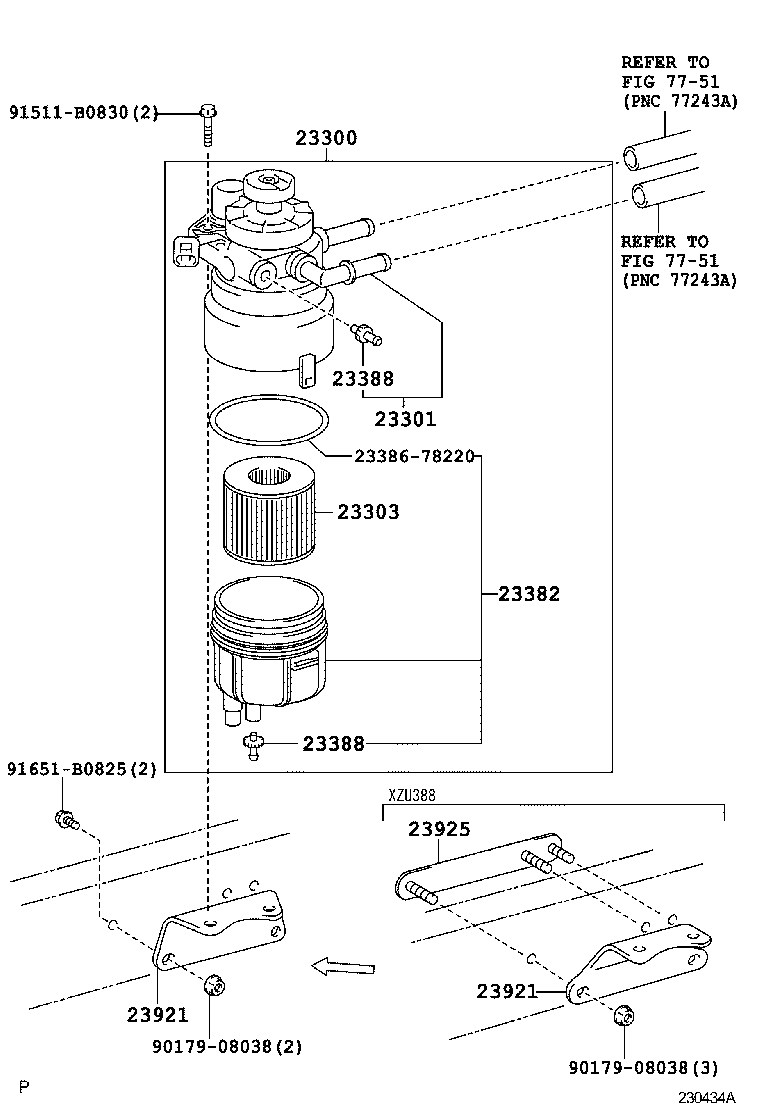

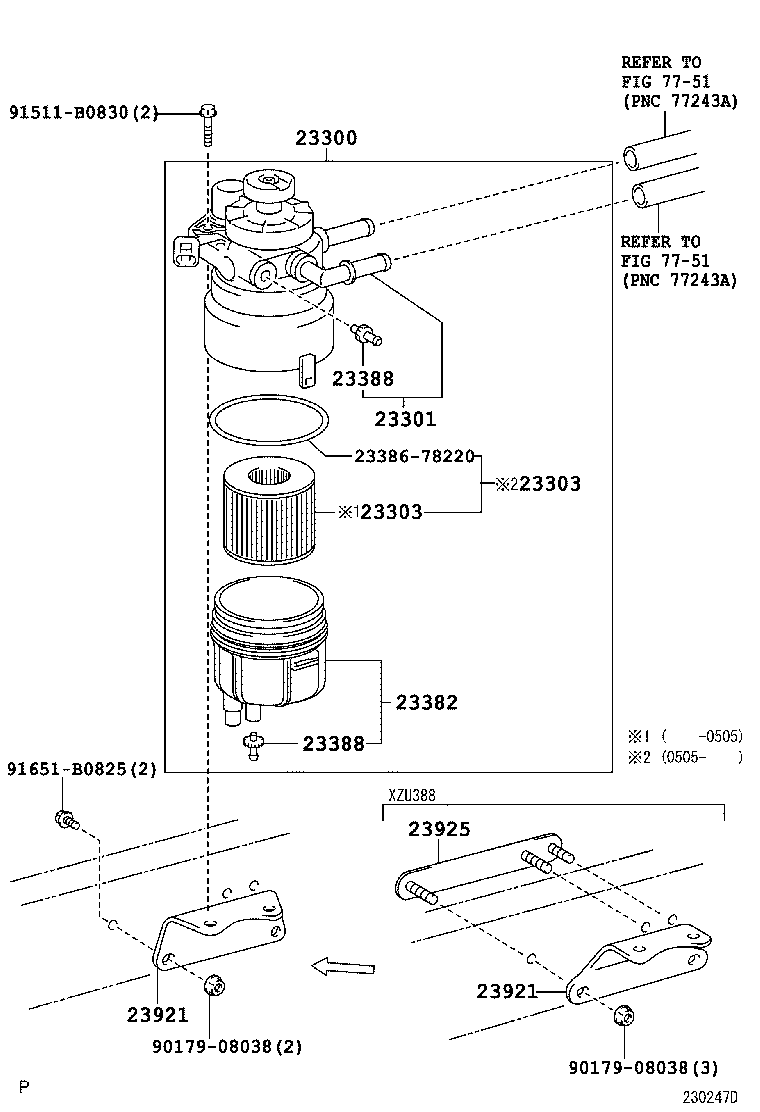

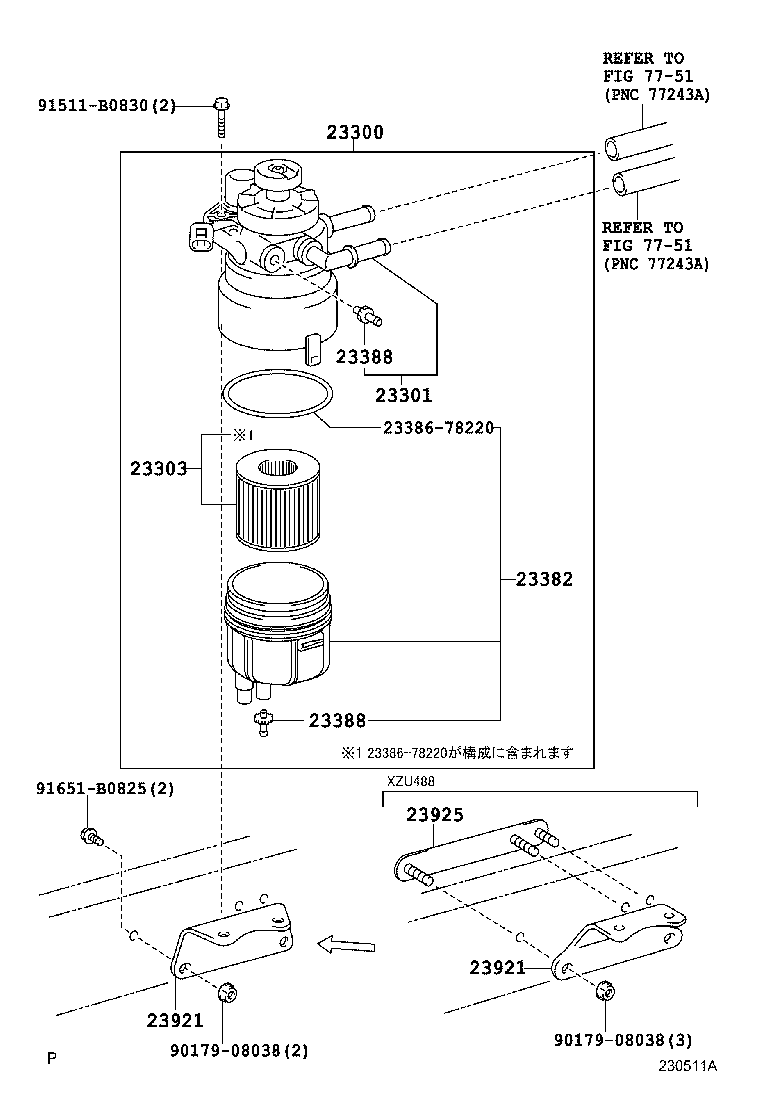

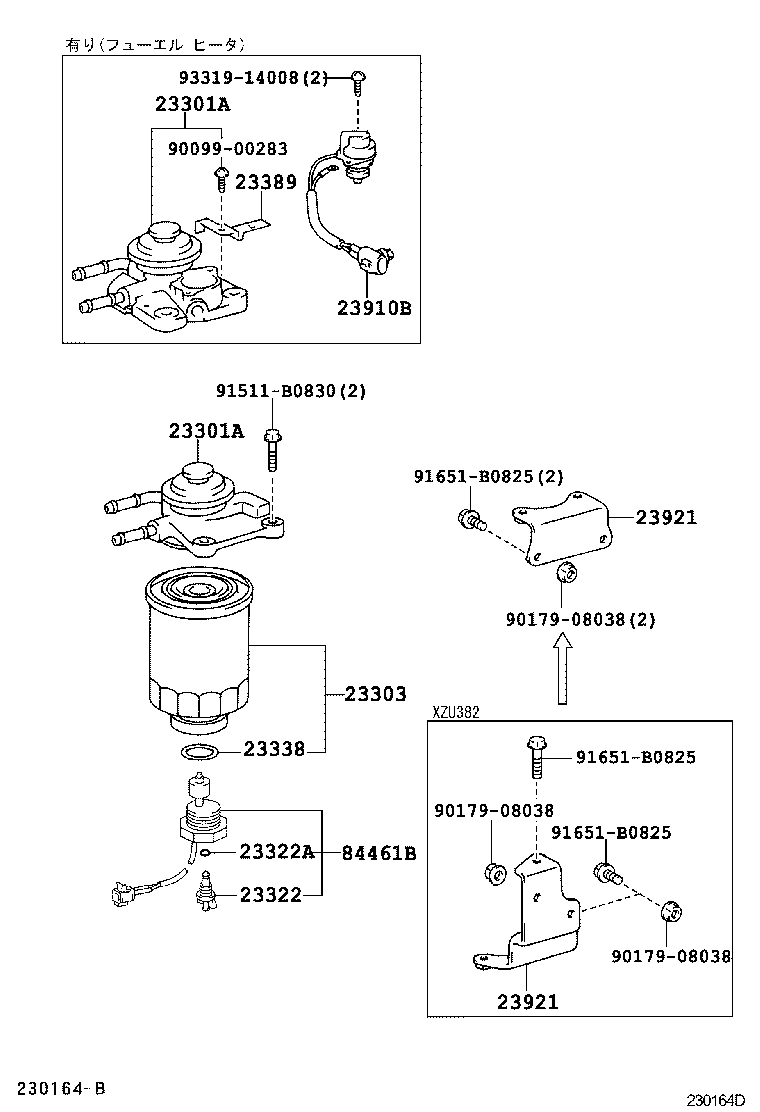

Figure 230131B 230131B 1999-08 → — Figure 230428 230428 1999-05 → 2004-06 Figure 230164D 230164D 1999-05 → 2004-06 Figure 230379A 230379A 2003-10 → 2004-06 Figure 230247D 230247D 2004-06 → 2005-12 Figure 230434A 230434A 2005-12 → 2006-10 Figure 230511A 230511A 2006-10 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23301 Body Sub-assy, Fuel Filter
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23382 Case, Fuel Filter
23388 Plug, Fuel Filter Drain
23389 Clamp, Fuel Filter
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
23925 Stay, Fuel Filter Support
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
