Toyota Dyna/Toyoace
1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan
Discontinued model
Data version 2012-01

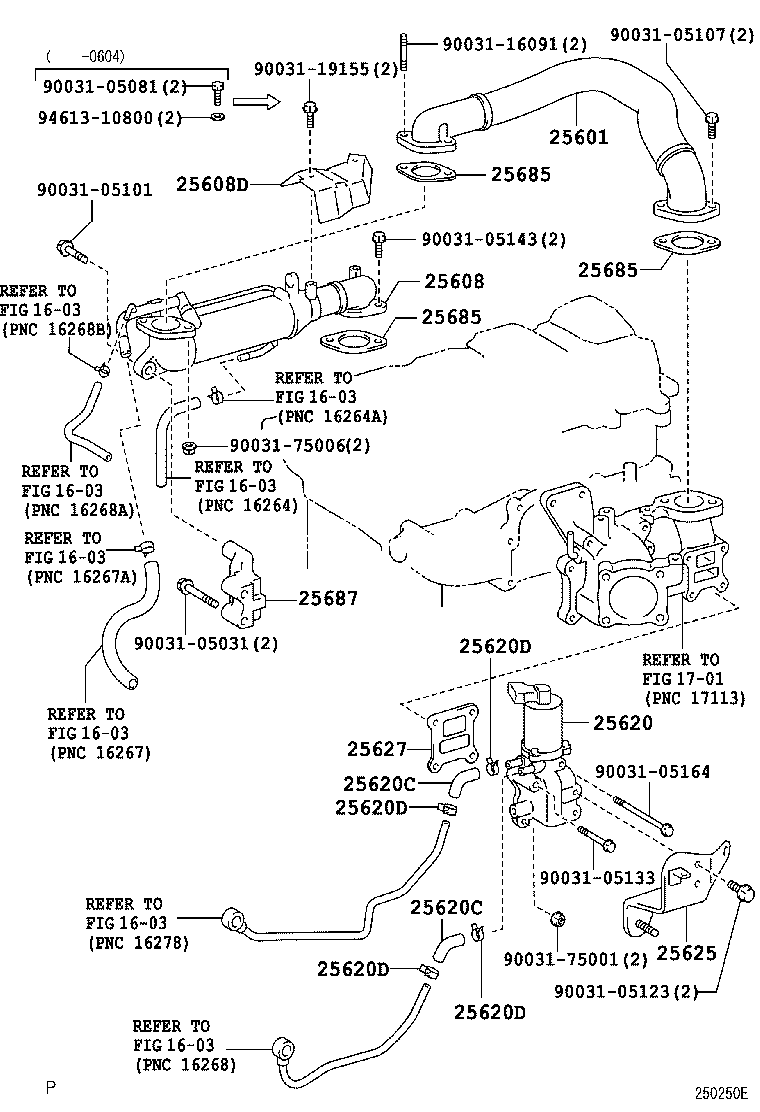

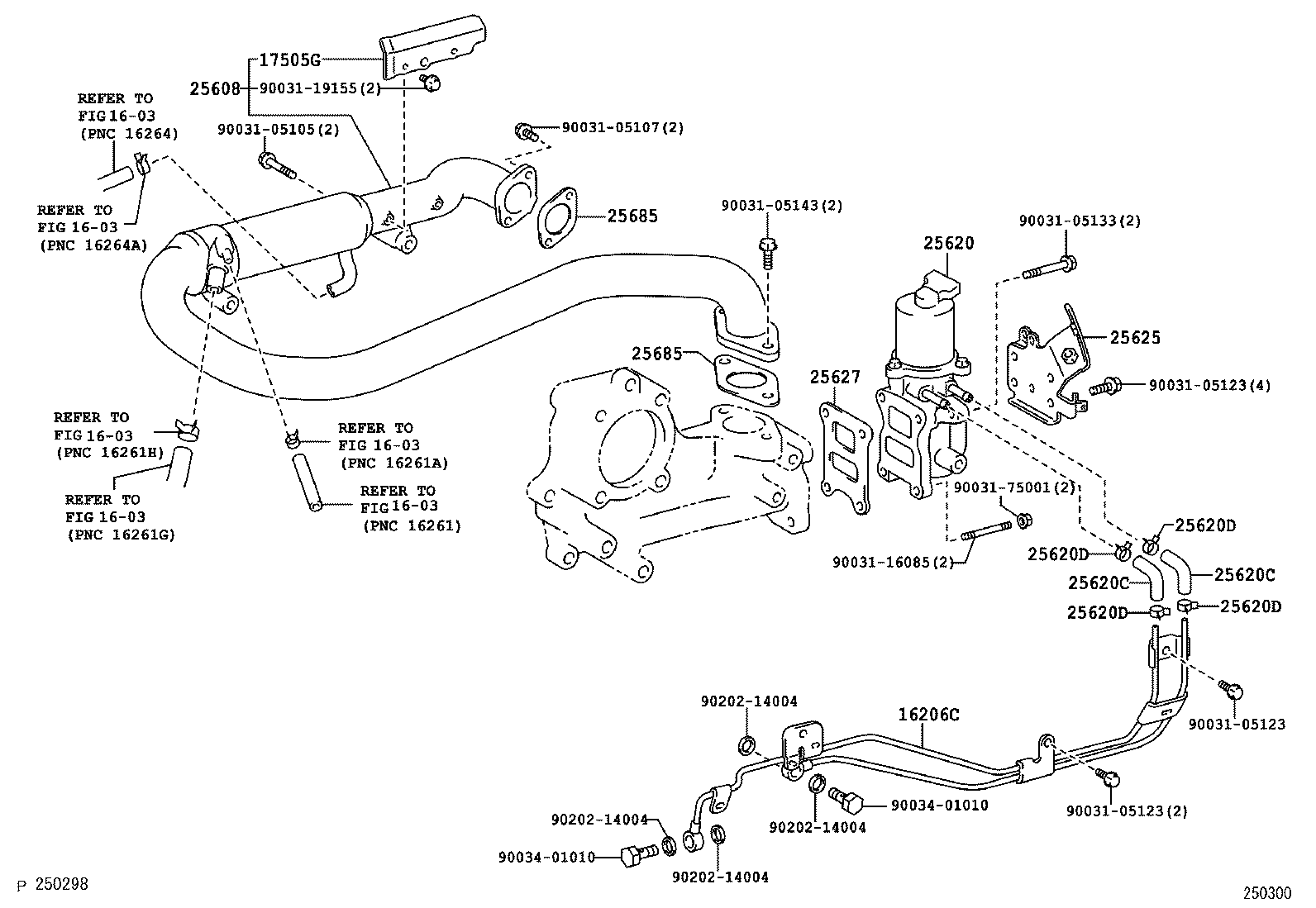

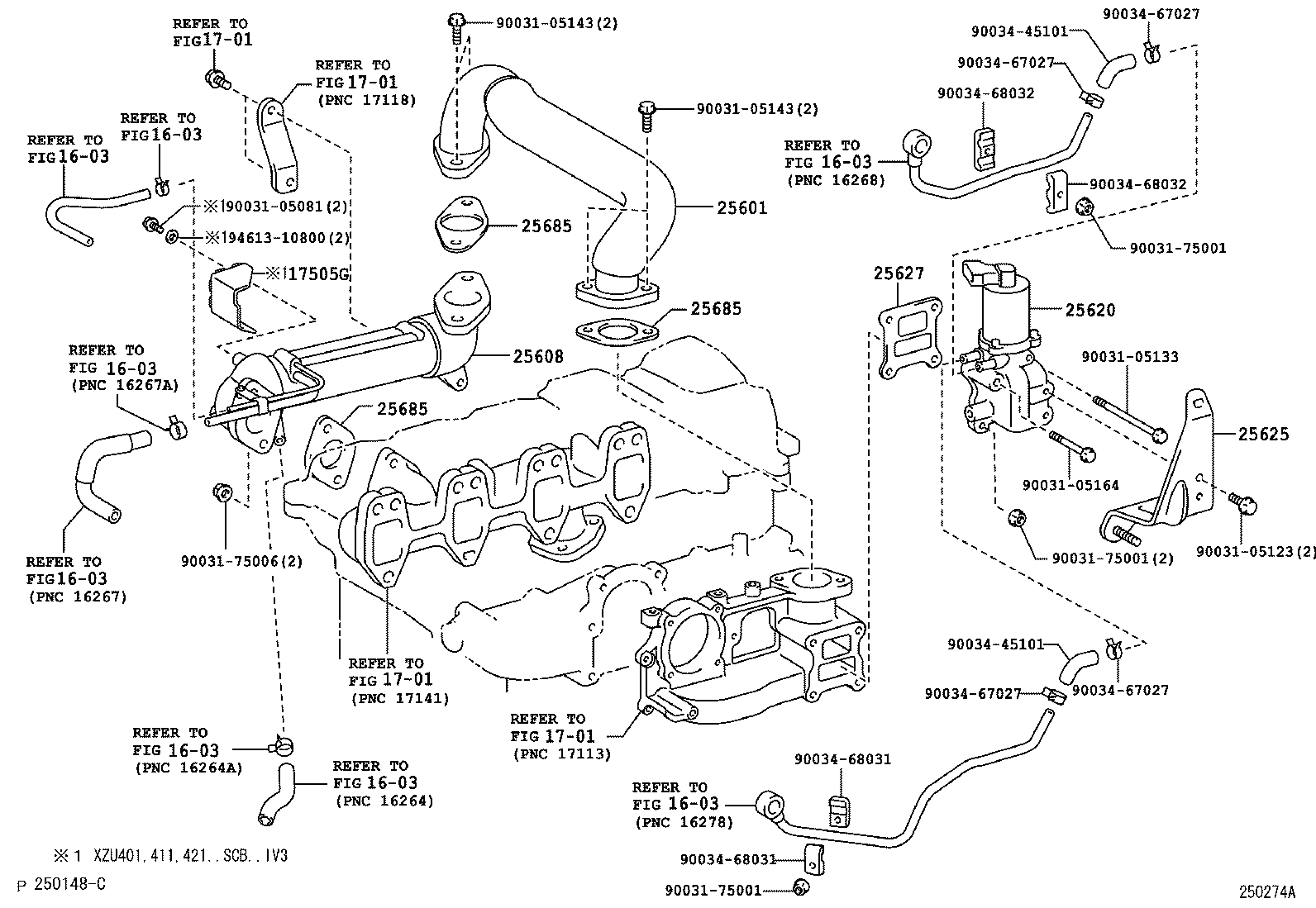

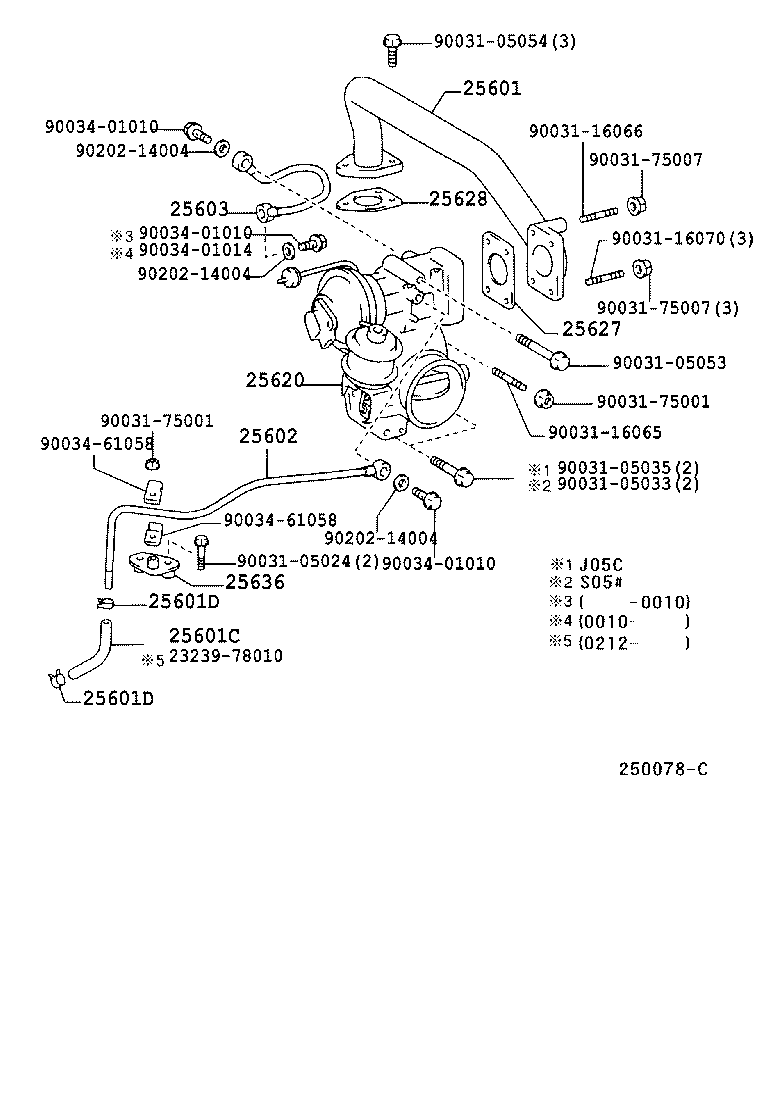

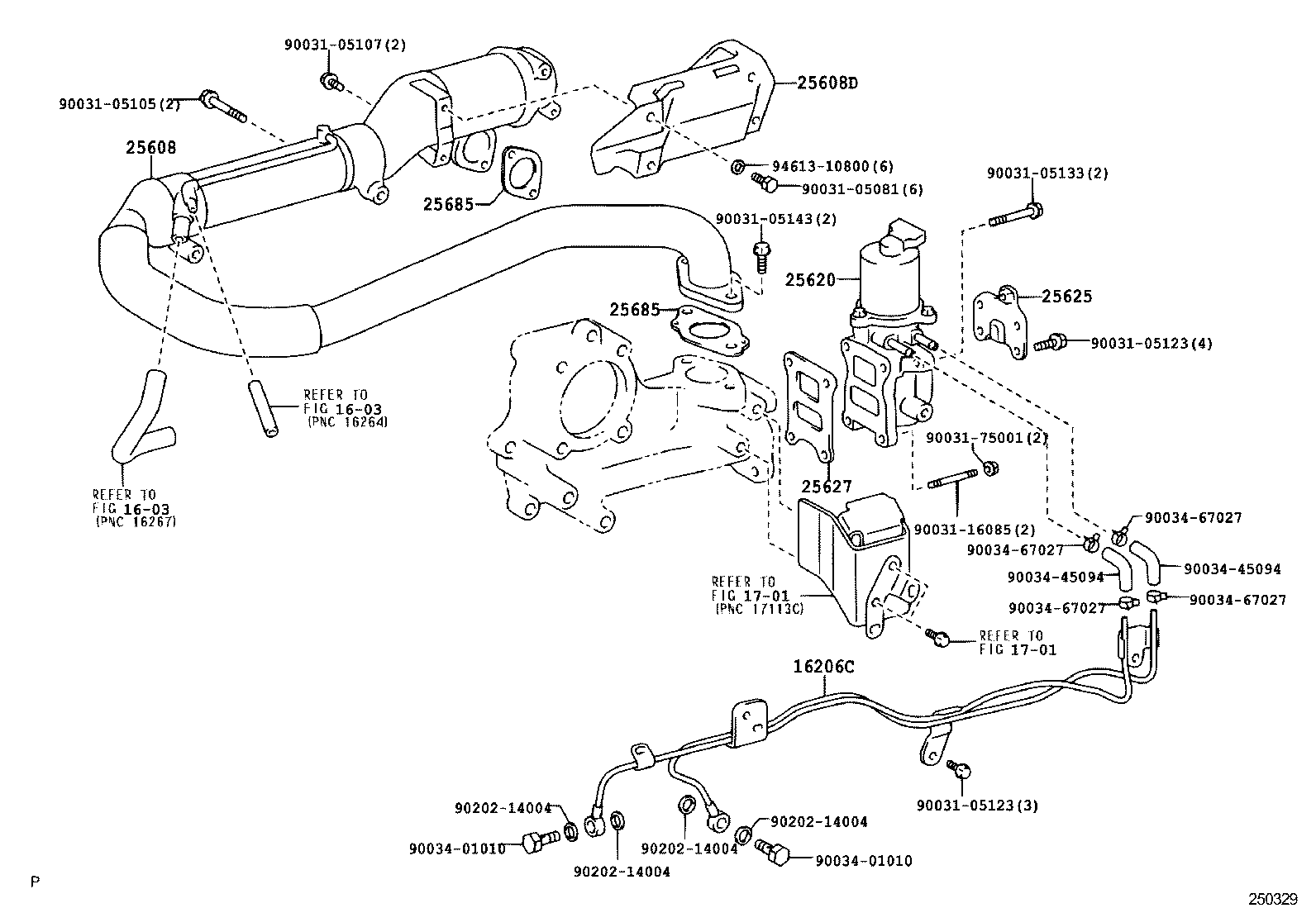

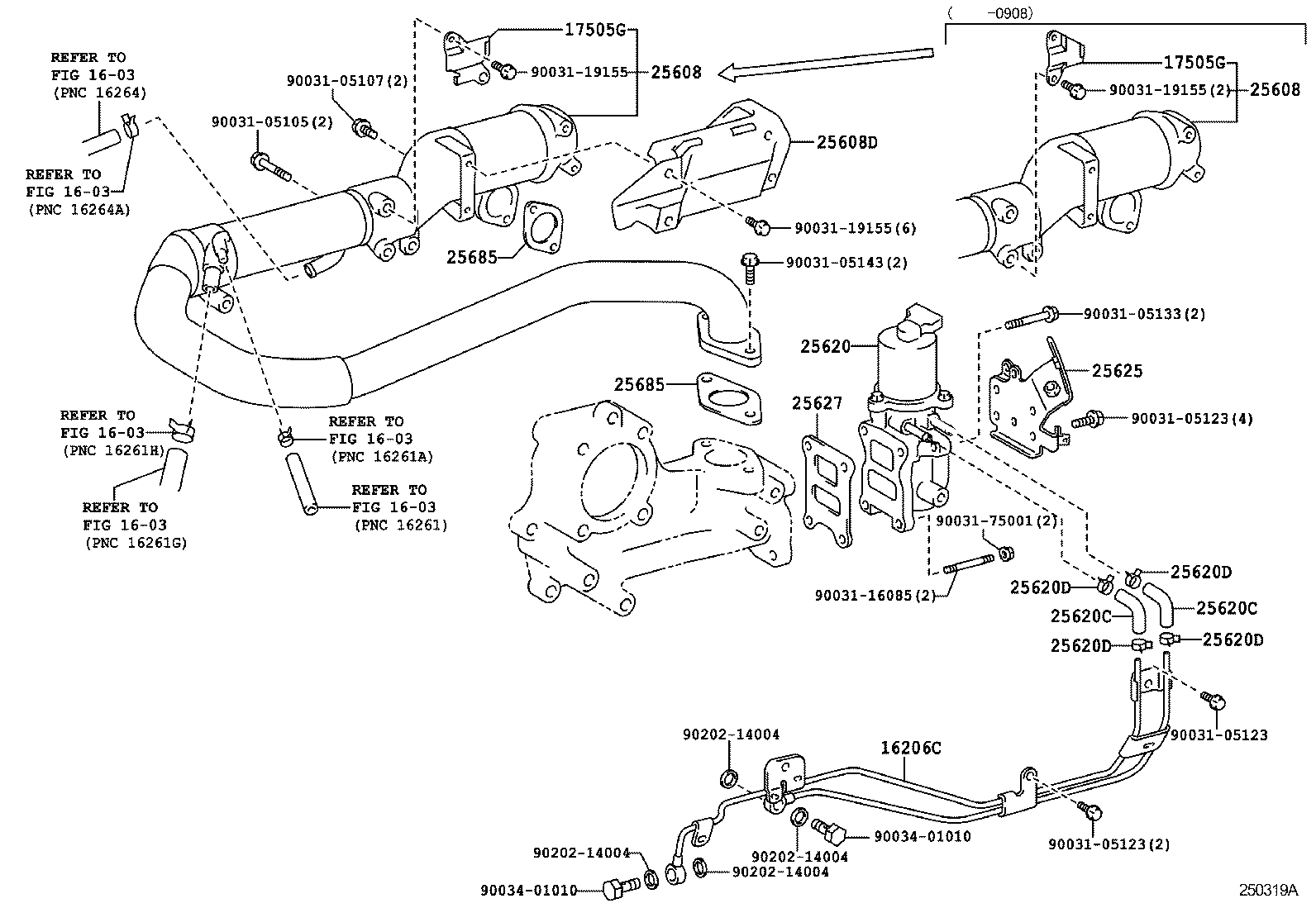

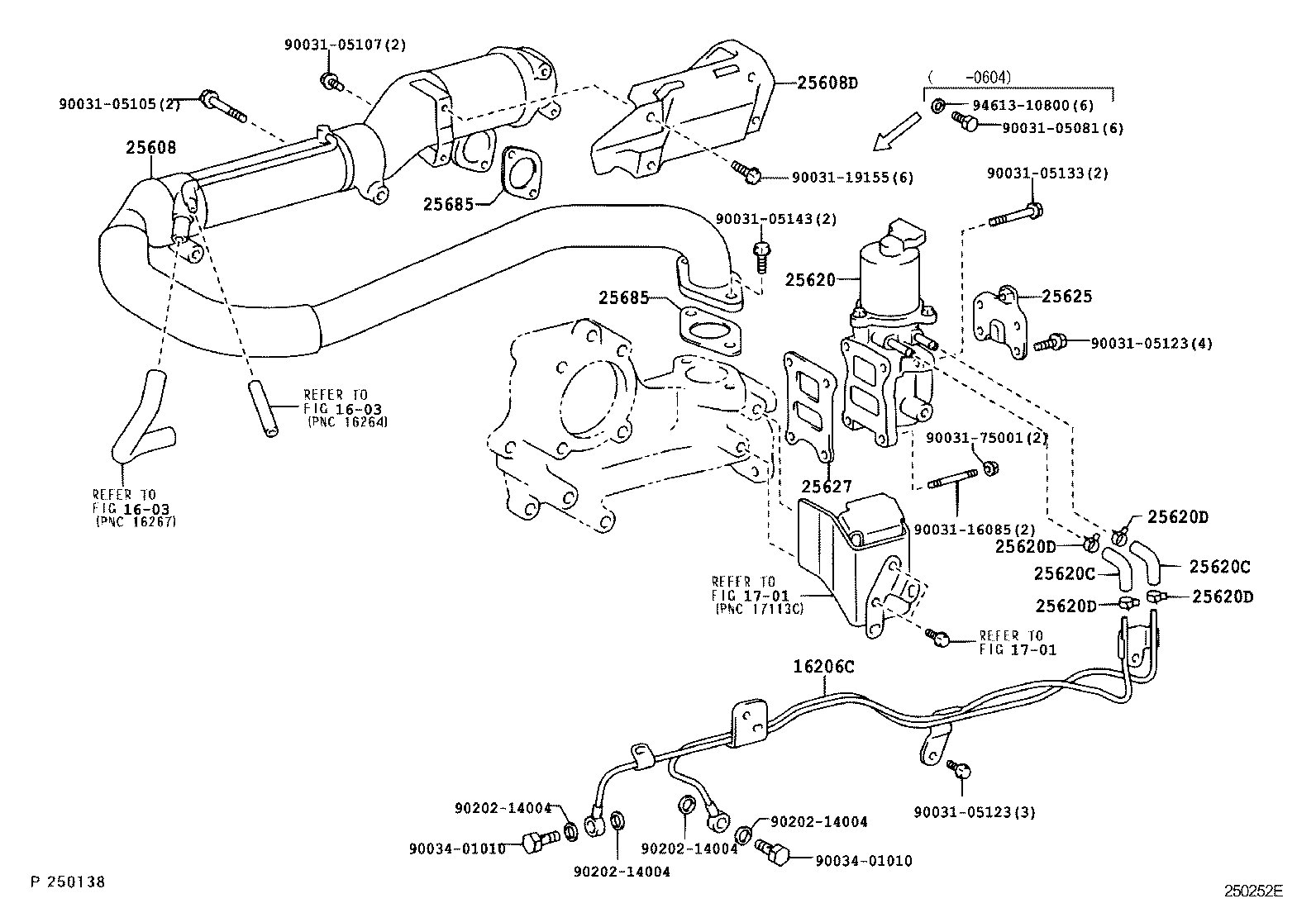

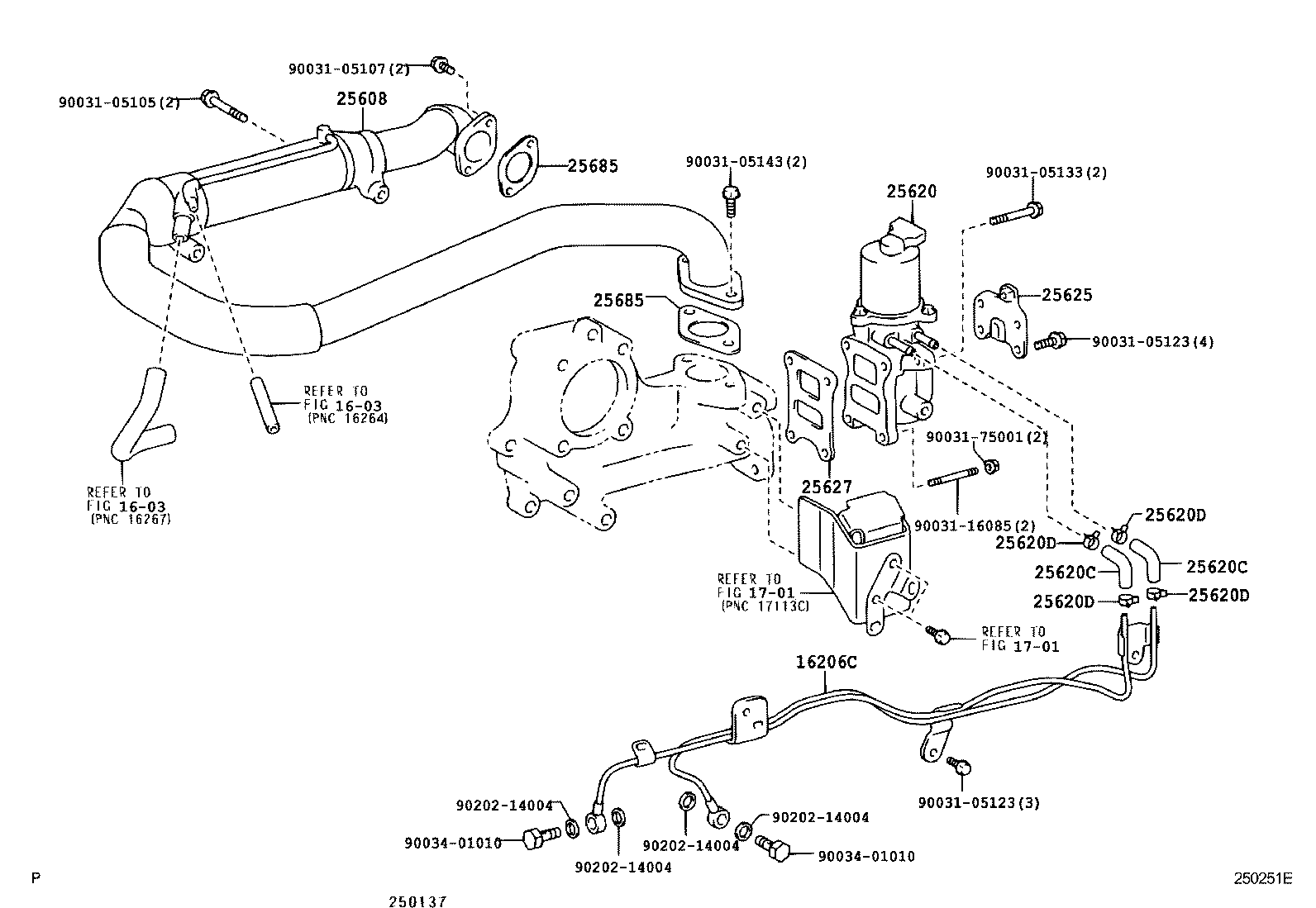

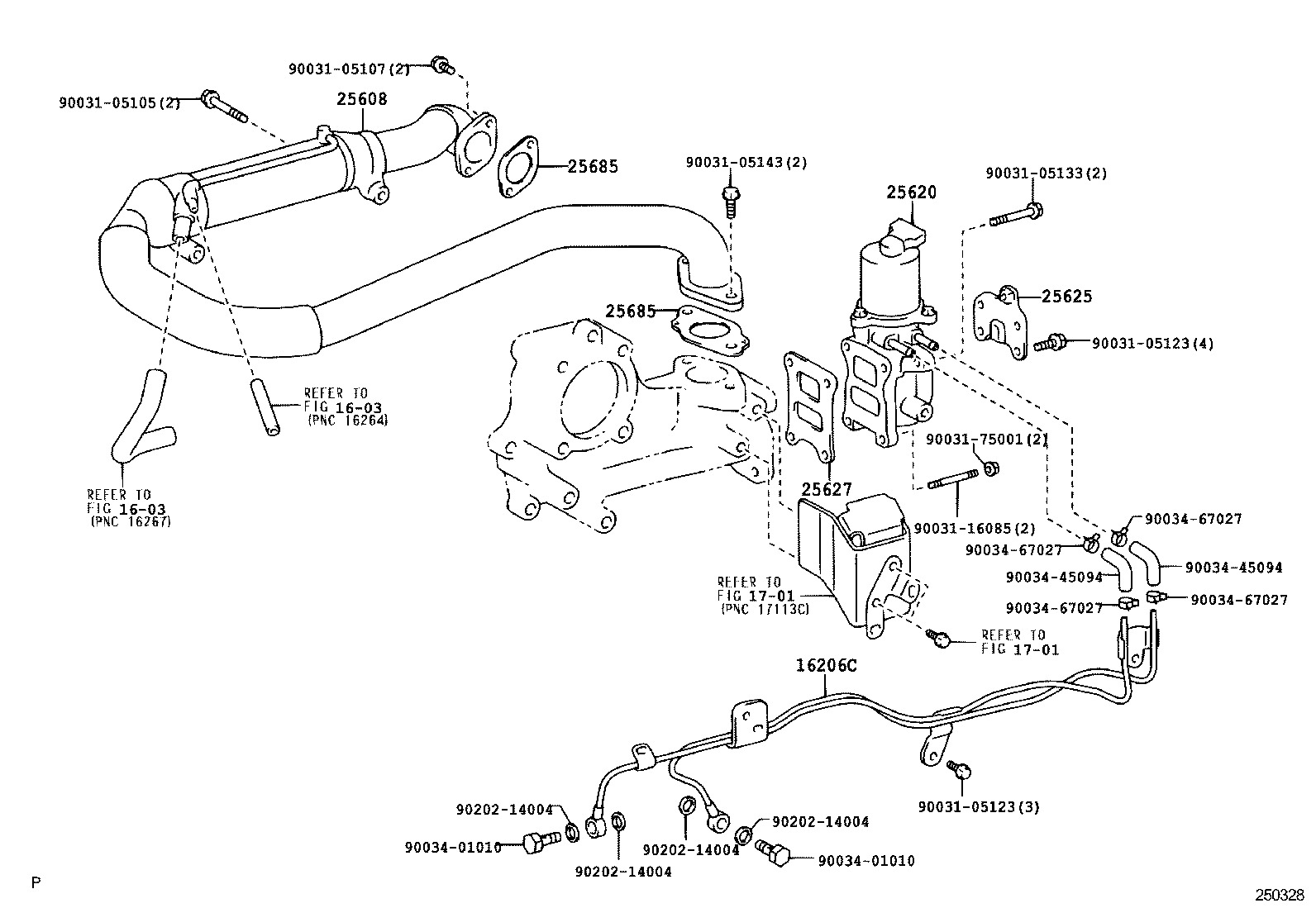

Exhaust Gas Recirculation System
20 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 16206C | Pipe Sub-assy, Water By-pass |
| 17505G | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601C | Hose(FOR EGR PIPE, NO.1) |
| 25601D | Clip OR Clamp(FOR EGR PIPE, NO.1) |
| 25601J | Gasket(FOR EGR PIPE, NO.1) |
| 25602 | Pipe Sub-assy, Egr, NO.2 |
| 25603 | Pipe Sub-assy, Egr, NO.3 |
| 25608 | Cooler Sub-assy, Egr |
| 25608D | Insulator Sub-assy(FOR EGR COOLER) |
| 25620 | Valve Assy, Egr |
| 25620C | Hose, Water By-pass, NO.1 |
| 25620D | Clip(FOR WATER BY-PASS HOSE, NO.1) |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25631 | Stay, Egr Pipe, NO.1 |
| 25636 | Bracket, Egr Pipe, NO.2 |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25687 | Bracket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
