Toyota Dyna/Toyoace
1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan
Discontinued model
Data version 2012-01

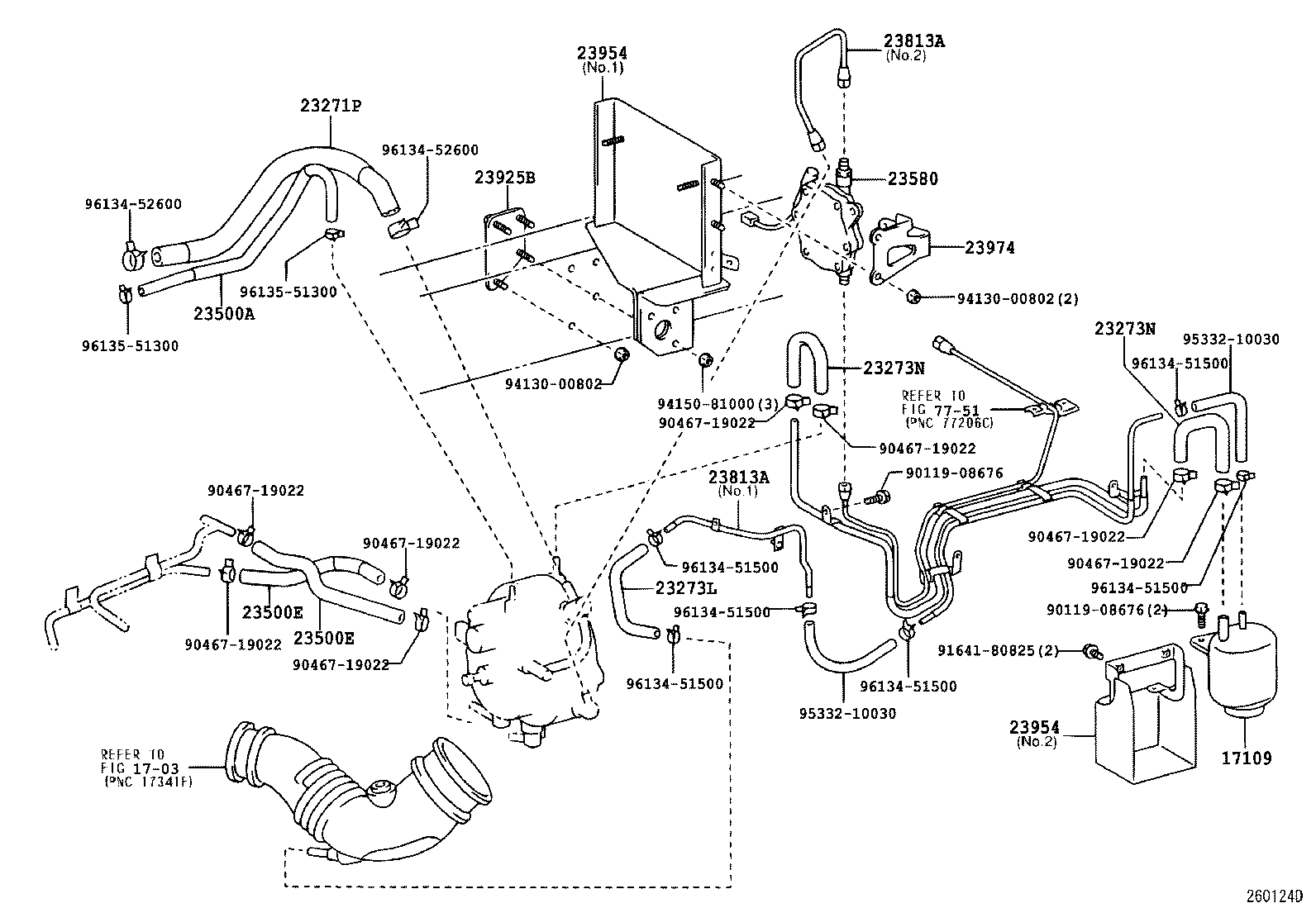

Lpg(CARBURETOR) Fuel Pipe
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261S | Hose, Water By-pass |
| 16261T | Hose, Water By-pass |
| 16278H | Pipe, Water By-pass, NO.2 |
| 17109 | Tank Sub-assy, Intake Air Surge |
| 23095A | Bracket Sub-assy, Regucator, NO.1 |
| 23271P | Hose, Fuel, NO.1(FOR REGULATOR TO FUEL PIPE) |
| 23273E | Hose, Fuel, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR) |
| 23273L | Hose, Fuel, NO.5 |
| 23273M | Hose, Fuel, NO.6 |
| 23273N | Hose, Fuel, NO.7 |
| 23500A | Hose, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) |
| 23500E | Hose, Water(FOR LPG REGULATOR INLET) |
| 23500G | Hose, Water(FOR LPG REGULATOR OUTLET) |
| 23580 | Preheater Assy, Lpg |
| 23813A | Pipe, Lpg Fuel |
| 23925B | Stay, Fuel Filter Support |
| 23954 | Bracket, Lpg Regulator |
| 23974 | Bracket, Preheater |
| 58266K | Bracket, Fuel Tube Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
