Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 10 illustrations

Illustrations

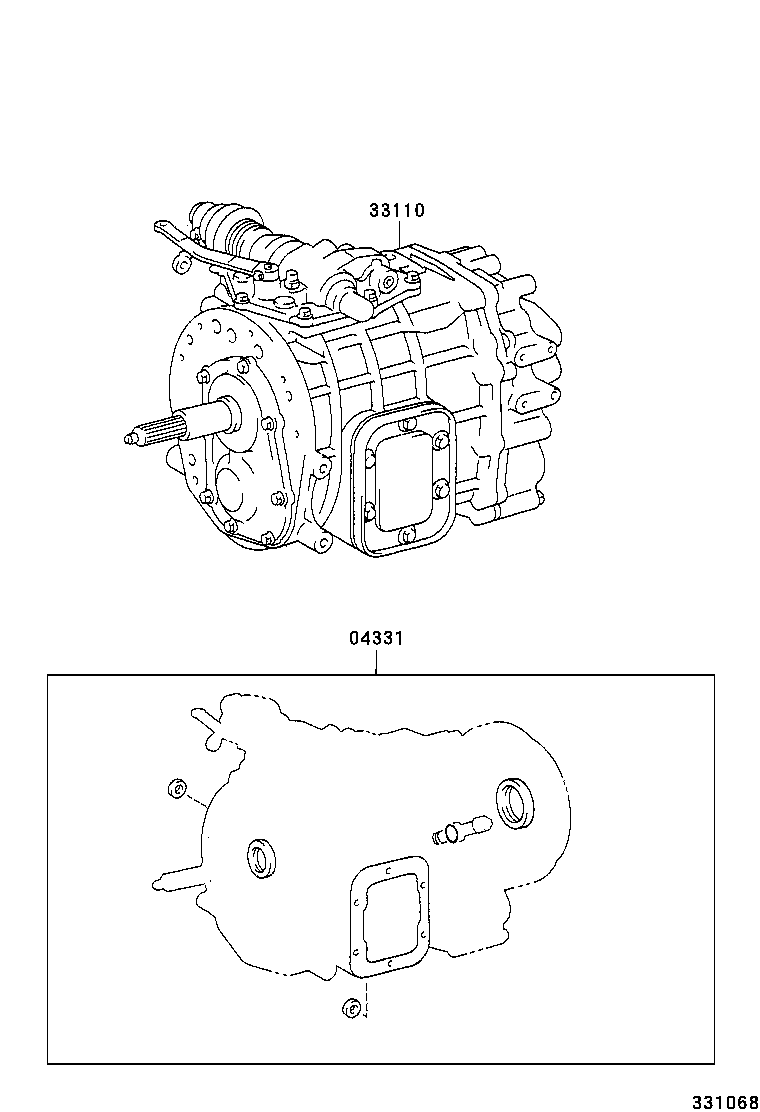

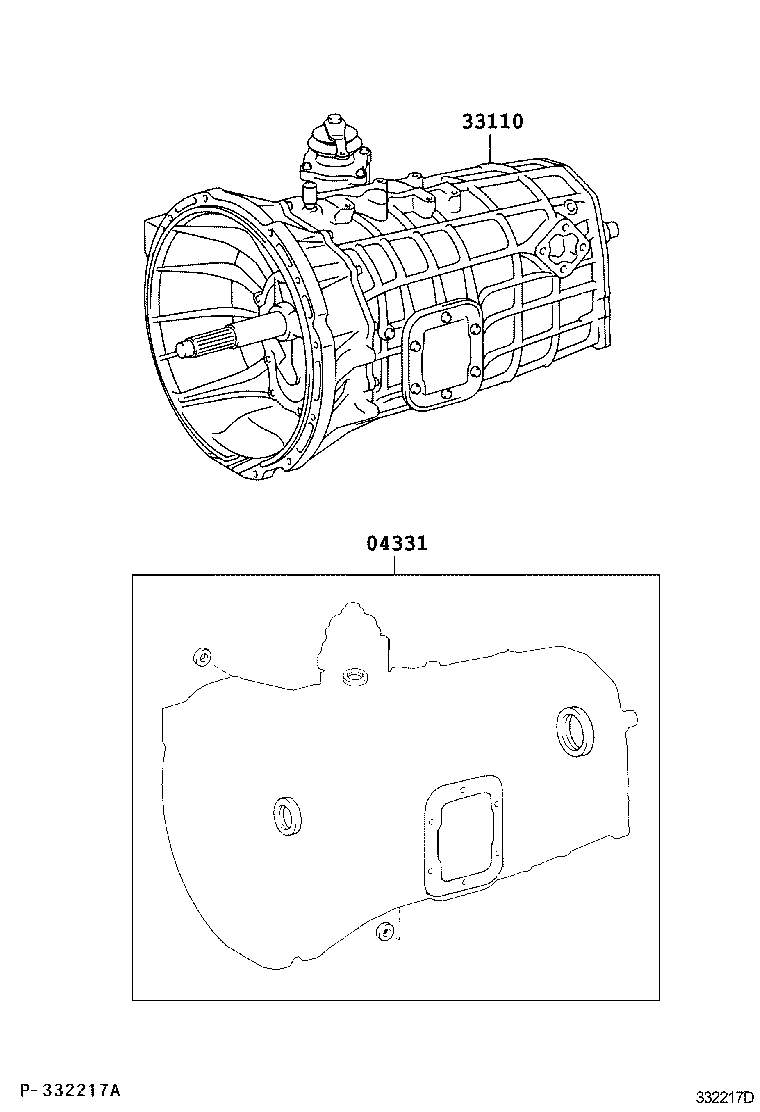

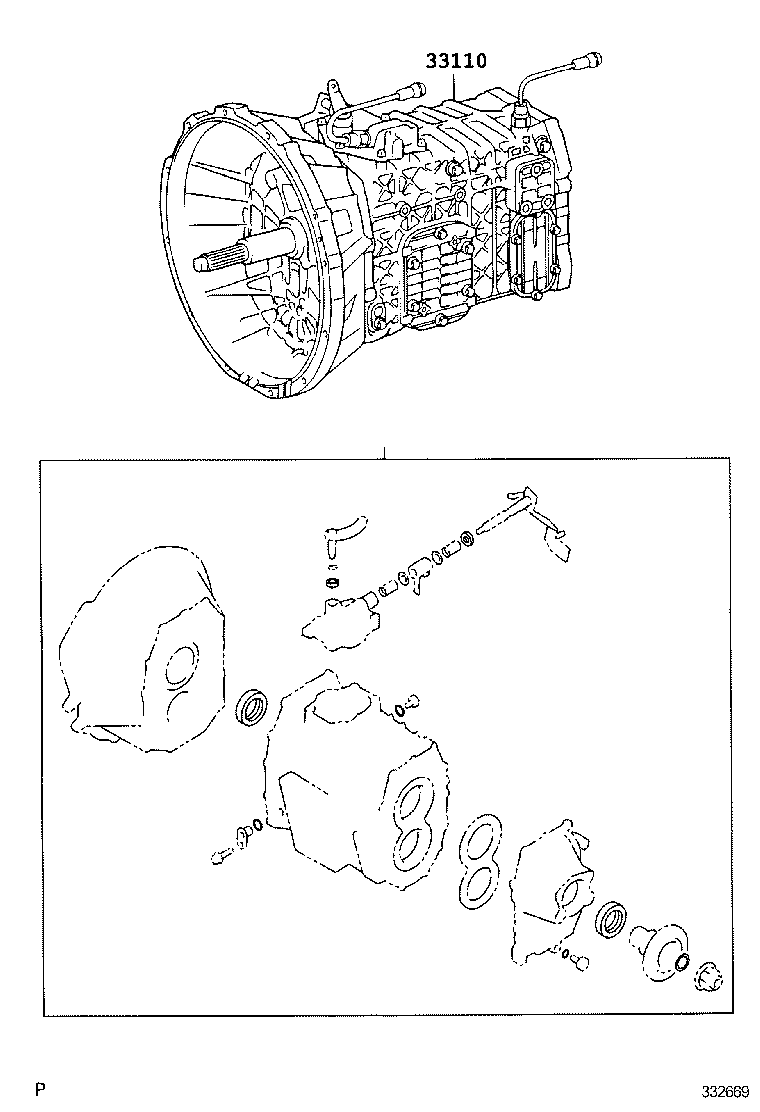

Figure 331053D 331053D 1999-05 → — Figure 331053D 331053D 1999-05 → — Figure 331068 331068 1999-05 → 2004-06 Figure 332217D 332217D 2004-06 → 2006-10 Figure 332217D 332217D 2006-10 → — Figure 332182 332182 2003-10 → — Figure 332182 332182 2006-10 → — Figure 332669 332669 2004-06 → 2006-10 Figure 332669 332669 2006-10 → — Figure 333086 333086 2006-10 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
