Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

31 part groups · 3 illustrations

Illustrations

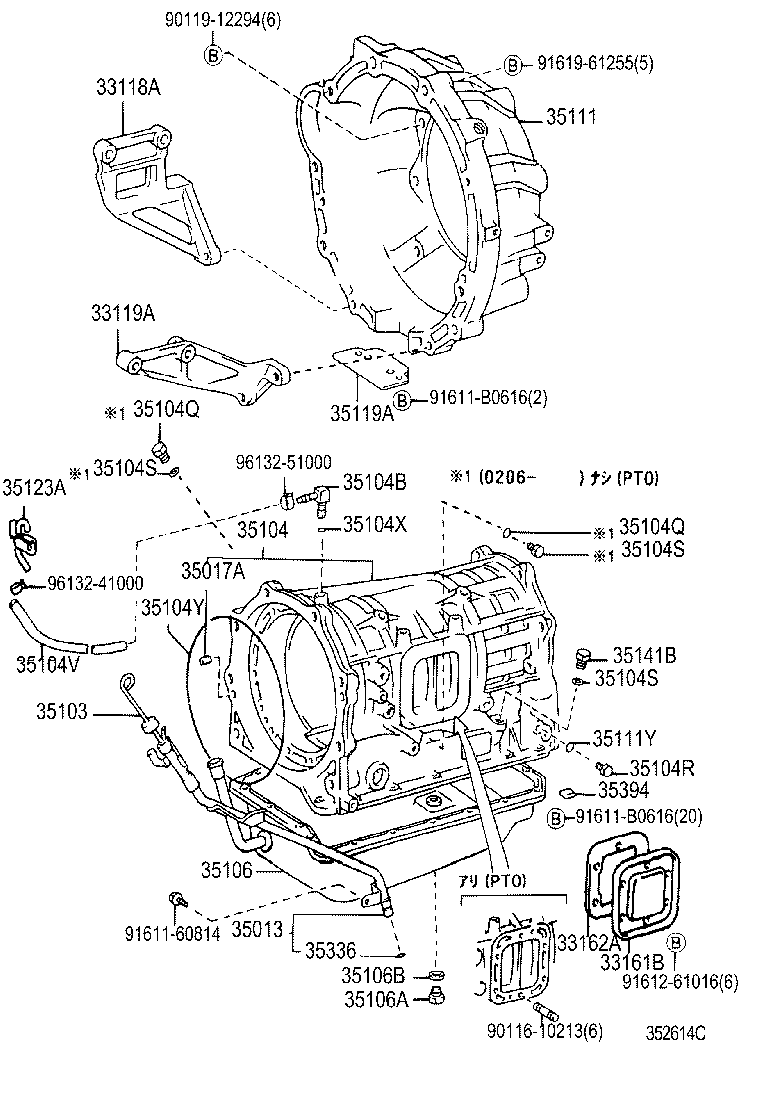

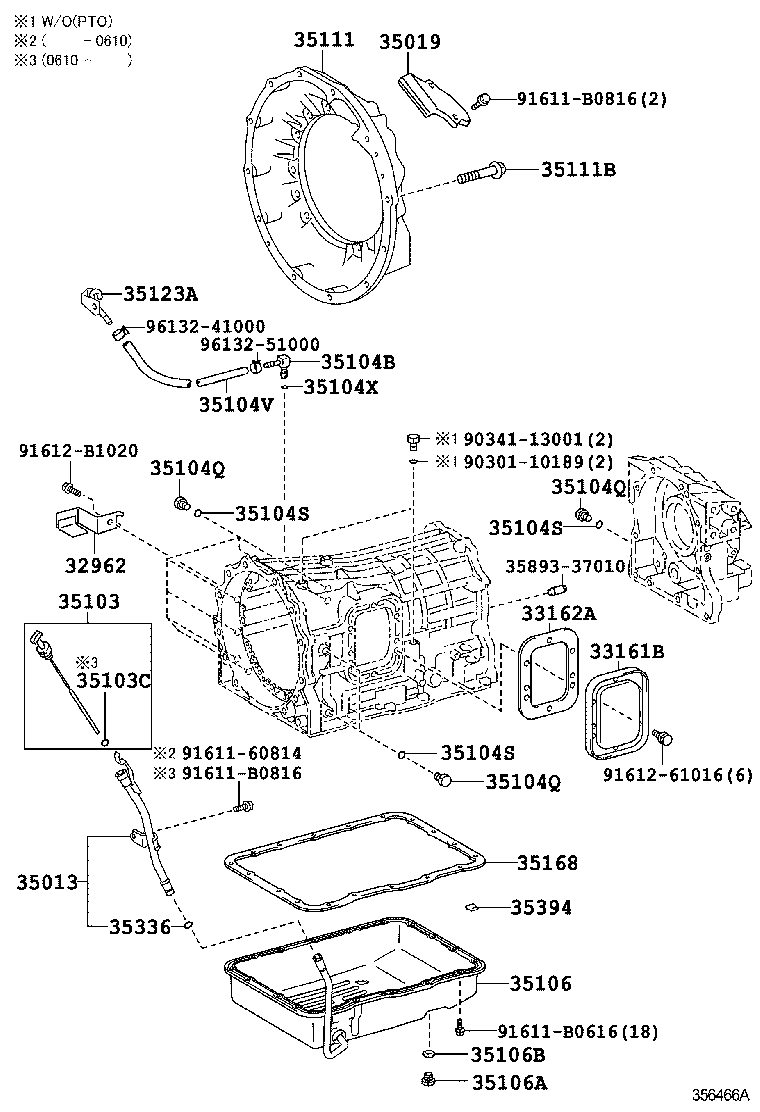

Figure 352090E 352090E 1999-05 → 2004-06 Figure 352614C 352614C 2000-05 → 2004-06 Figure 356466A 356466A 2004-06 → —

Part groups

PNCDescription
32962 Insulator, Oil Temperature Switch Heat
33118A Plate, Stiffener, RH(ATM)
33119A Plate, Stiffener, LH(ATM)
33119B Plate, Stiffener, LH(ATM)
33161B Cover, Transmission Power Take-off
33162A Gasket, Transmission Power Take-off
35013 Tube Sub-assy, Transmission Oil Filler
35017A Pin, Straight(FOR TRANSMISSION HOUSING ADAPTER, FRONT)
35019 Cover Sub-assy, Transmission Case Dust
35103 Gage Sub-assy, Transmission Oil Level
35103C Ring, O
35104 Case Sub-assy, Automatic Transmission
35104B Plug, Breather, NO.1 (ATM)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V Hose (FOR BREATHER PLUG)
35104X Ring, O (FOR BREATHER PLUG)
35104Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35111 Housing, Automatic Transmission
35111B Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35119A Cover, Transmission Housing
35123A Skirt, Transmission Breather
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
