Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

27 part groups · 11 illustrations

Illustrations

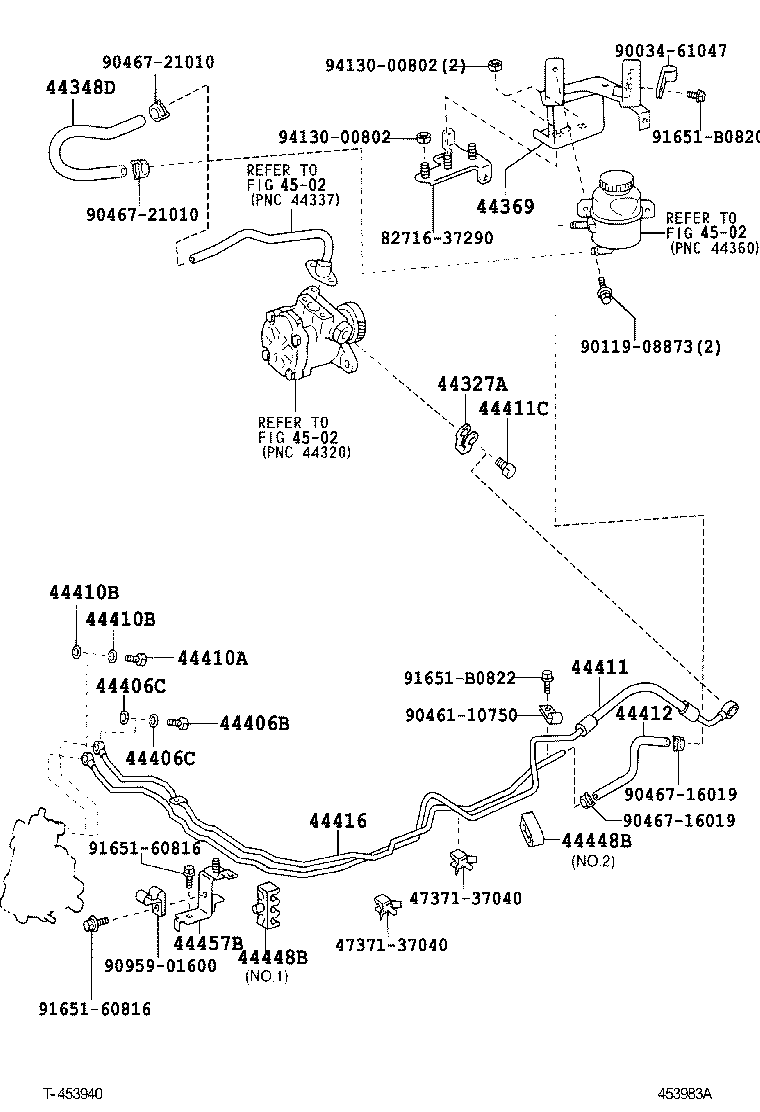

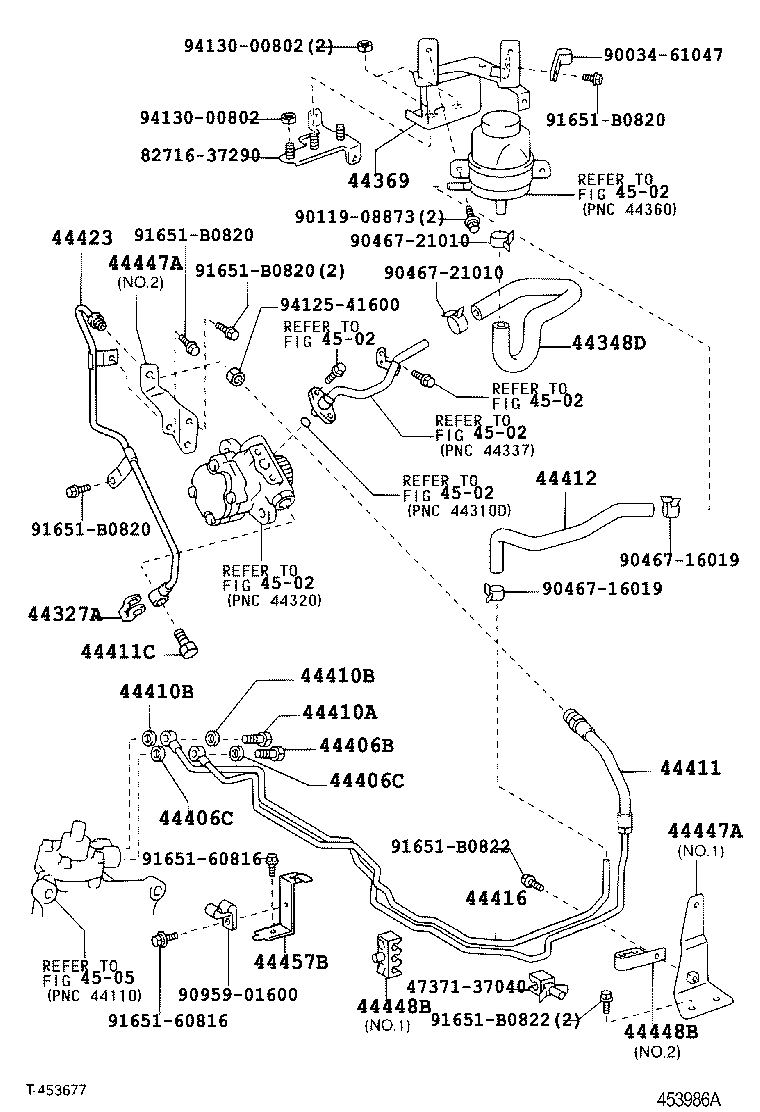

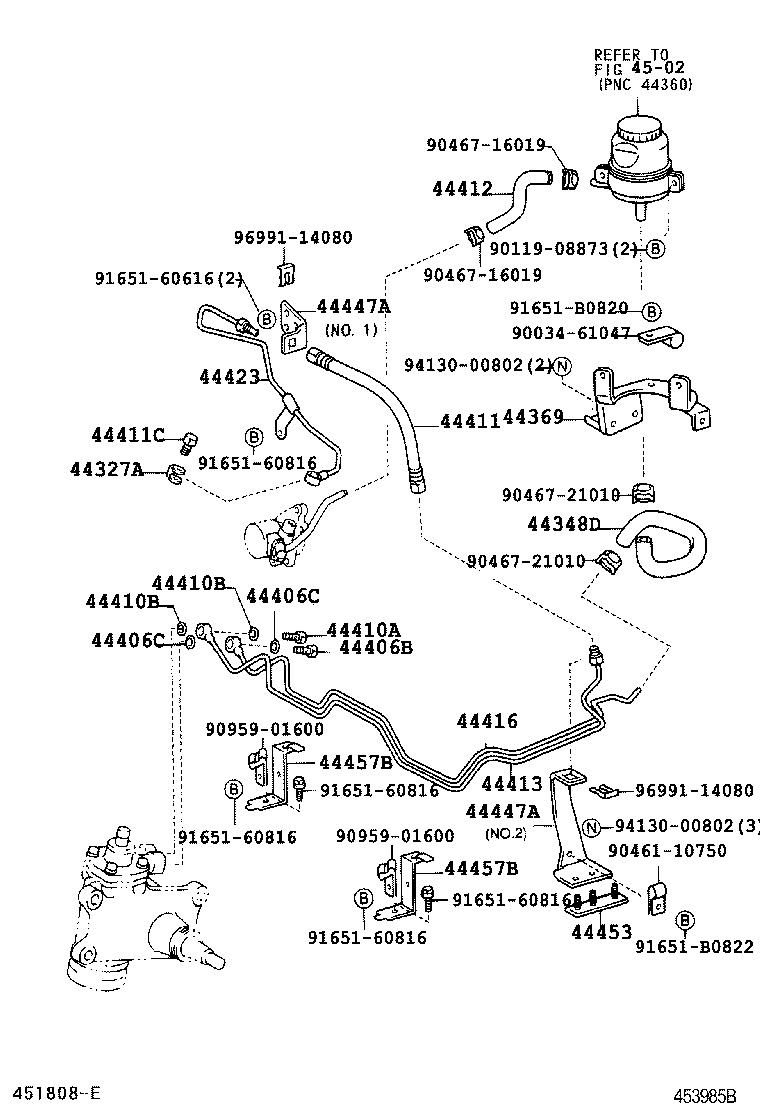

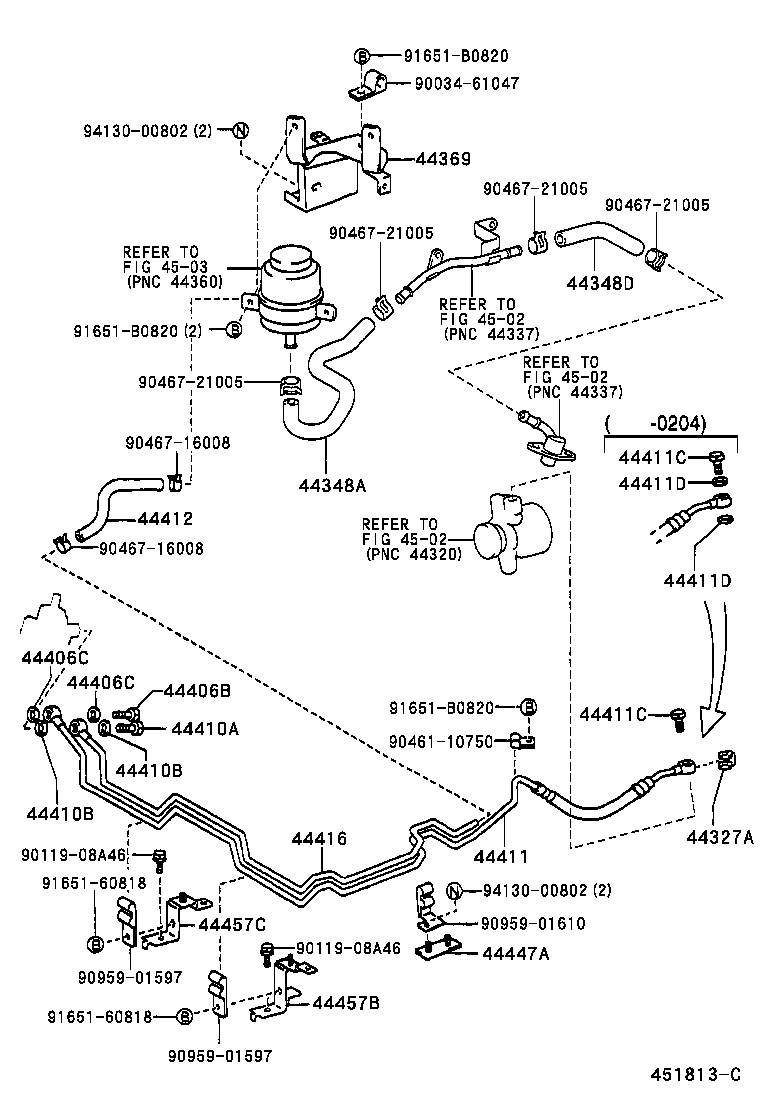

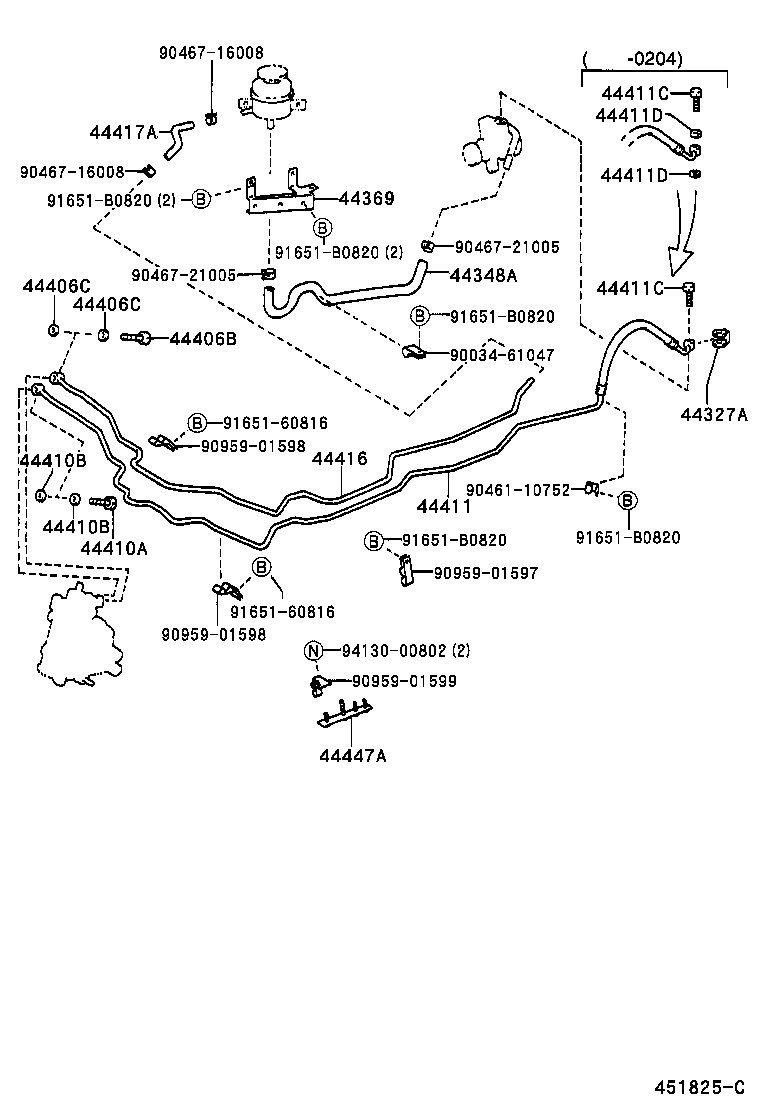

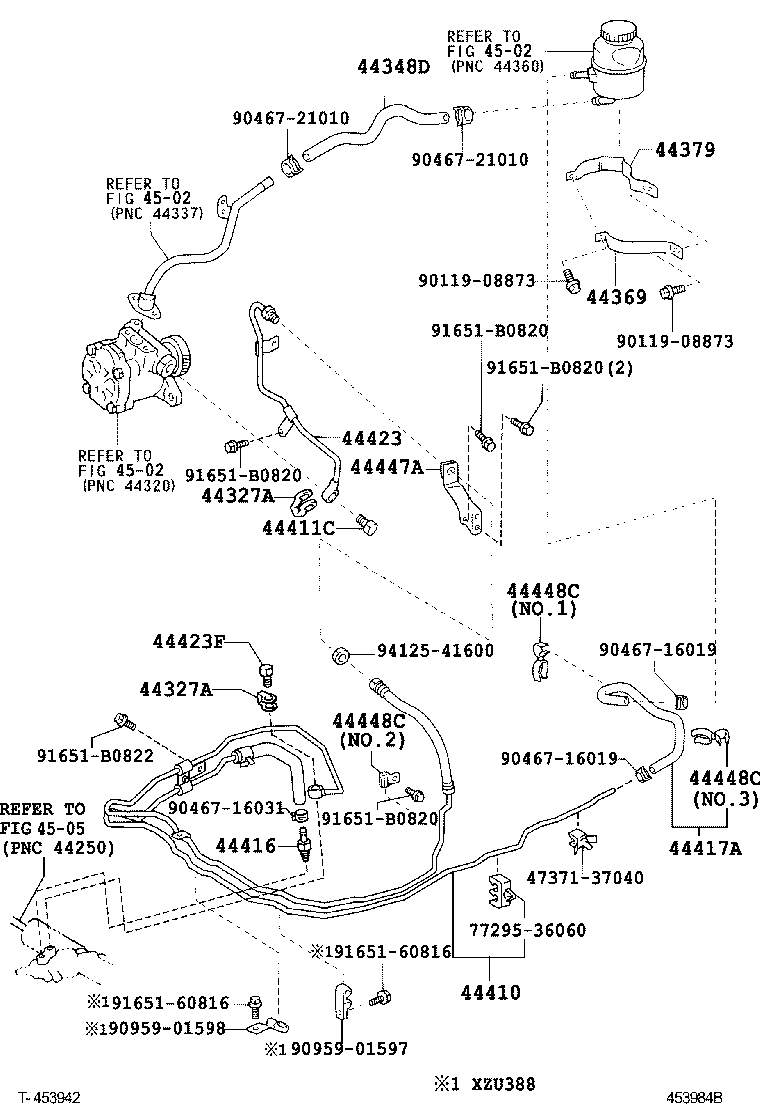

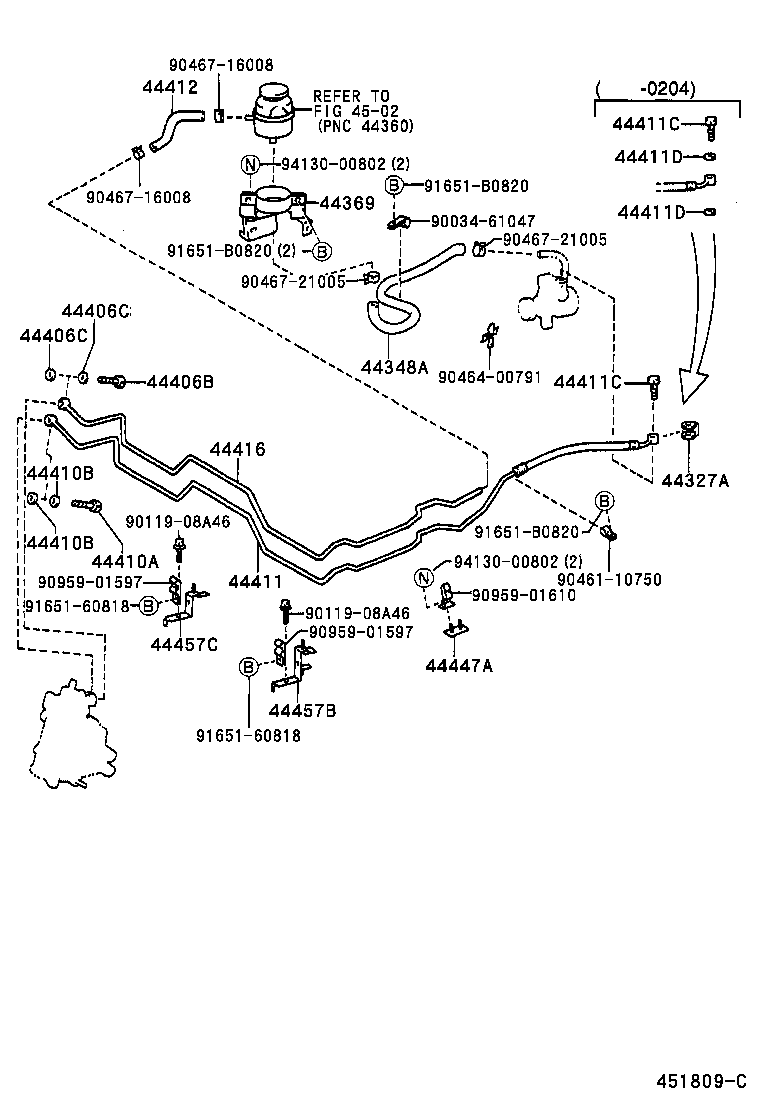

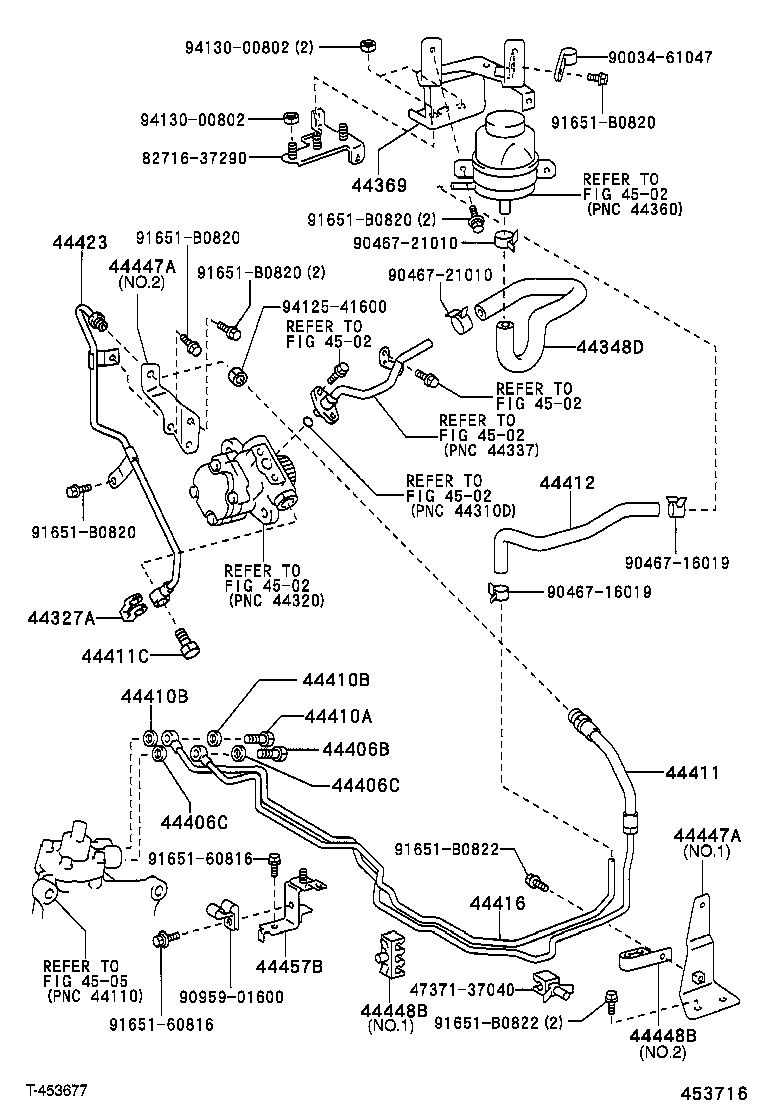

Figure 451808F 451808F 1999-08 → 2004-06 Figure 451808F 451808F 2000-11 → 2004-06 Figure 451809C 451809C 1999-05 → 2004-06 Figure 451813C 451813C 1999-06 → 2004-06 Figure 451825C 451825C 1999-08 → 2004-06 Figure 453716 453716 2003-10 → 2004-06 Figure 453985B 453985B 2004-06 → — Figure 453984B 453984B 2004-06 → — Figure 453983A 453983A 2004-06 → — Figure 453986A 453986A 2004-06 → — Figure 454695A 454695A 2006-10 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44369 Bracket, Oil Reservoir, NO.1
44379 Bracket, Oil Reservoir, NO.2
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448 Bracket, Pressure Feed Hose Support, NO.1
44448B Bracket, Hose Support, NO.2
44448C Clamp, Pressure Feed, NO.2
44453 Stay, Pump, Front
44457B Bracket, Power Steering Tube Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
