Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

54 part groups · 32 illustrations

Illustrations

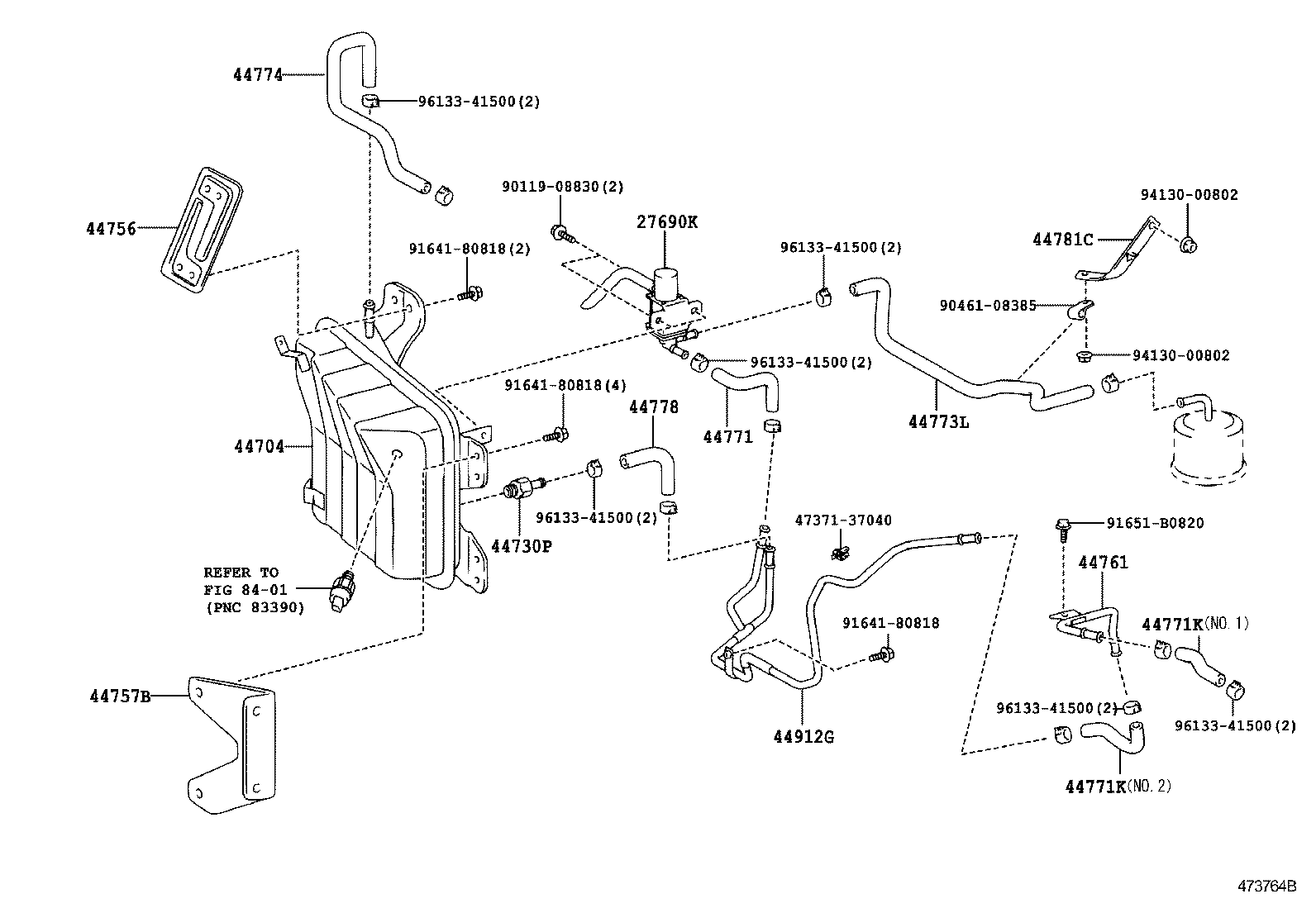

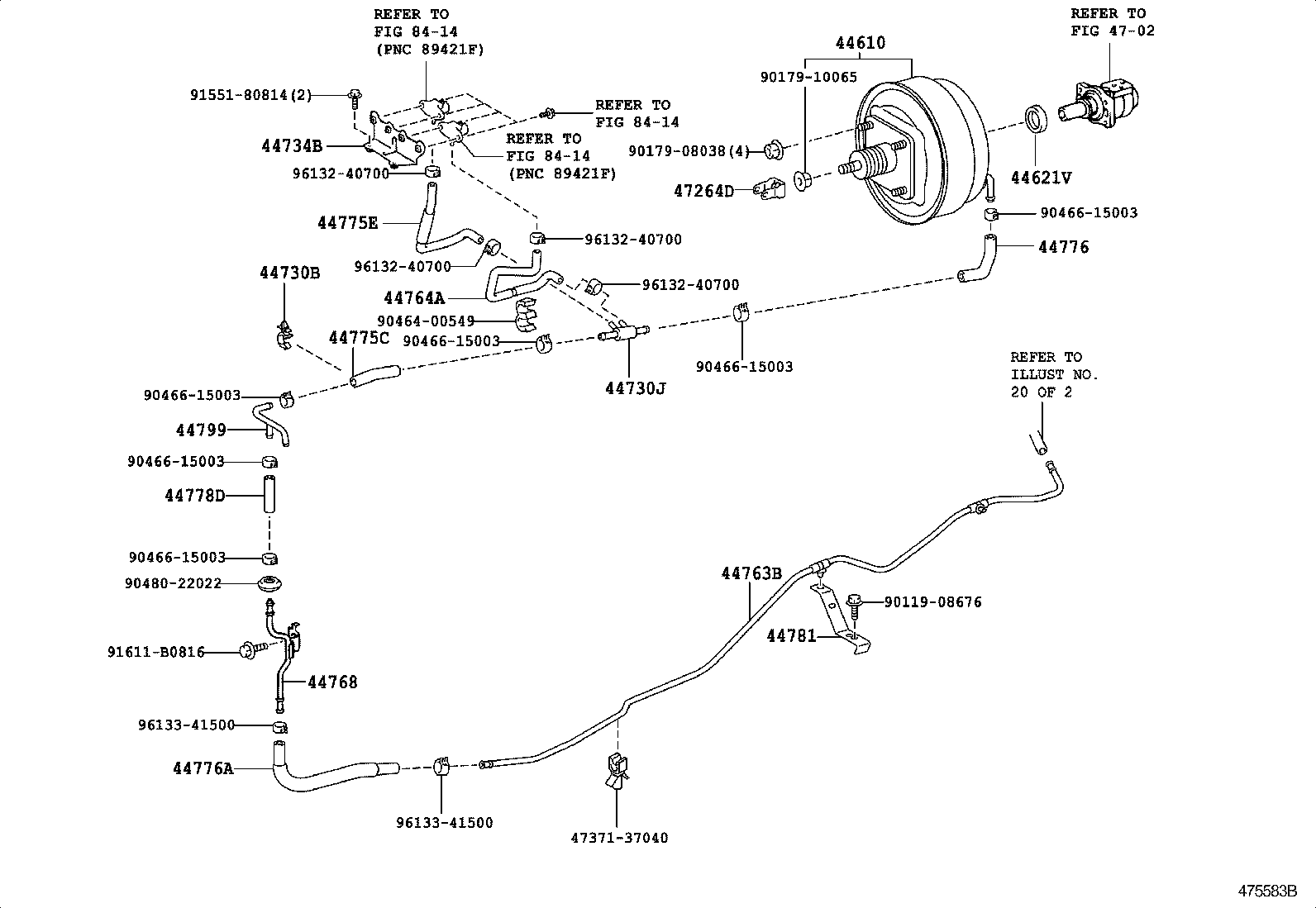

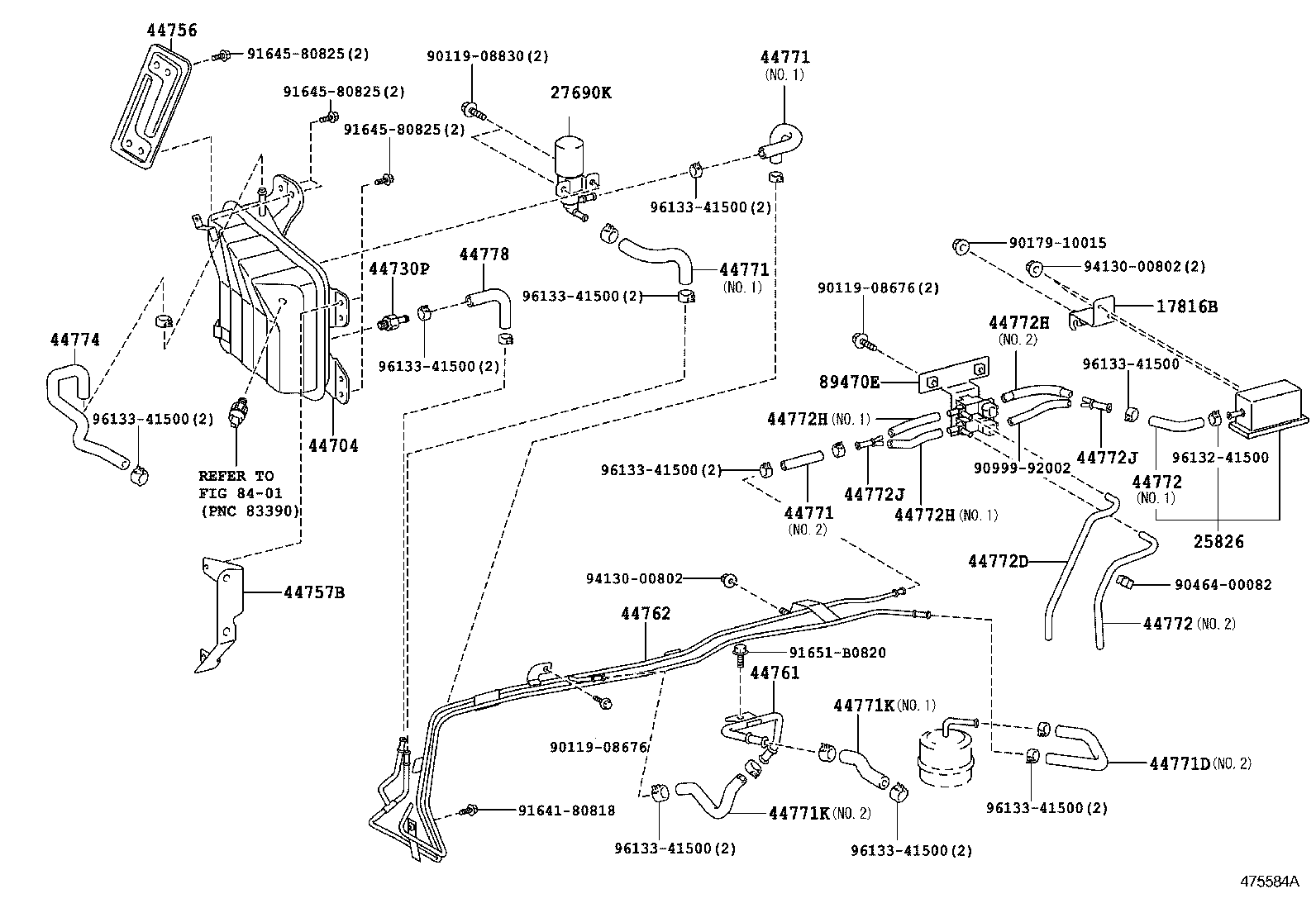

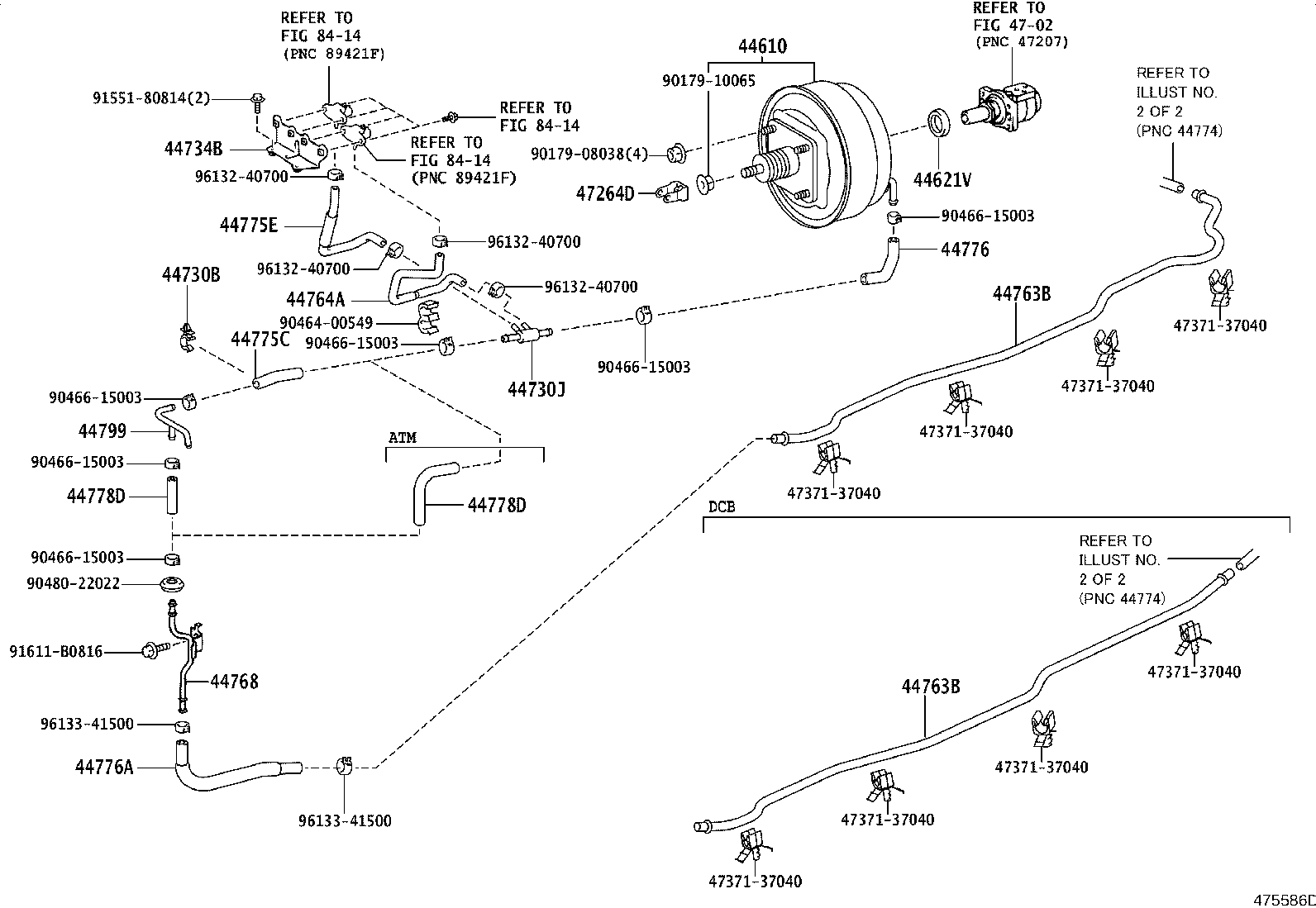

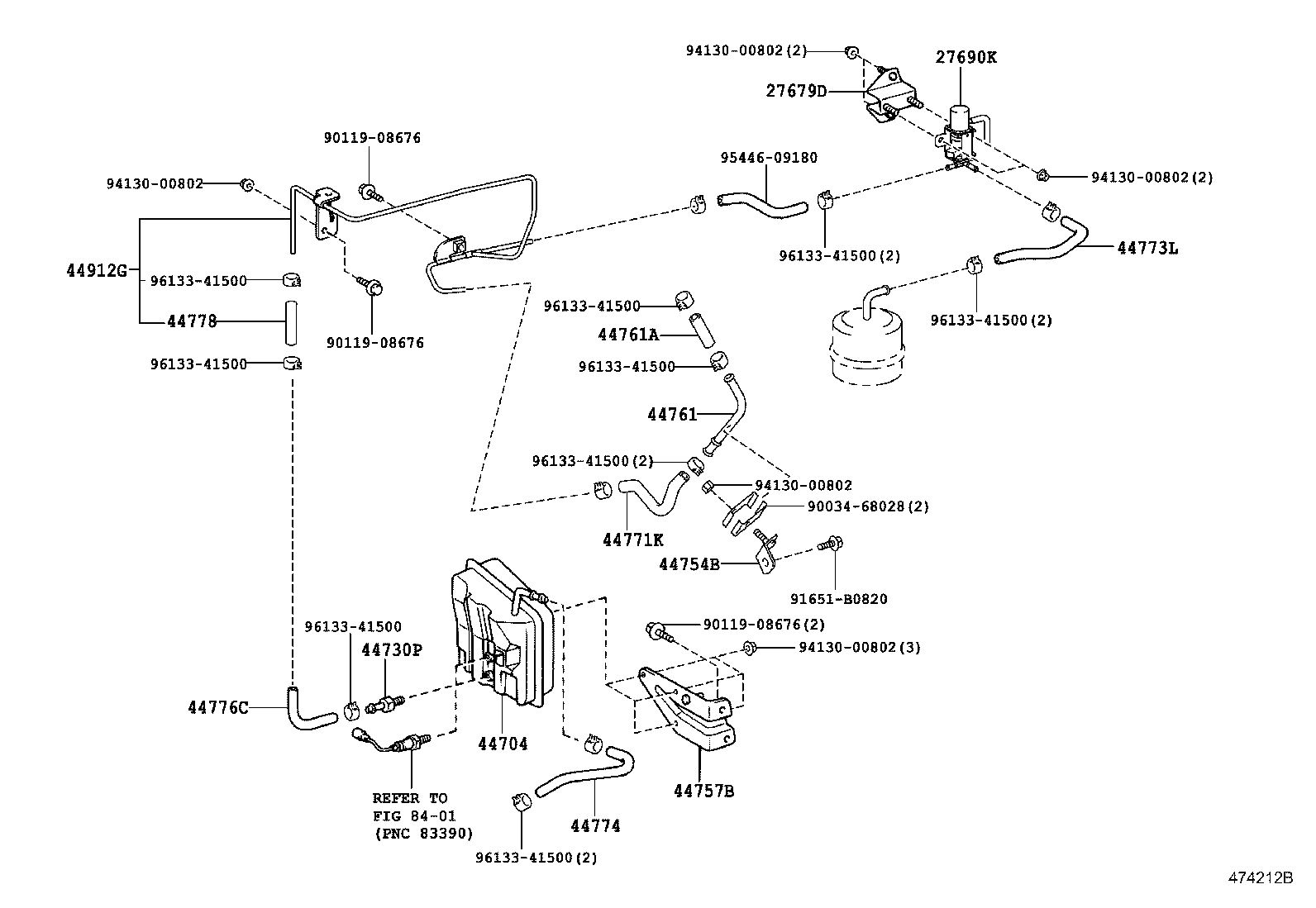

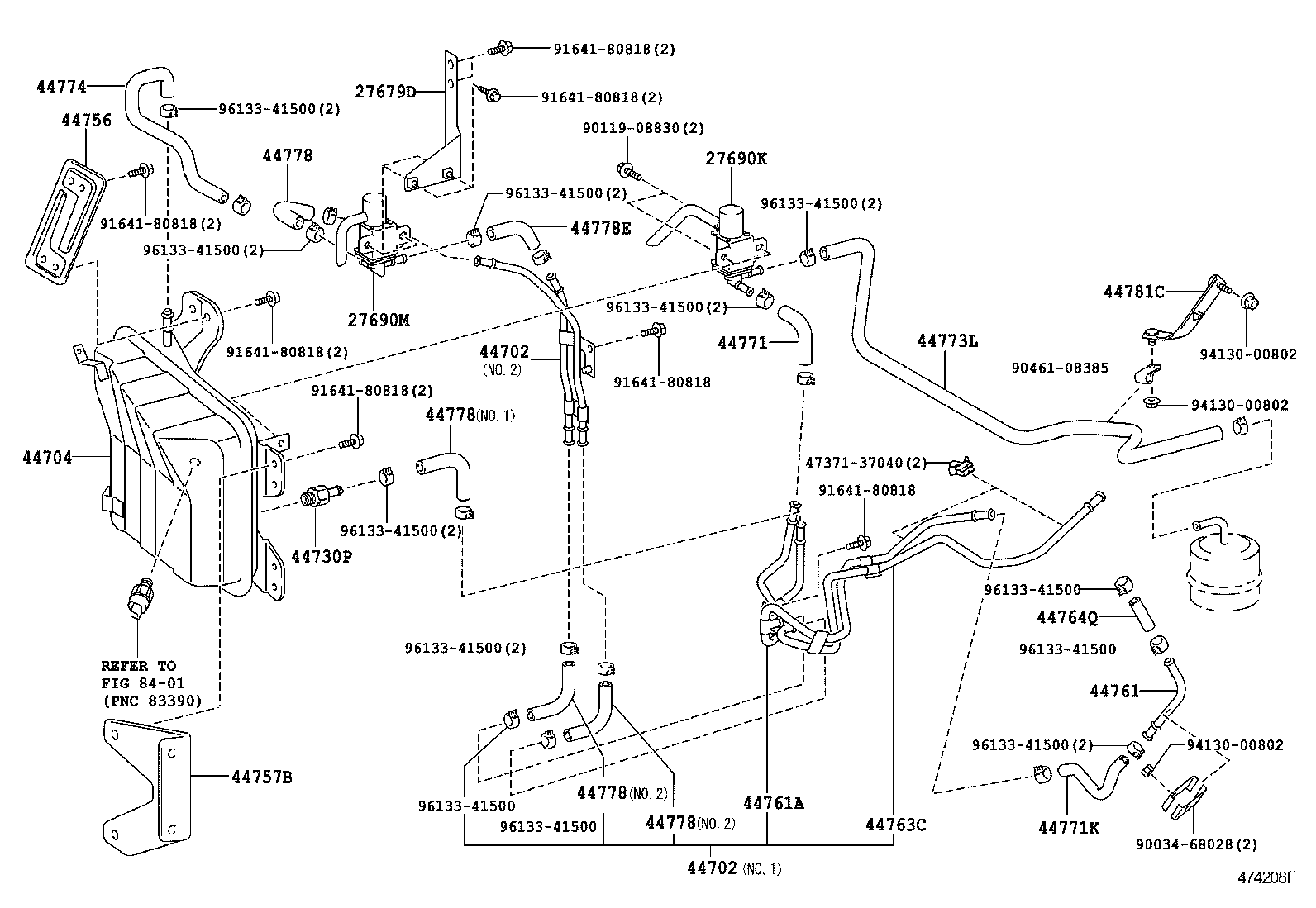

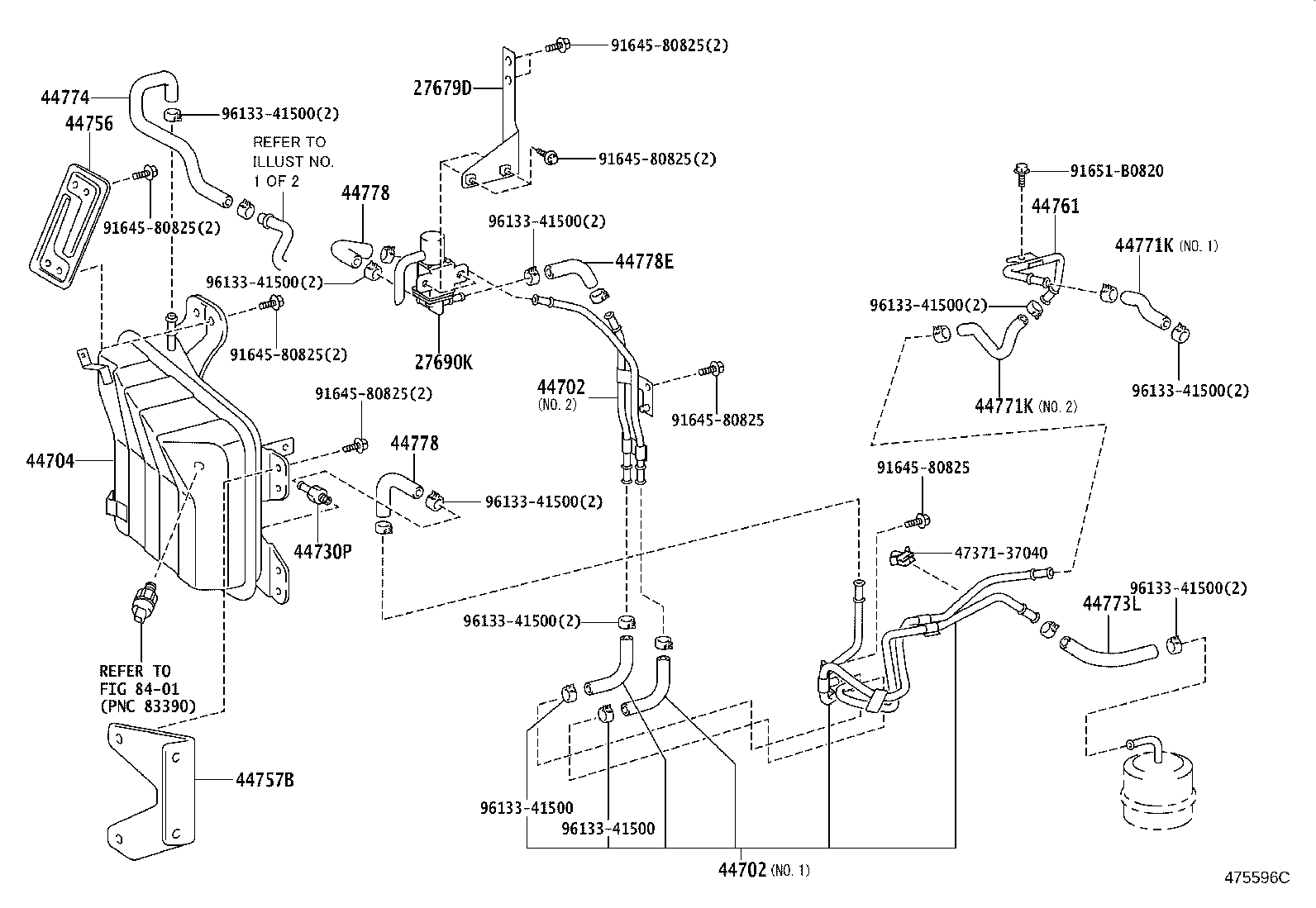

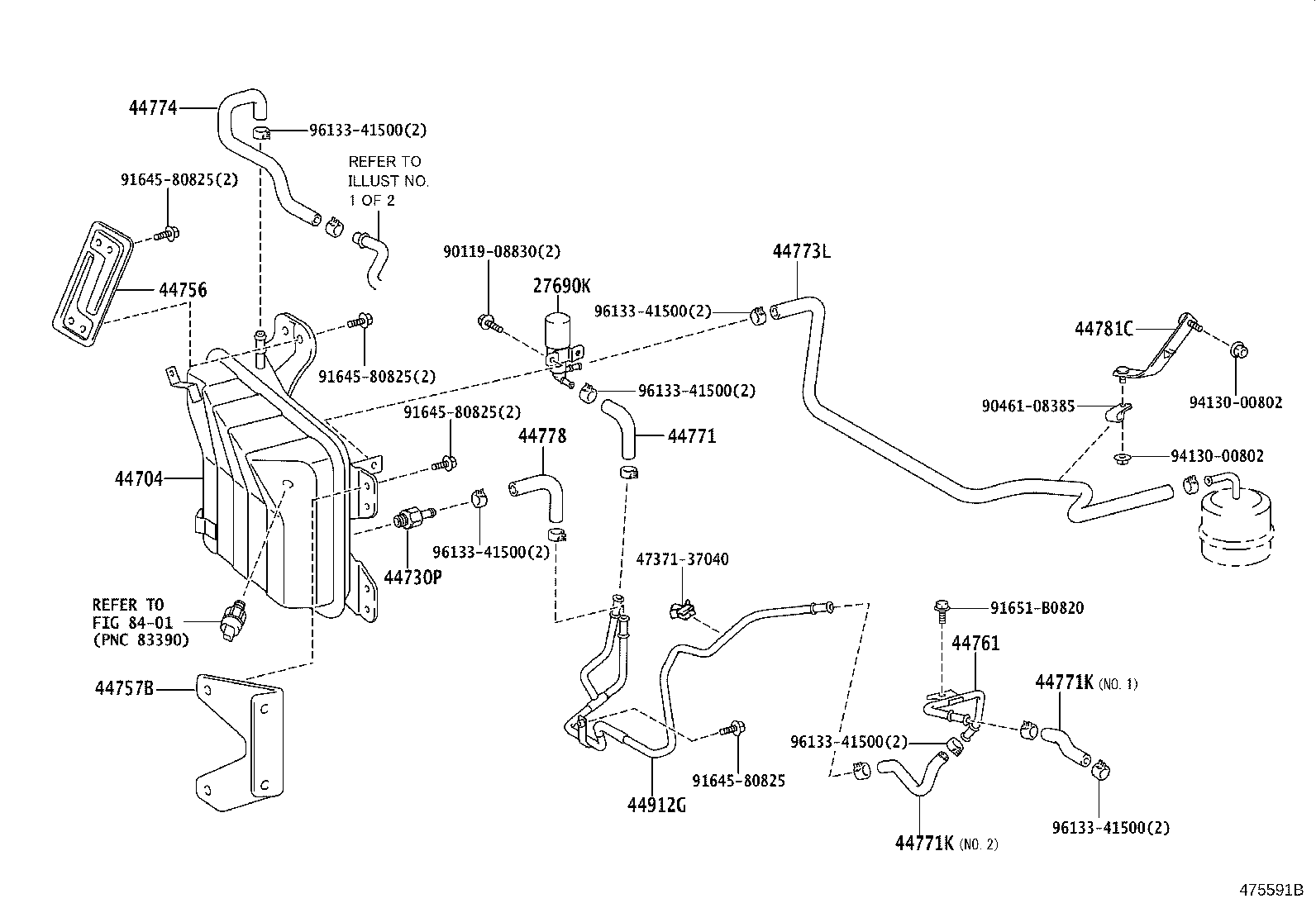

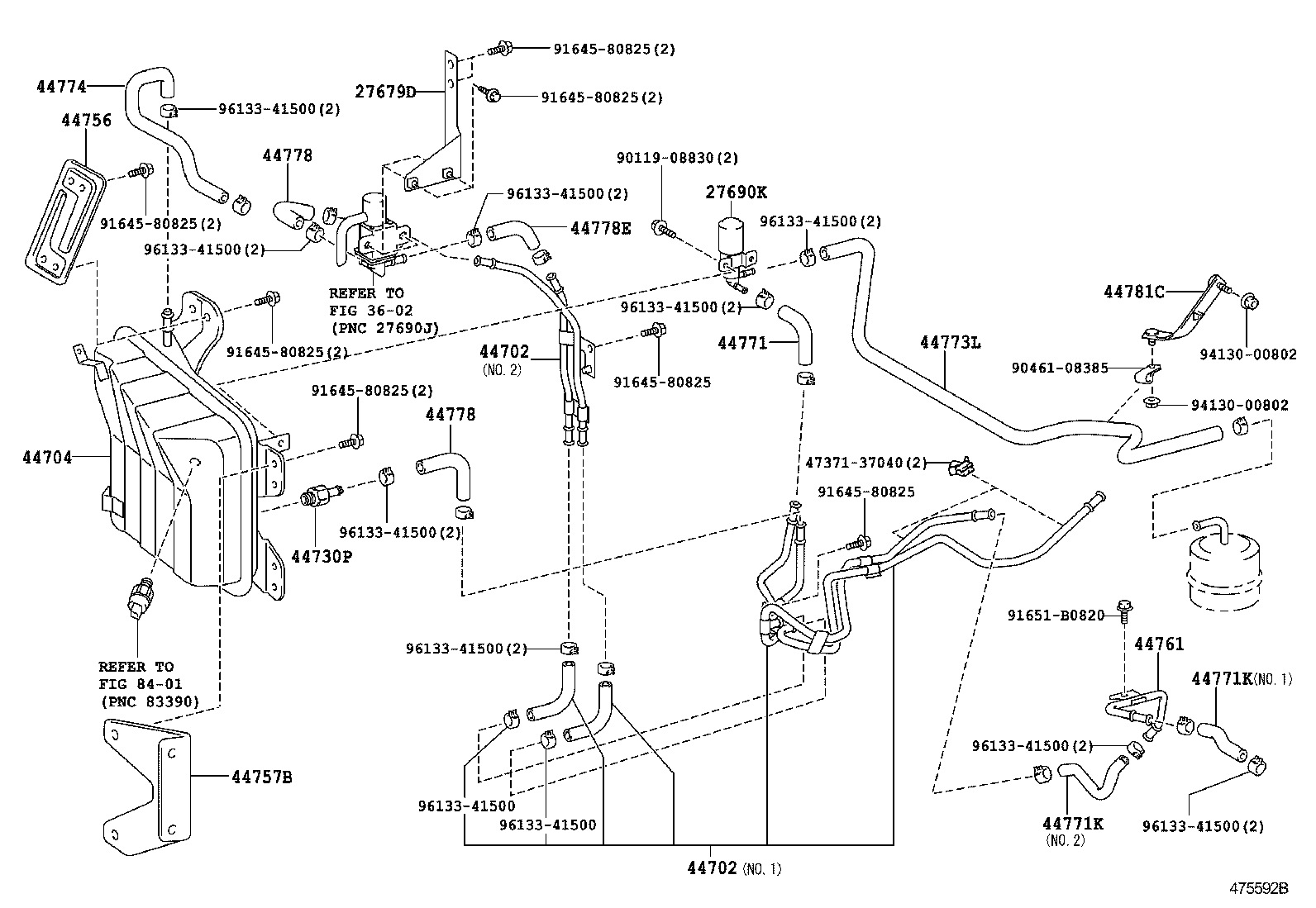

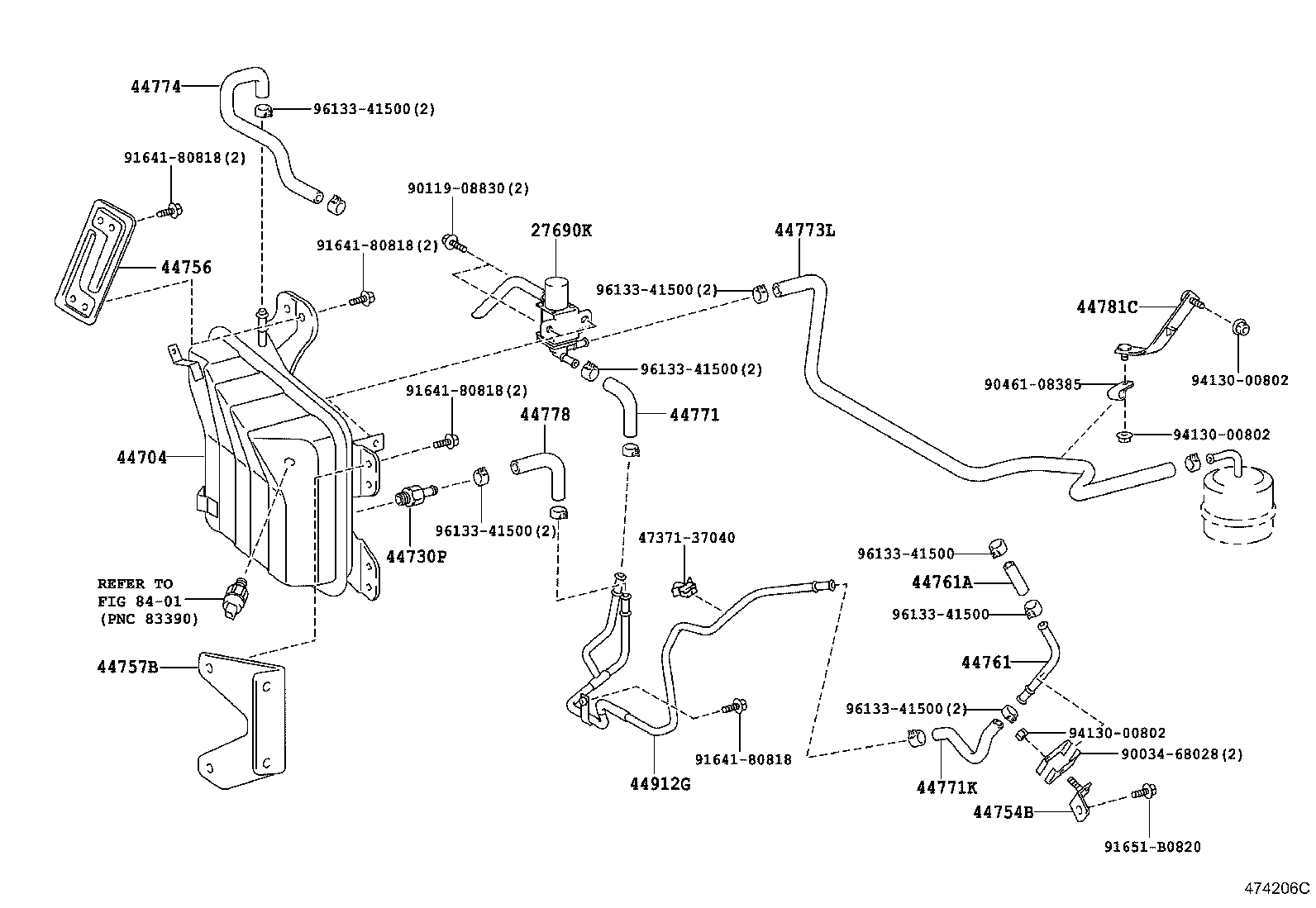

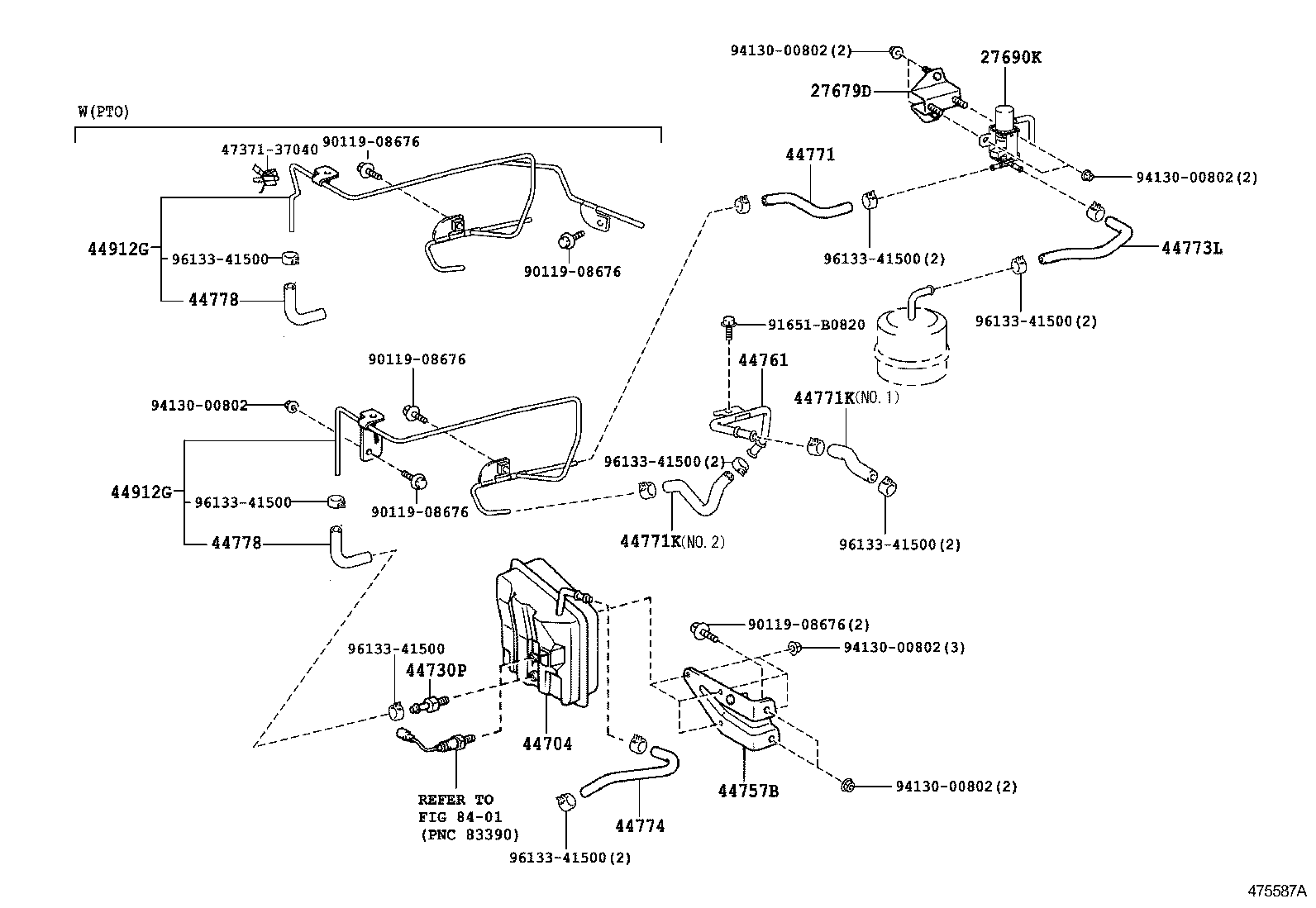

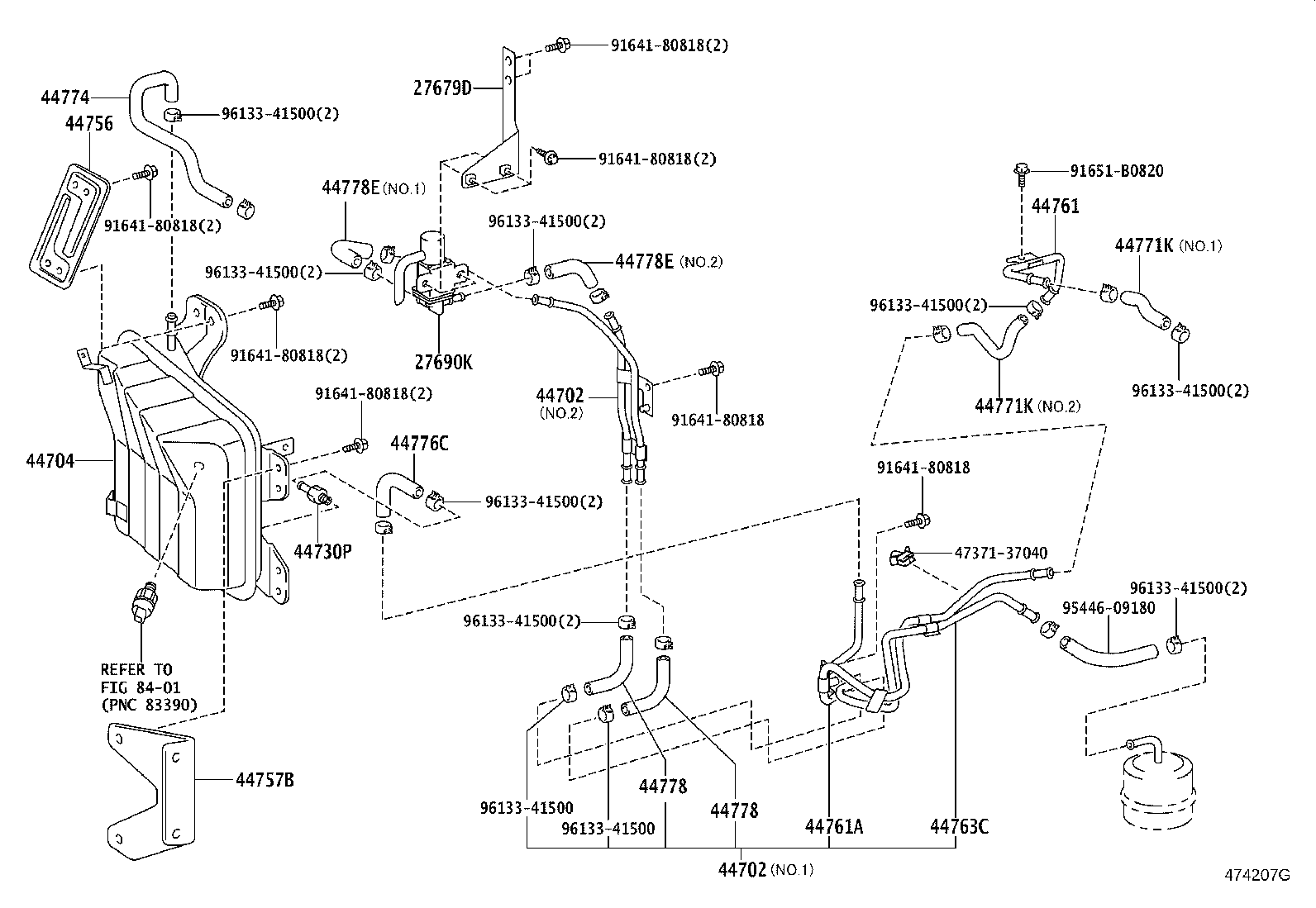

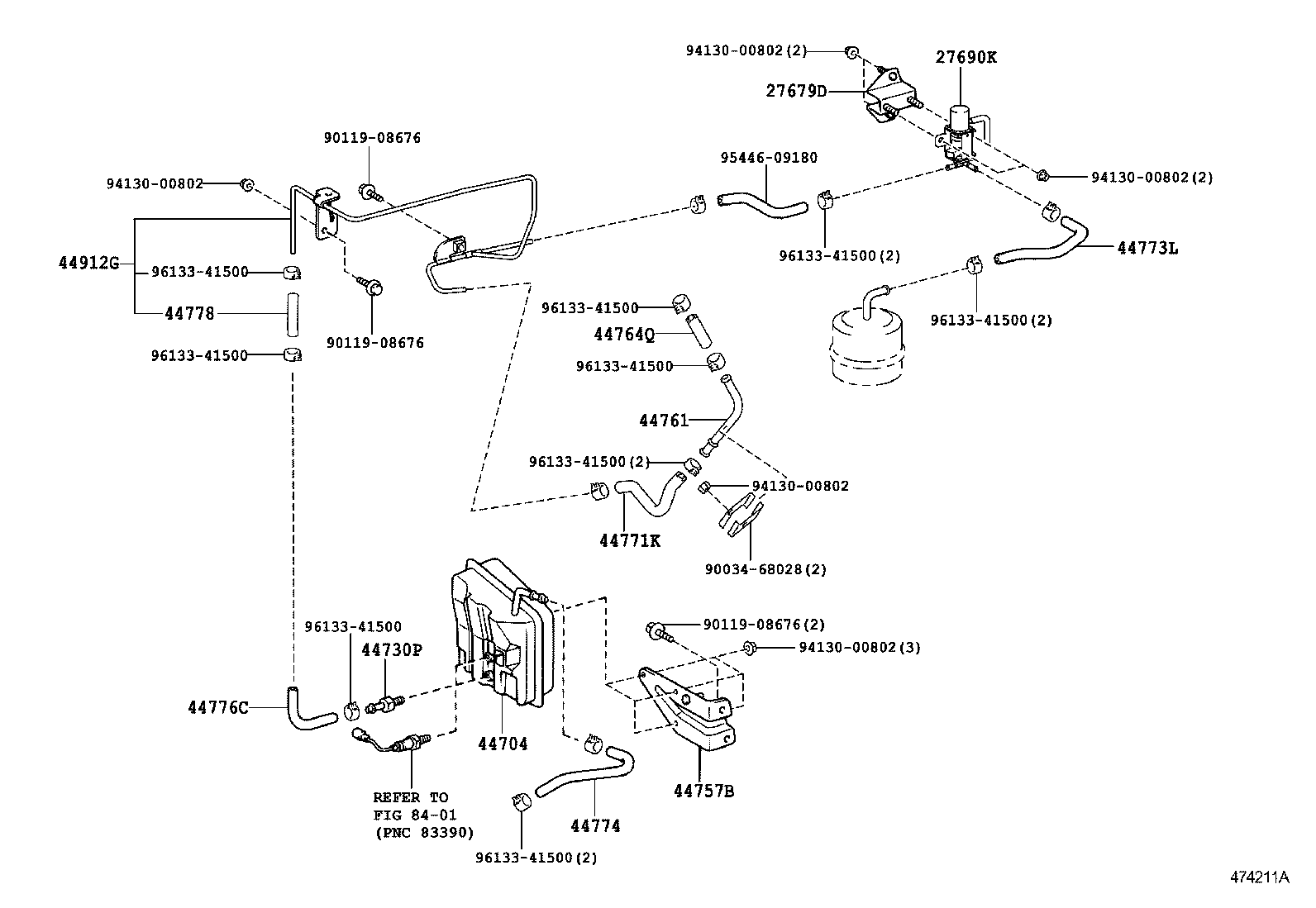

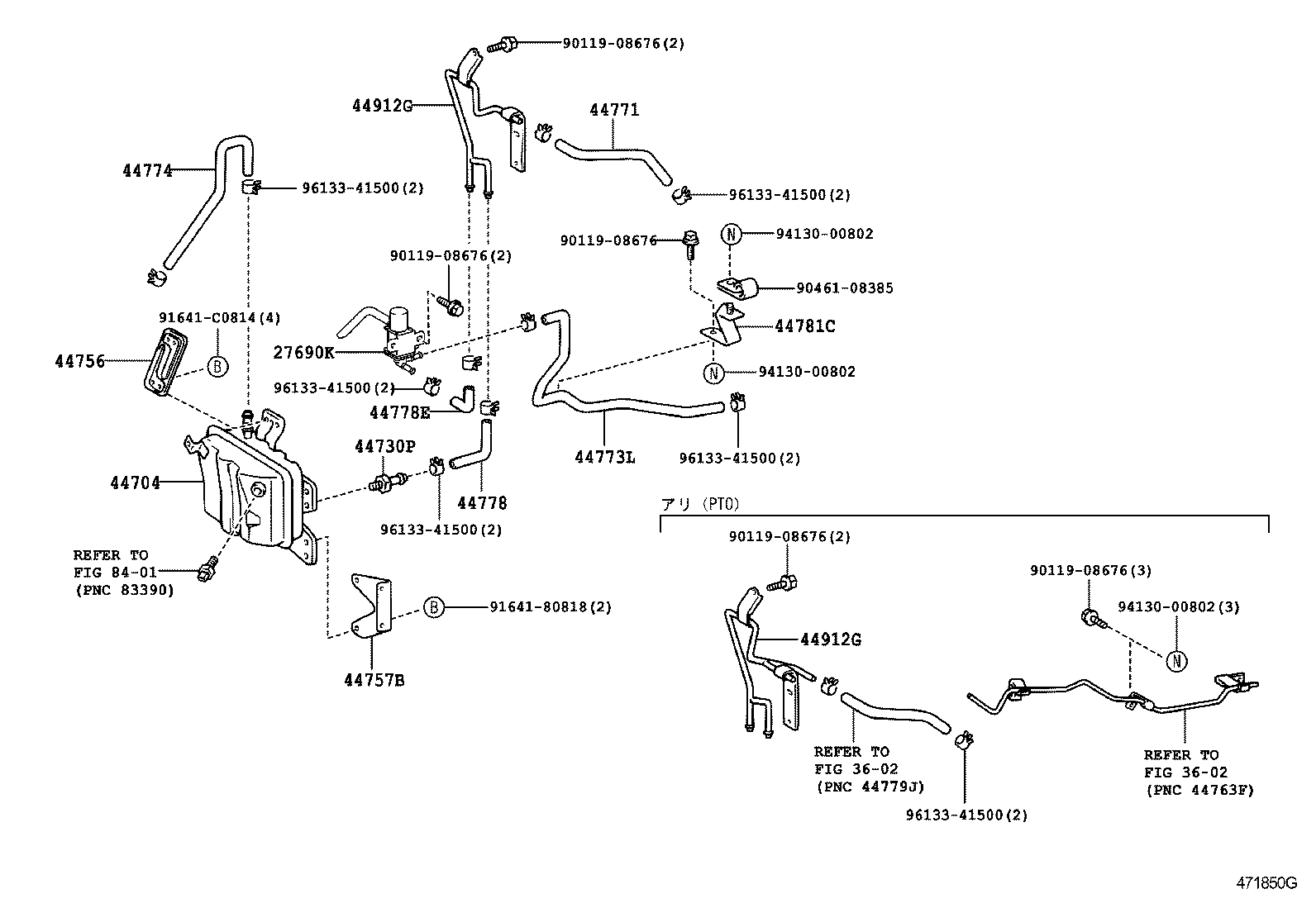

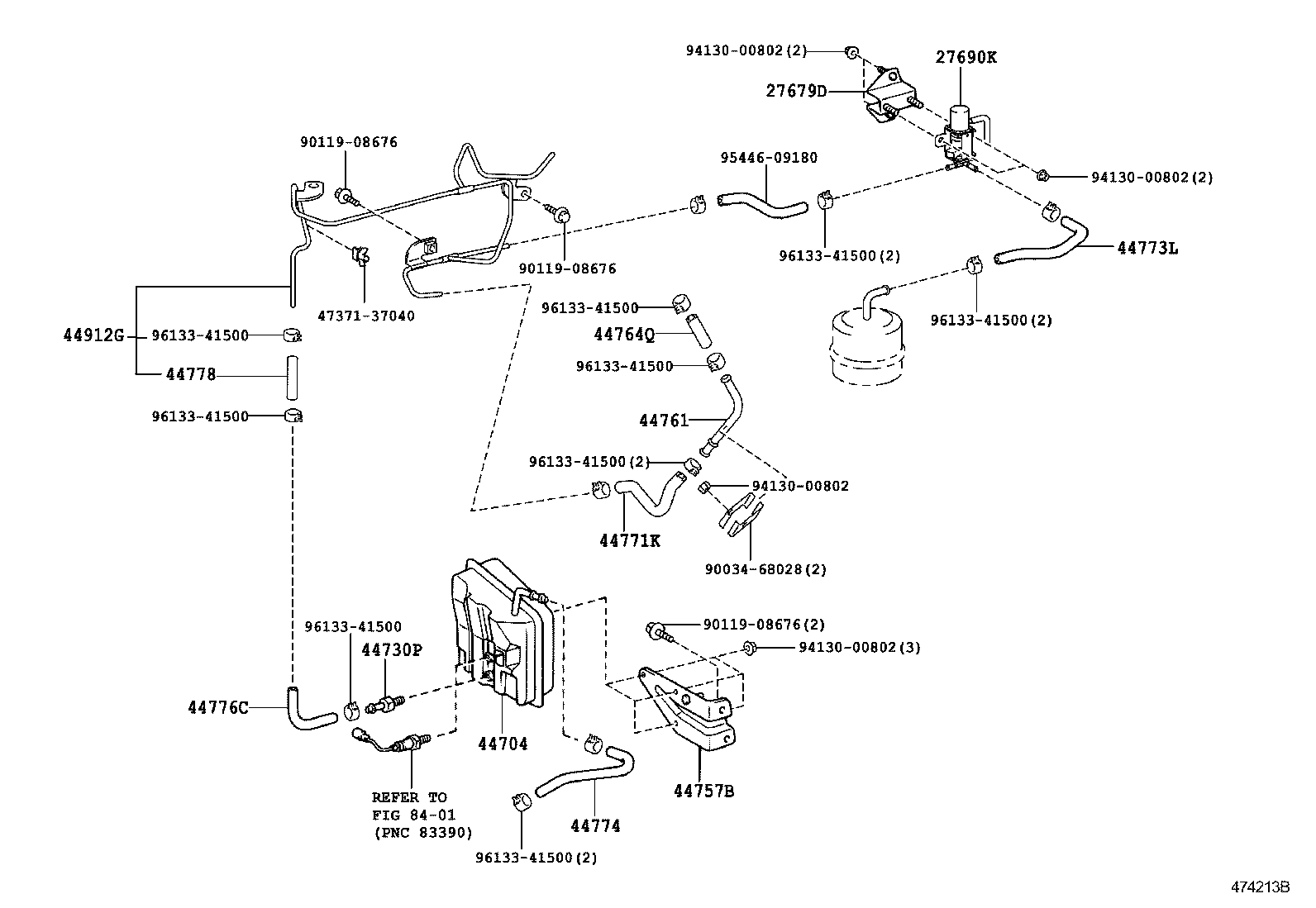

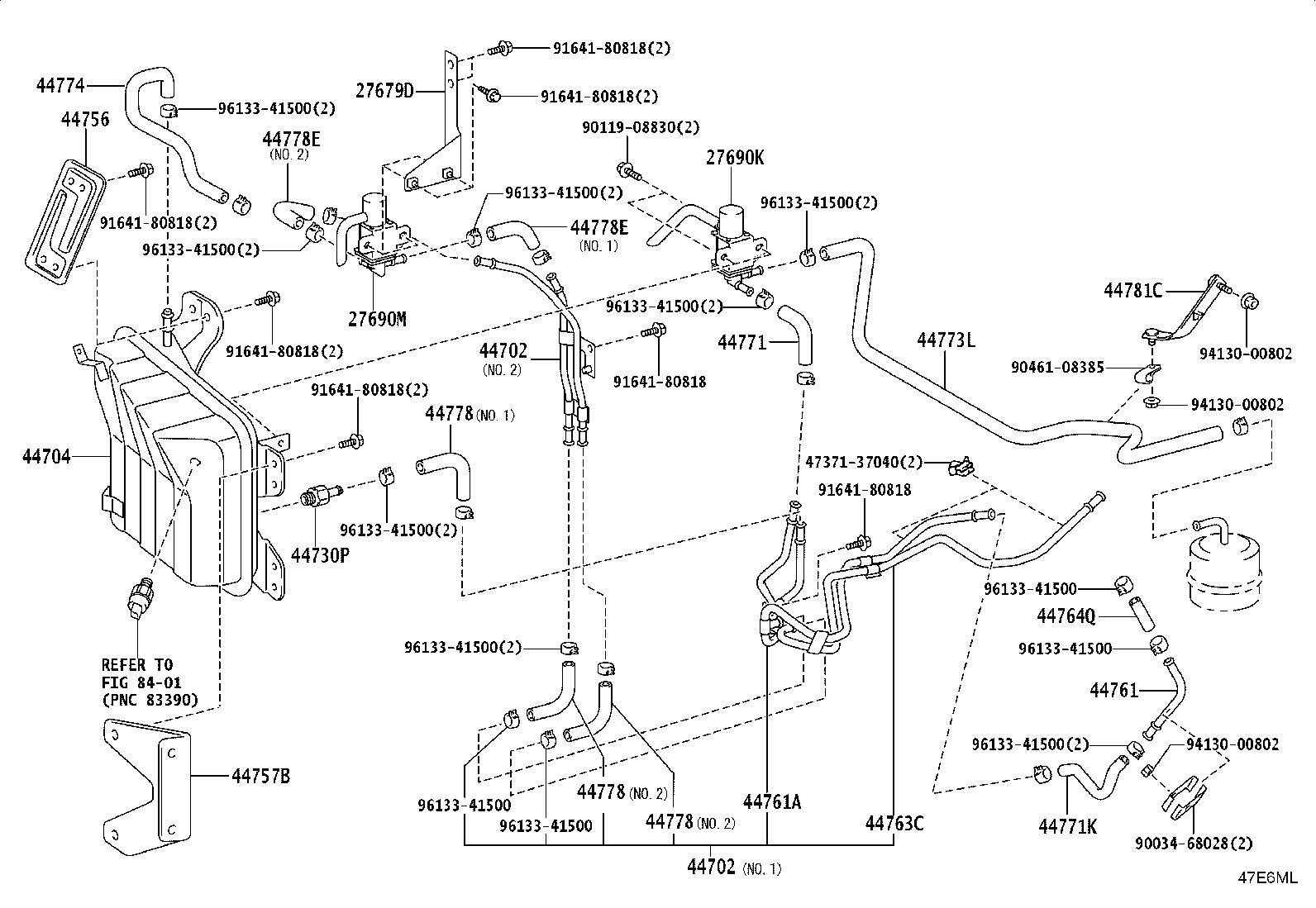

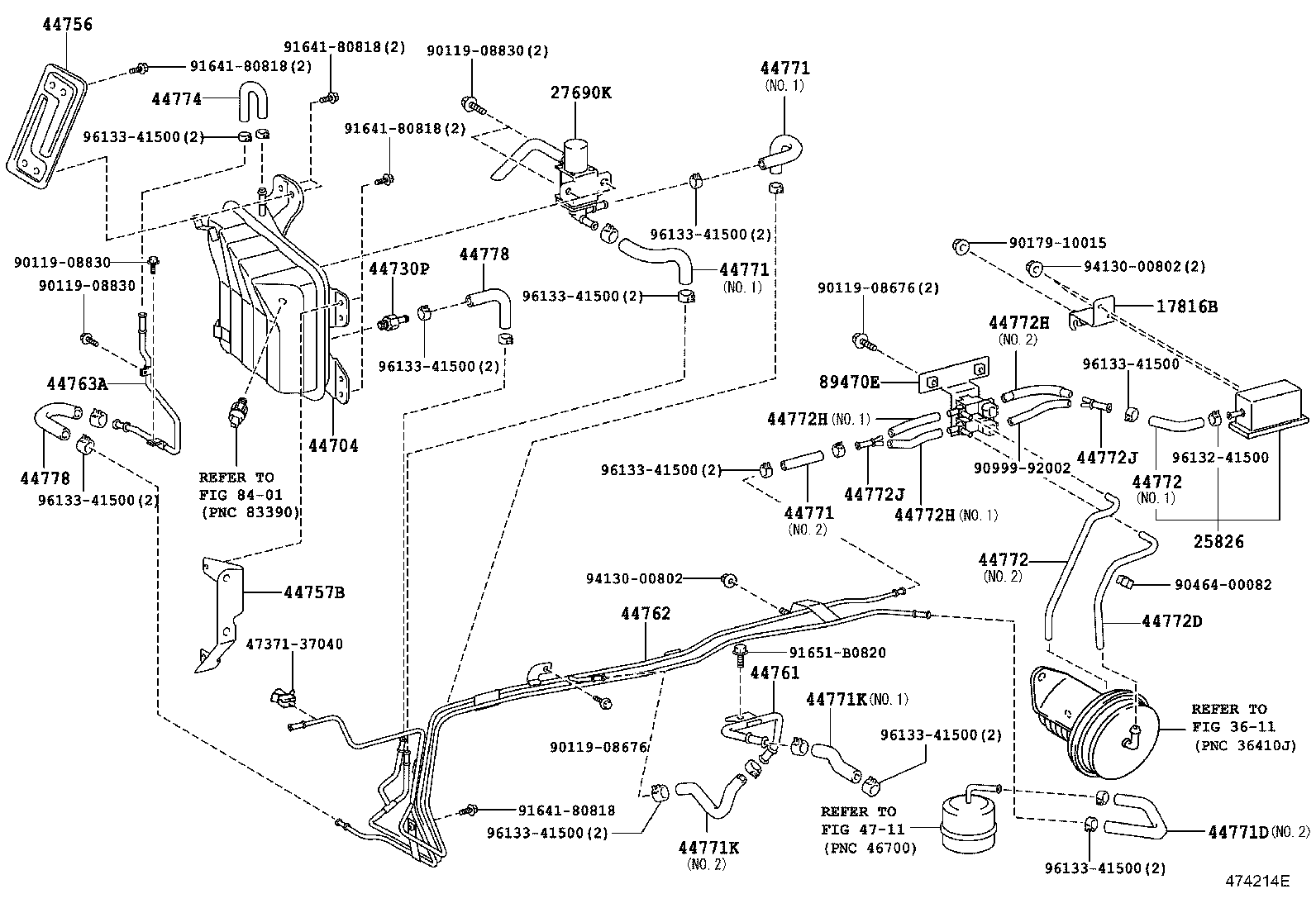

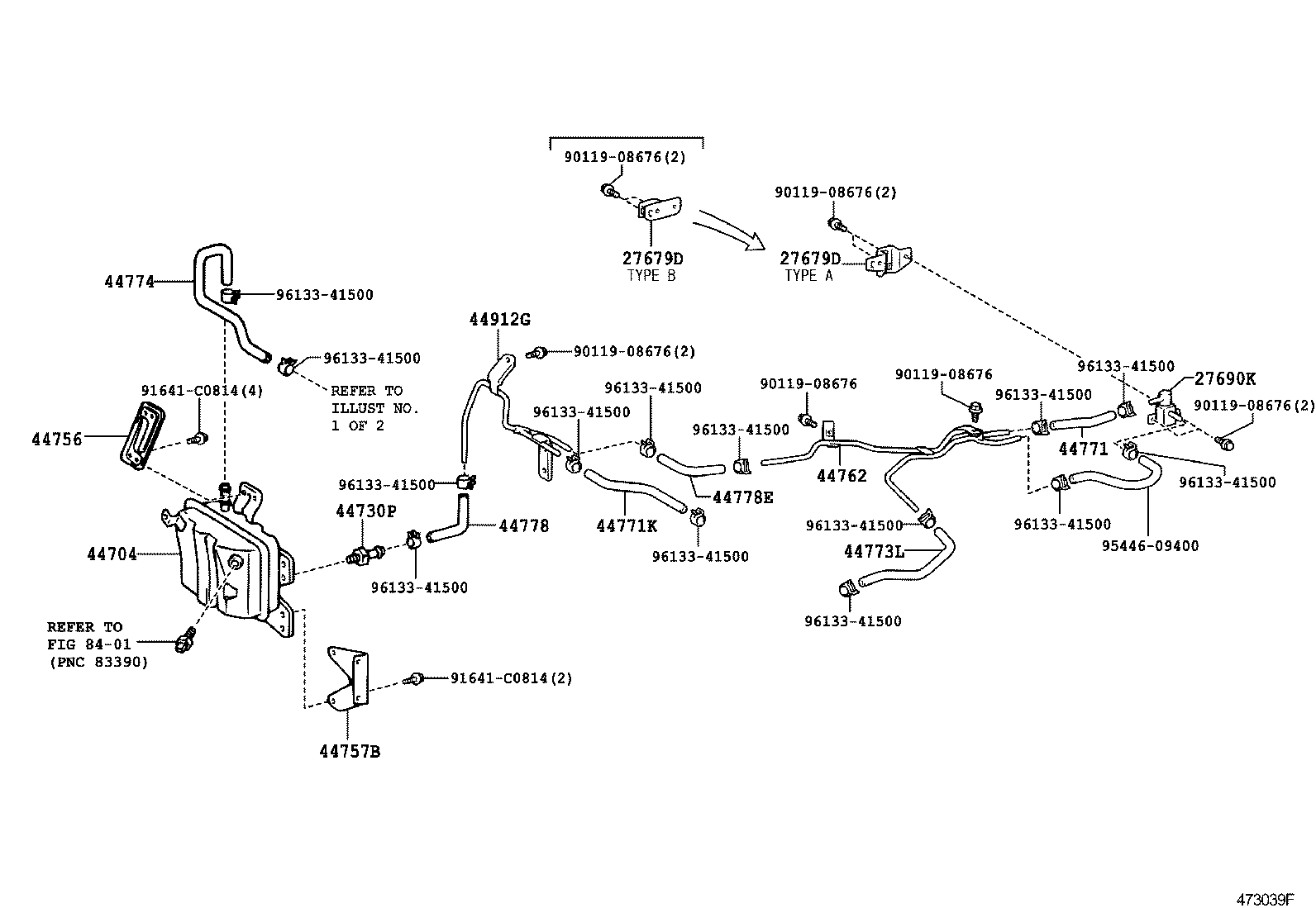

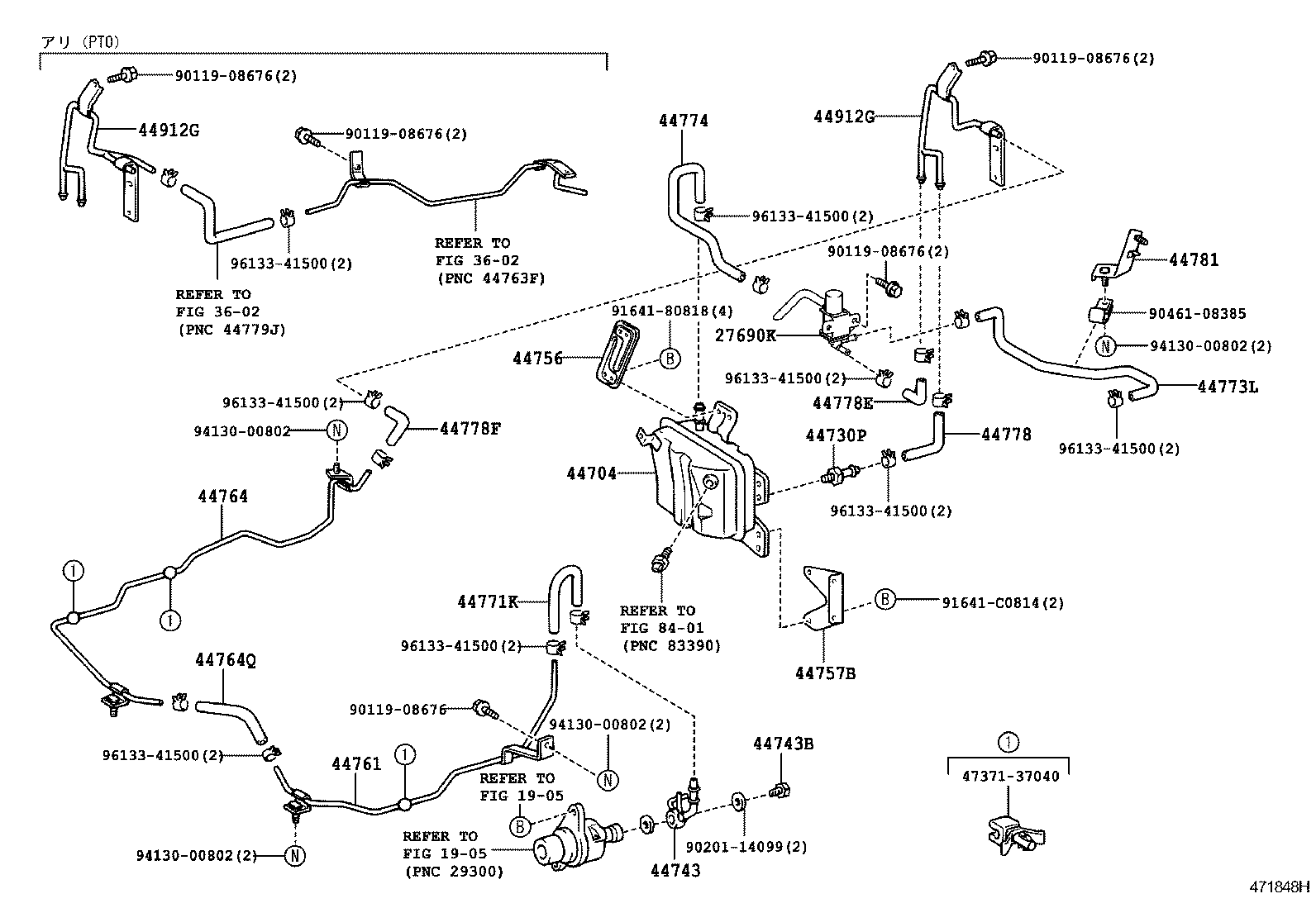

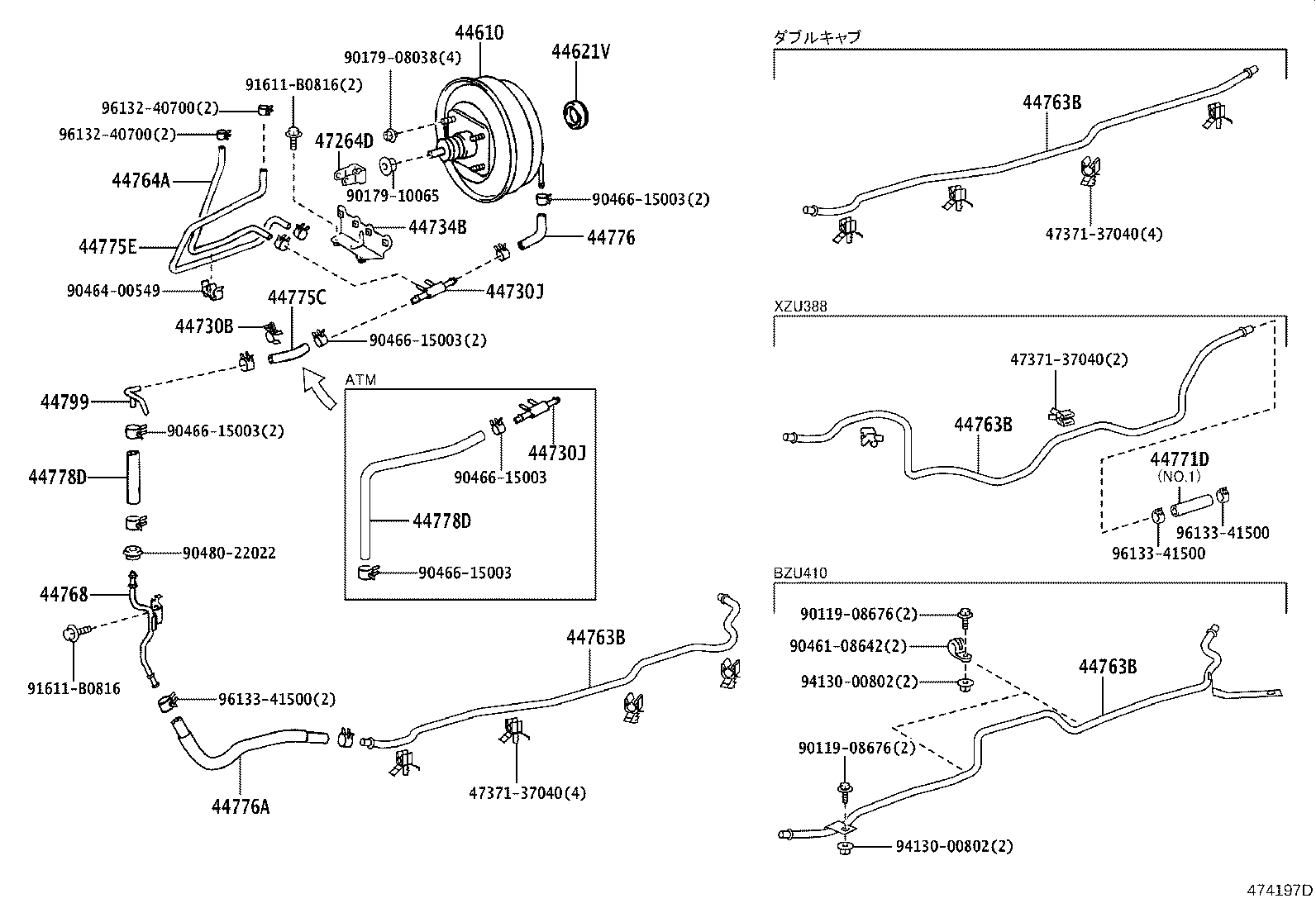

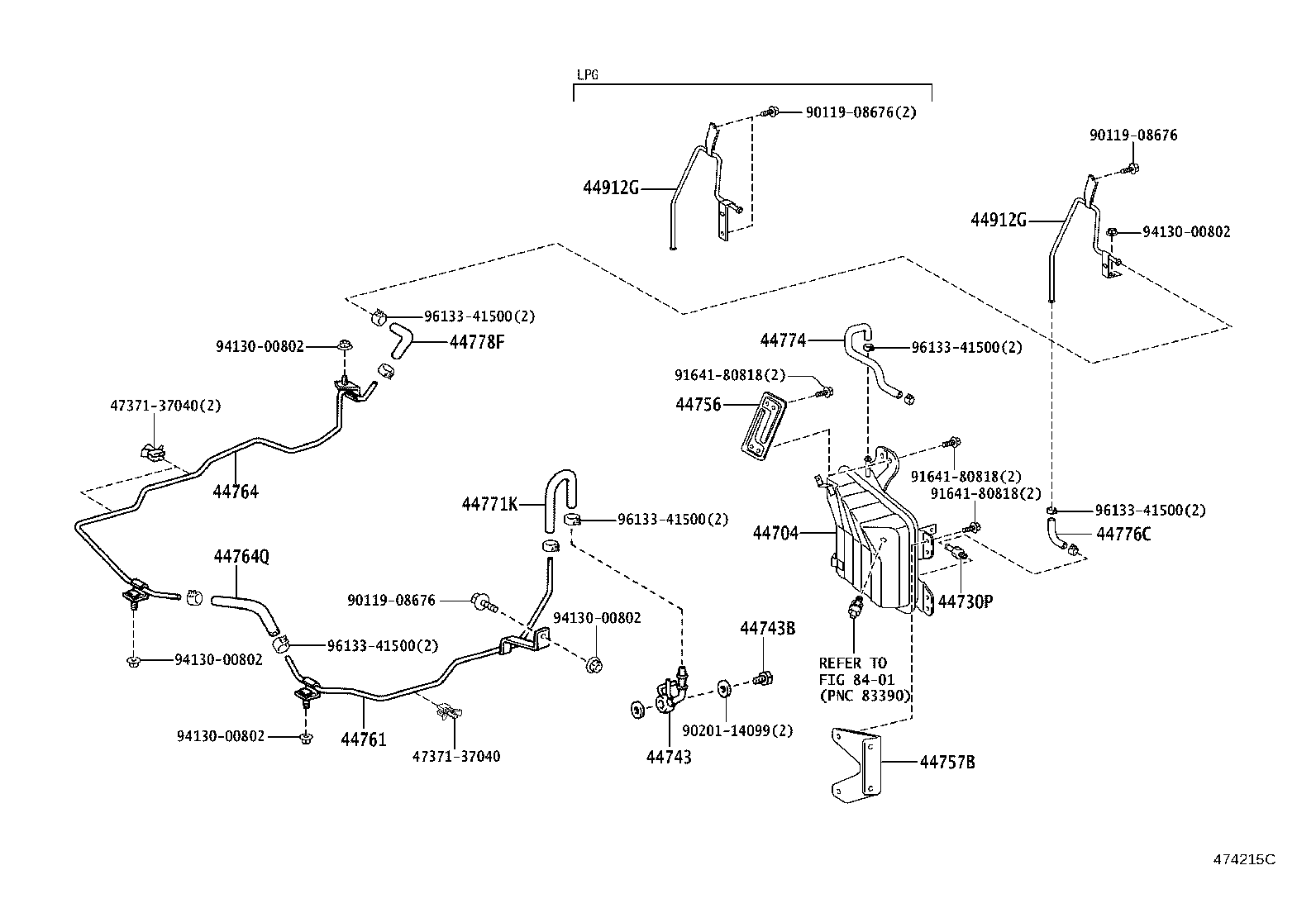

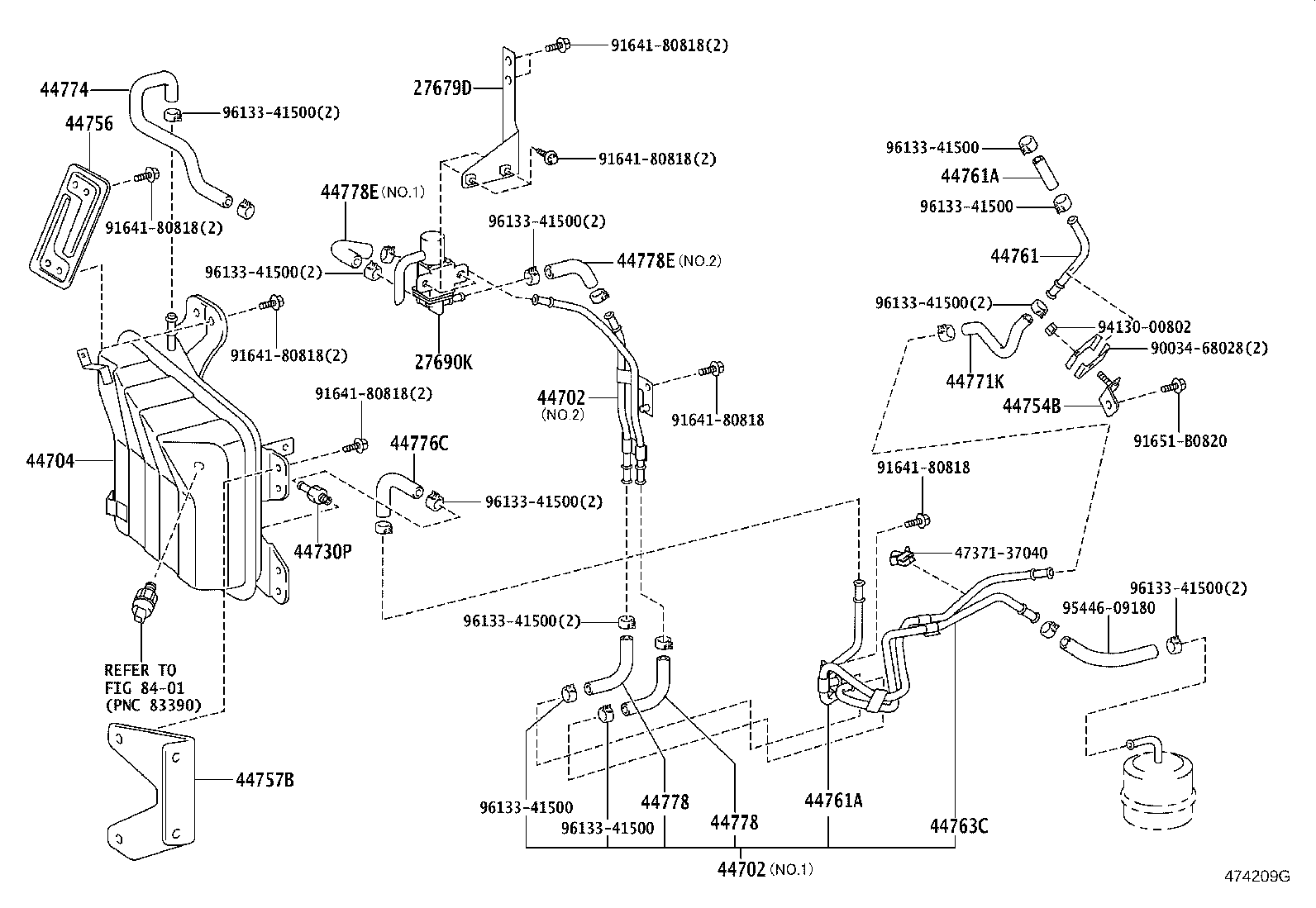

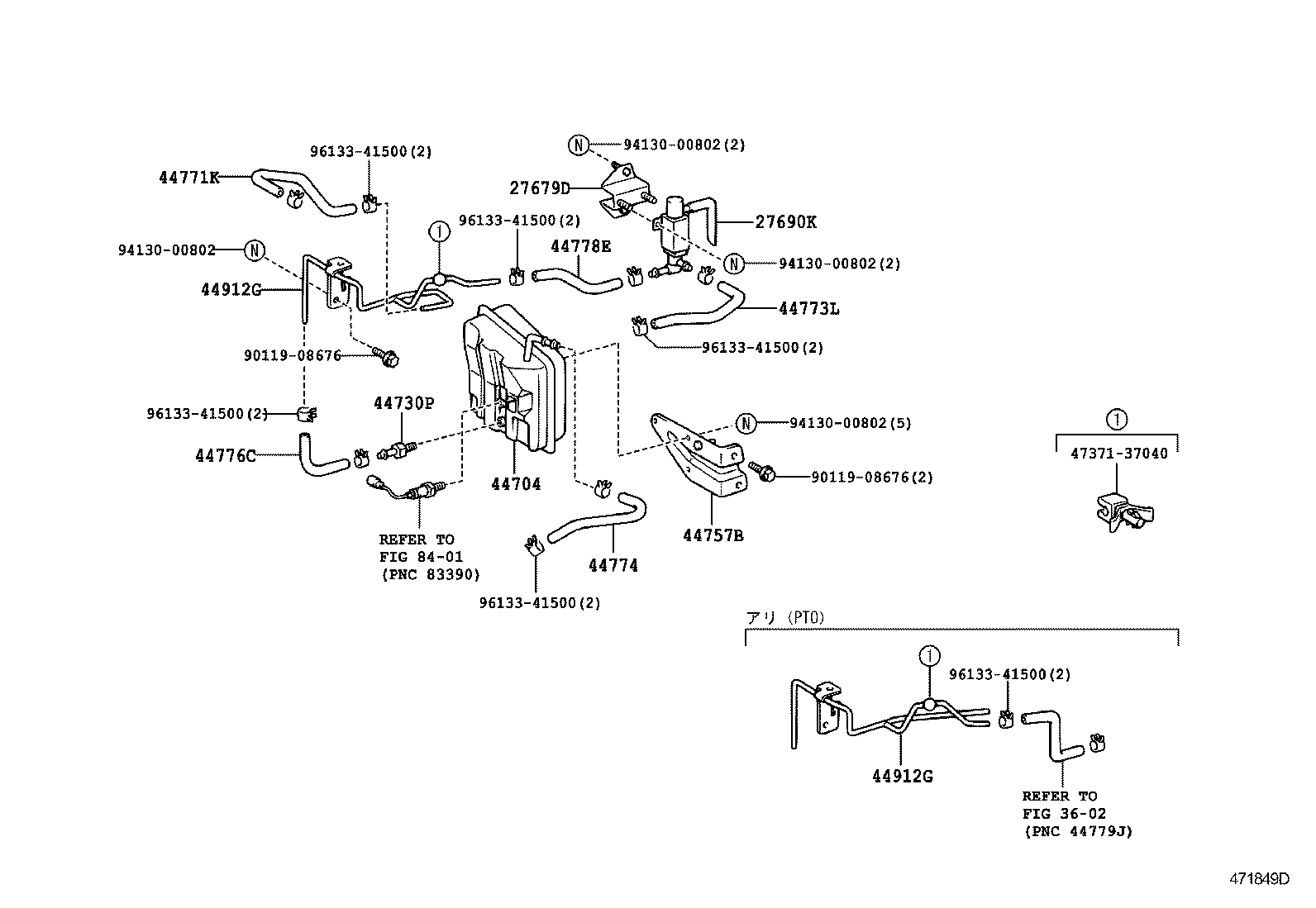

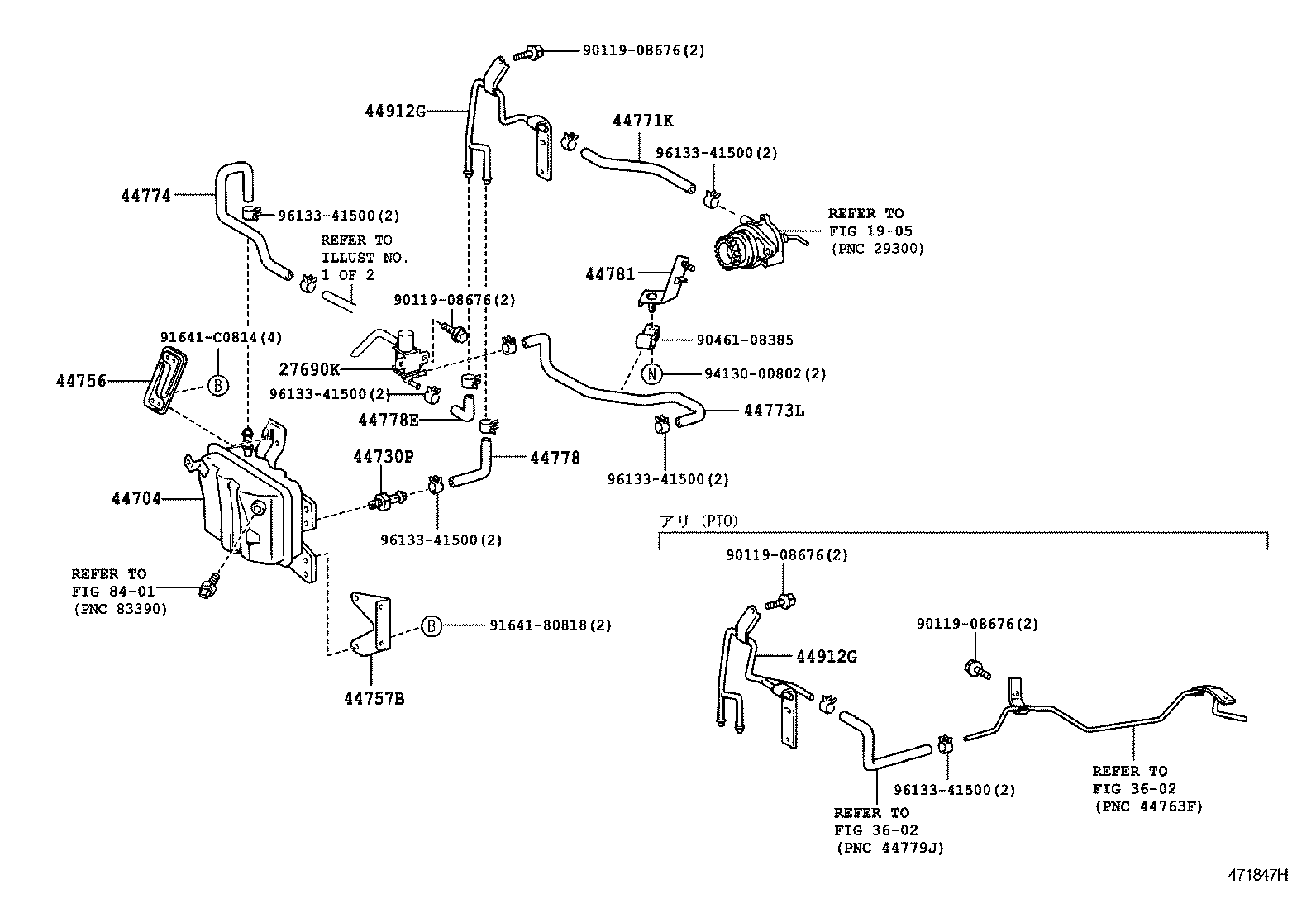

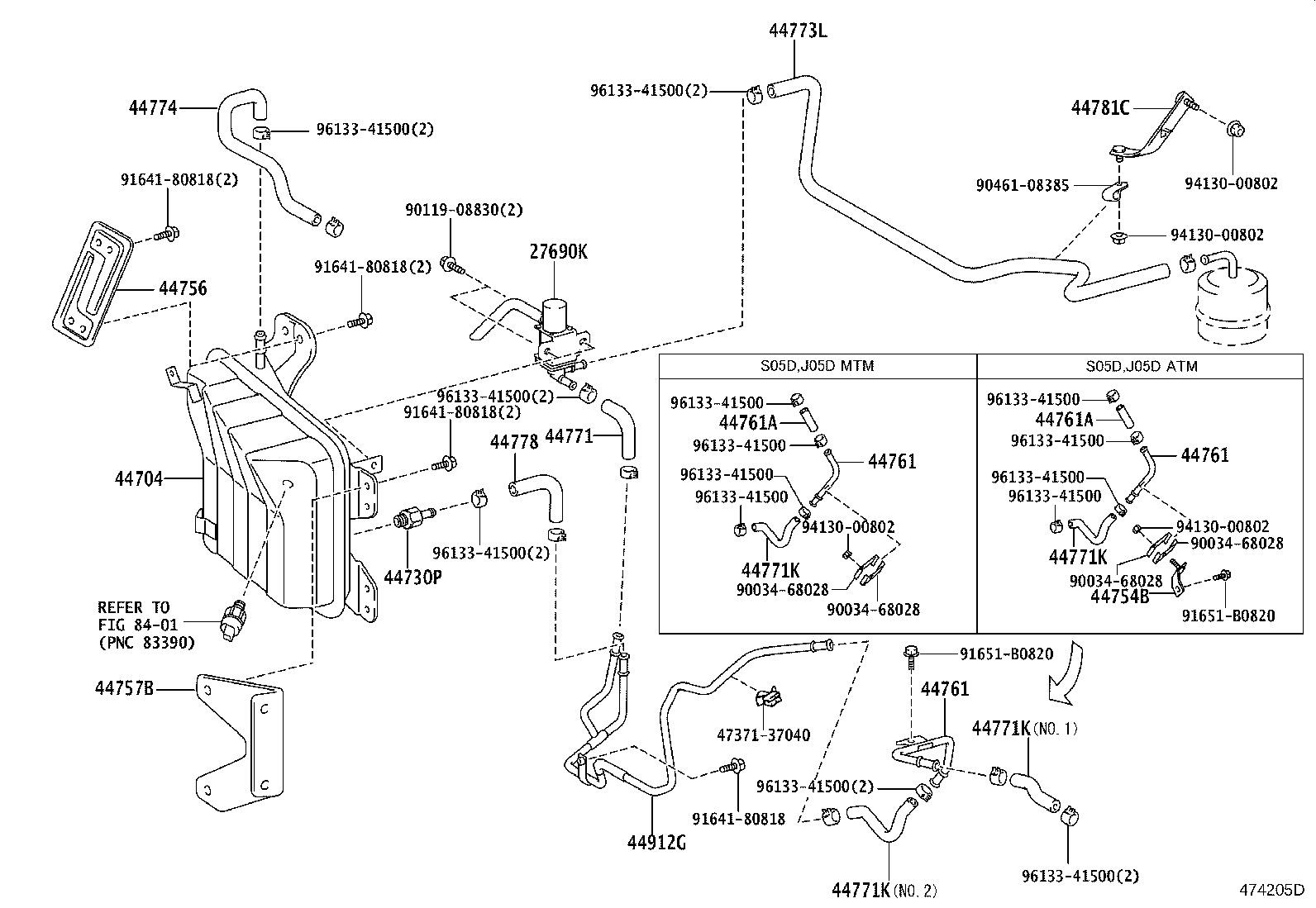

Figure 471846P 471846P 1999-05 → — Figure 471846P 471846P 1999-05 → — Figure 471846P 471846P 1999-05 → — Figure 471847H 471847H 1999-05 → — Figure 471847H 471847H 1999-05 → — Figure 471848H 471848H 1999-08 → — Figure 471848H 471848H 2000-11 → — Figure 471849D 471849D 1999-08 → — Figure 471850G 471850G 1999-08 → — Figure 473039F 473039F 2002-06 → — Figure 473039F 473039F 2002-06 → — Figure 473764B 473764B 2003-10 → — Figure 474197D 474197D 2004-06 → — Figure 475586D 475586D 2006-10 → — Figure 475583B 475583B 2006-10 → — Figure 474205D 474205D 2004-06 → — Figure 474206C 474206C 2004-06 → — Figure 47E6ML 47E6ML 2004-06 → — Figure 474208F 474208F 2004-06 → — Figure 474207G 474207G 2004-06 → — Figure 474209G 474209G 2004-06 → — Figure 474211A 474211A 2004-06 → — Figure 474212B 474212B 2004-06 → — Figure 474213B 474213B 2004-06 → — Figure 474214E 474214E 2004-06 → — Figure 474215C 474215C 2004-06 → — Figure 475591B 475591B 2006-10 → — Figure 475592B 475592B 2006-10 → — Figure 475587A 475587A 2006-10 → — Figure 475596C 475596C 2006-10 → — Figure 475596C 475596C 2006-10 → — Figure 475584A 475584A 2006-10 → —

Part groups

PNCDescription
17816B Bracket, Air Filter, NO.1
25826 Filter, NO.1
27679D Bracket, Exhaust Brake Solenoid
27690K Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
27690M Solenoid Assy, W/Bracket(FOR POWER TAKE-OFF)
44610 Booster Assy, Brake
44621V Seal, Booster Body
44702 Tube Sub-assy, Air, NO.1
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44730J Way(FOR BOOSTER VACUUM)
44730P Valve Assy, Vacuum Check, NO.1
44734B Bracket, Booster Support
44743 Union(FOR VACUUM PUMP)
44743B Bolt, Union(FOR VACUUM PUMP UNION)
44754B Bracket, Vacuum Tube
44756 Bracket, Vacuum Reservoir
44757B Bracket, Vacuum Tank Clamp, NO.2
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44761A Hose, Vacuum Pump
44762 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44763B Tube, Tube Connector TO Tube Connector
44763C Tube, Hose TO Hose, NO.2
44764 Tube, Booster Vacuum
44764A Hose, Booster Vacuum
44764Q Hose(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44771K Hose, Vacuum Tube TO Vacuum Pump
44772 Hose, Check Valve TO Connector Tube
44772B Hose, Check Valve TO Brake Booster
44772D Hose, Check Valve TO Actuator
44772H Hose, Check Valve TO 3 Way
44772J Way, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE)
44773L Hose, Solenoid TO Exhaust Retarder
44774 Hose, Union TO Connector Tube
44775C Hose, Connector TO Way
44775E Hose, Way TO Connector
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44778 Hose, Connector TO Check Valve
44778D Hose, Vacuum Tube TO Connector Tube
44778E Hose, Connector Tube TO Solenoid
44778F Hose, Vacuum Tube TO 3 Way
44781 Bracket, Hose
44781C Bracket, Hose Clamp, NO.2
44799 Way, Brake Vacuum Hose
44912G Tube, 3 Way TO Magnetic Valve
47264D Clevis, Brake Master Cylinder Push Rod
89470E Valve Assy, Vacuum Switching W/Bracket, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
