Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

6 part groups · 7 illustrations

Illustrations

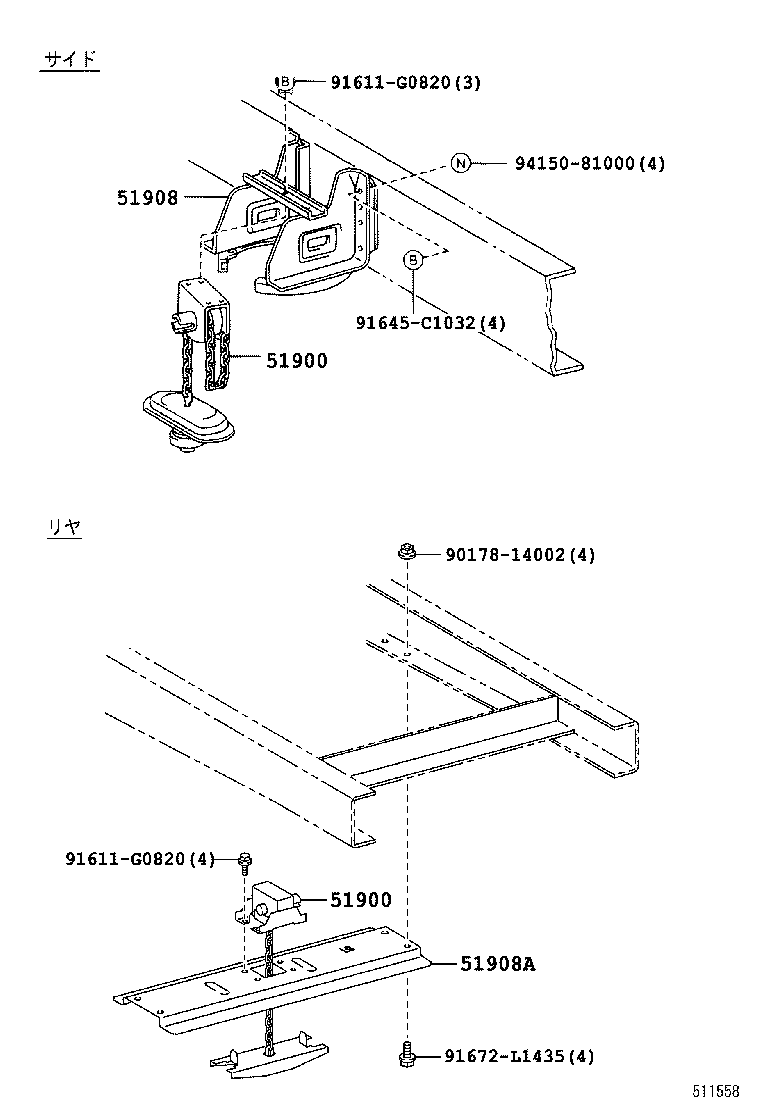

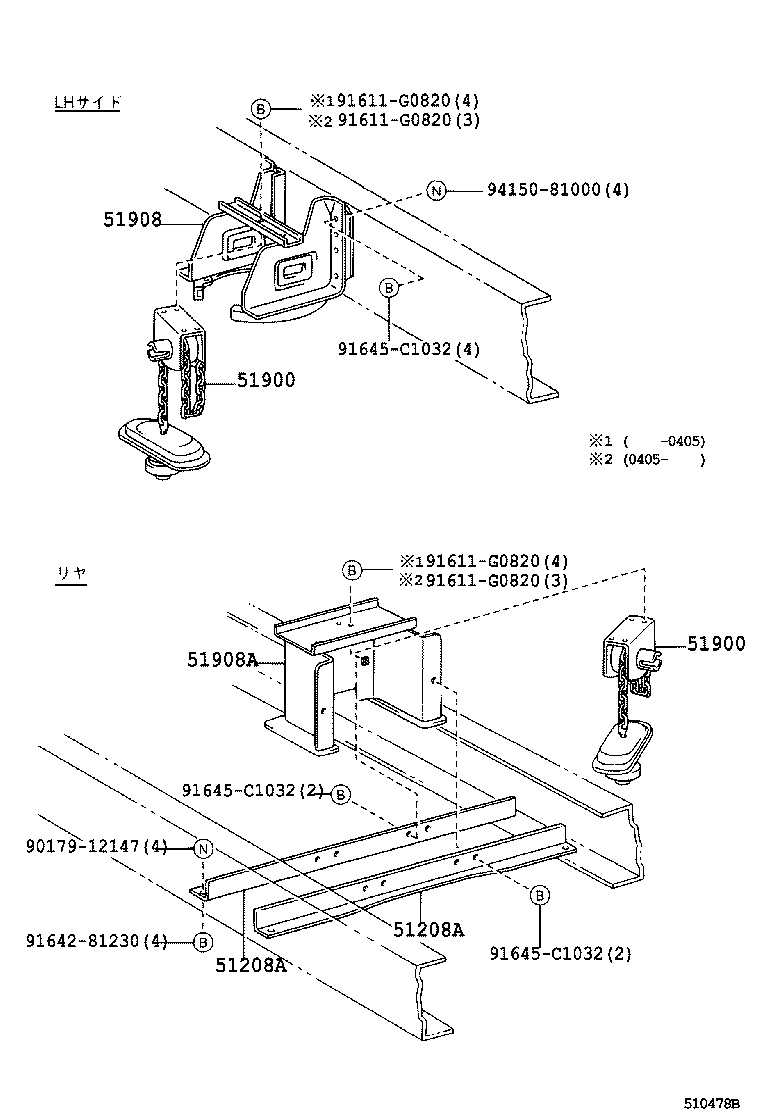

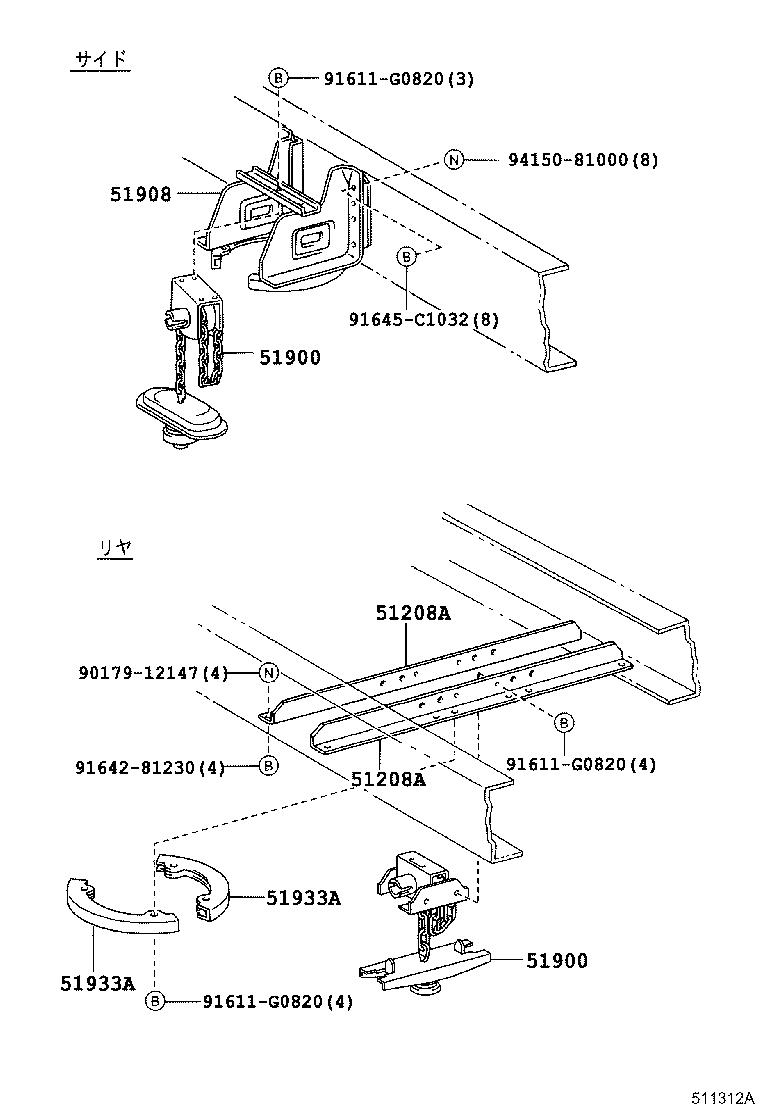

Figure 510480B 510480B 1999-05 → 2006-10 Figure 510475 510475 1999-05 → — Figure 510479B 510479B 1999-05 → 2005-05 Figure 511312A 511312A 2005-05 → — Figure 510478B 510478B 1999-05 → — Figure 510457C 510457C 1999-05 → — Figure 511558 511558 2006-10 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51908A Bracket Sub-assy, Spare Wheel Mounting
51908D Bracket Sub-assy, Spare Wheel Carrier, RH
51933A Stopper, Spare Wheel, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
