Toyota Dyna/Toyoace
1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan
Discontinued model
Data version 2012-01

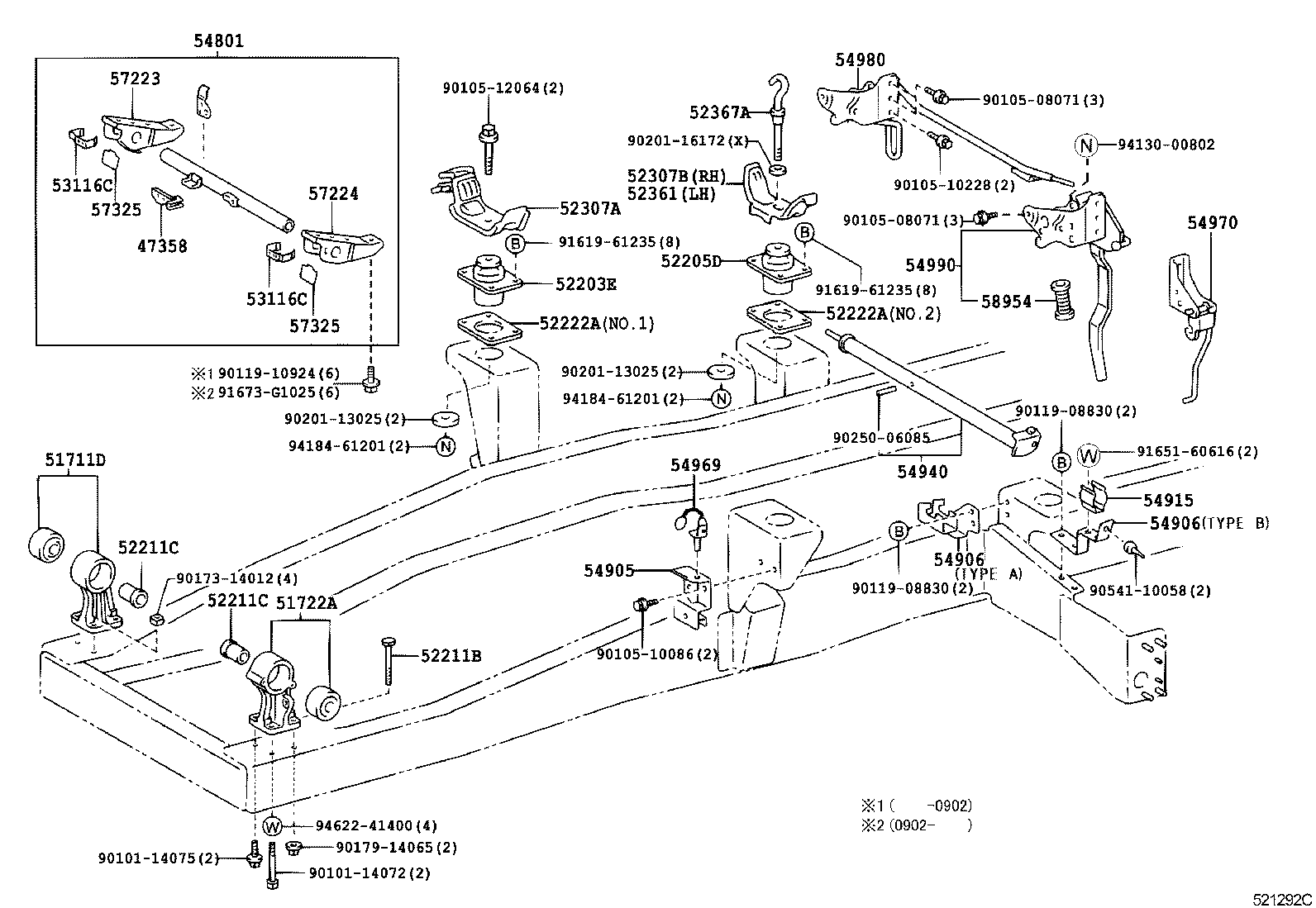

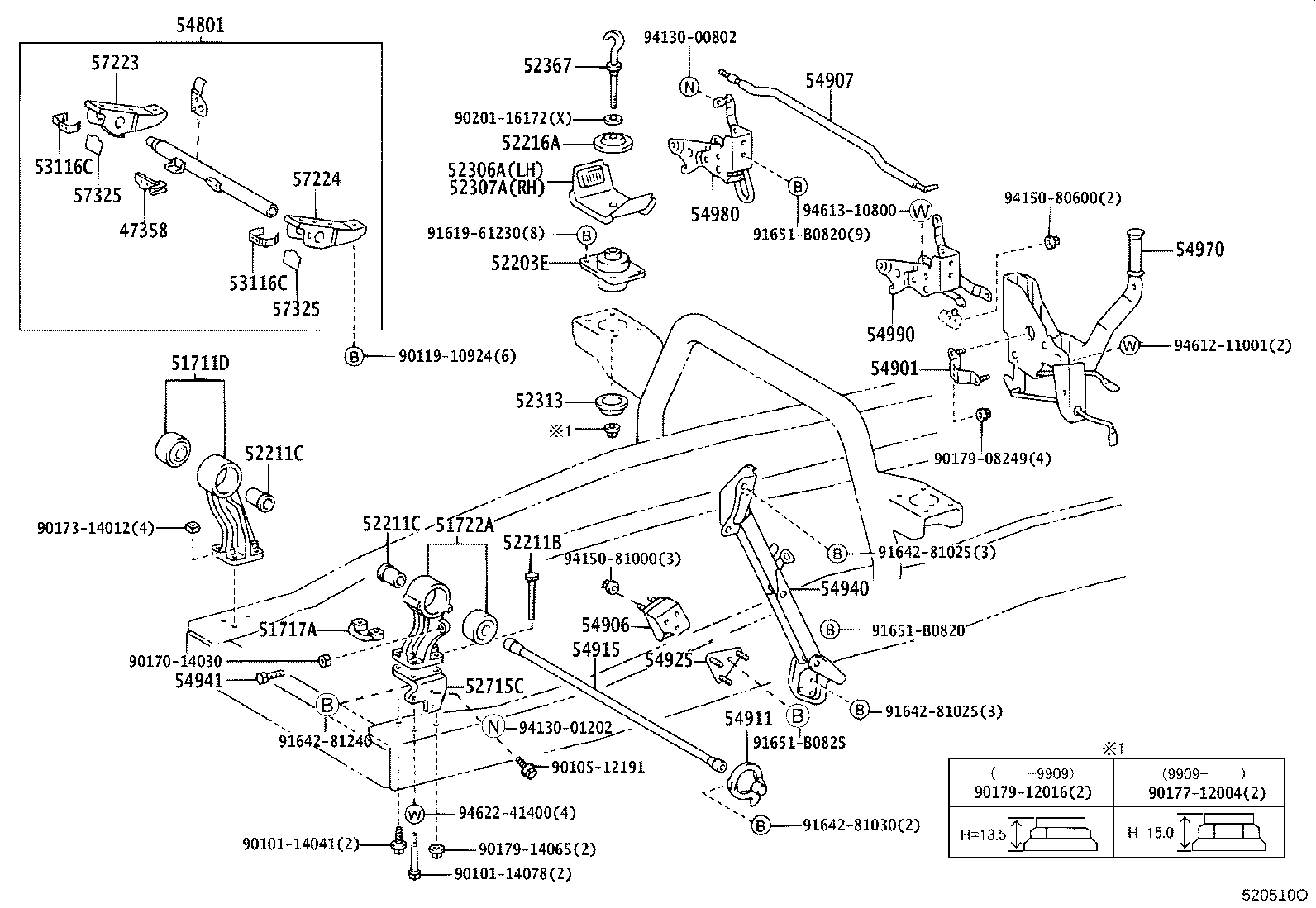

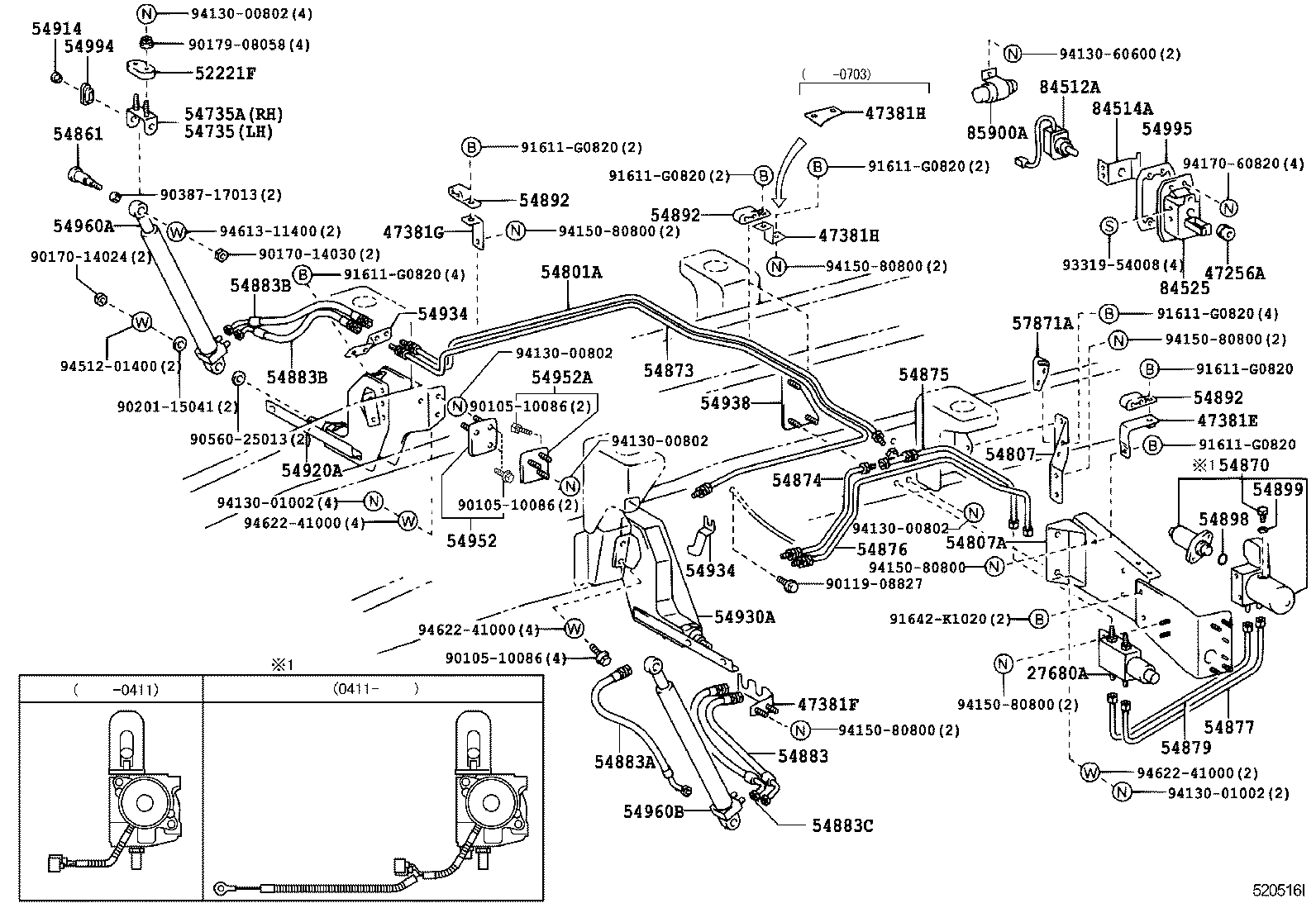

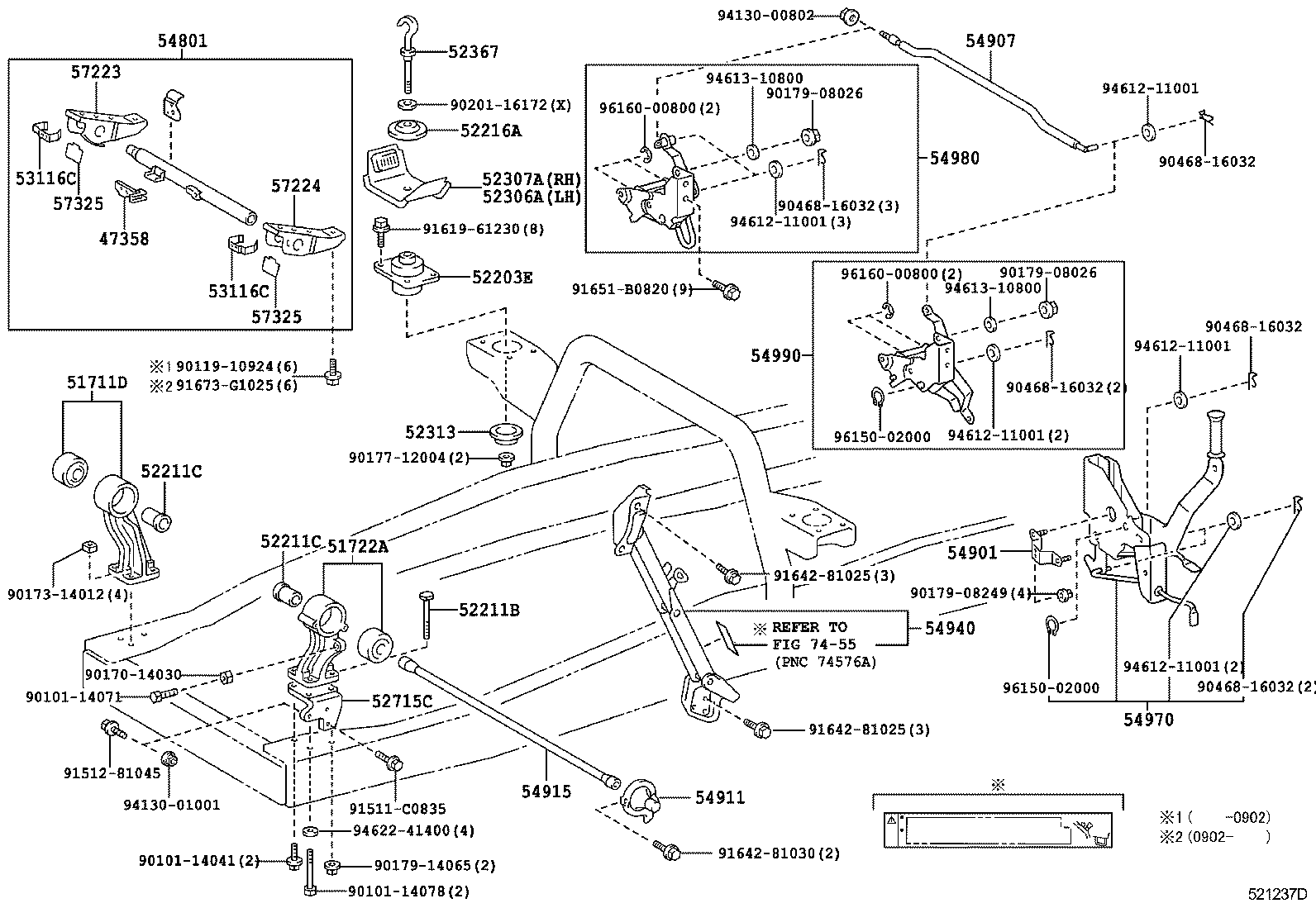

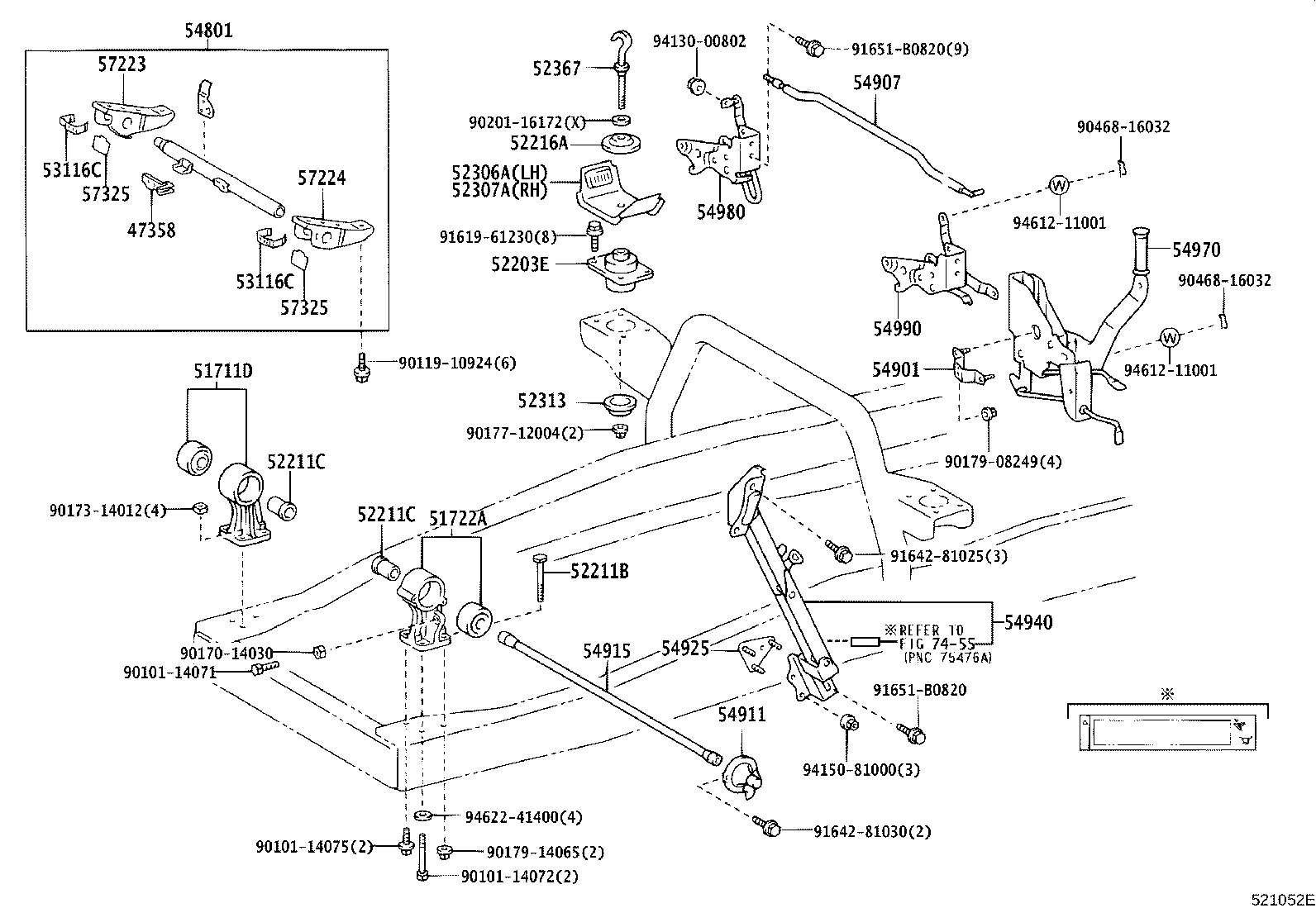

Cab Mounting & Body Mounting
80 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 27680A | Solenoid Assy |
| 47256A | Grommet, Cap |
| 47358 | Tube, Booster TO Reservoir, NO.2 |
| 47381E | Bracket, Tube Clamp |
| 47381F | Bracket, Tube Clamp |
| 47381G | Bracket, Tube Clamp |
| 47381H | Bracket, Tube Clamp |
| 51711D | Bracket, Cab Front Mounting |
| 51717A | Plate, Body Support Bracket |
| 51722A | Bracket Sub-assy, Cab Front Mounting, LH |
| 52203E | Cushion Sub-assy, Cab Mounting, NO.2 |
| 52205D | Cushion Sub-assy, Cab Mounting, NO.3 Upper |
| 52211B | Bolt(FOR BODY MOUNTING NO.1 CUSHION) |
| 52211C | Spacer(FOR BODY MOUNTING NO.1 CUSHION) |
| 52216A | Stopper, Cab Mounting Cushion |
| 52221F | Cushion, Body Mounting, Center Upper |
| 52222A | Spacer, Cab Rear Mounting, Upper |
| 52306A | Bracket Sub-assy, Cab Mounting Hook, NO.1 |
| 52307A | Bracket Sub-assy, Cab Mounting Hook, NO.2 |
| 52307B | Bracket Sub-assy, Cab Mounting Hook, NO.2 |
| 52313 | Stopper, Cab Rear Mounting Rebound |
| 52361 | Bracket, Cab Mounting Hook |
| 52367 | Hook, Cab Rear Mounting |
| 52367A | Hook, Cab Rear Mounting |
| 52715C | Reinforcement, Cab Mounting, NO.1 |
| 53116C | Bracket, Radiator Grille, NO.2 |
| 54735 | Support, Tilt Cab Cylinder Cushion Hinge |
| 54735A | Support, Tilt Cab Cylinder Cushion Hinge |
| 54801 | Tube Sub-assy, Tilt Cab, NO.1 |
| 54801A | Tube Sub-assy, Tilt Cab, NO.1 |
| 54807 | Bracket Sub-assy, Tilt Cab Pump |
| 54807A | Bracket Sub-assy, Tilt Cab Pump, NO.1 |
| 54861 | Pin, Tilt Cab Cylinder Mounting, Upper |
| 54870 | Pump Assy, Tilt Cab |
| 54873 | Tube, Tilt Cab, NO.2 |
| 54874 | Tube, Tilt Cab, NO.3 |
| 54875 | Tube, Tilt Cab, NO.4 |
| 54876 | Tube, Tilt Cab, NO.5 |
| 54877 | Tube, Tilt Cab, NO.6 |
| 54879 | Tube, Tilt Cab, NO.8 |
| 54883 | Hose, Tilt Cab Pump |
| 54883A | Hose, Tilt Cab Pump |
| 54883B | Hose, Tilt Cab Pump |
| 54883C | Hose, Tilt Cab Pump |
| 54892 | Clamp, Tilt Cab Pipe |
| 54898 | Gasket, Tilt Cab Pump, NO.1 |
| 54899 | Gasket, Tilt Cab Pump, NO.2 |
| 54901 | Bracket Sub-assy, Tilt Cab Lock |
| 54905 | Bracket Sub-assy, Tilt Cab Stay, Upper |
| 54906 | Bracket Sub-assy, Tilt Cab Stay, Lower |
| 54907 | Pipe Sub-assy, Tilt Cab Lock Connecting |
| 54911 | Arm, Tilt Cab Spring Support, NO.1 |
| 54914 | Joint, Tilt Cab Pipe |
| 54915 | Spring, Tilt Cab, NO.1 |
| 54920A | Bracket Assy, Tilt Cab Cylinder, Lower RH |
| 54925 | Retainer, Tilt Cab Spring |
| 54930A | Bracket Assy, Tilt Cab Cylinder, Lower LH |
| 54934 | Gusset, Tilt Cab Lower Bracket, NO.4 |
| 54938 | Plate, Tilt Cab Coil Spring Support |
| 54940 | Stay Assy, Tilt Cab |
| 54941 | Stay, Tilt Cab, Upper |
| 54952 | Plate, Tilt Cab Coil Spring Cushion, NO.1 |
| 54952A | Plate, Tilt Cab Coil Spring Cushion, NO.1 |
| 54960A | Cylinder Assy, Tilt Cab |
| 54960B | Cylinder Assy, Tilt Cab |
| 54969 | Stopper, Tilt Cab Stay |
| 54970 | Latch Assy, Tilt Cab Stopper |
| 54980 | Lock Assy, Tilt Cab Mounting, RH |
| 54990 | Lock Assy, Tilt Cab Mounting, LH |
| 54994 | Guide, Tilt Cab Lock Hook |
| 54995 | Packing, Tilt Cab Control Switch Box |
| 57223 | Bracket, Front Mounting, RH |
| 57224 | Bracket, Front Mounting, LH |
| 57325 | Reinforcement, Front Mounting |
| 57871A | Bracket, Tilt Cab Pump |
| 58954 | Cover, Rear Lock Handle Grip |
| 84512A | Switch, Tilt Cab Control |
| 84514A | Bracket, Tilt Cab Control Switch |
| 84525 | Box, Tilt Cab Control Switch |
| 85900A | Relay Assy, Control Unit |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
