Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 4 illustrations

Illustrations

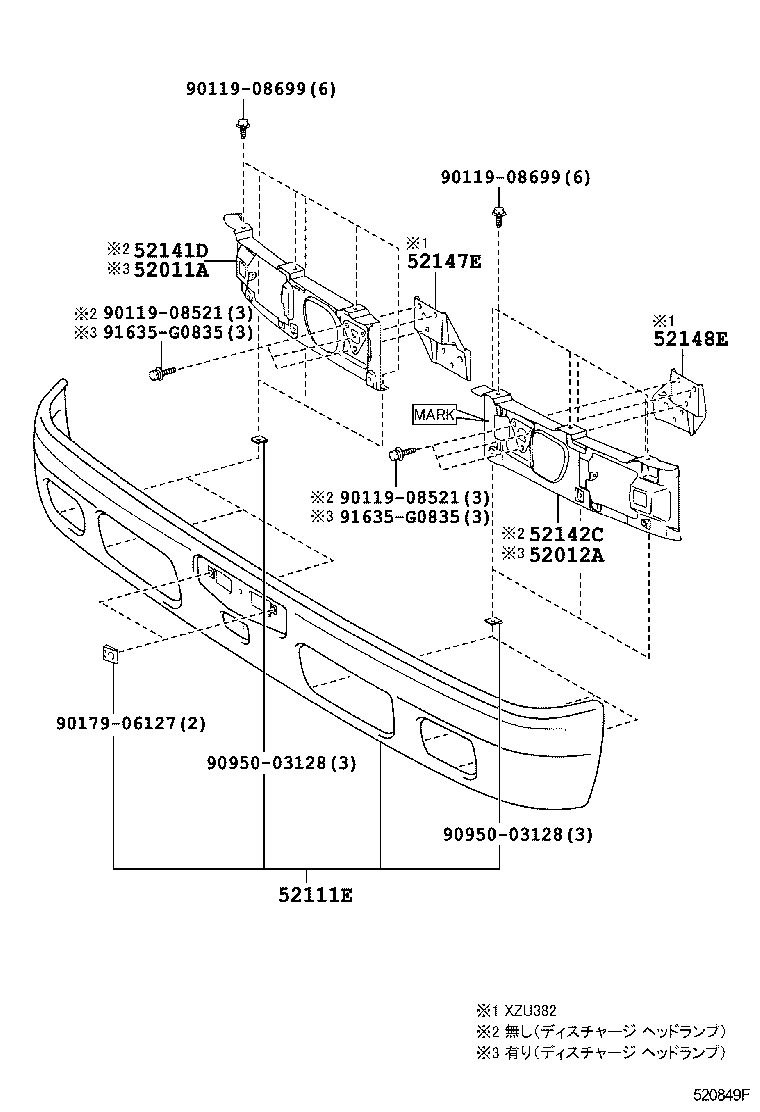

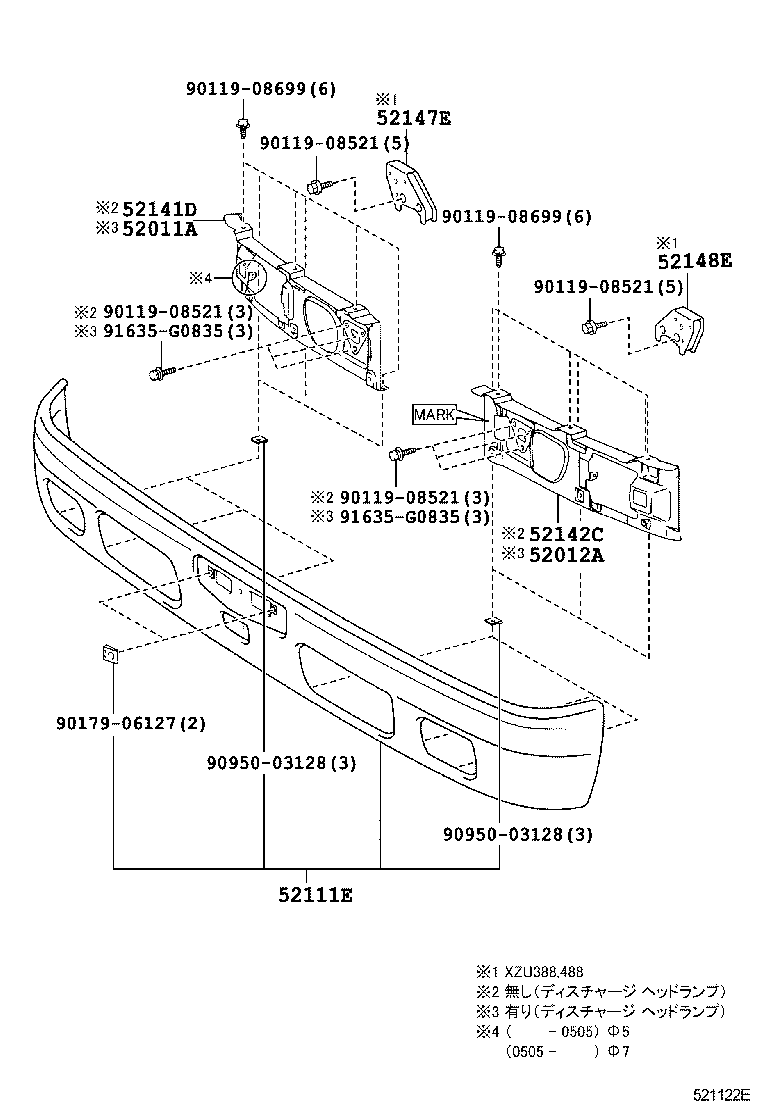

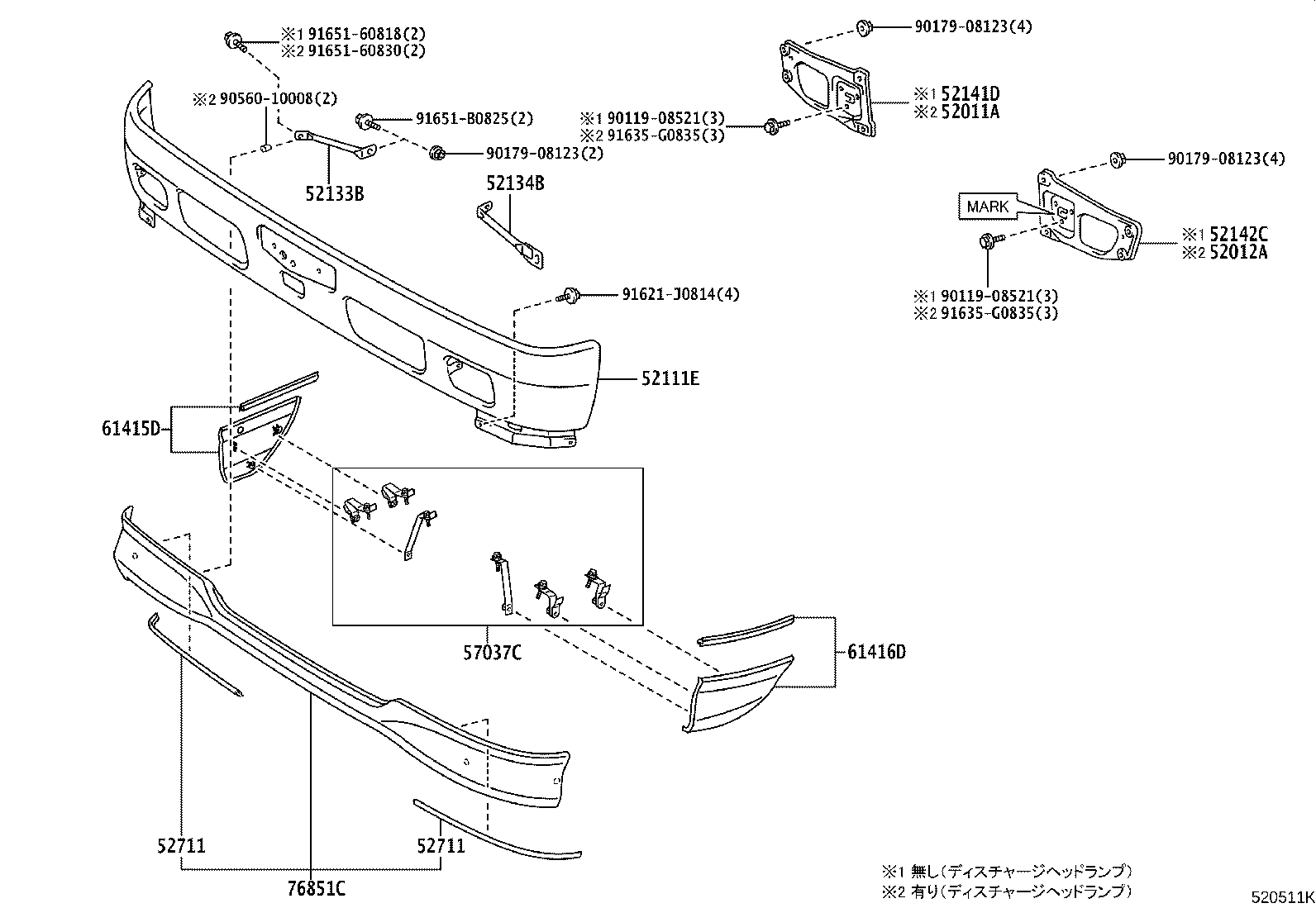

Figure 520491J 520491J 1999-05 → — Figure 520511K 520511K 1999-05 → — Figure 520849F 520849F 2002-06 → 2004-06 Figure 521122E 521122E 2004-06 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52111E Bar, Front Bumper
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52711 Moulding, Front Bumper
57037C Stay Sub-assy, Front Step
61415D Panel, Front Step Under, RH
61416D Panel, Front Step Under, LH
76851C Front Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
