Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

11 part groups · 2 illustrations

Illustrations

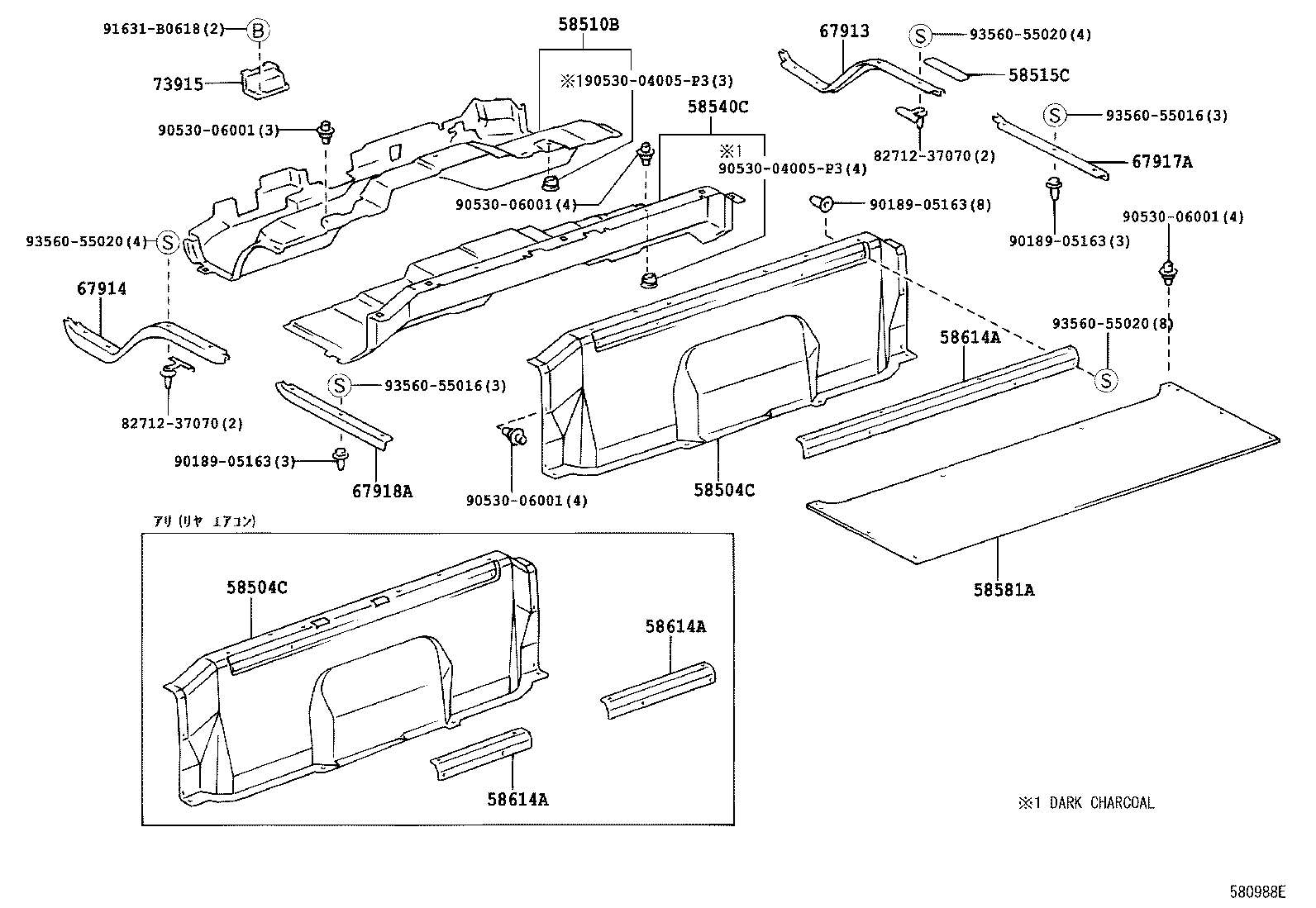

Figure 580987H 580987H 1999-05 → — Figure 580988E 580988E 1999-05 → —

Part groups

PNCDescription
58504C Mat Sub-assy, Header
58510B Mat, Front Floor, Front
58515C Mat, Front Floor, Rear NO.1
58540C Mat Assy, Floor, Rear
58581A Mat, Rear Floor
58614A Plate, Mat Set, NO.4
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
73915 Cover, Seat Airbag NO.1, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
