Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

20 part groups · 3 illustrations

Illustrations

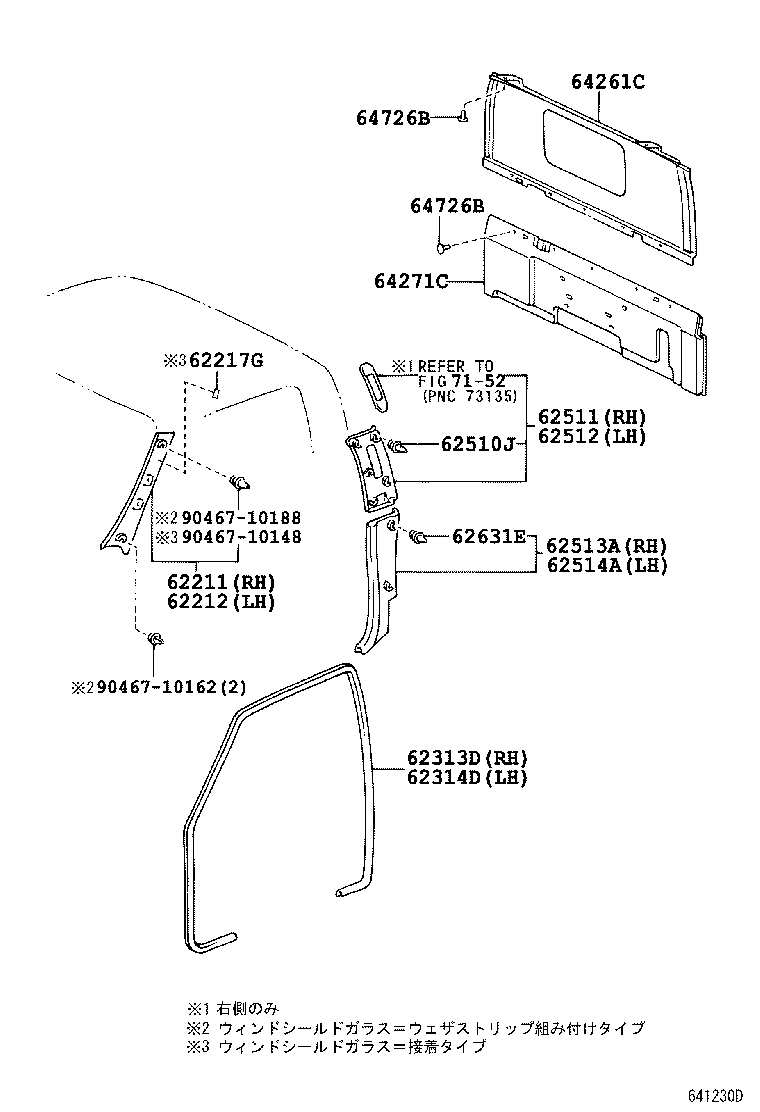

Figure 640636E 640636E 1999-05 → 2002-06 Figure 640637D 640637D 1999-06 → — Figure 641230D 641230D 2002-06 → —

Part groups

PNCDescription
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62217G Clip, Front Pillar Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62335A Cover, Rear Door Opening Trim
62471J Clip (FOR ROOF SIDE GARNISH)
62510J Retainer, Quarter Trim
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
62513A Panel, Quarter Trim, Lower RH
62514A Panel, Quarter Trim, Lower LH
62570F Garnish Assy, Roof Side, Inner Lower RH
62580A Garnish Assy, Roof Side, Inner Lower LH
62631E Retainer, Quater Trim
64261C Garnish, Back Panel, Upper
64271C Trim, Back Panel
64726B Clip, Deck Rear Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
