Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

8 part groups · 3 illustrations

Illustrations

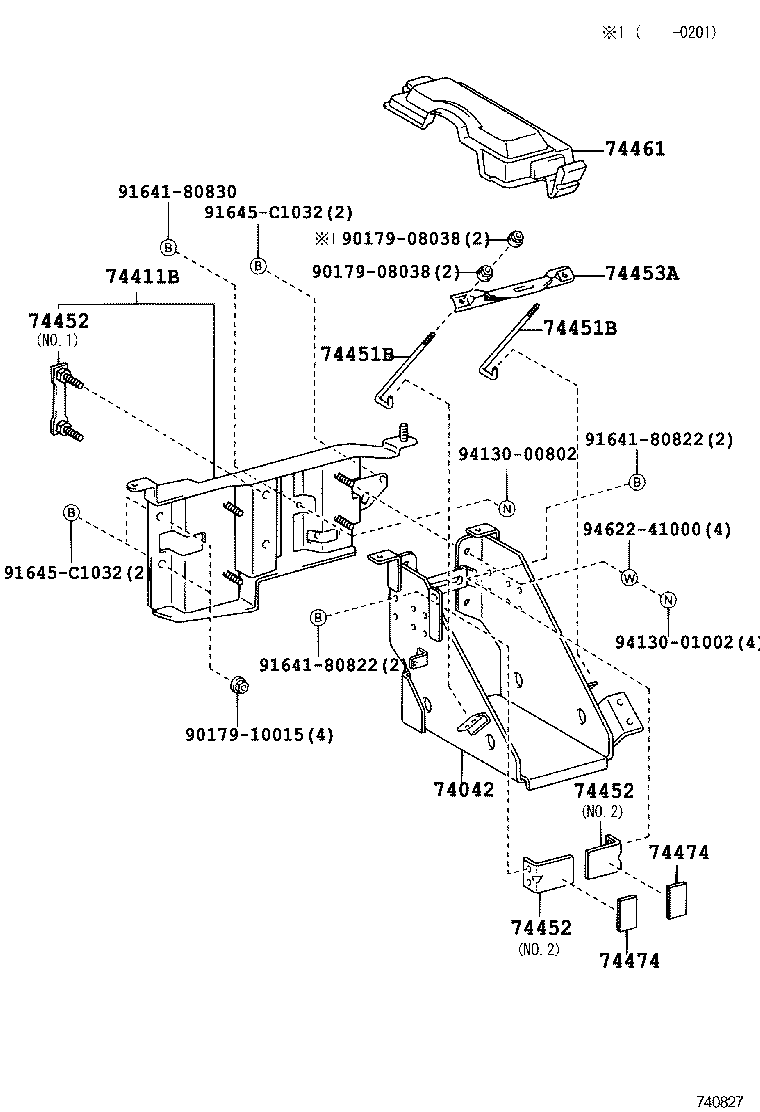

Figure 740616C 740616C 1999-05 → — Figure 740827G 740827G 2000-11 → — Figure 741444 741444 2004-06 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74411B Bracket, Battery, Front
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
