Fuel Tank & Tube

108 part groups · 28 illustrations

Illustrations

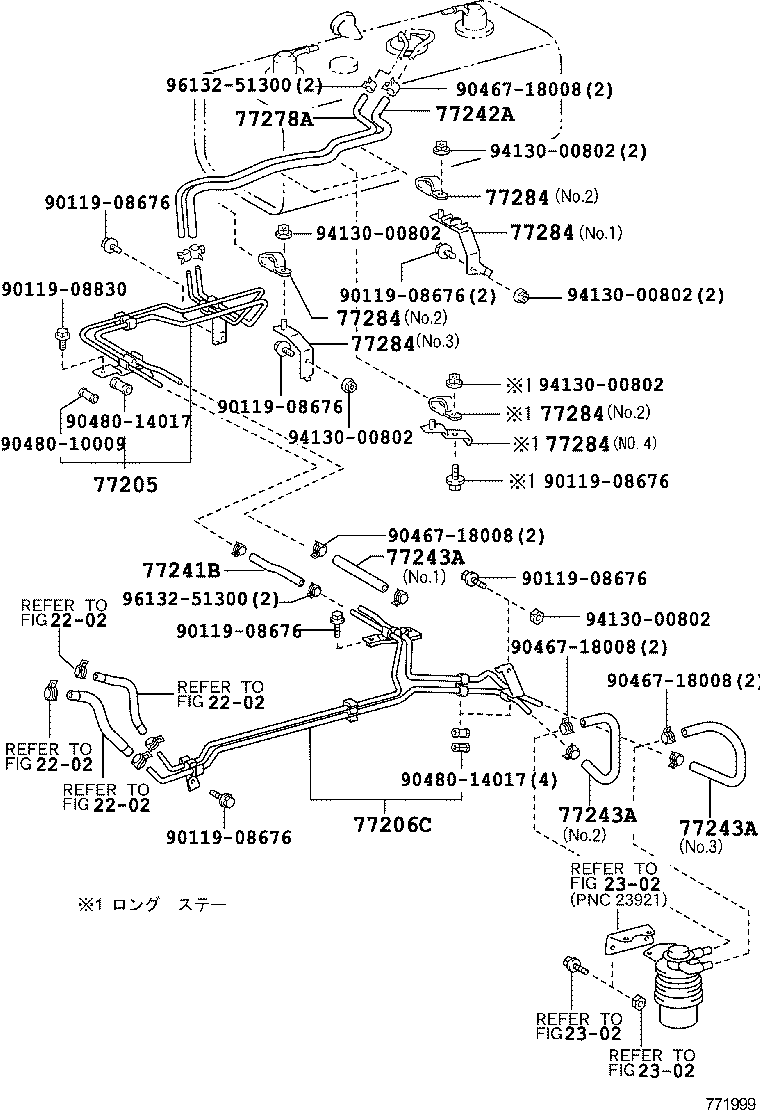

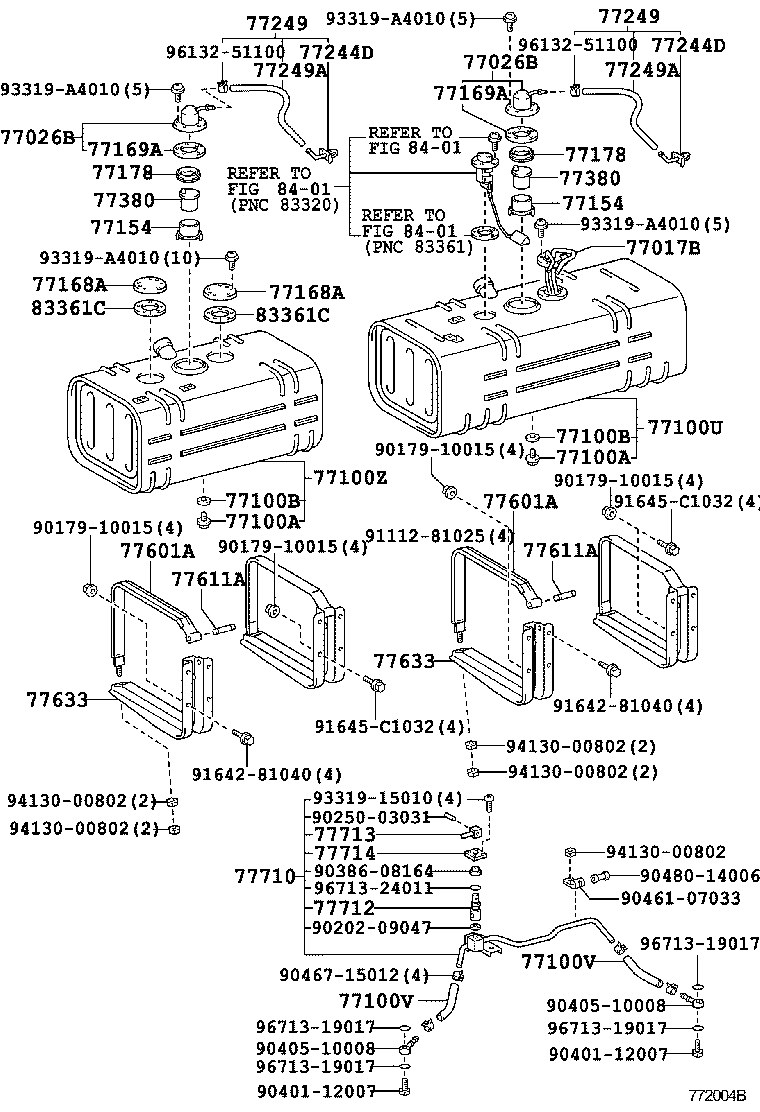

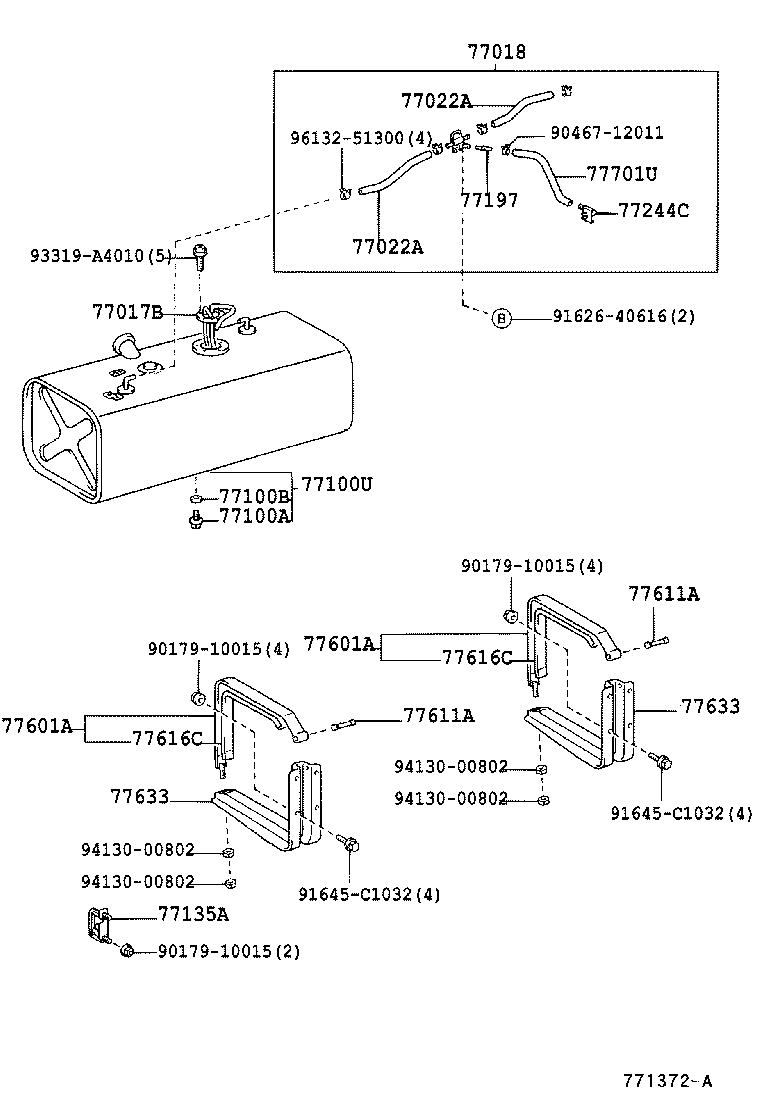

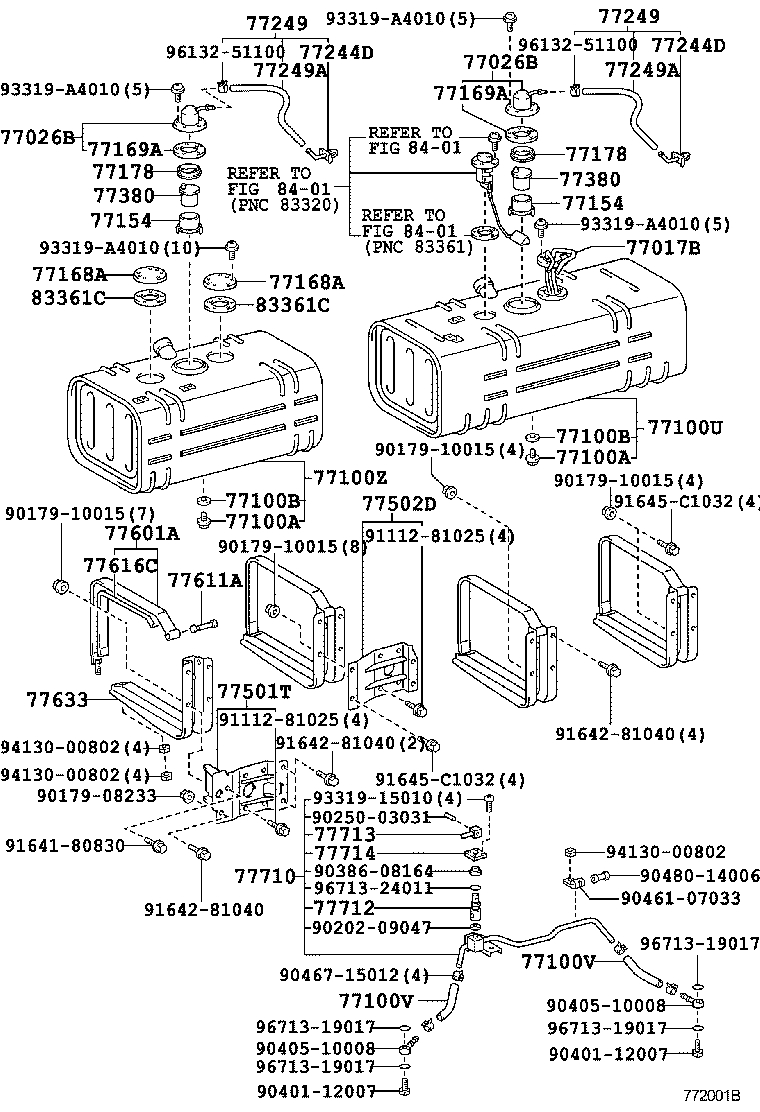

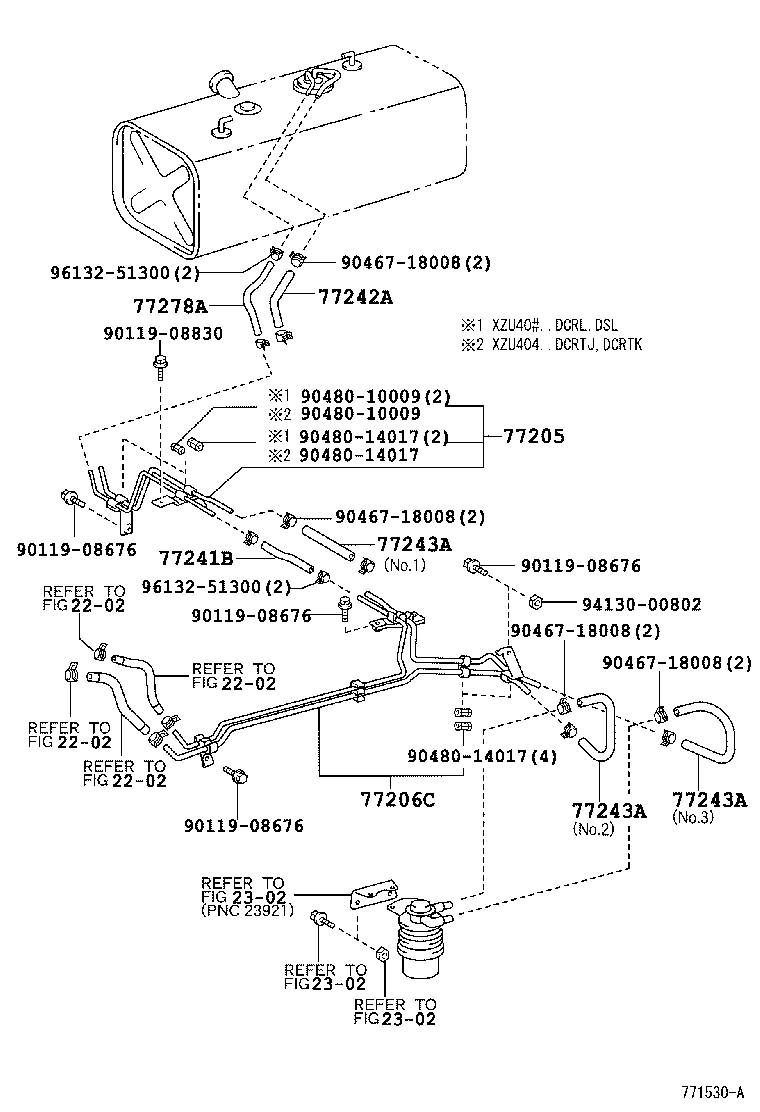

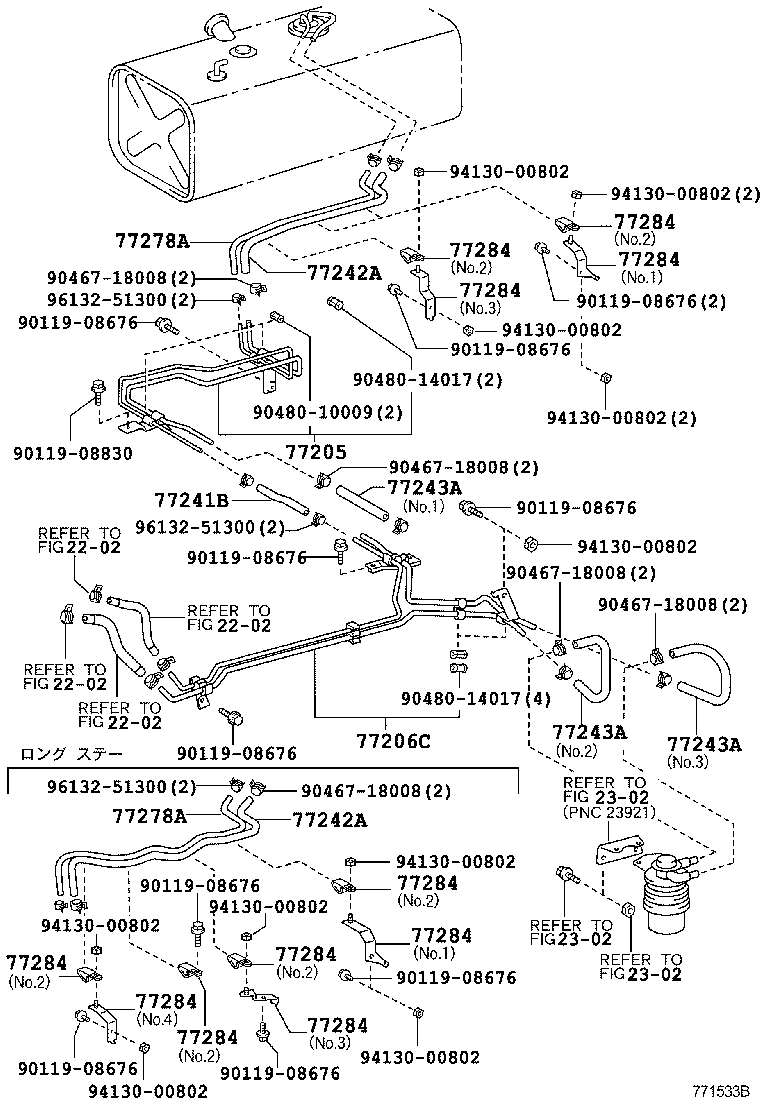

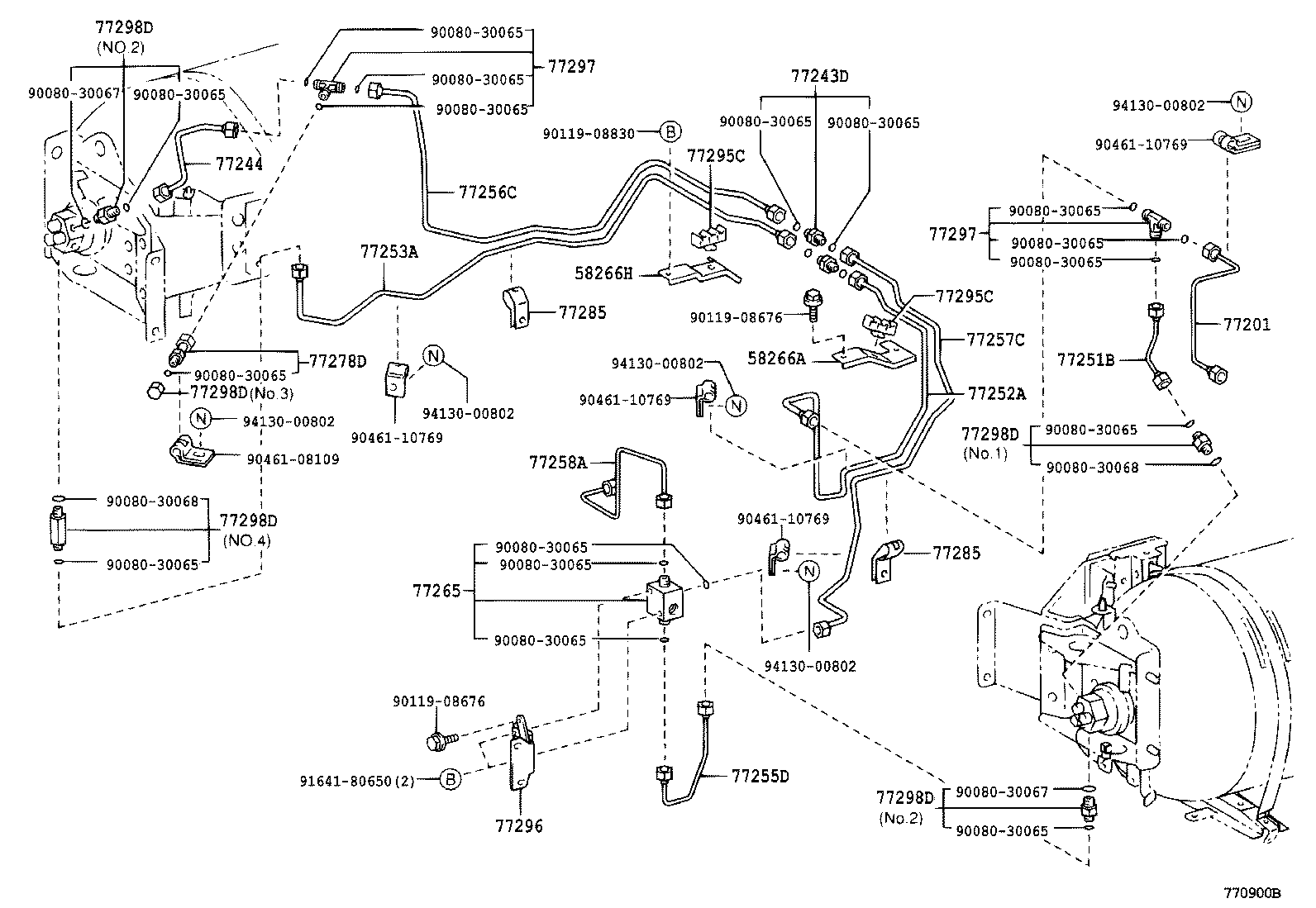

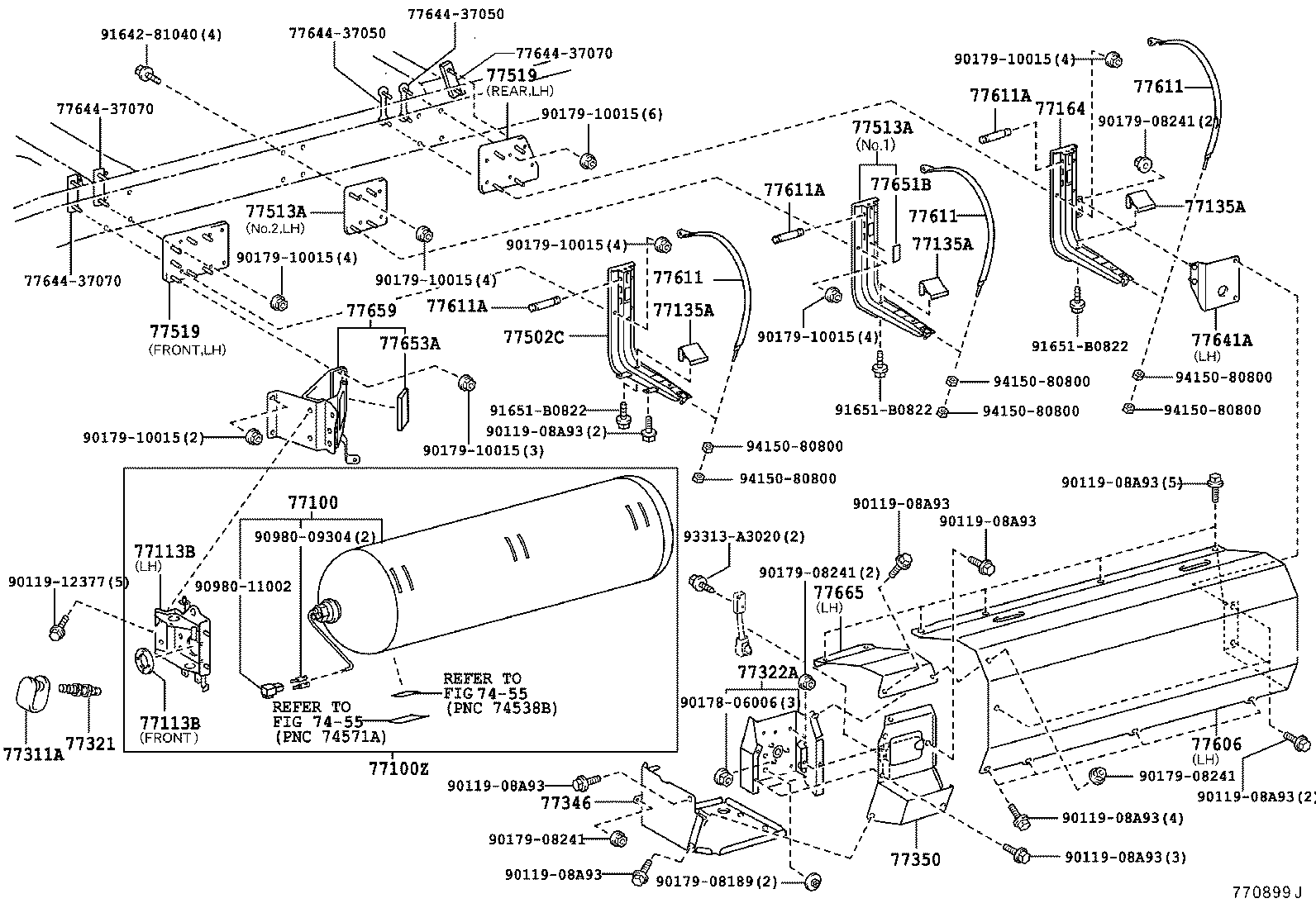

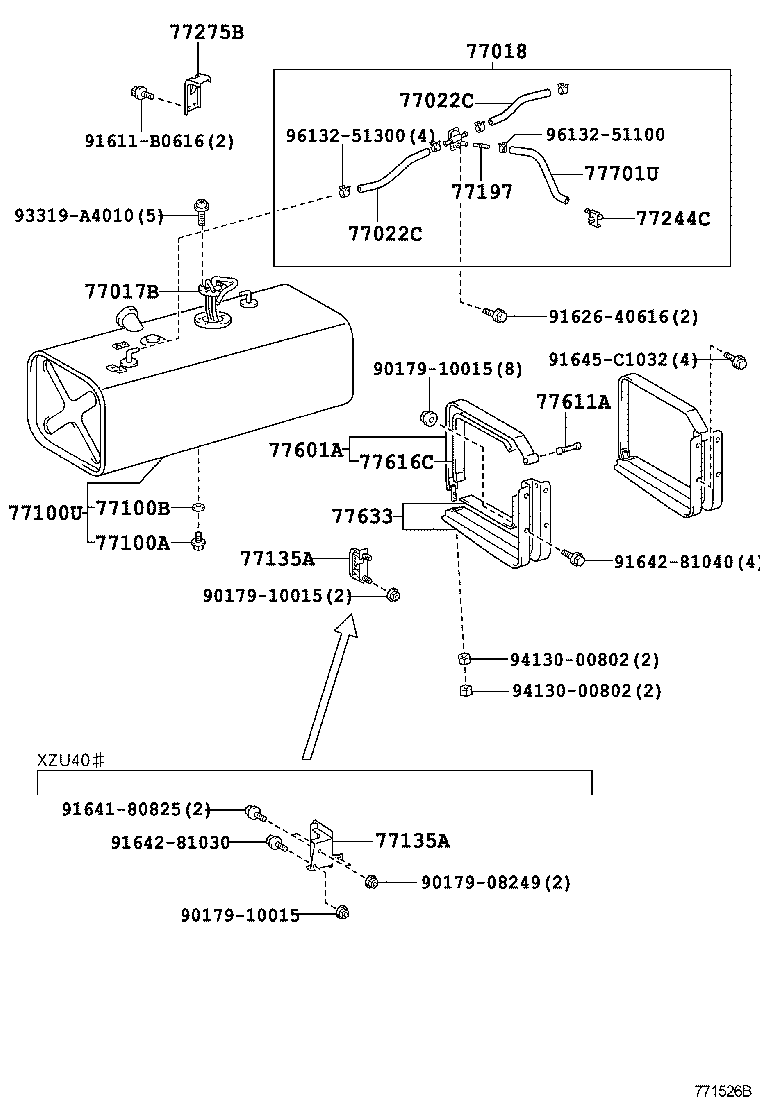

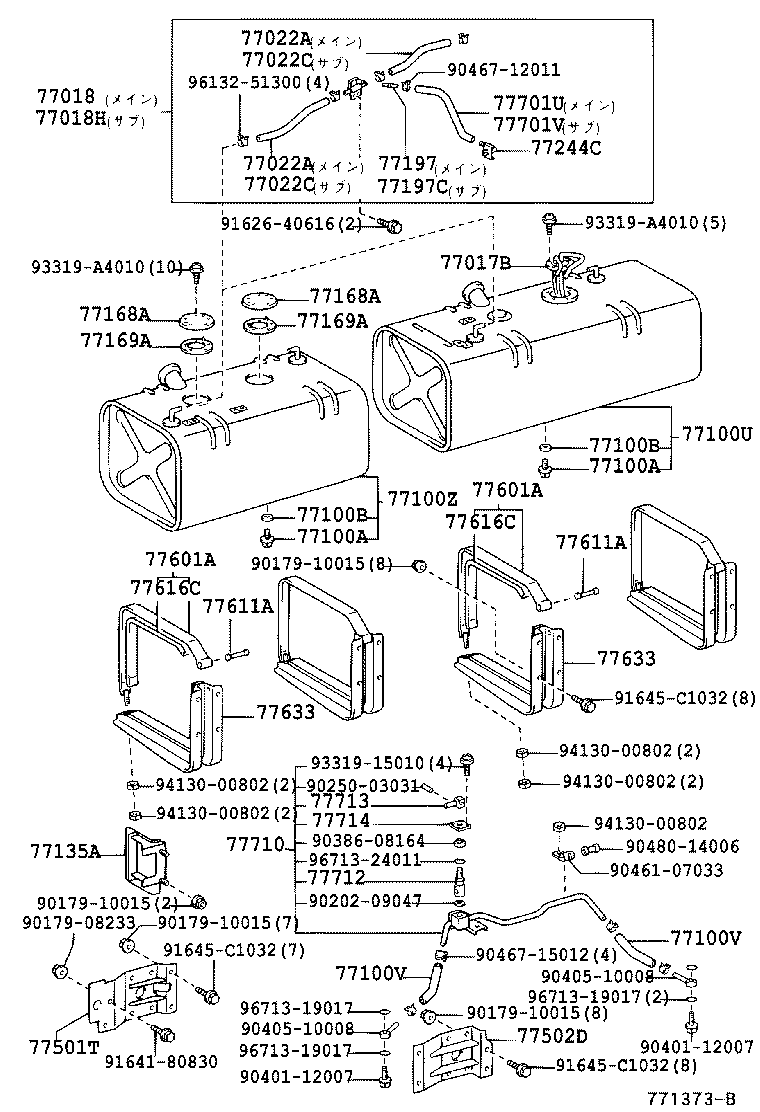

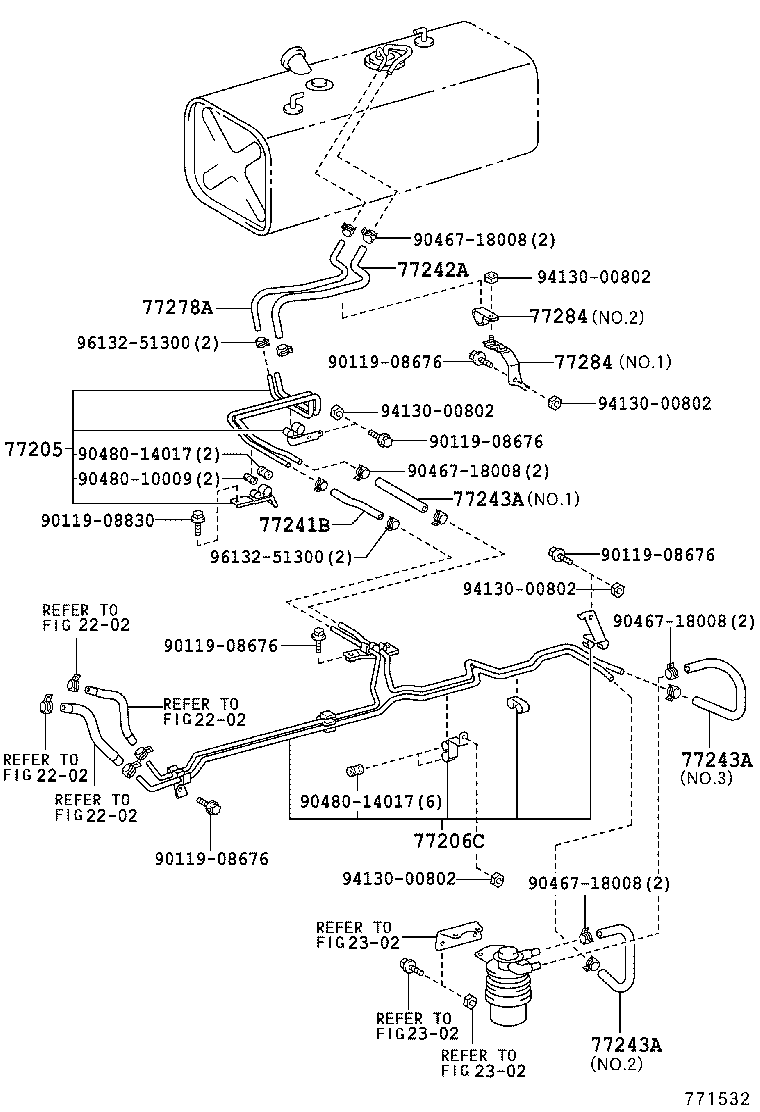

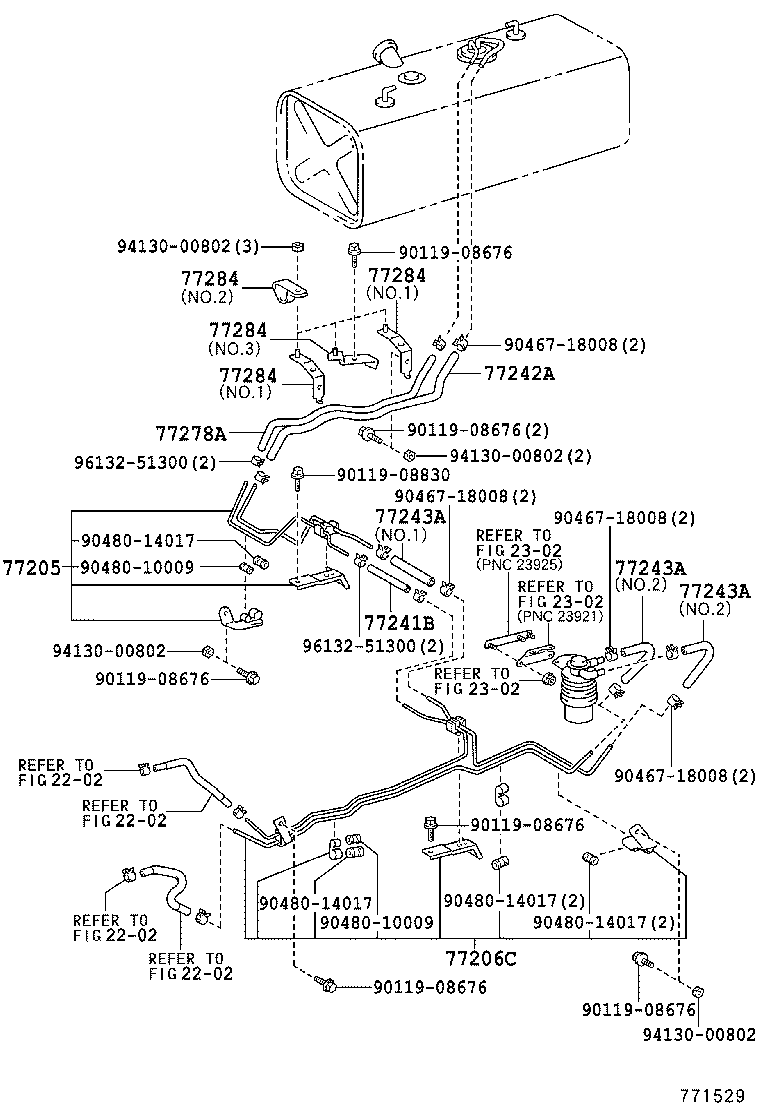

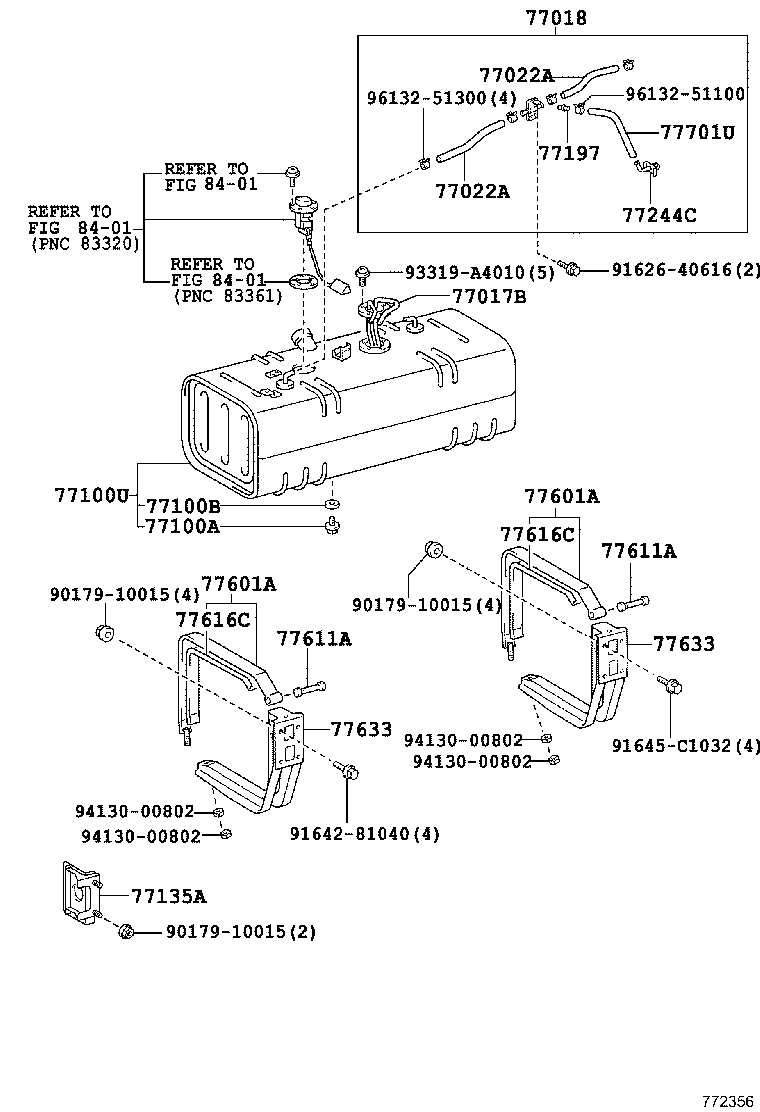

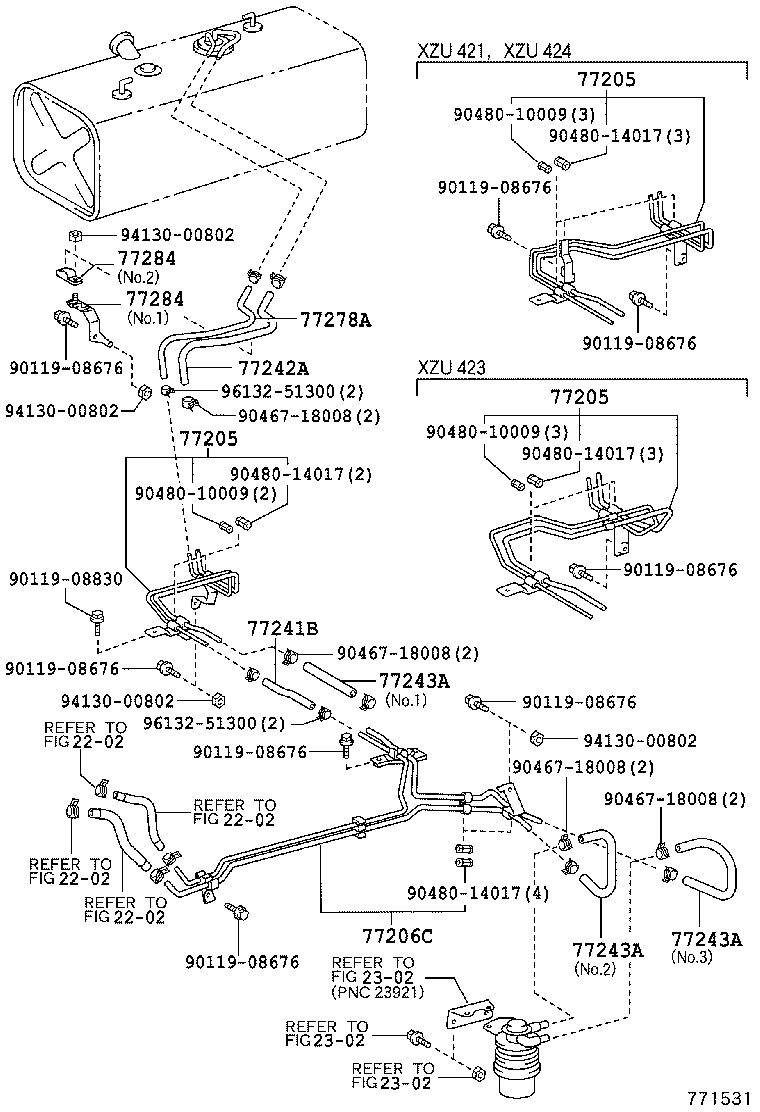

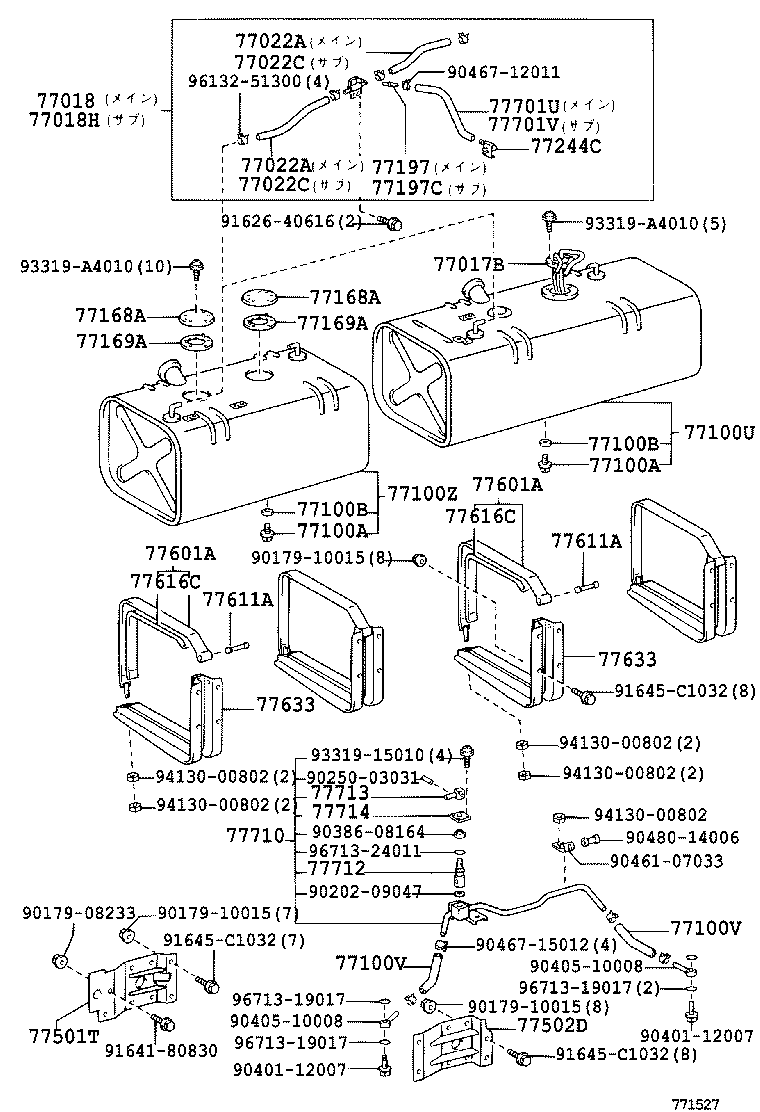

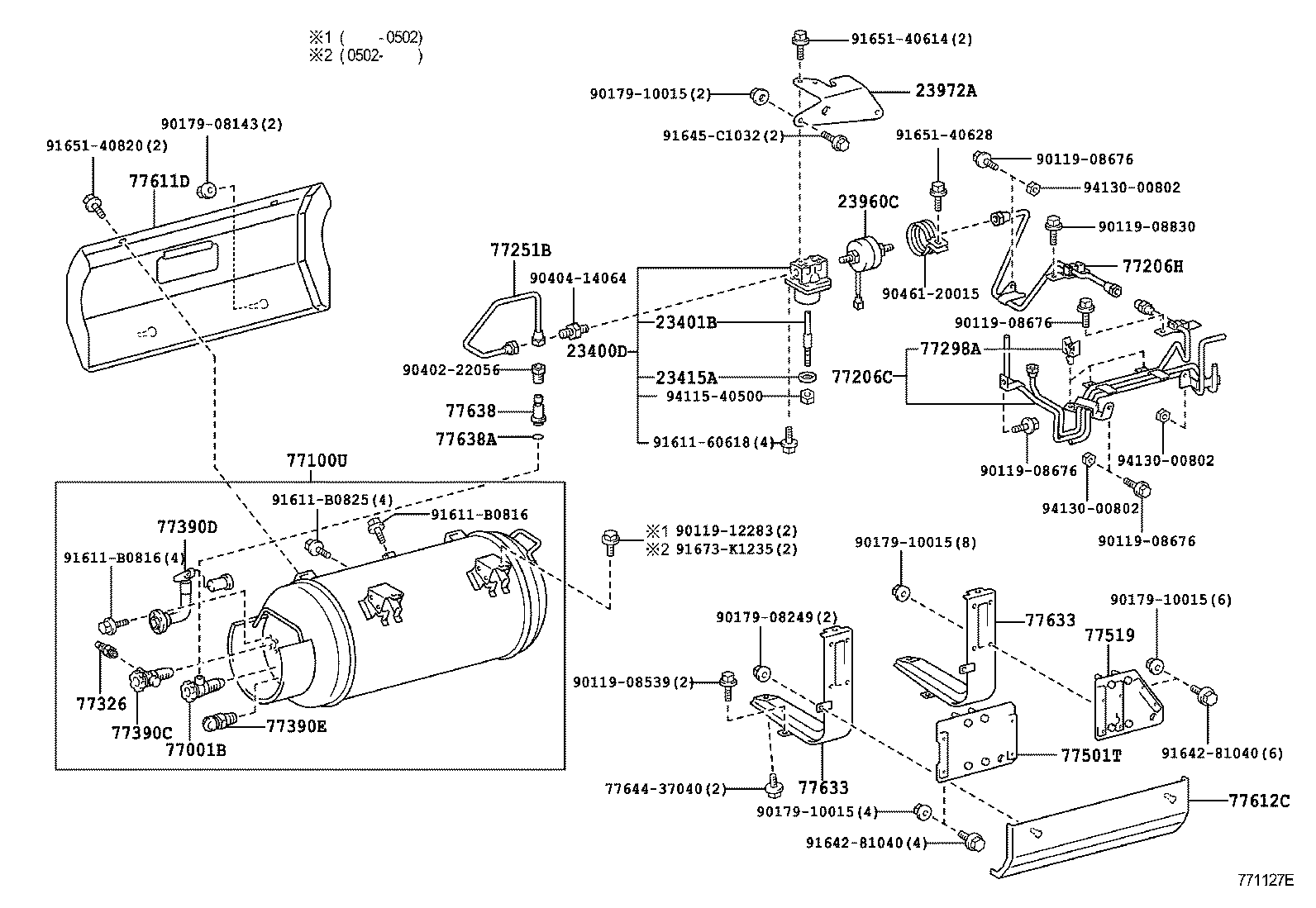

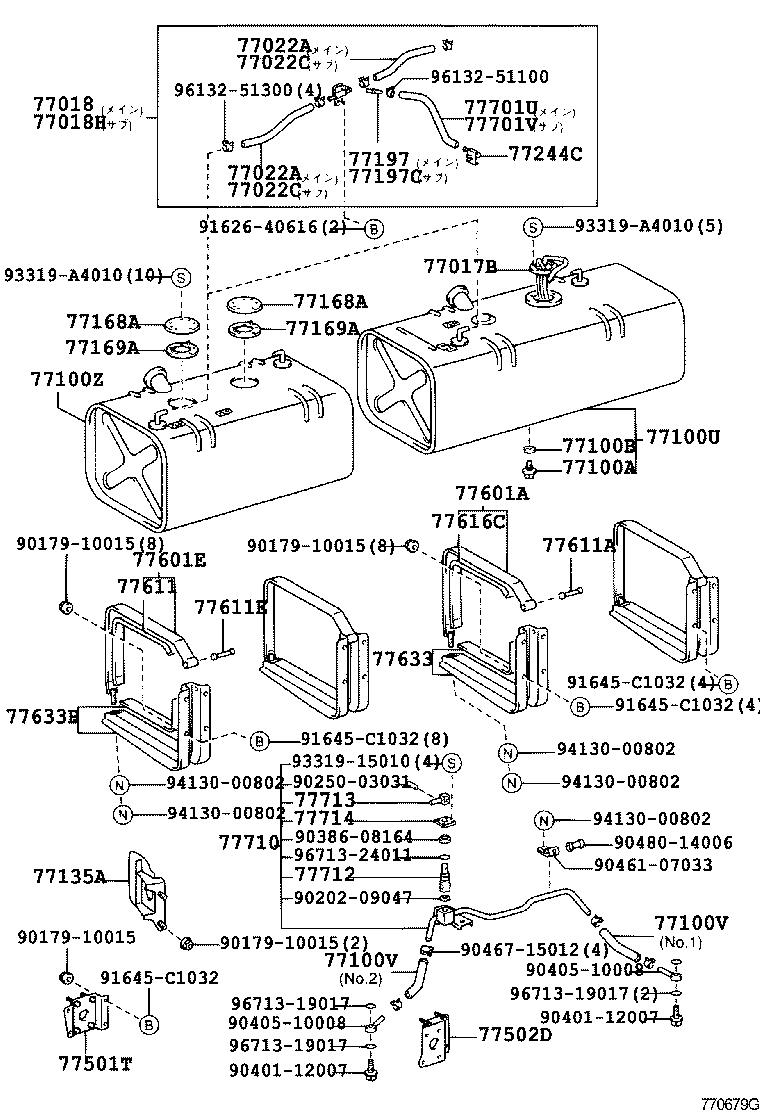

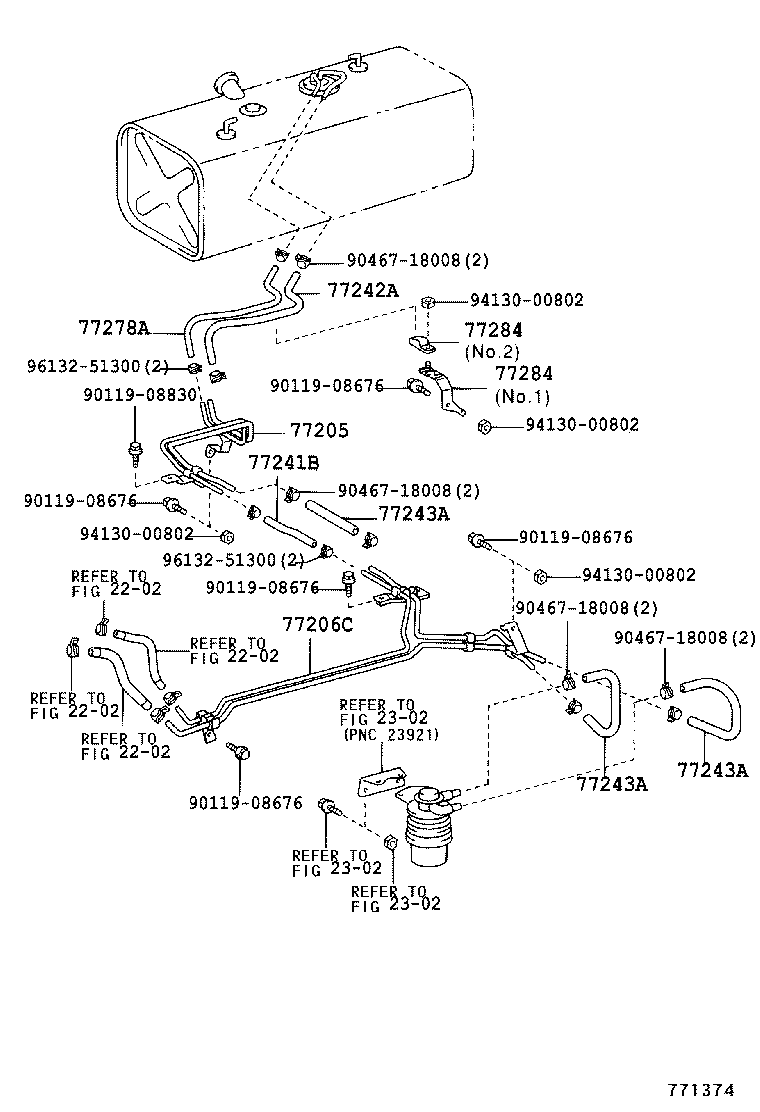

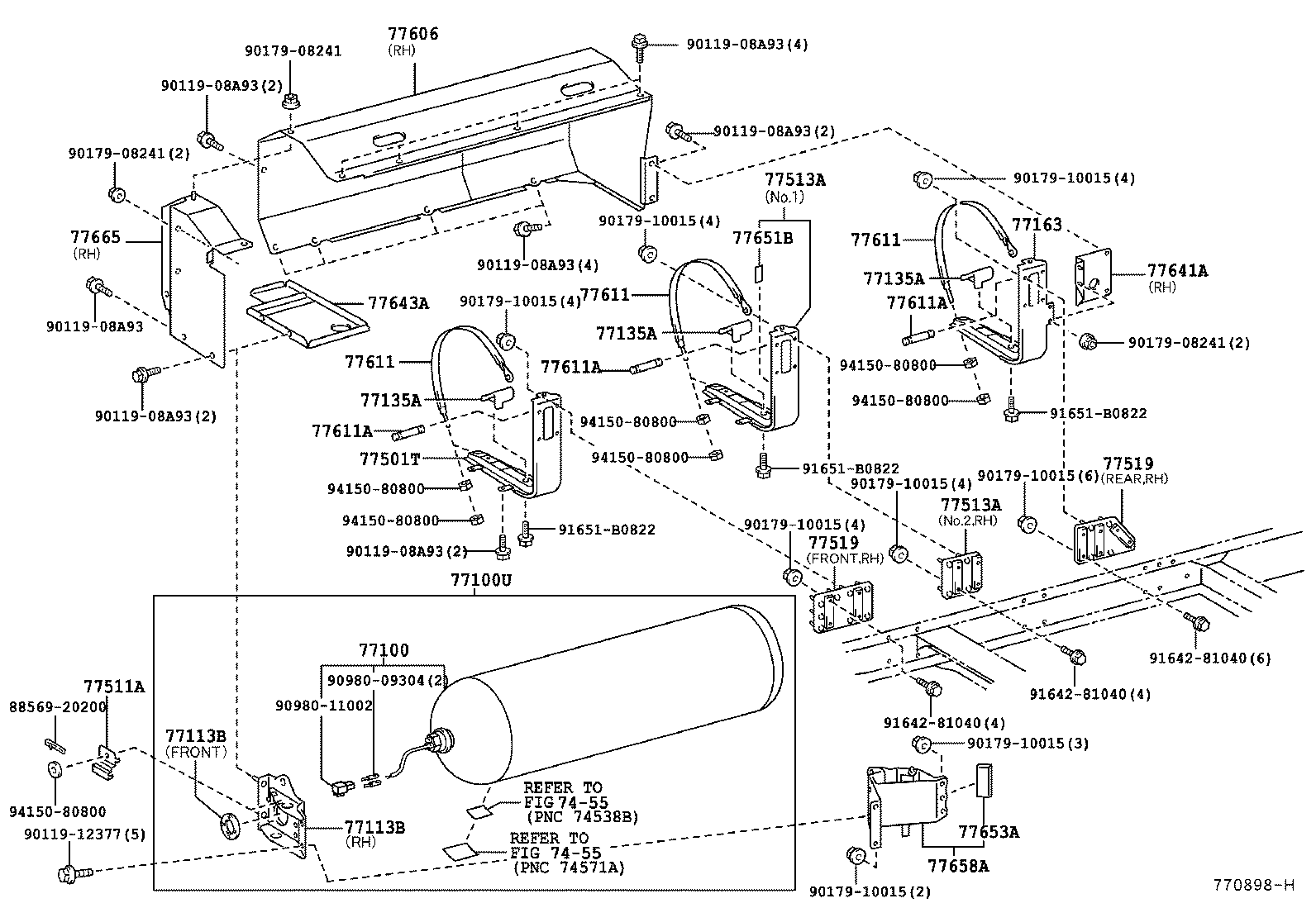

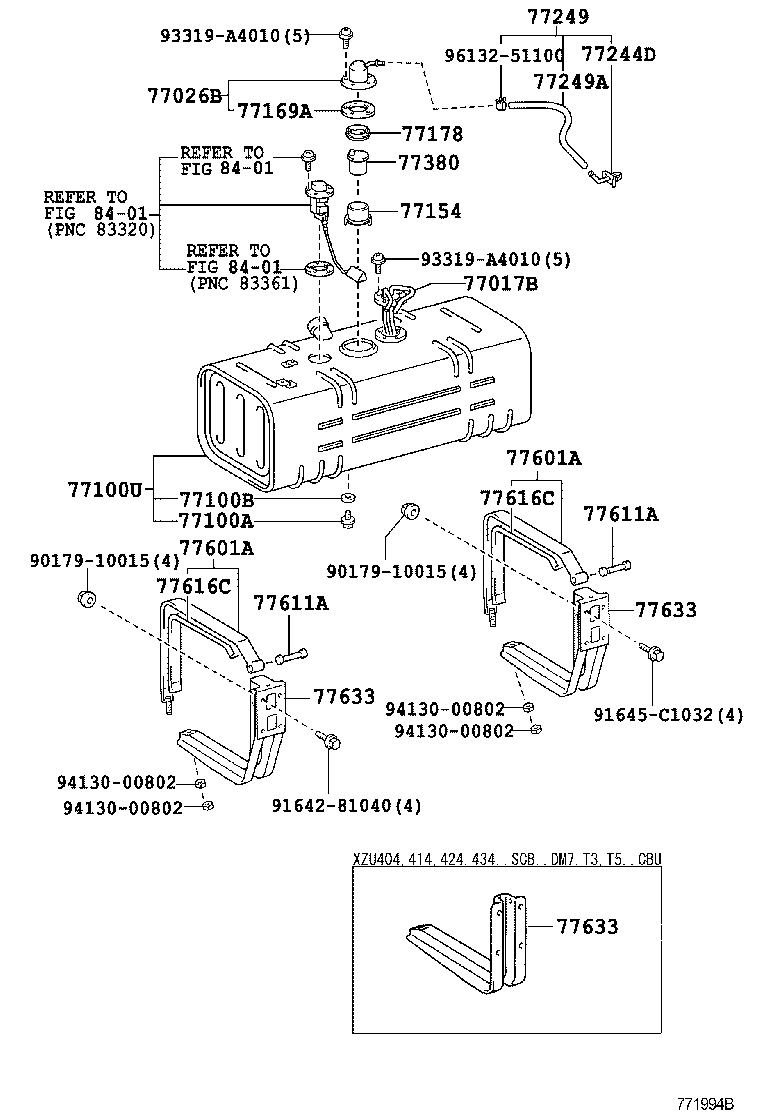

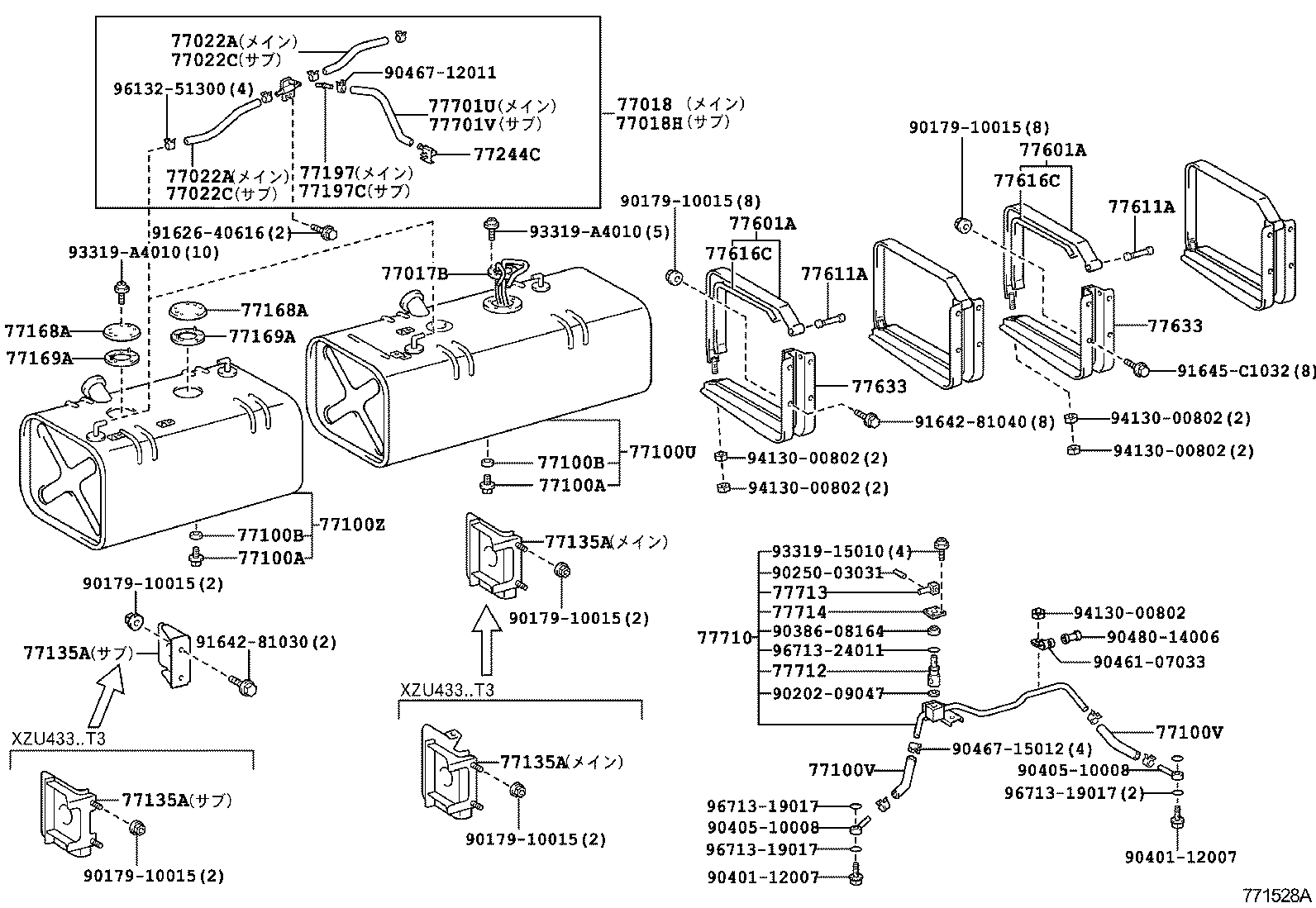

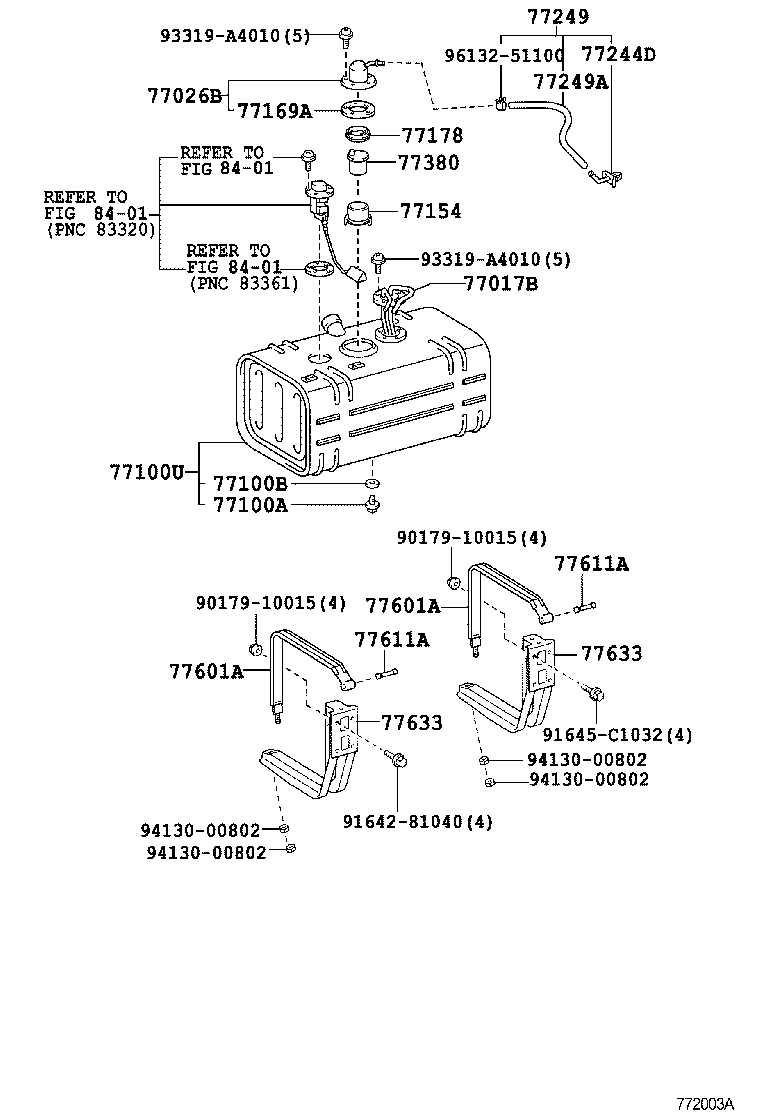

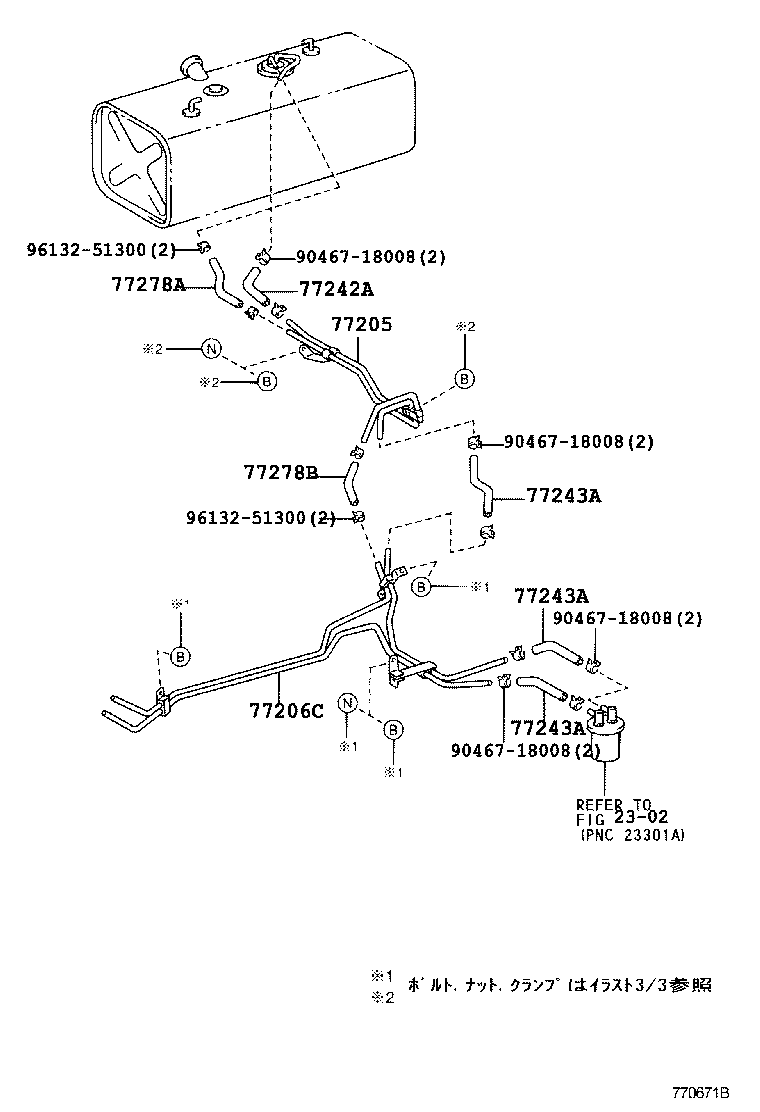

Figure 770680E 770680E 1999-05 → 2004-06 Figure 770679G 770679G 1999-05 → 2004-06 Figure 771372A 771372A 2003-10 → 2004-06 Figure 771373B 771373B 2003-10 → 2004-06 Figure 770670A 770670A 1999-05 → 2004-06 Figure 770672A 770672A 1999-05 → 2004-06 Figure 770671B 770671B 1999-05 → 2004-06 Figure 771374 771374 2003-10 → 2004-06 Figure 770681E 770681E 1999-05 → 2004-06 Figure 771127E 771127E 2002-06 → — Figure 770898H 770898H 2000-11 → — Figure 770899J 770899J 2000-11 → — Figure 771526B 771526B 2004-06 → 2006-10 Figure 771526B 771526B 2004-06 → — Figure 771527 771527 2004-06 → — Figure 771528A 771528A 2004-06 → — Figure 772003A 772003A 2006-10 → — Figure 771994B 771994B 2006-10 → — Figure 772356 772356 2006-10 → — Figure 772001B 772001B 2006-10 → — Figure 772004A 772004A 2006-10 → — Figure 770900B 770900B 2000-11 → — Figure 771529 771529 2004-06 → — Figure 771530A 771530A 2004-06 → — Figure 771531 771531 2004-06 → — Figure 771532 771532 2004-06 → — Figure 771533B 771533B 2004-06 → — Figure 771999 771999 2006-10 → —

Part groups

PNCDescription
23400D Filter Assy, Lpg
23401B Bolt
23415A Plate
23960C Valve Assy, Solenoid Lpg
23972A Bracket, Filter & Solenoid Valve
58266A Bracket, Fuel Tube Clamp
58266H Bracket, Fuel Tube Clamp
77001B Valve (FOR LPG TANK)
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77018H Valve Sub-assy, Fuel Vapor Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100U Tank Sub-assy, Fuel
77100V Hose, Fuel
77100Z Tank Sub-assy, Fuel Sub
77113B Plate, Fuel Tank Side
77135A Protector, Fuel Tank Side
77154 Plate, Fuel Tank Evap/Vent Tube Support
77163 Bracket, Fuel Tank, Rear RH
77164 Bracket, Fuel Tank, Rear LH
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77197 Orifice, Fuel Vapor
77197C Orifice
77201 Pipe Sub-assy, Fuel Tank Inlet
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77206H Tube Sub-assy, Fuel Main, NO.2
77207B Tube Sub-assy, Fuel Main, NO.3
77241 Tube, Fuel Main, NO.1
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243D Joint, Fuel Tube, NO.1
77244 Tube, Fuel Main, NO.4
77244C Joint, Fuel Tube, NO.2
77244D Tube, Fuel Evaporation Breather, NO.1
77249 Hose, Fuel Emission
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77253A Tube, Fuel Main, NO.3
77255D Tube, Fuel Return
77256C Tube, Fuel Return, NO.2
77257C Tube, Fuel Return, NO.3
77258A Tube, Fuel Return, NO.4
77265 Connector, Fuel Main Tube
77275B Protector, Fuel Liquid Vapor Separator Valve
77277 Tube, Fuel Return, NO.1
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77278D Valve, Check W/Bracket
77284 Clamp, Fuel Tube
77285 Bracket, Fuel Tube
77295C Grommet, Fuel Tube
77296 Plate, Fuel Tube Grommet Support
77297 Connector, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77298D Adapter, Fuel Tube Joint
77311A Cap, Fuel Inlet Coupler
77321 Coupler, Fuel Inlet
77322A Retainer, Fuel Tank Cap Valve Spring
77326 Connector, Auxiliary Fuel Tank Cap
77346 Cover, Fuel Lid Lock Opener Base, LH
77350 Lid Assy, Fuel Filler Opening
77380 Valve Assy, Fuel Cut Off
77390C Valve, Fuel Tank Inlet
77390D Valve Assy, Fuel Tank Over Fill Check
77390E Valve, Fuel(FOR LPG)
77501T Bracket Sub-assy, Fuel Tank
77502C Bracket Sub-assy, Fuel
77502D Bracket Sub-assy, Fuel Tank, Rear
77511A Bracket, Fuel Tank
77513A Retainer, Tank Bracket
77519 Spacer, Fuel Tank Bracket
77601A Band Sub-assy, Fuel Tank, NO.1
77601E Band Sub-assy, Fuel Tank
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77611D Cover, Fuel Tank, RH
77611E Pin, Fuel Tank Band
77612C Cover, Fuel Tank, Lower
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77633B Stay, Fuel Tank
77638 Sleeve, Tank Valve Joint
77638A Ring, O (FOR TANK VALVE JOINT SLEEVE)
77641A Protector, Fuel Tank, NO.1
77643A Protector, Fuel Tank, NO.3
77651B Cushion, Fuel Tank
77653A Cushion, Fuel Tank, NO.3
77658A Protector, Fuel Tank Edge, NO.1
77659 Protector, Fuel Tank Edge, NO.2
77665 Cover, Fuel Tank Band, RH
77701U Hose, Fuel (FOR CHECK VALVE)
77701V Valve, Check (FOR SUB-FUEL TANK)
77710 Cock Assy, Fuel Change
77712 Valve, Fuel Change Cock
77713 Lever, Fuel Change Cock
77714 Cap, Fuel Change Cock
83361C Gasket, Fuel Sender Gage
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
