Toyota Dyna/Toyoace
1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan
Discontinued model
Data version 2012-01

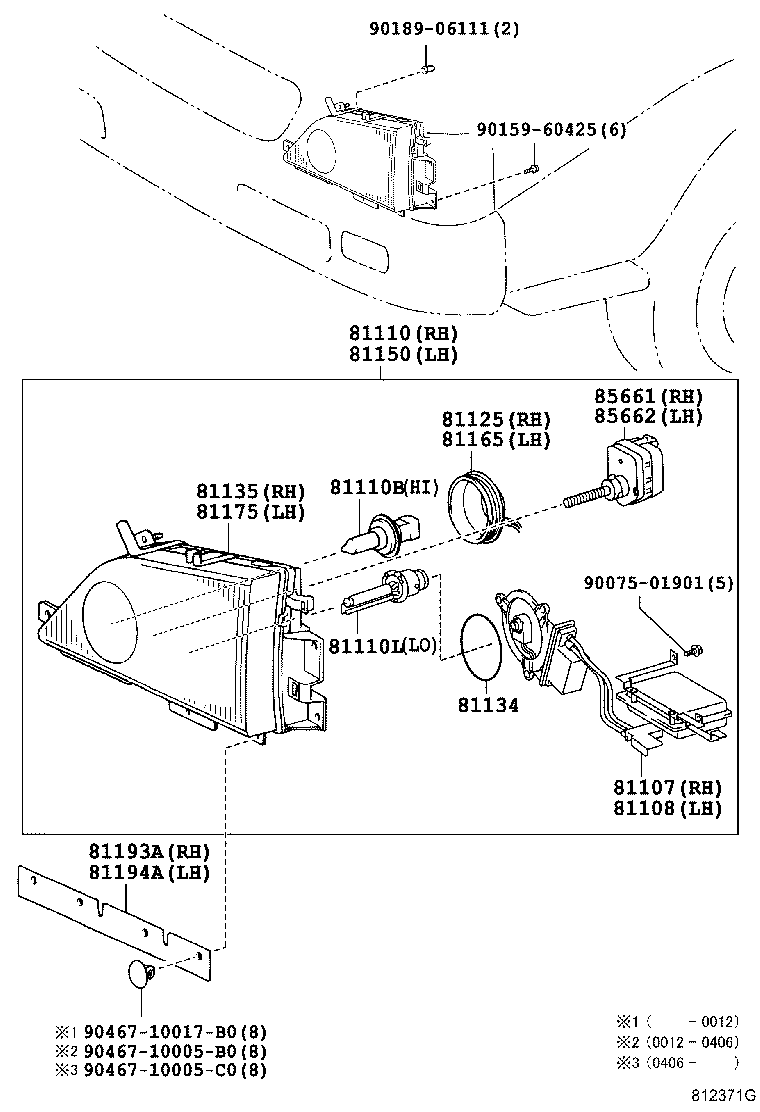

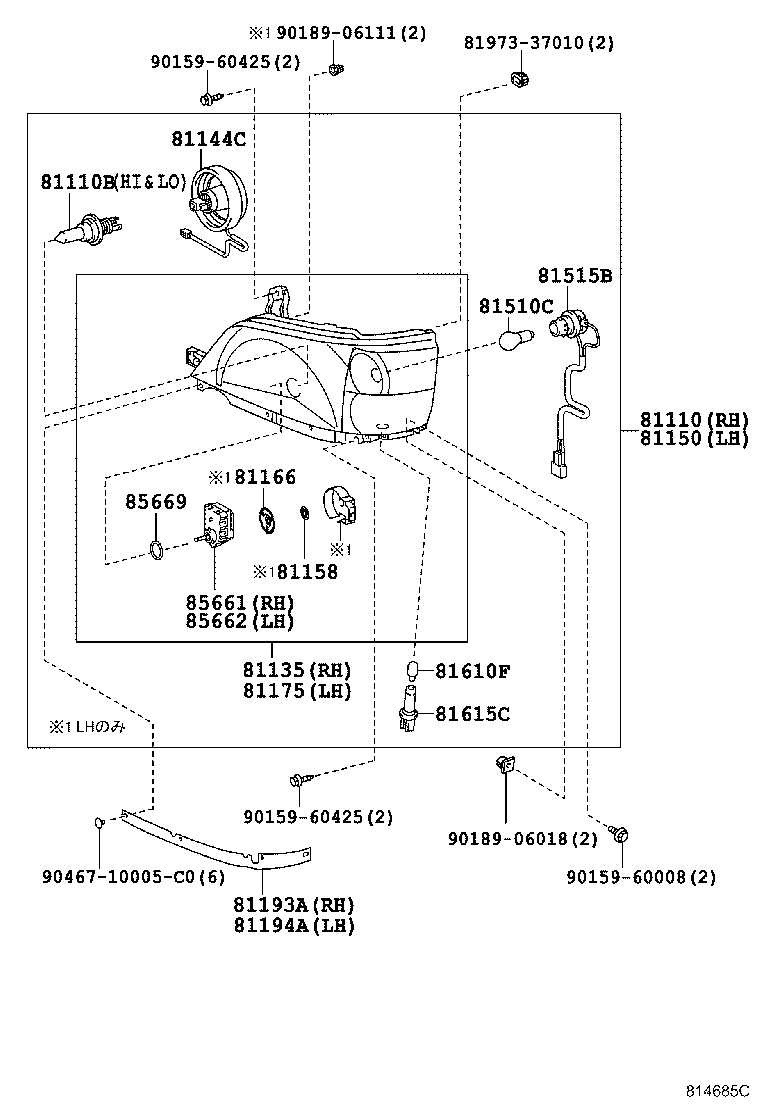

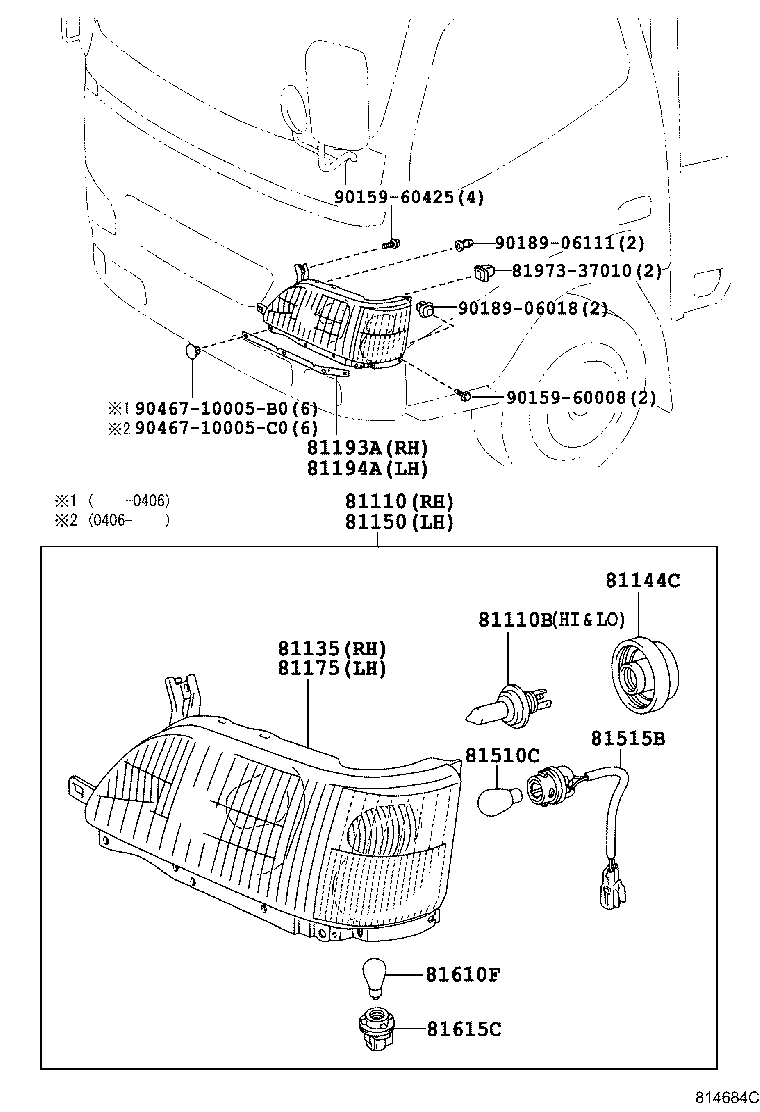

Headlamp
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110L | Bulb, Discharge Headlamp |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81158 | Bracket, Headlamp, LH |
| 81165 | Cord, Headlamp, LH |
| 81166 | Plate, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193A | Protector, Headlamp, RH |
| 81194A | Protector, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615C | Socket & Wire, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
