Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

9 part groups · 3 illustrations

Illustrations

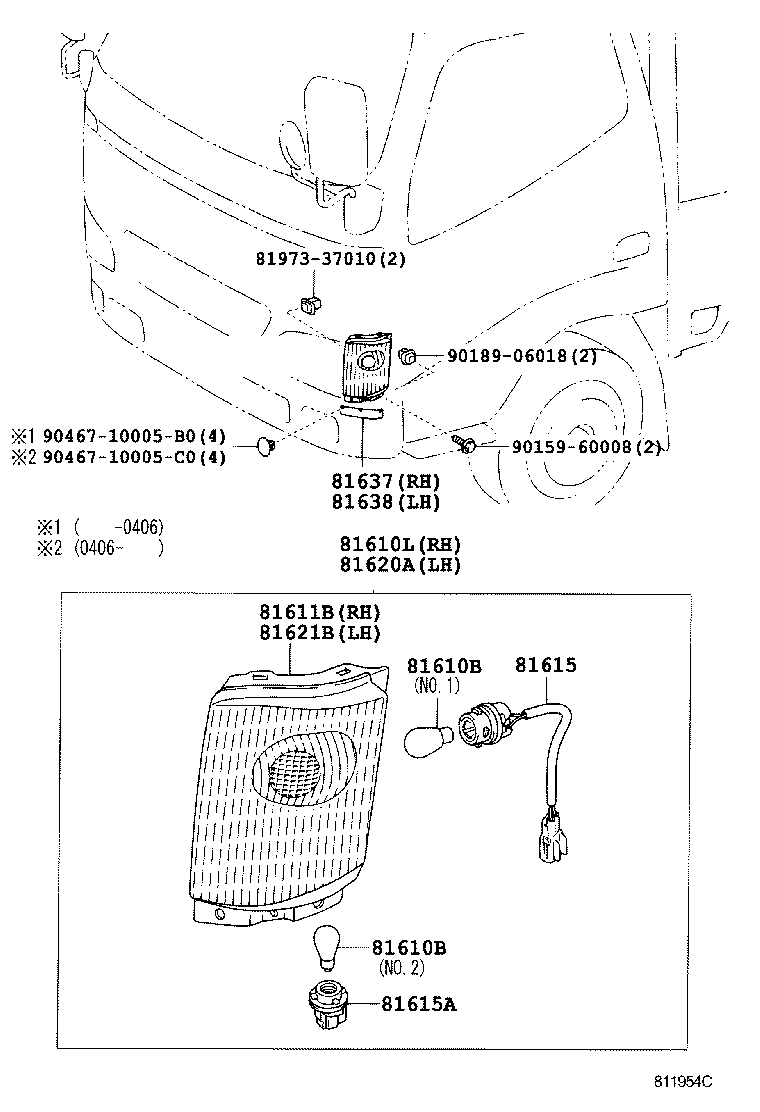

Figure 811117C 811117C 1999-05 → 2002-06 Figure 811954C 811954C 2002-06 → 2004-06 Figure 811954C 811954C 2004-06 → —

Part groups

PNCDescription
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81610L Lamp Assy, Clearance, RH
81611B Lens & Body, Clearance Lamp, RH
81615 Socket And Wire, Clearance Lamp
81615A Socket Plug, Clearance Lamp
81620A Lamp Assy, Clearance, LH
81621B Lens & Body, Clearance Lamp, LH
81637 Protector, Clearance Lamp, RH
81638 Protector, Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
