Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

9 part groups · 3 illustrations

Illustrations

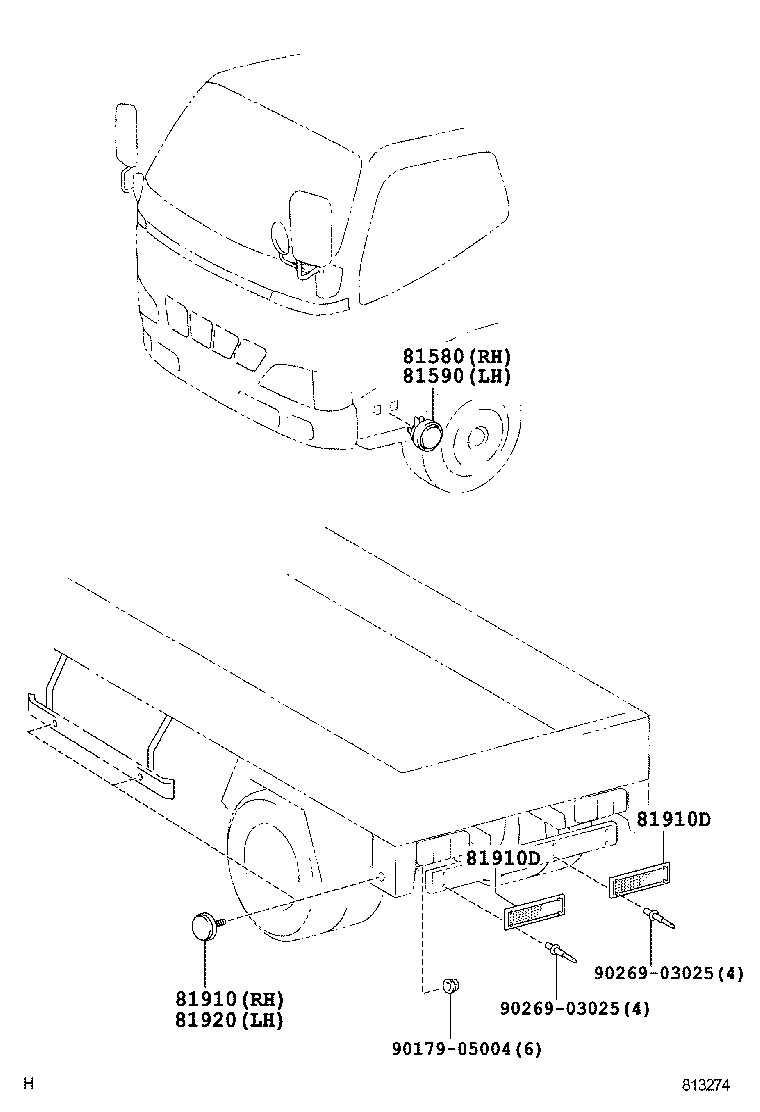

Figure 811127A 811127A 1999-05 → 2000-05 Figure 812193C 812193C 2000-05 → 2005-05 Figure 813274 813274 2005-05 → —

Part groups

PNCDescription
81580 Reflector Assy, Reflex Side, RH
81581A Lens And Body, Reflex Side Reflector, RH
81584B Gasket,Reflex Reflec
81590 Reflector Assy, Reflex Side, LH
81591 Lens And Body, Reflex Side Reflector, LH
81594 Gasket, Reflex Reflector Body, LH
81910 Reflector Assy, Reflex, RH
81910D Reflector Assy, Reflex, Rear
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
