Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Control

5 part groups · 4 illustrations

Illustrations

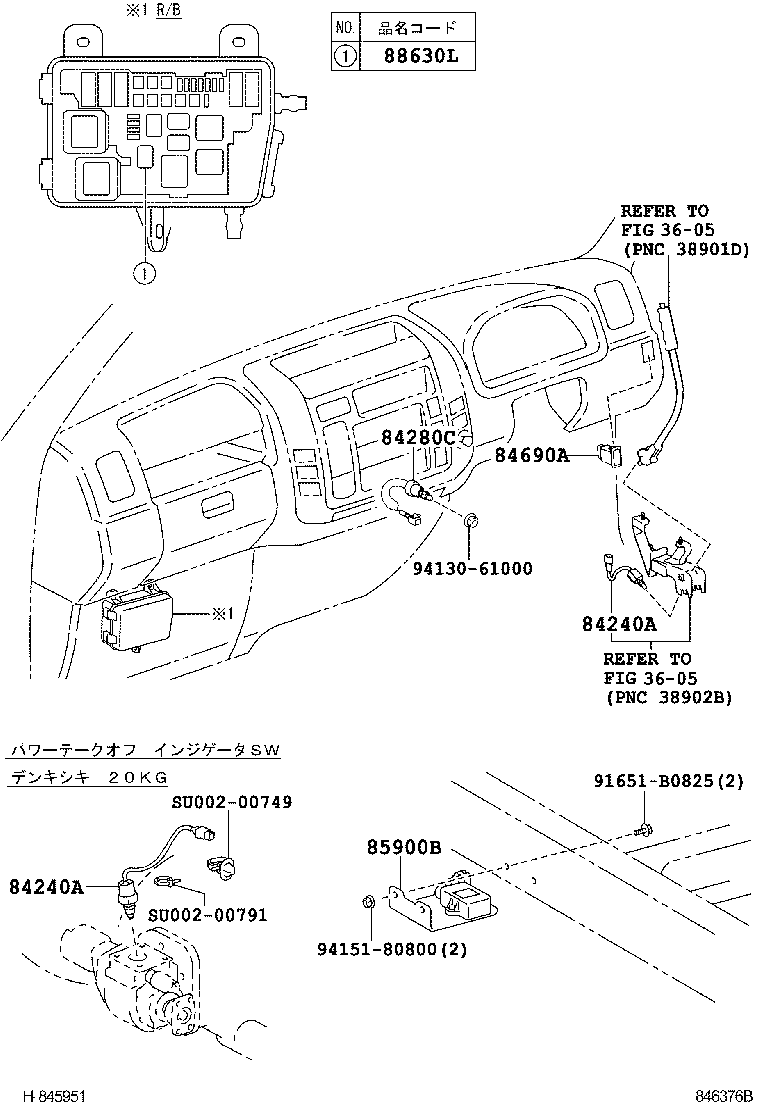

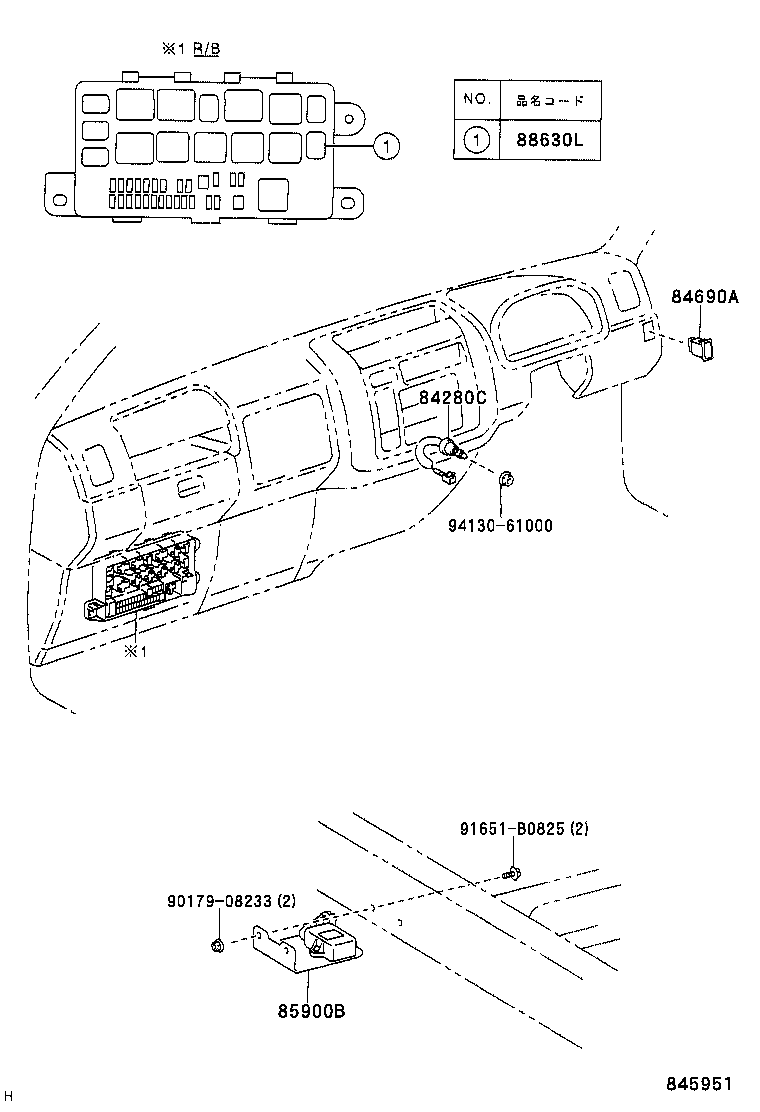

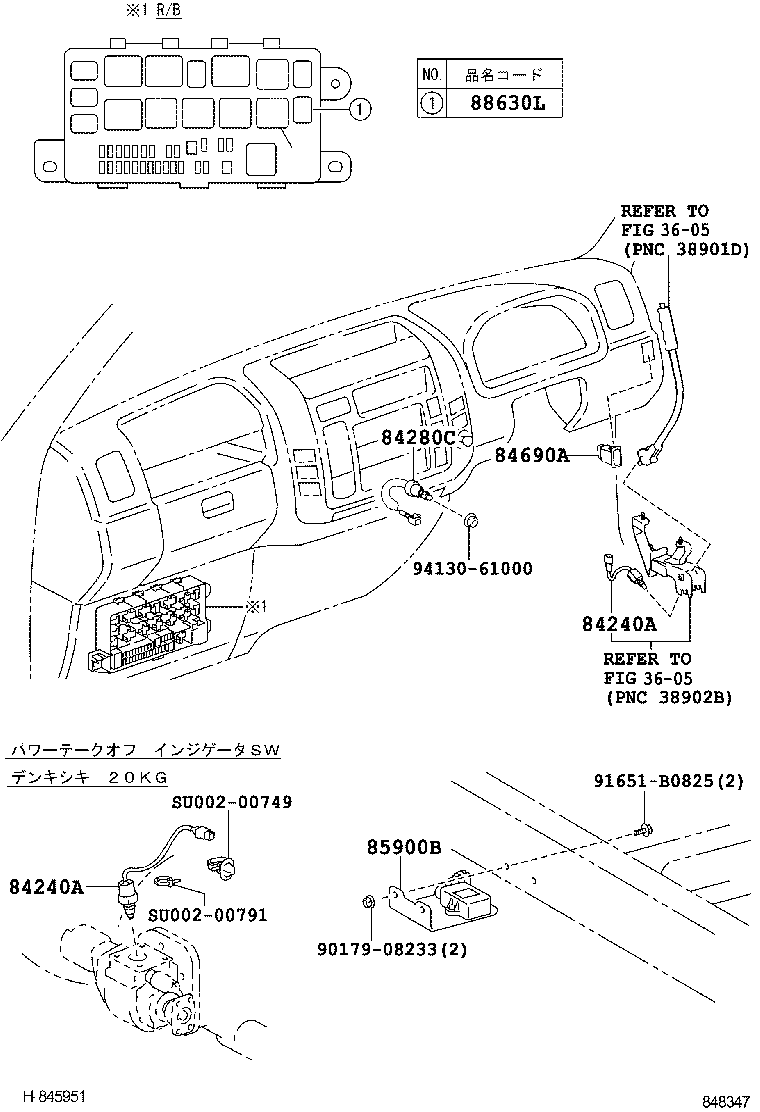

Figure 842749B 842749B 1999-05 → 2004-06 Figure 845951 845951 2003-10 → 2004-06 Figure 848347 848347 2004-06 → — Figure 846376B 846376B 2006-10 → —

Part groups

PNCDescription
84240A Switch Assy, Power Take-off Indicator
84280C Switch Assy, Power Take-off Clutch
84690A Switch Assy, Power Take-off Indicator
85900B Relay Assy, Control Unit
88630L Relay, Power Take-off Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
