Heating & Air Conditioning - Heater Unit & Blower

15 part groups · 3 illustrations

Illustrations

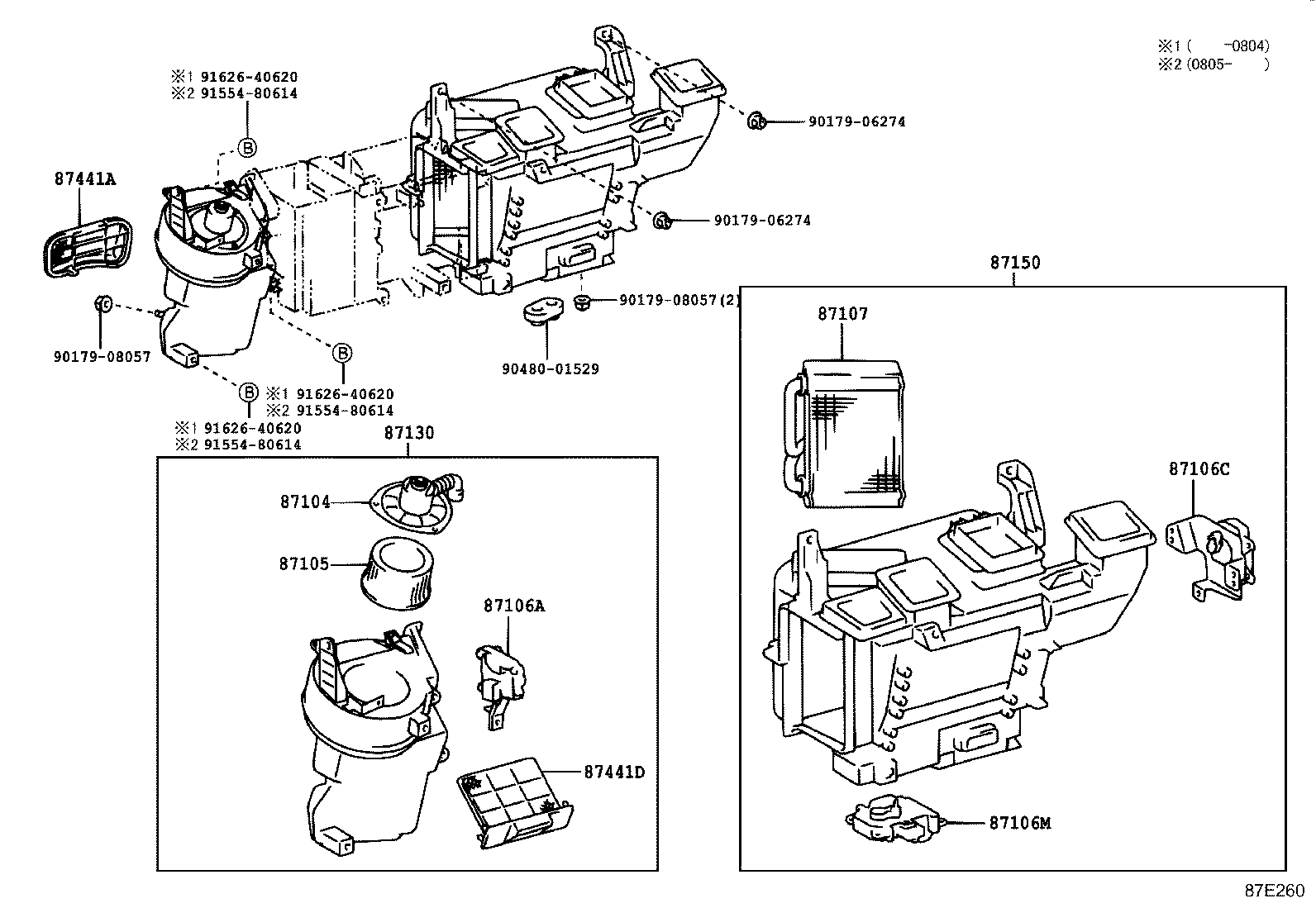

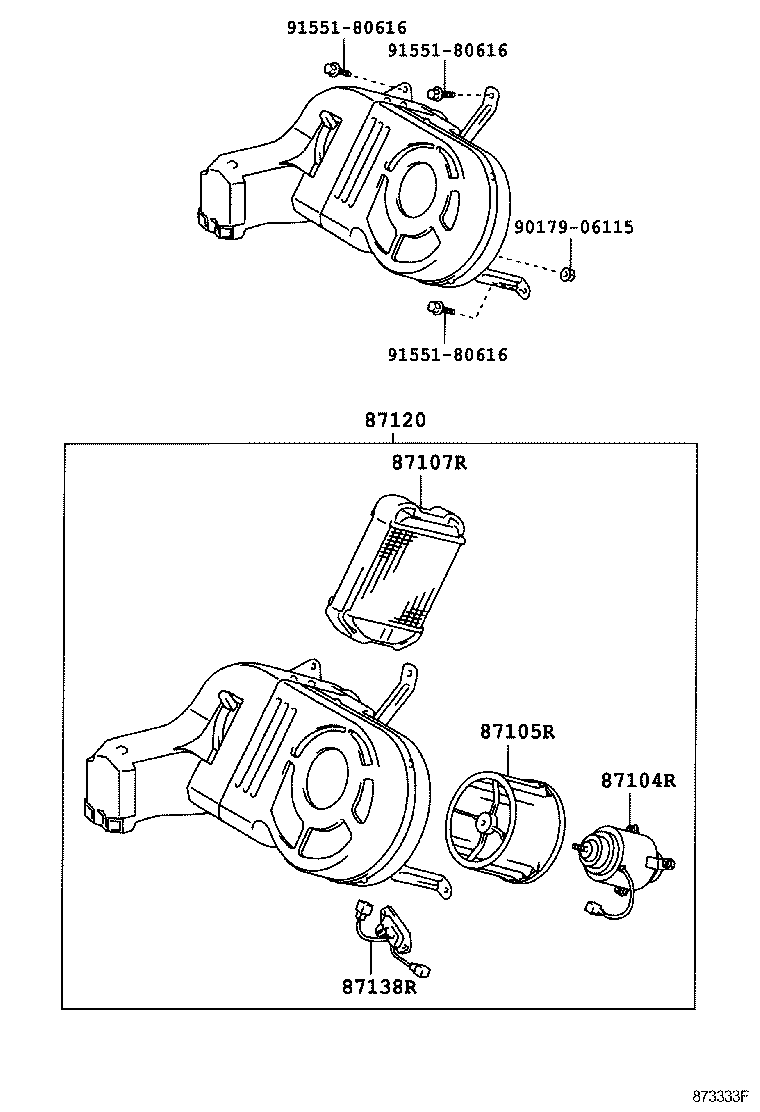

Figure 875522F 875522F 1999-05 → — Figure 87E260 87E260 1999-05 → — Figure 873333F 873333F 1999-05 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87106M Servo Sub-assy, Damper, NO.2
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87120 Heater Assy, Rear
87130 Blower Assy, Heater, Front
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87441A Filter, Heater Air
87441D Filter, Heater Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
