Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

30 part groups · 17 illustrations

Illustrations

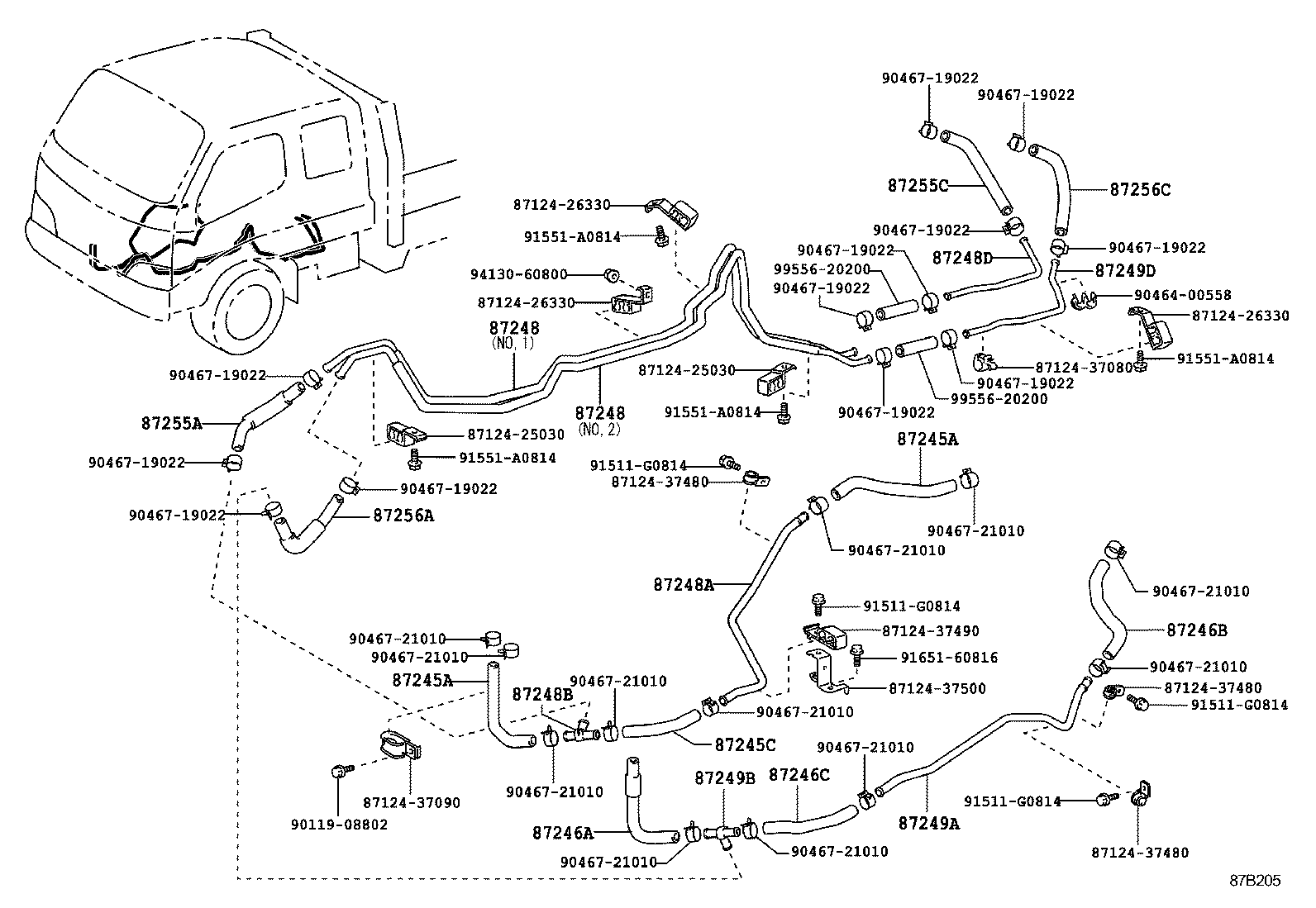

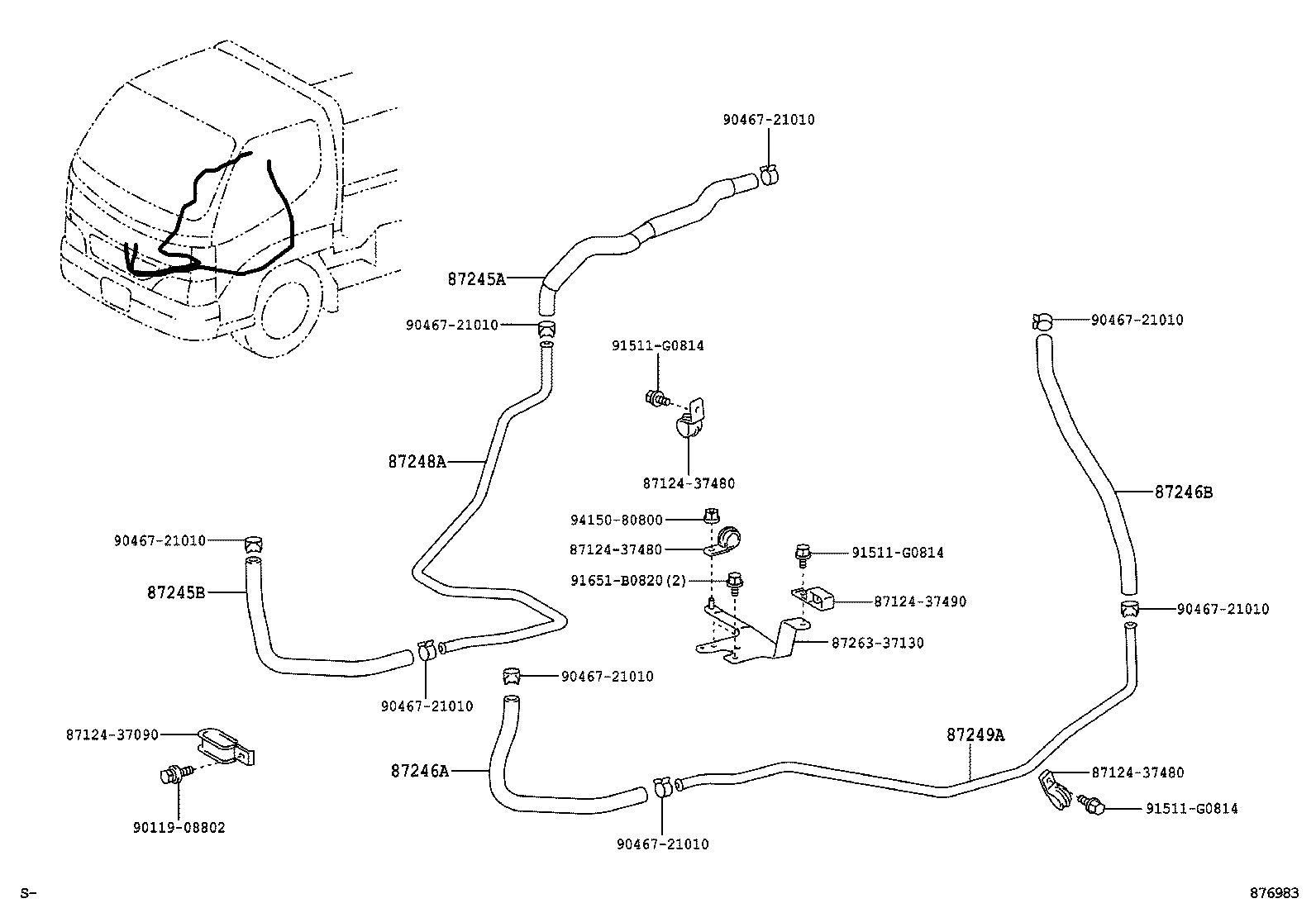

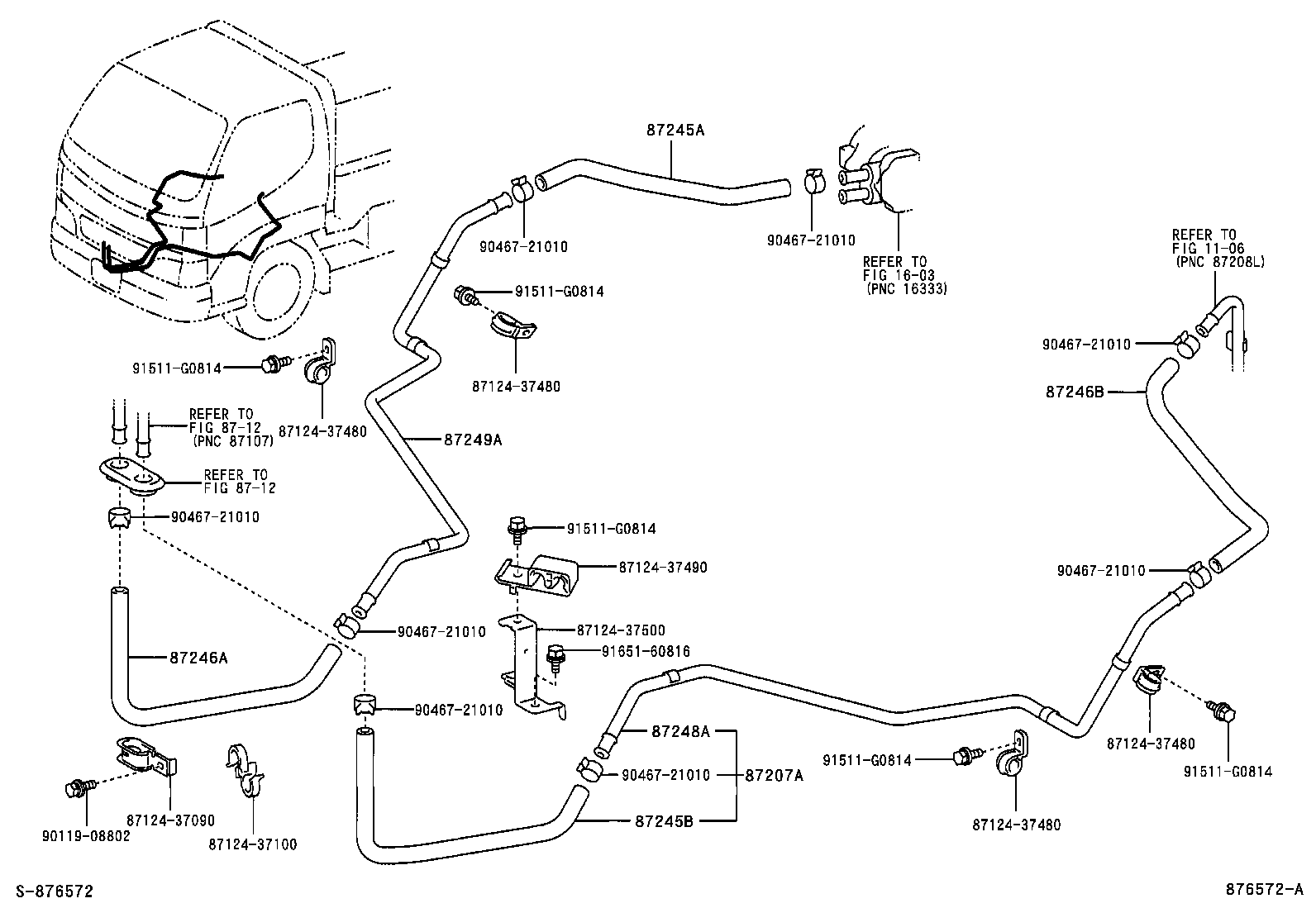

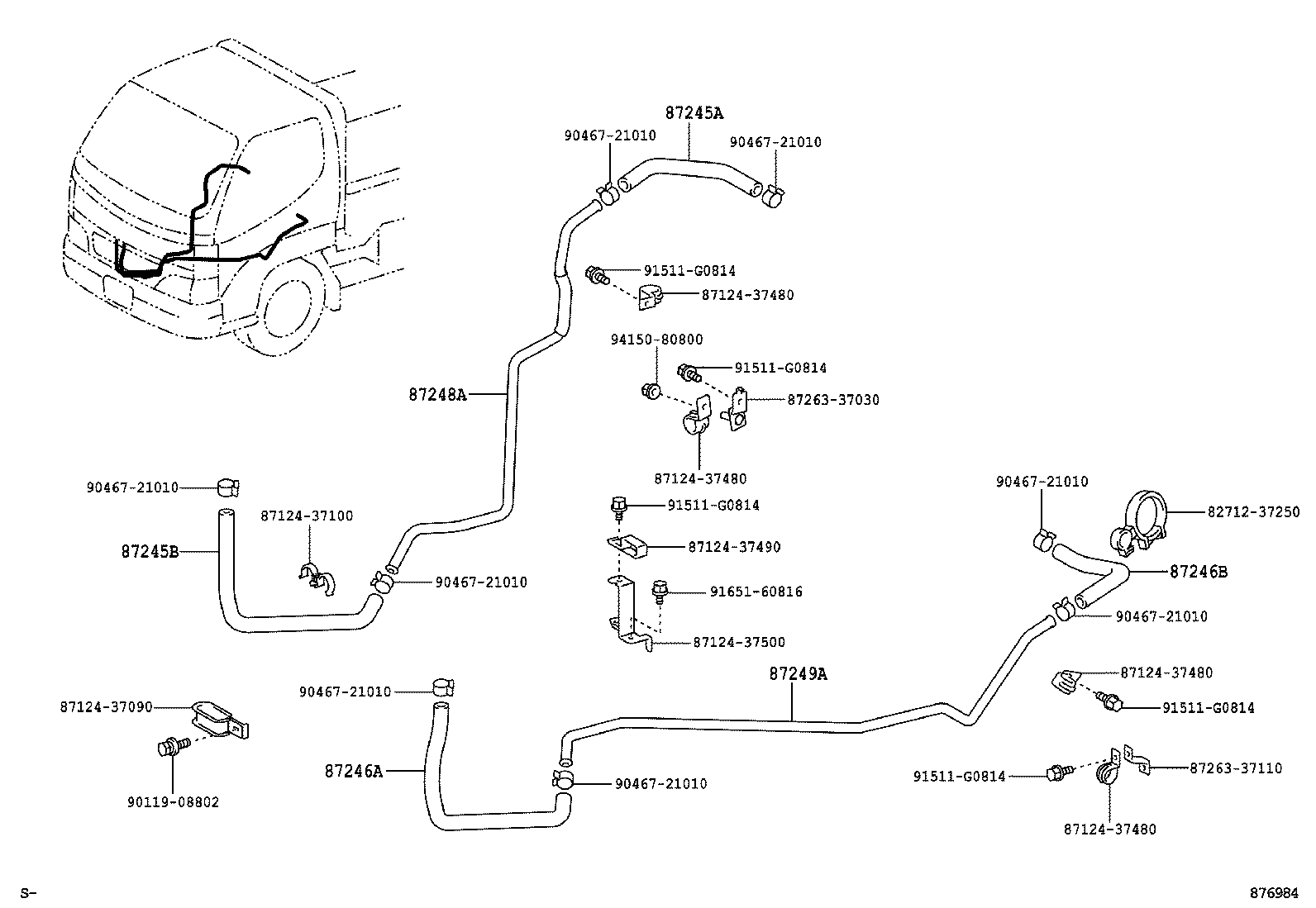

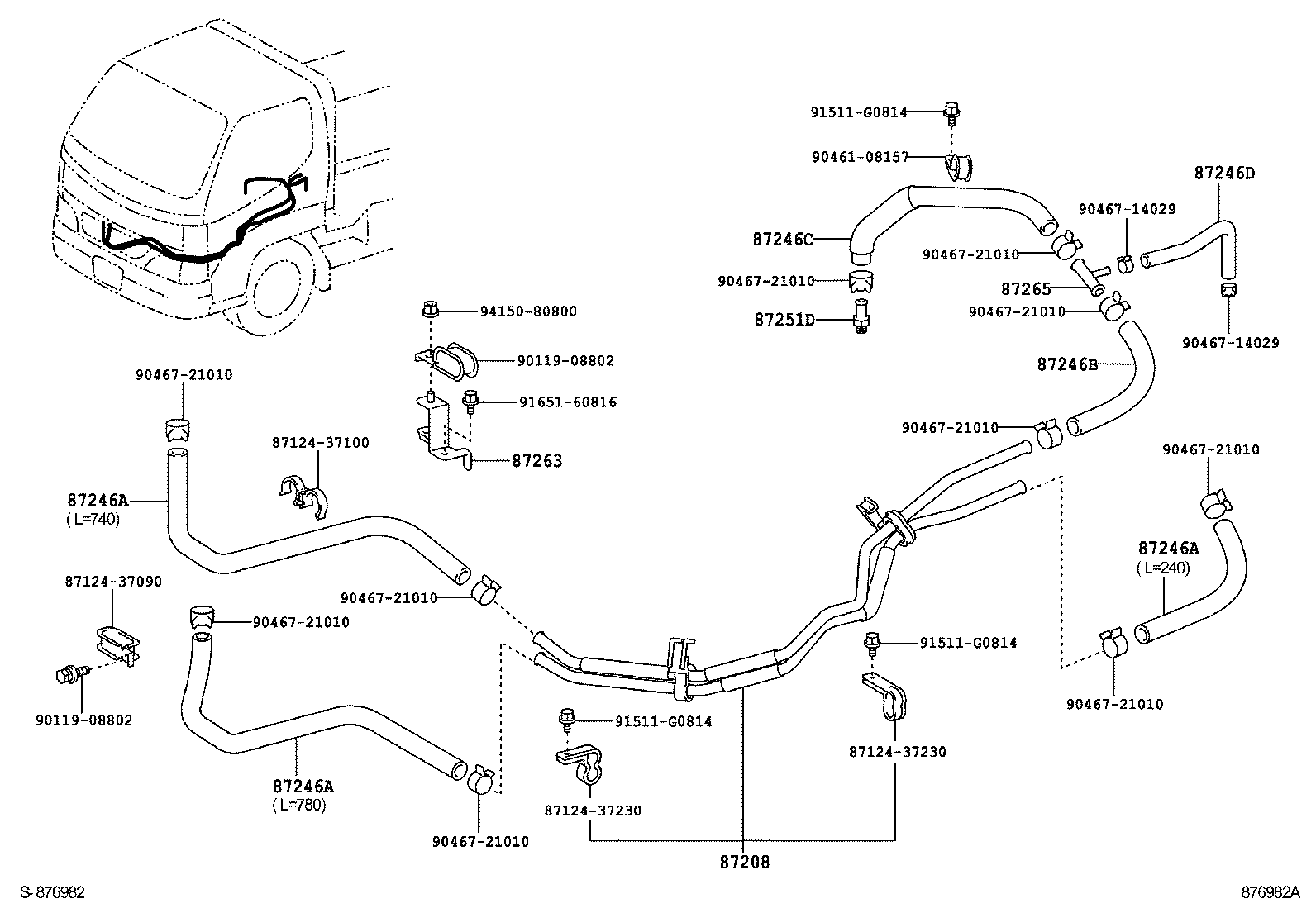

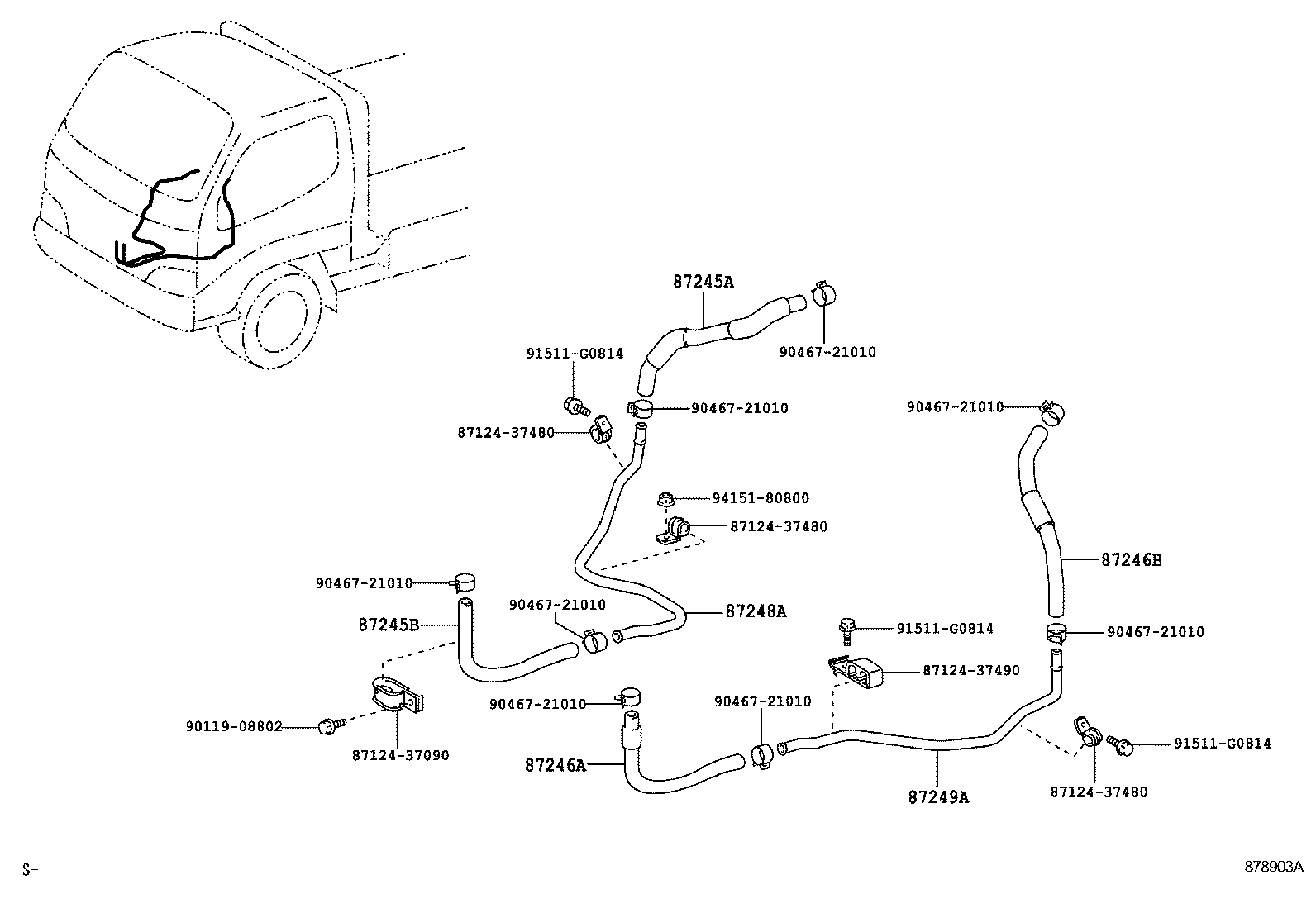

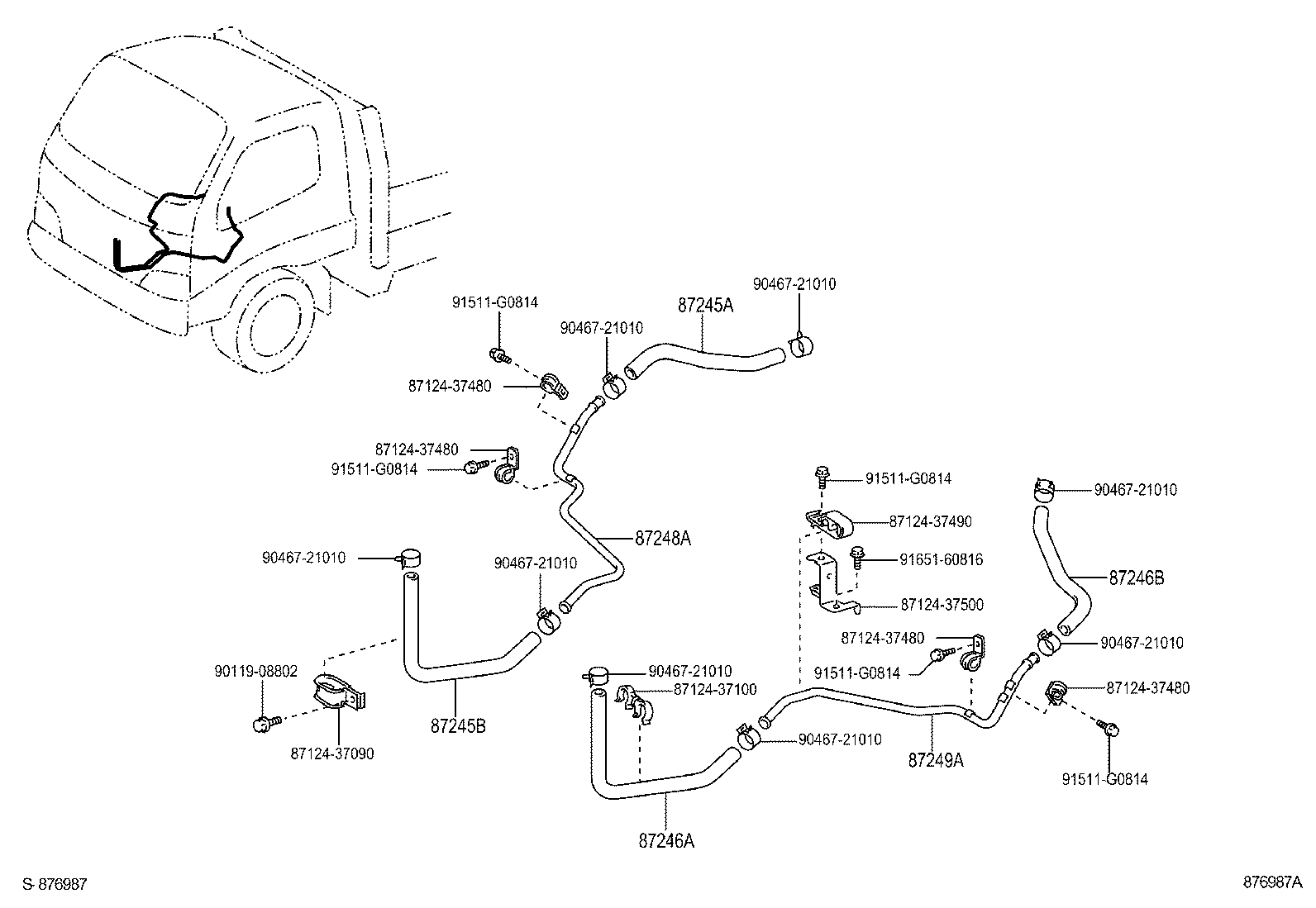

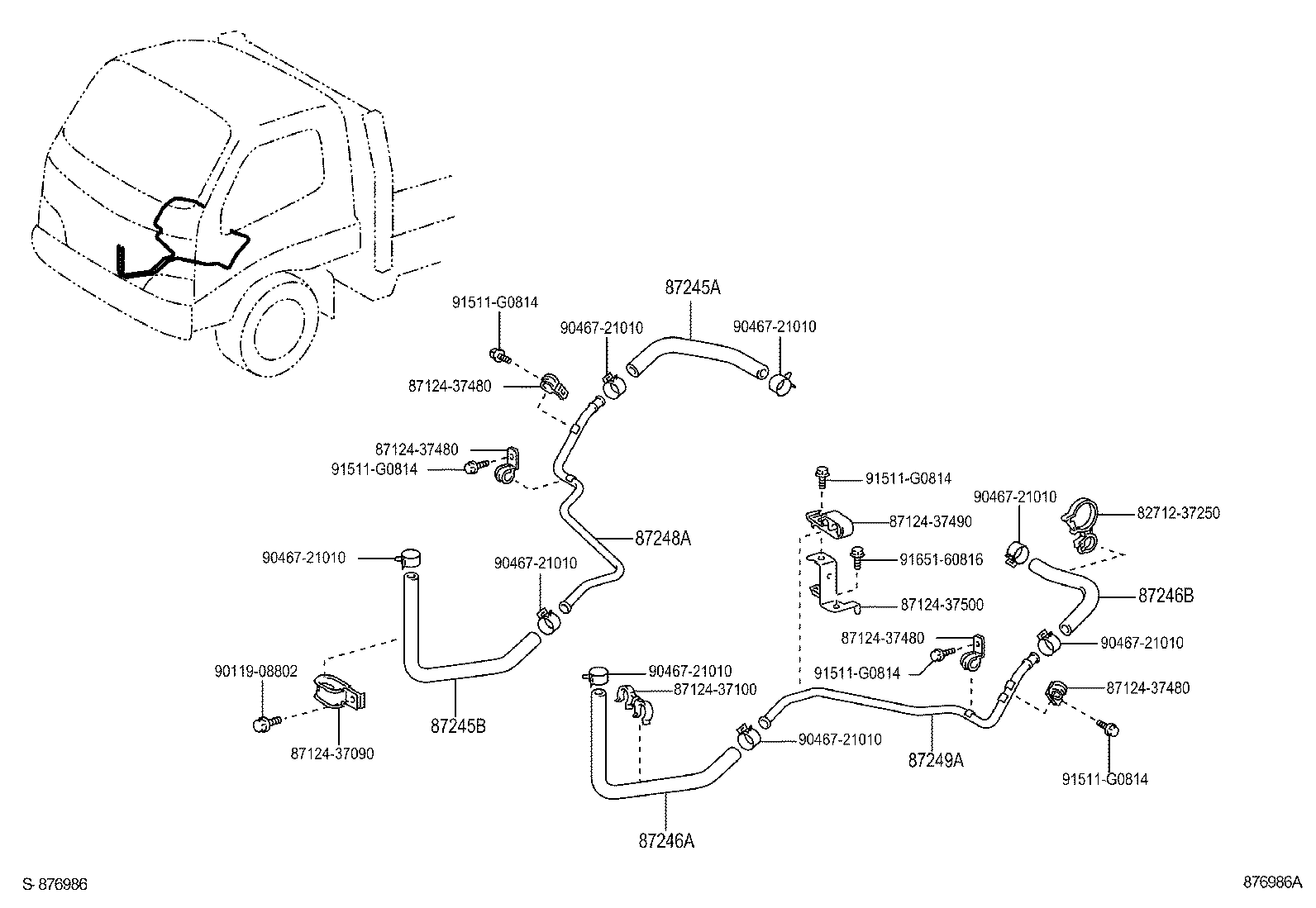

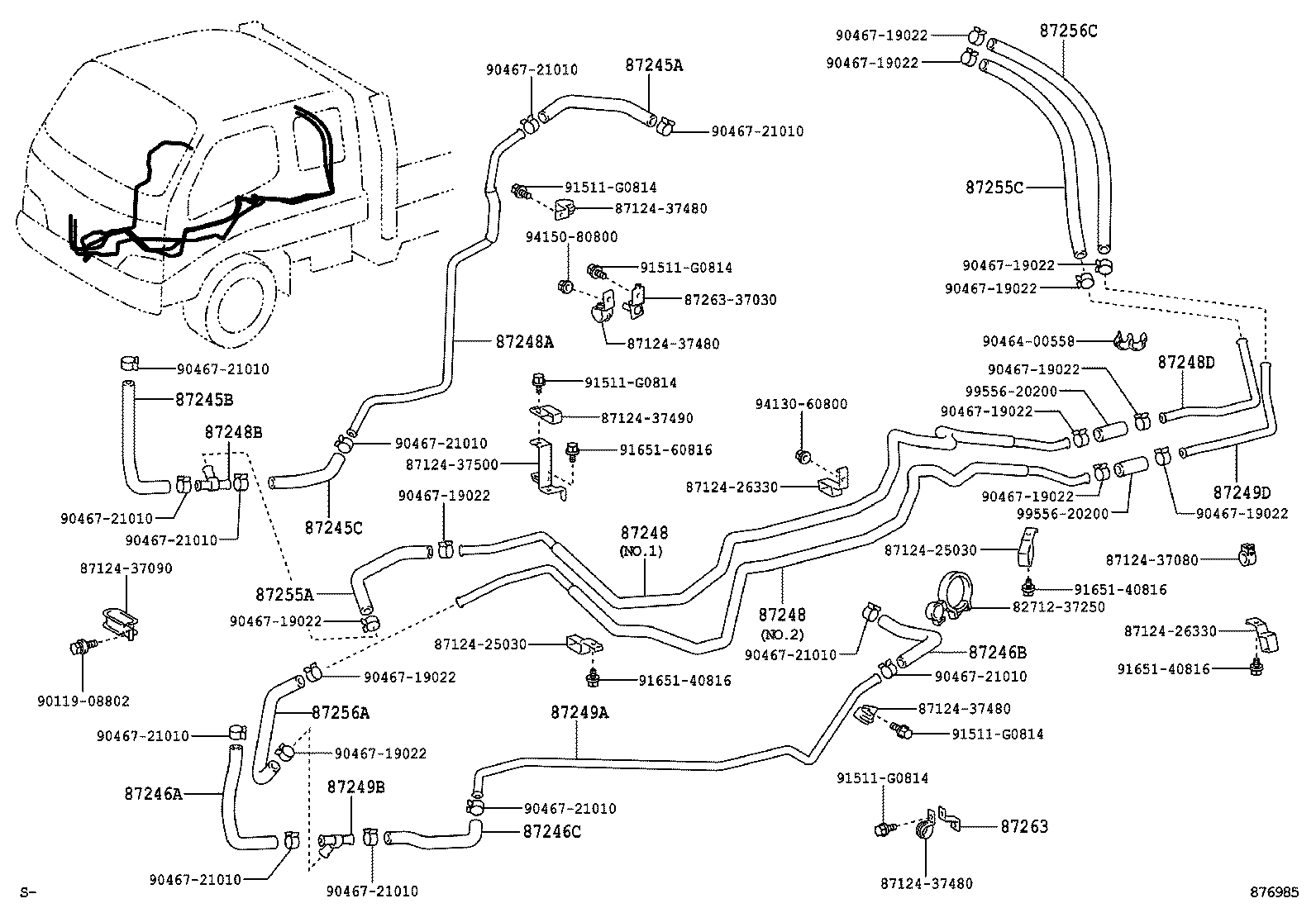

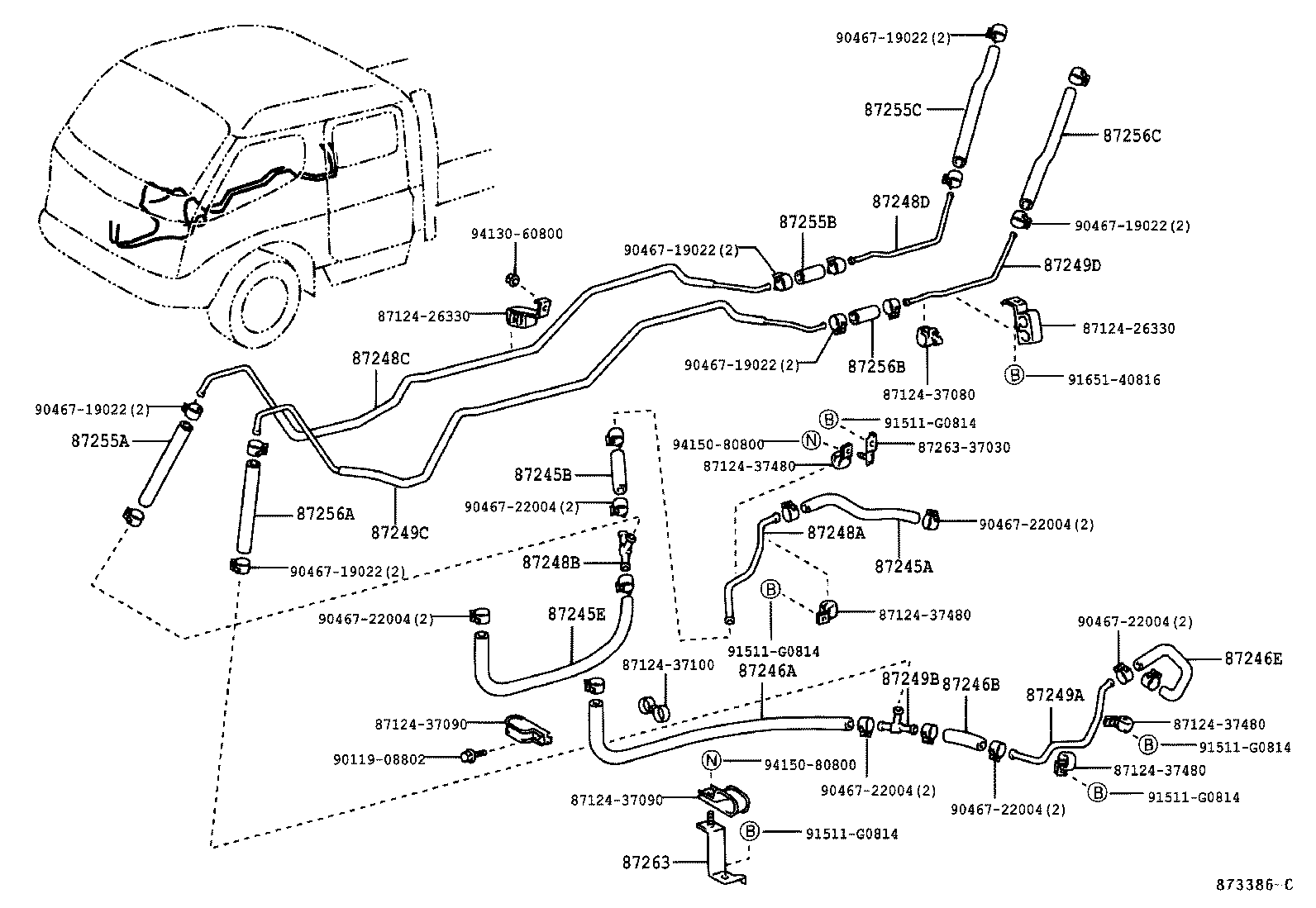

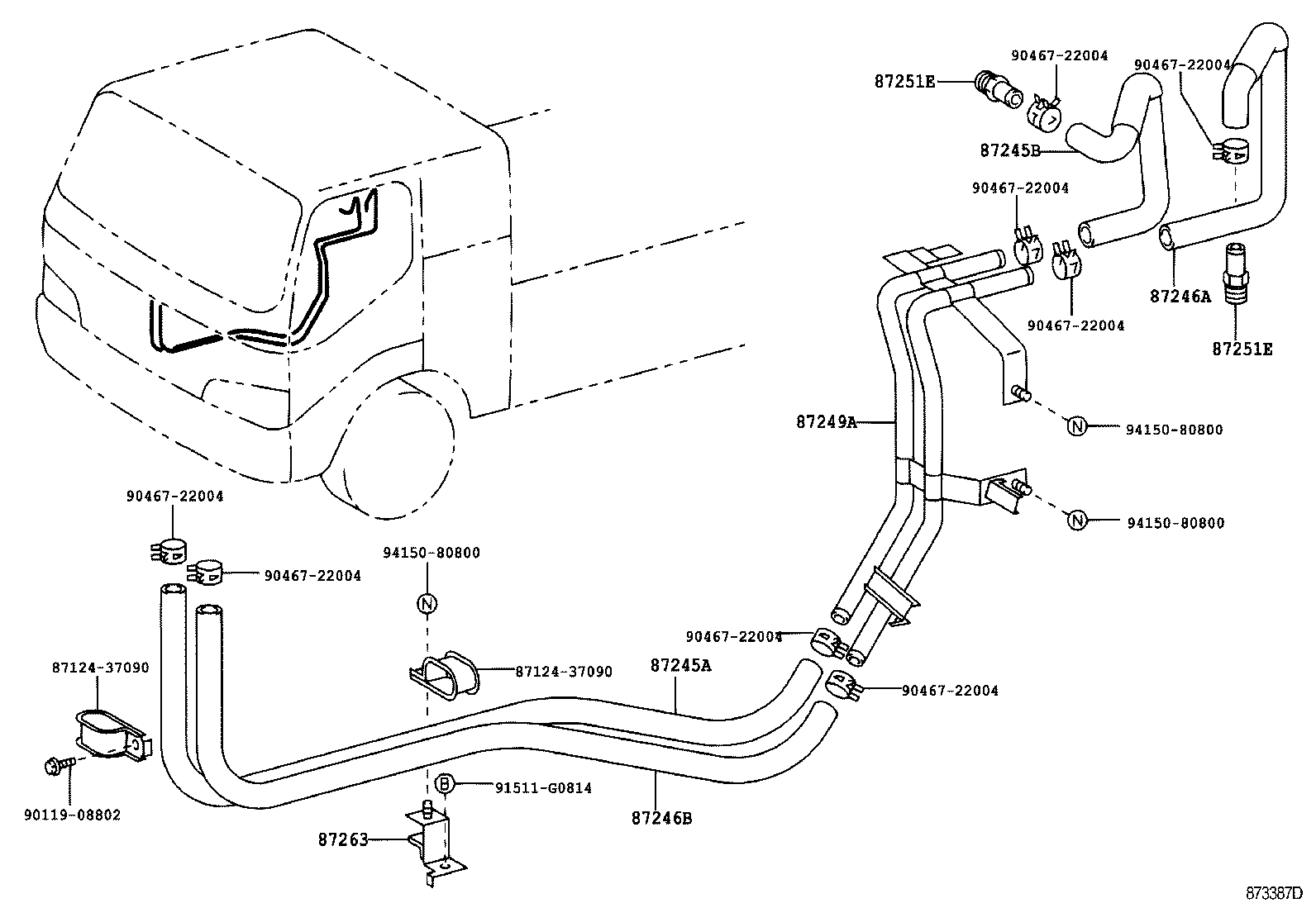

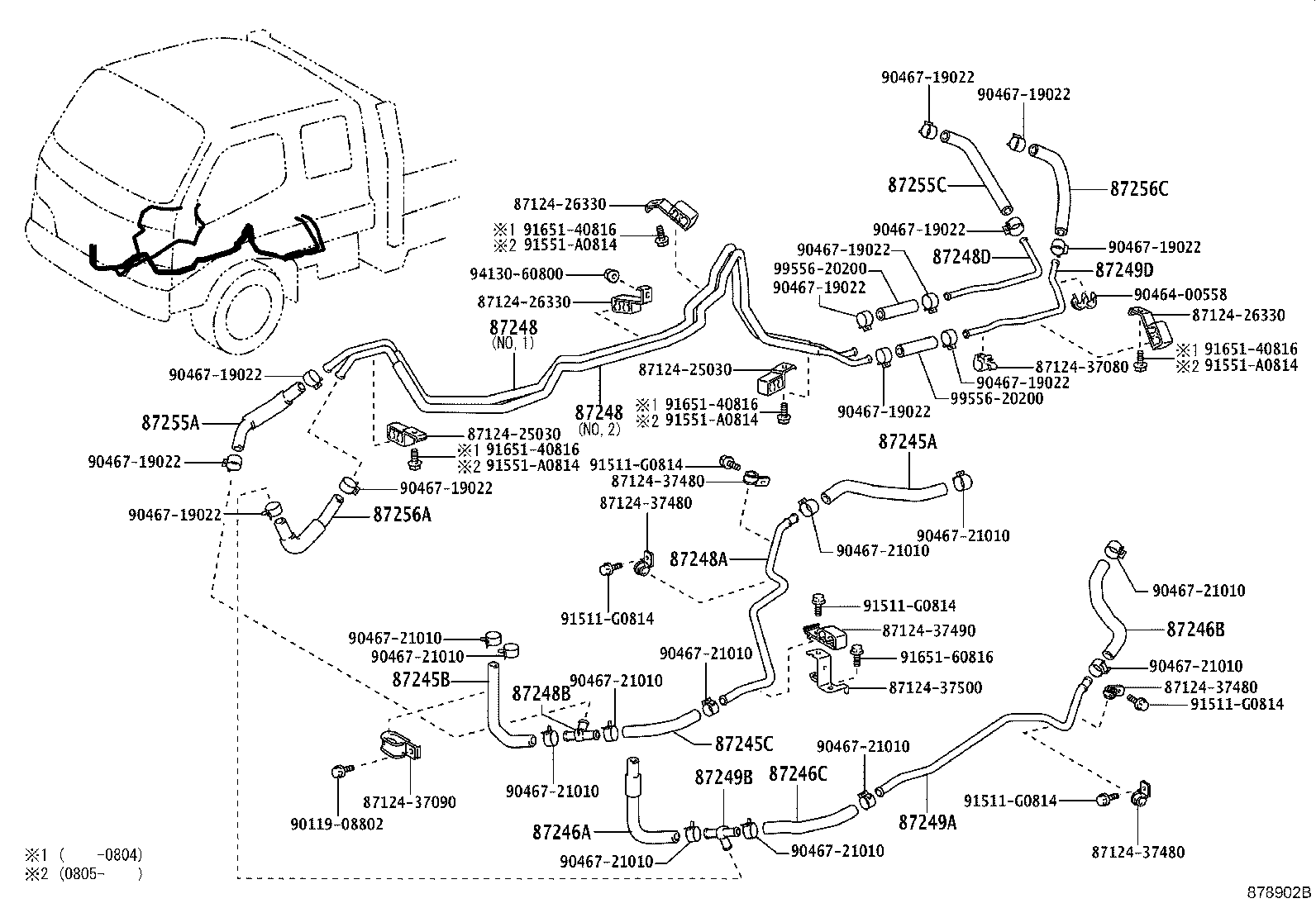

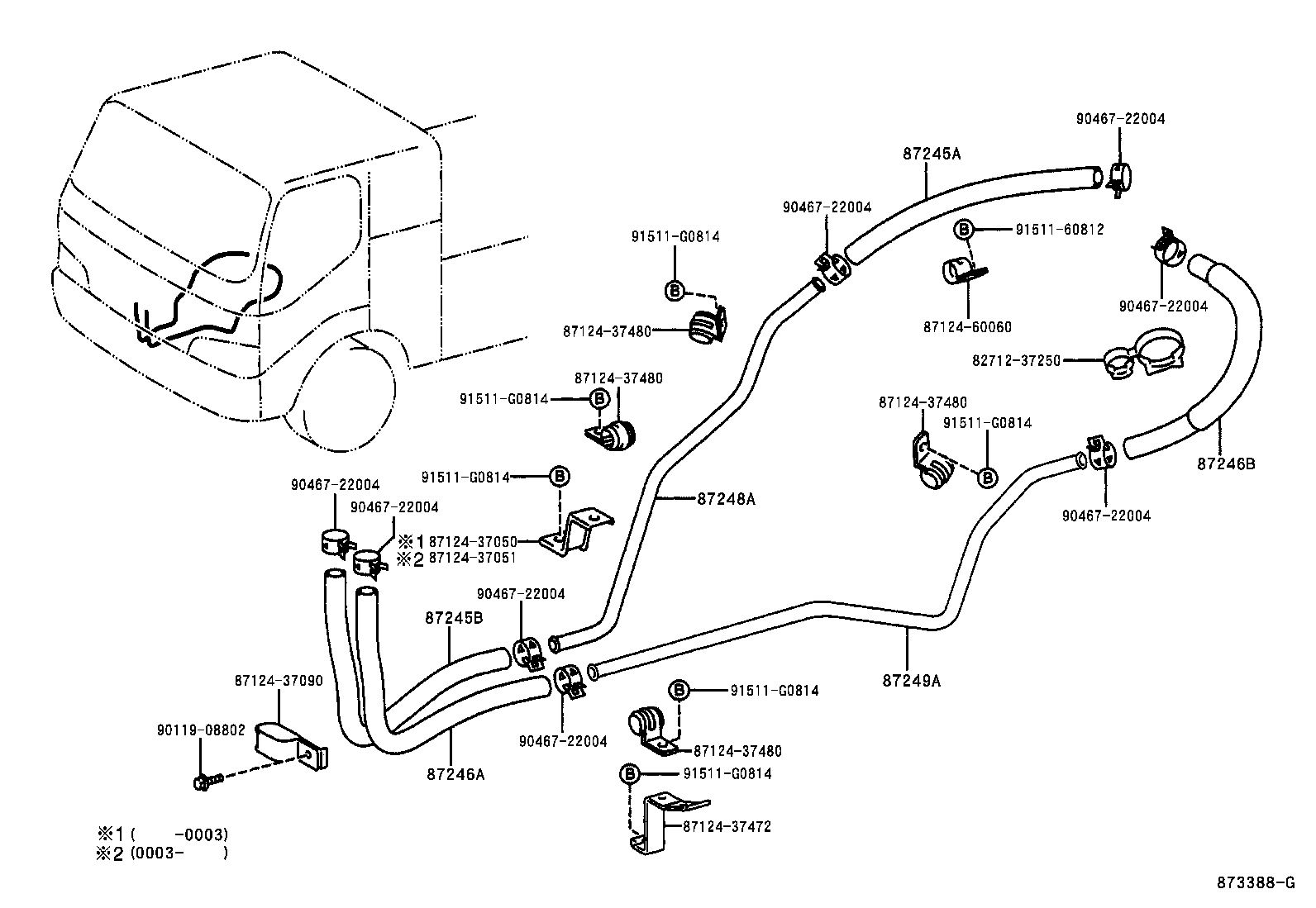

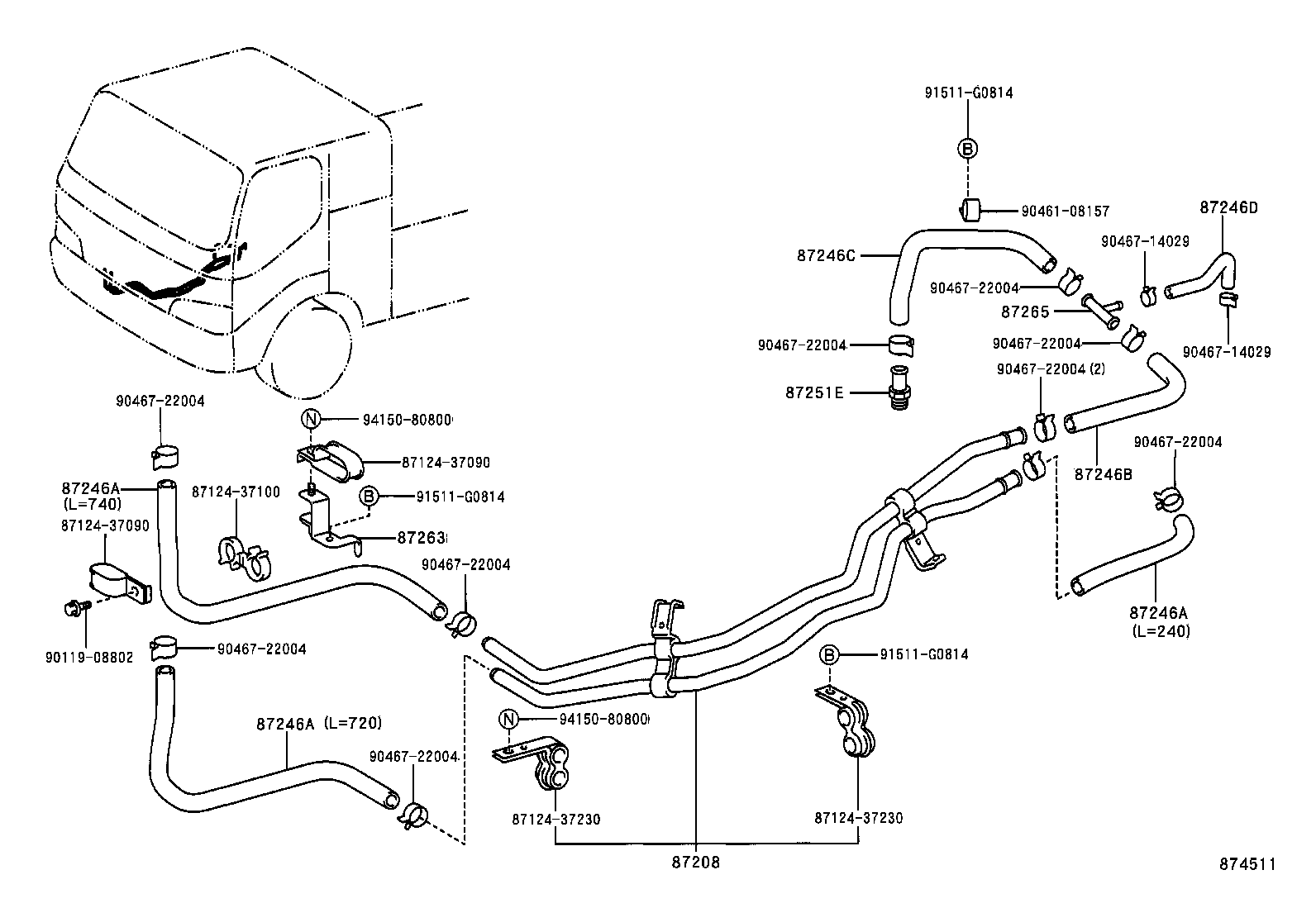

Figure 873385E 873385E 1999-05 → 2004-06 Figure 873386C 873386C 1999-08 → 2004-06 Figure 873387D 873387D 1999-08 → 2004-06 Figure 873388G 873388G 1999-08 → 2004-06 Figure 874511 874511 2000-11 → 2004-06 Figure 876572A 876572A 2003-10 → 2004-06 Figure 876982A 876982A 2004-06 → — Figure 876983 876983 2004-06 → 2006-10 Figure 876984 876984 2004-06 → 2006-10 Figure 876985 876985 2004-06 → 2006-10 Figure 876986A 876986A 2004-06 → 2006-10 Figure 876987A 876987A 2004-06 → 2006-10 Figure 878901A 878901A 2006-10 → — Figure 87B204 87B204 2010-06 → — Figure 878902B 878902B 2006-10 → — Figure 87B205 87B205 2010-06 → — Figure 878903A 878903A 2006-10 → —

Part groups

PNCDescription
87207A Pipe & Hose Sub-assy, Water A
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87263 Bracket, Heater Water Pipe, NO.1
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
