Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

29 part groups · 20 illustrations

Illustrations

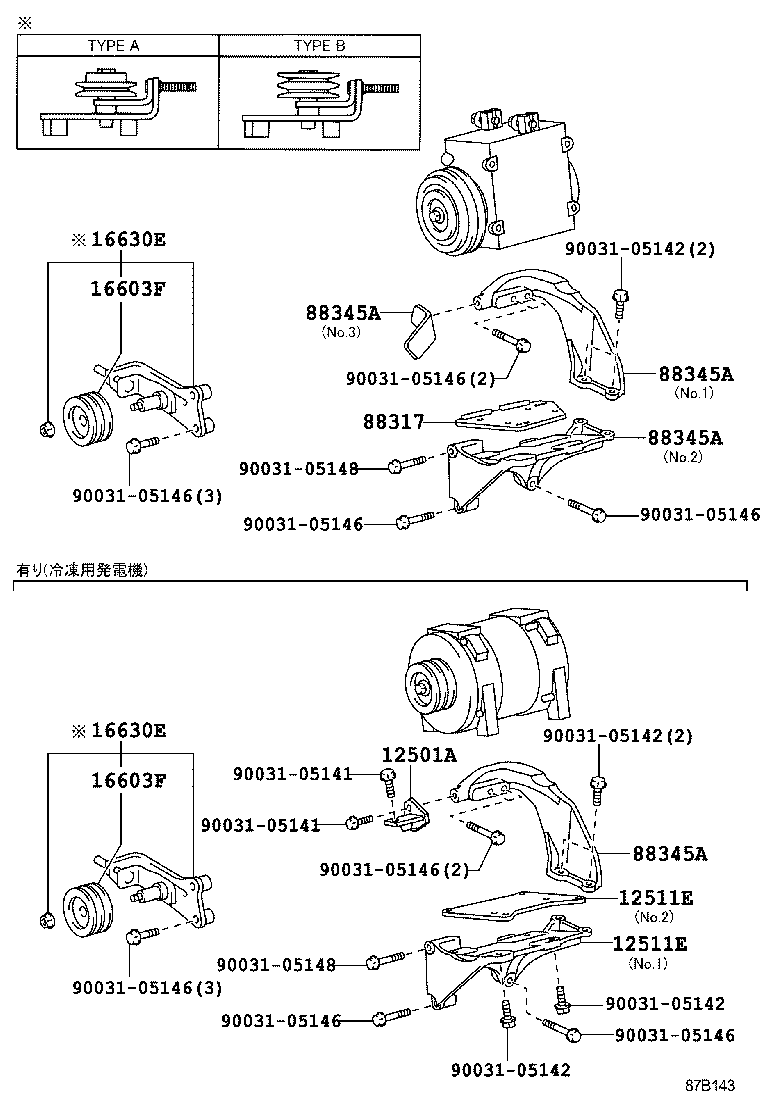

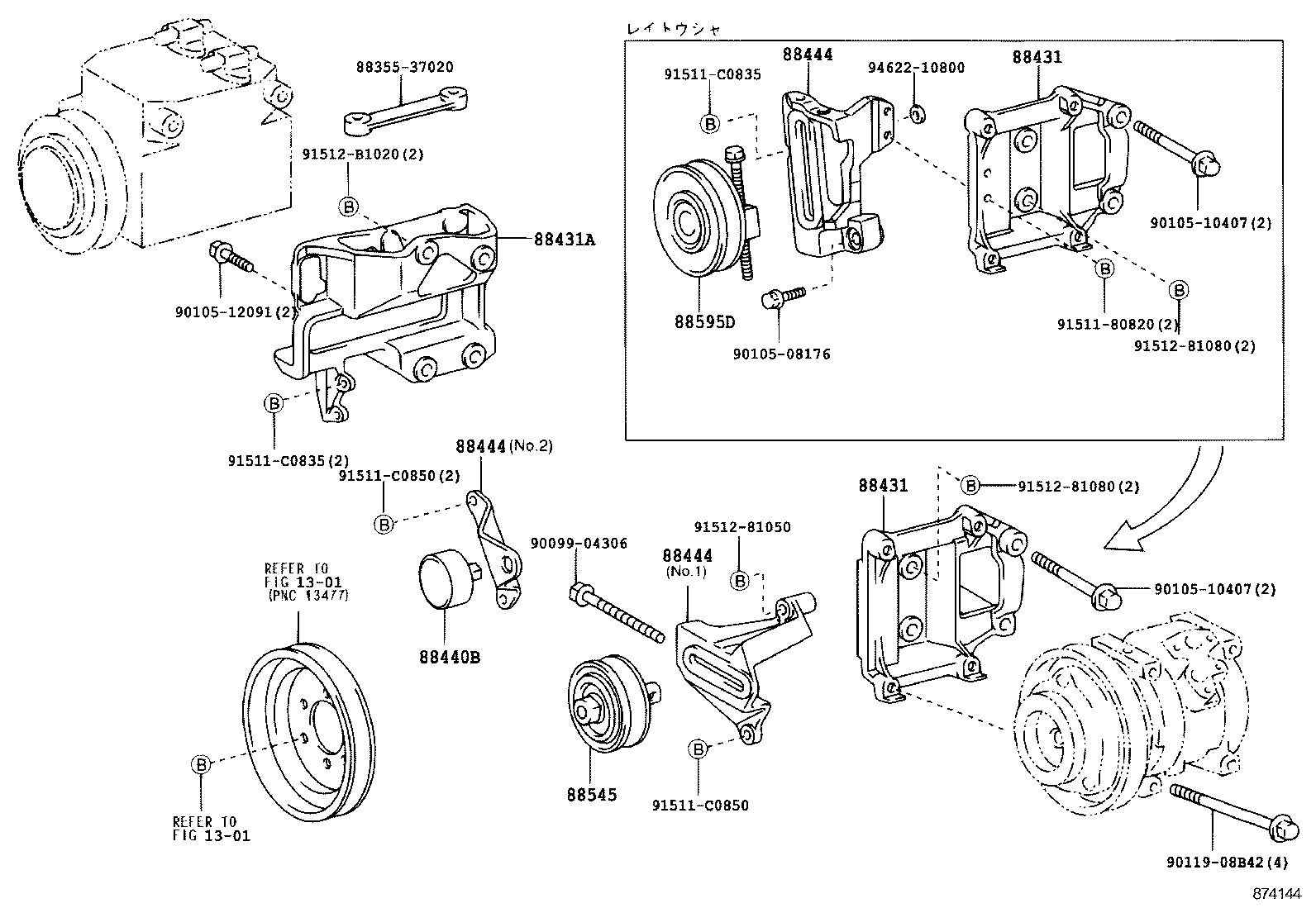

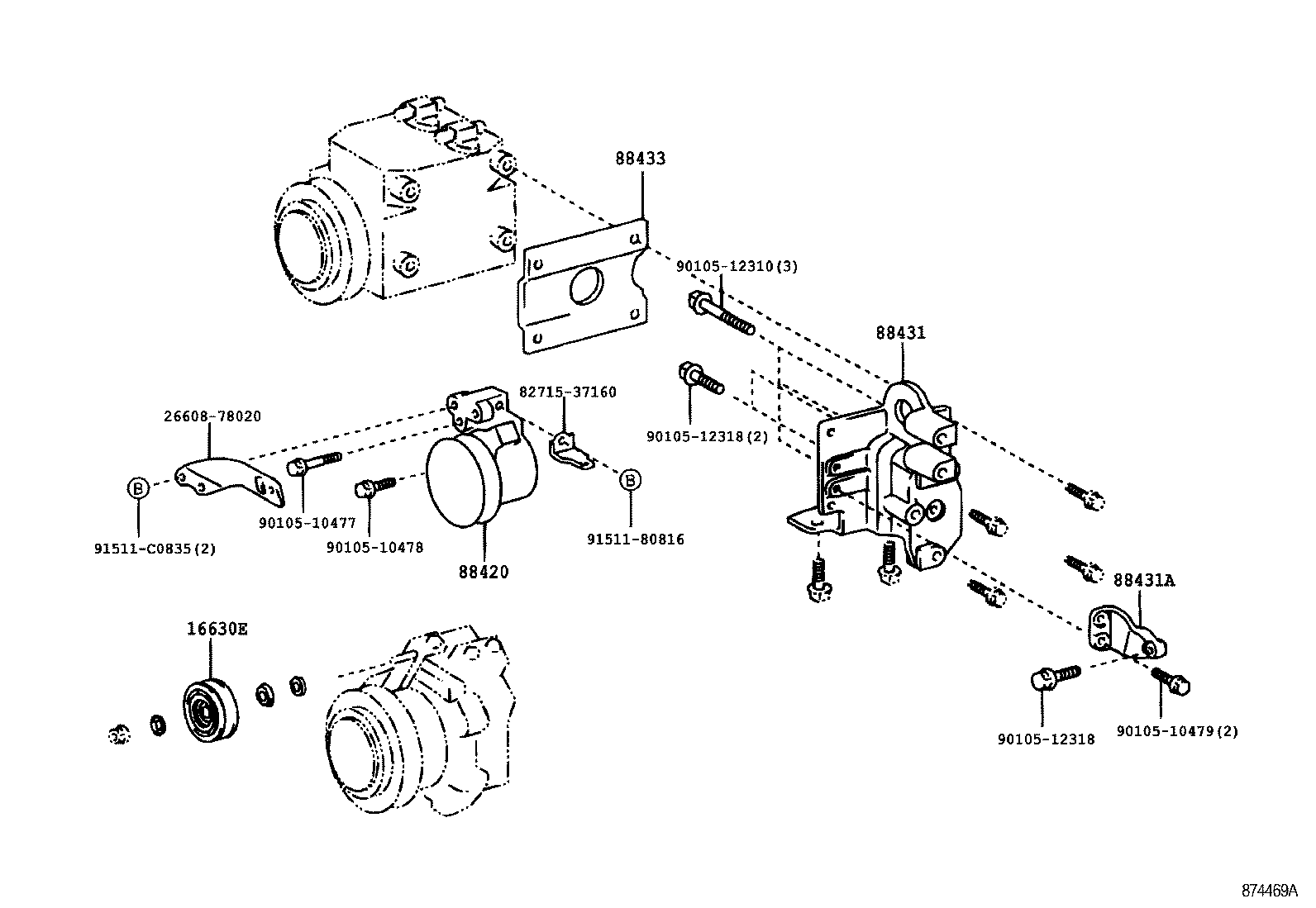

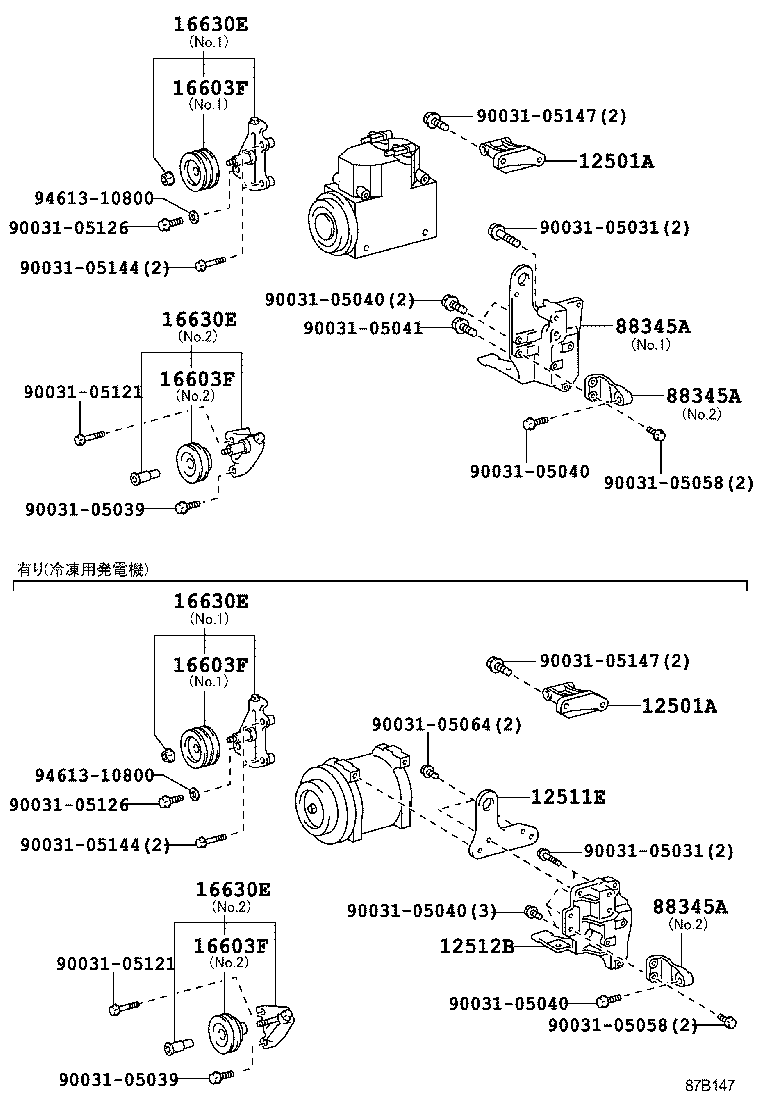

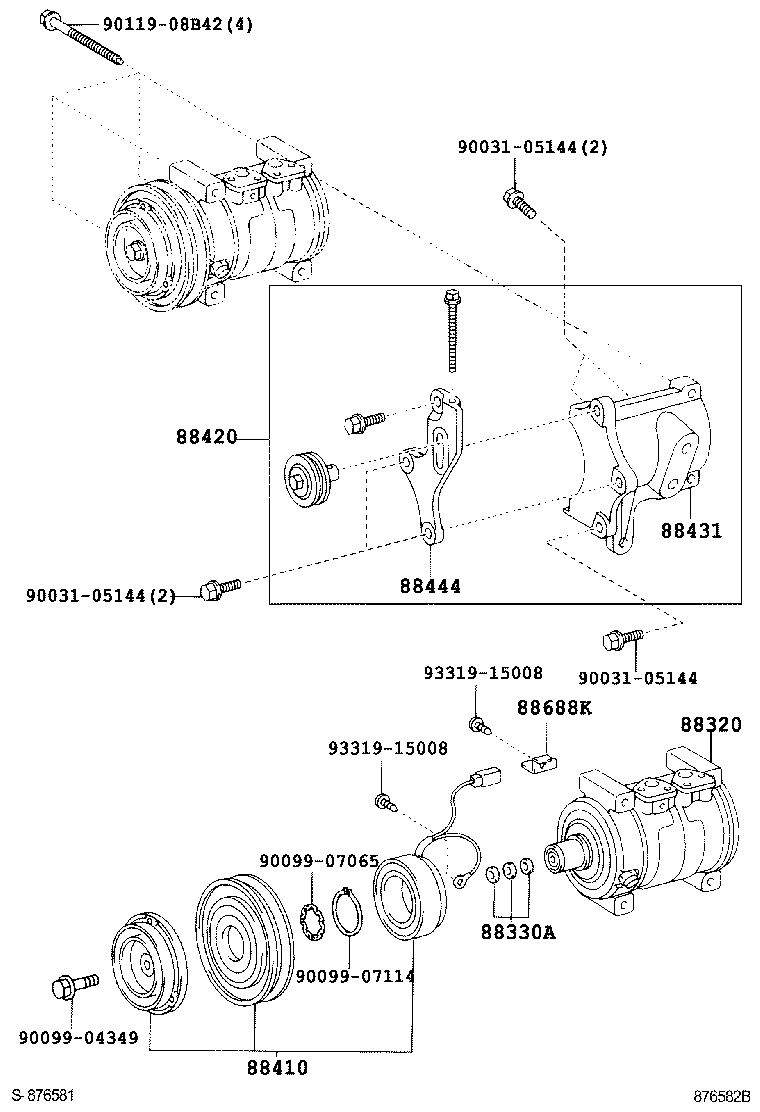

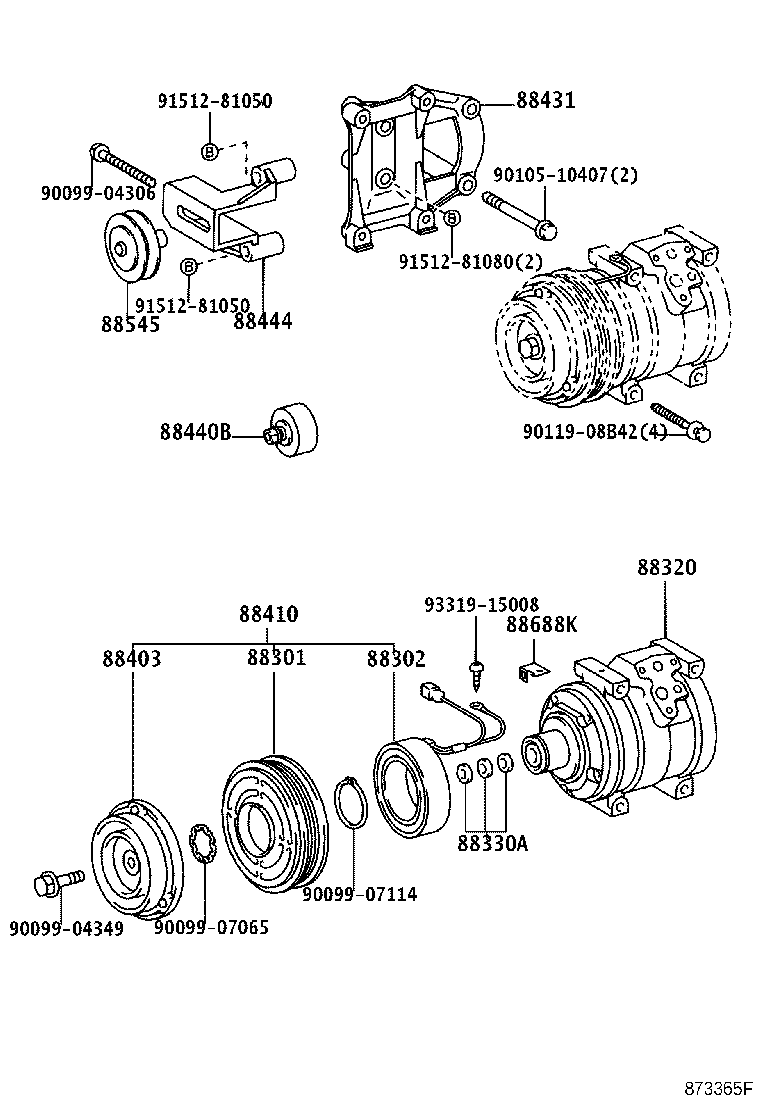

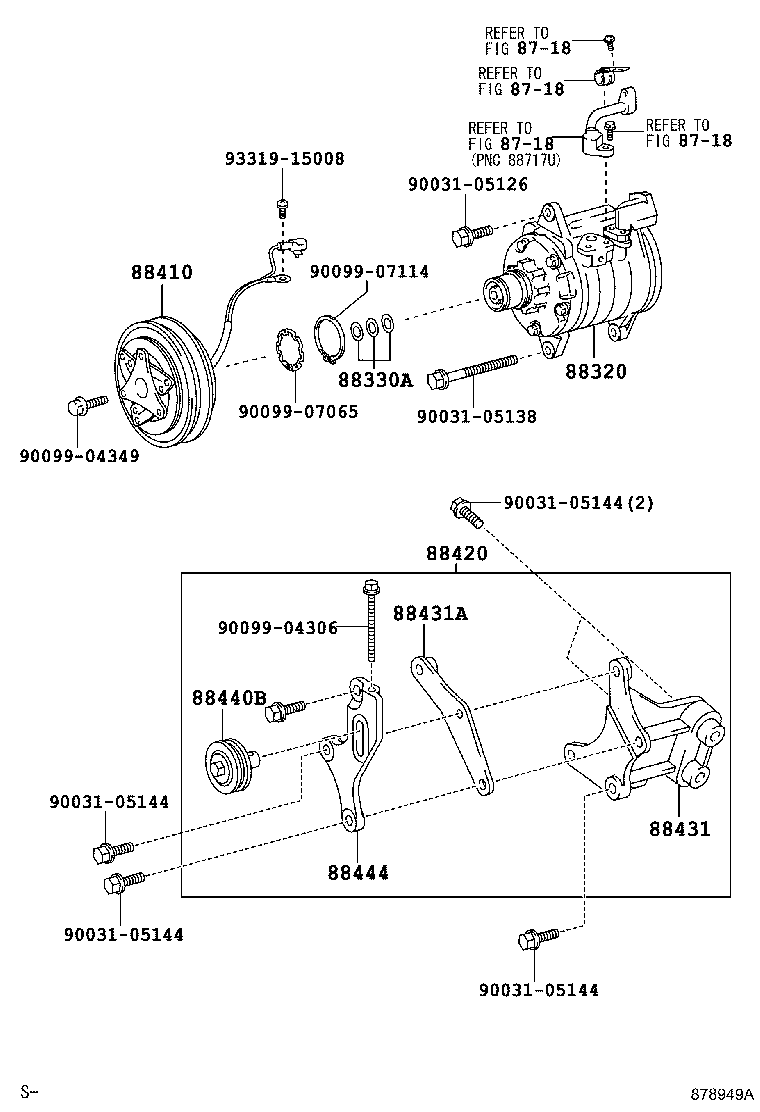

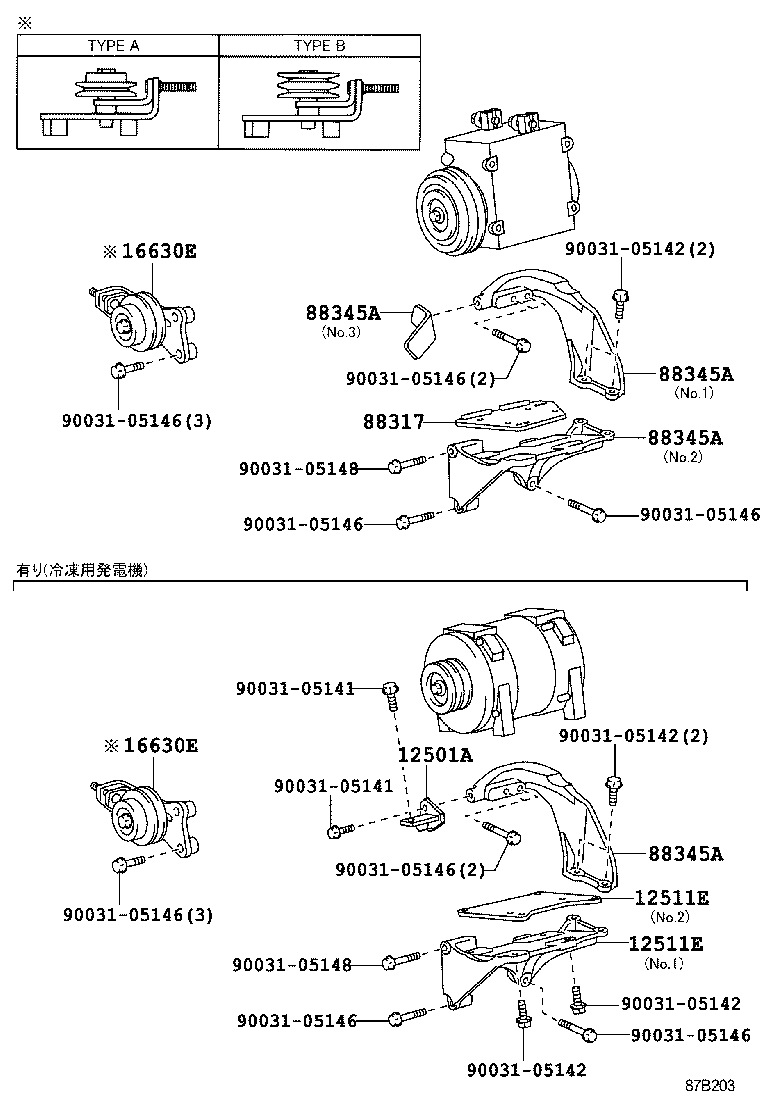

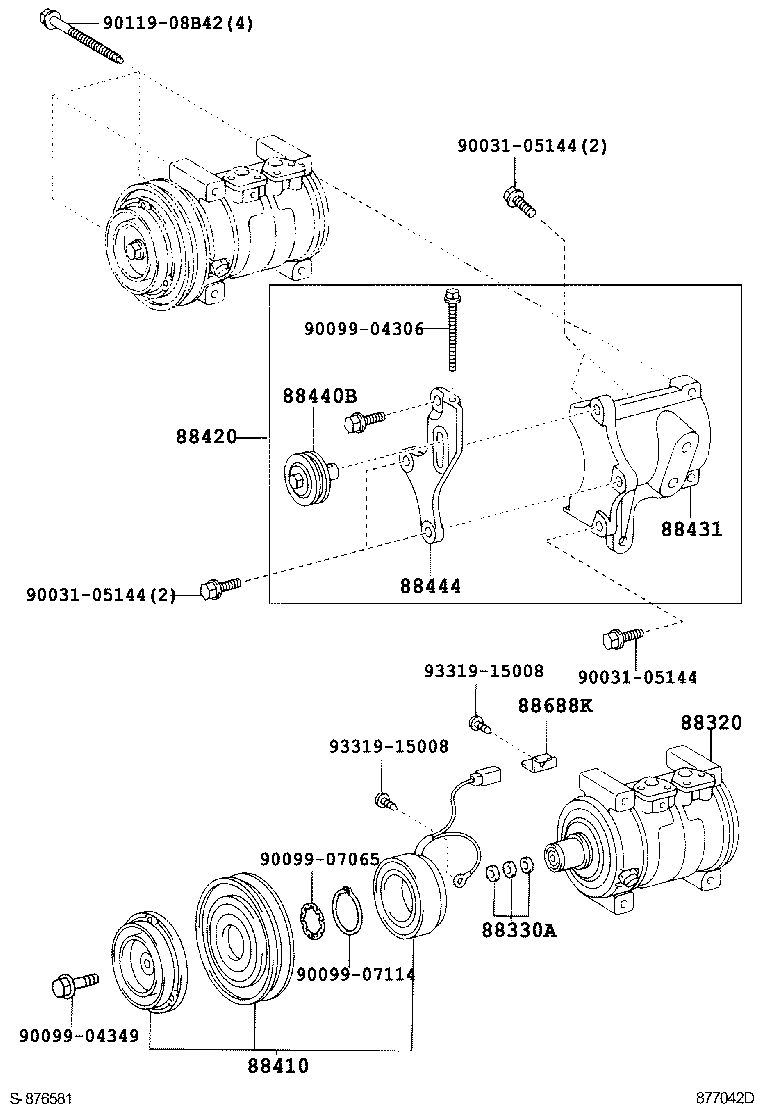

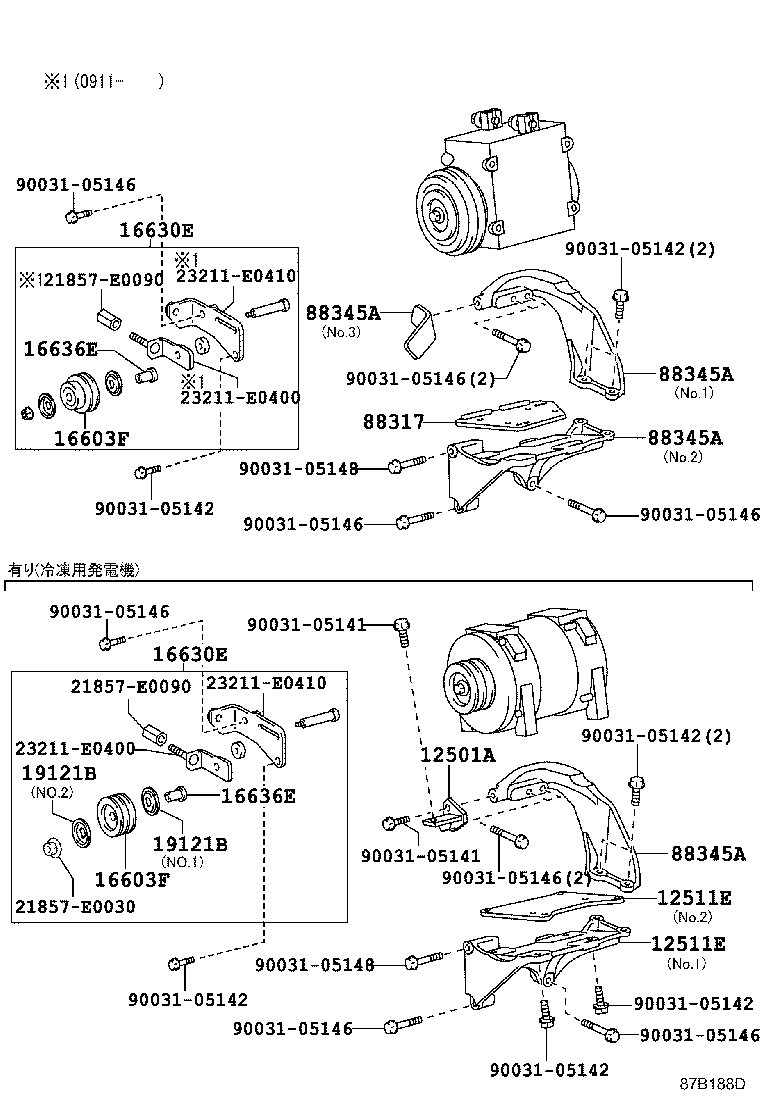

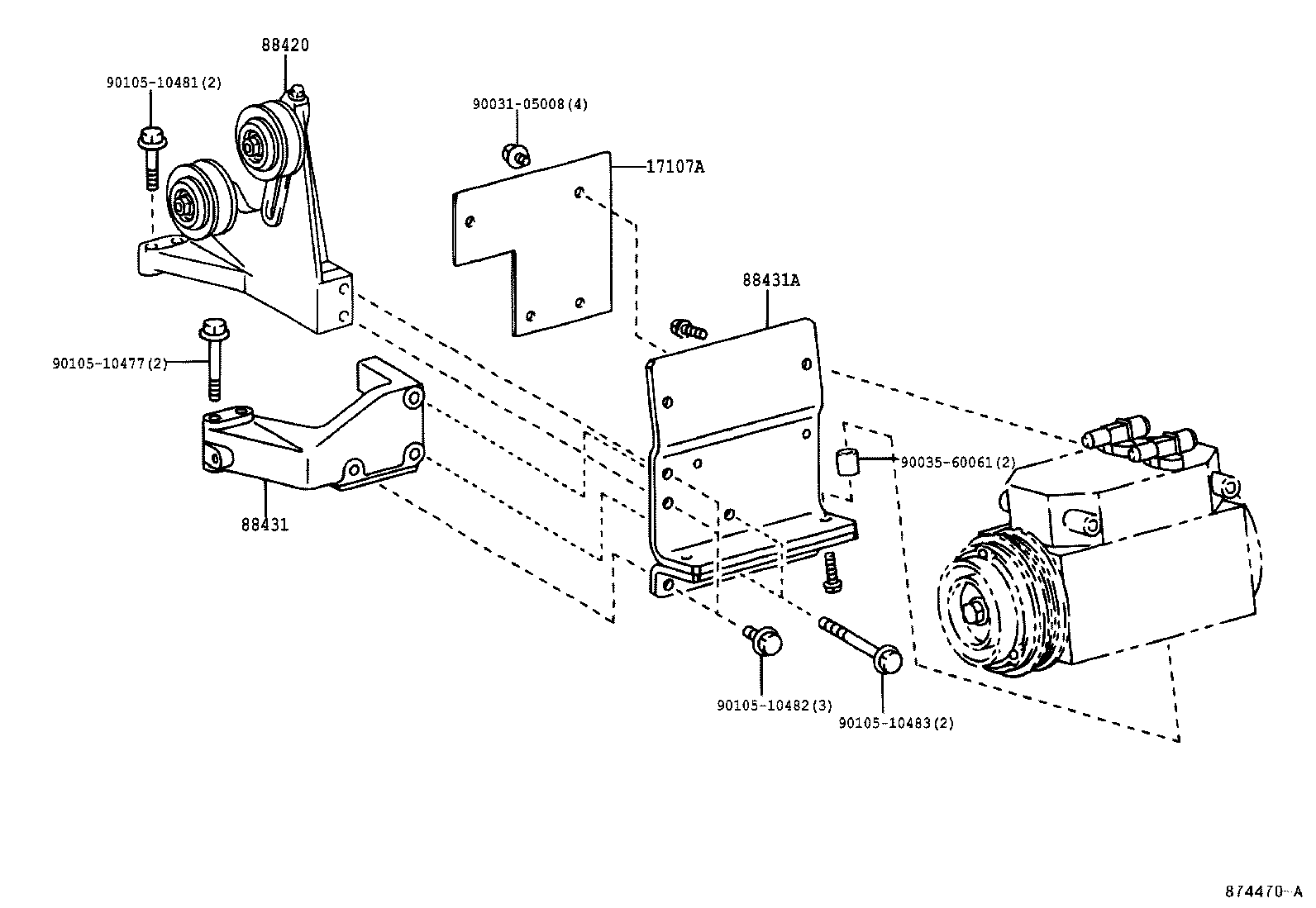

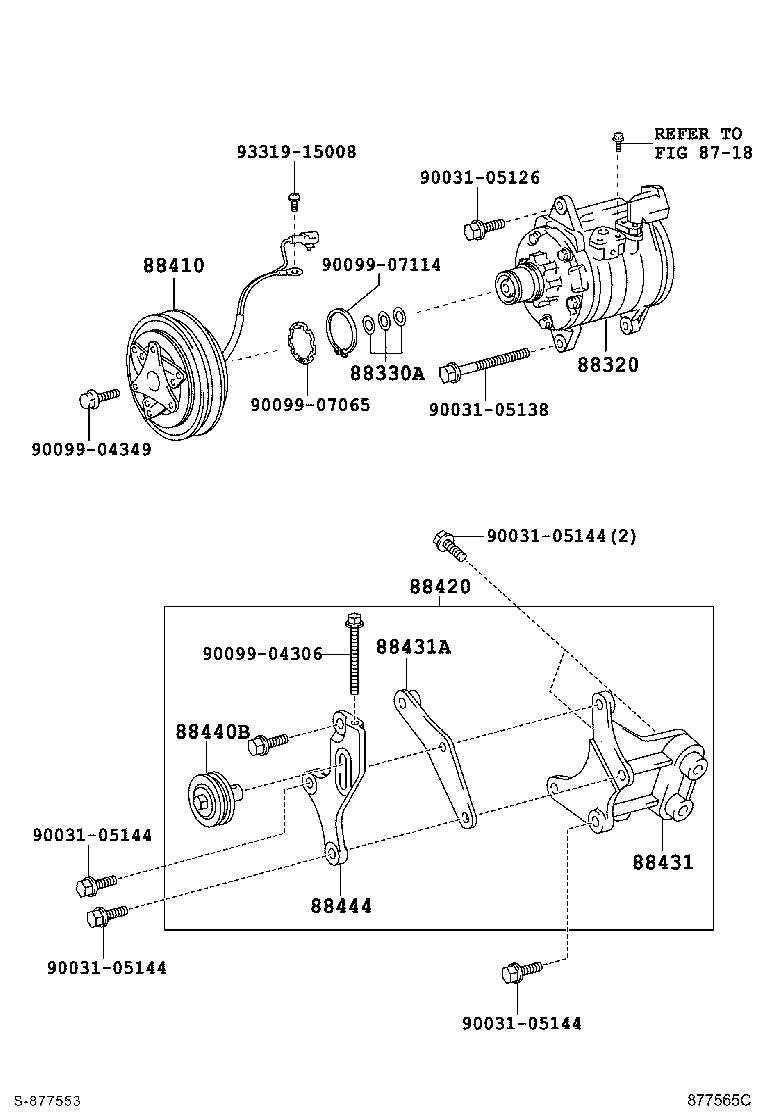

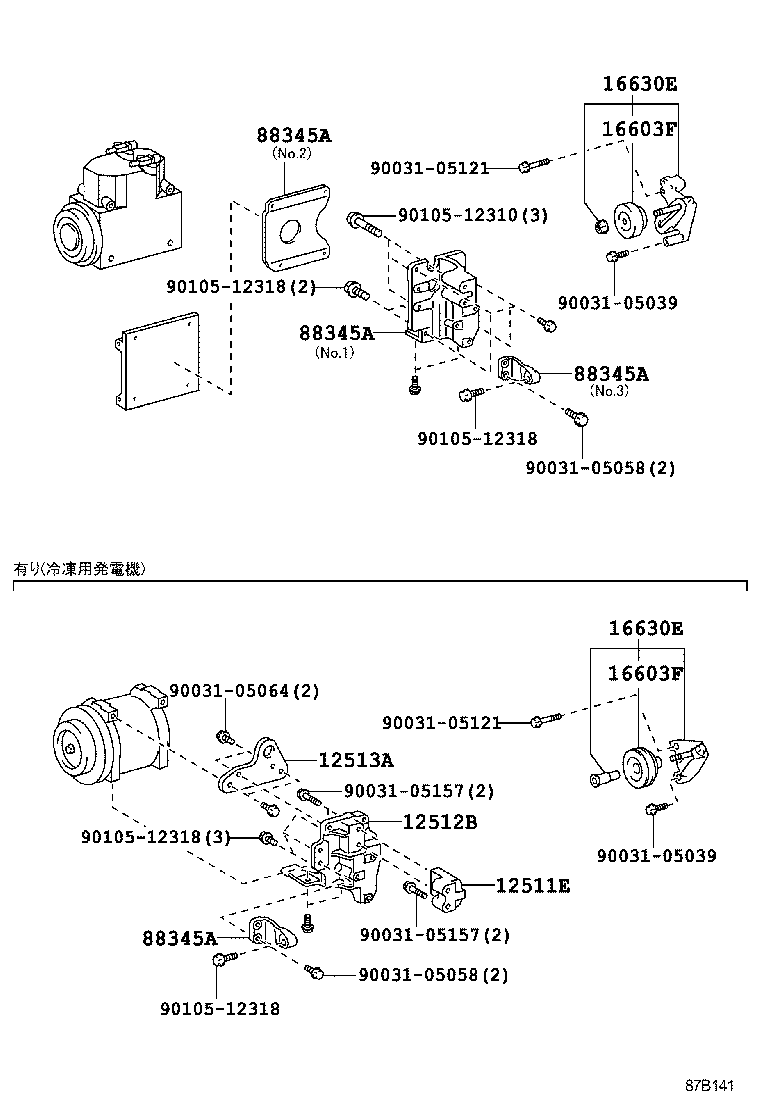

Figure 873364J 873364J 1999-05 → 2004-06 Figure 873364J 873364J 2004-06 → 2006-10 Figure 873365F 873365F 1999-07 → 2004-06 Figure 87B203 87B203 2003-10 → 2004-06 Figure 874469A 874469A 1999-05 → 2004-06 Figure 87B141 87B141 2004-06 → 2006-10 Figure 874470A 874470A 1999-08 → 2004-06 Figure 87B147 87B147 2004-06 → 2006-10 Figure 87B143 87B143 2004-06 → 2007-05 Figure 87B188D 87B188D 2006-10 → — Figure 873577A 873577A 1999-08 → 2004-06 Figure 874137B 874137B 2000-11 → 2004-06 Figure 874137B 874137B 2004-06 → — Figure 874144F 874144F 2000-11 → 2004-06 Figure 874144F 874144F 2004-06 → — Figure 876582B 876582B 2003-10 → 2004-06 Figure 877565C 877565C 2004-06 → 2006-10 Figure 877042D 877042D 2004-06 → 2006-10 Figure 877042D 877042D 2006-10 → — Figure 878949A 878949A 2006-10 → —

Part groups

PNCDescription
12501A Bracket Sub-assy, Alternator
12511E Bracket, Alternator
12512B Bracket, Alternator, NO.2
12513A Bracket, Alternator, NO.3
16603F Pulley Sub-assy, Idler
16630E Pulley Assy, Idler
16636E Shaft, Idler Pulley
17107A Insulator Sub-assy, Exhaust Manifold Heat
19121B Cover, Dust Proof
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88317 Spacer, Cooler Compressor
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88345A Bracket, Compressor Mounting
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88444A Bracket, Idle Pulley, NO.2
88446 Bolt, Idle Pulley
88545 Pulley Assy, Idle
88595D Pulley Assy, Idle
88595E Pulley Assy, Idle
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
