Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

15 part groups · 11 illustrations

Illustrations

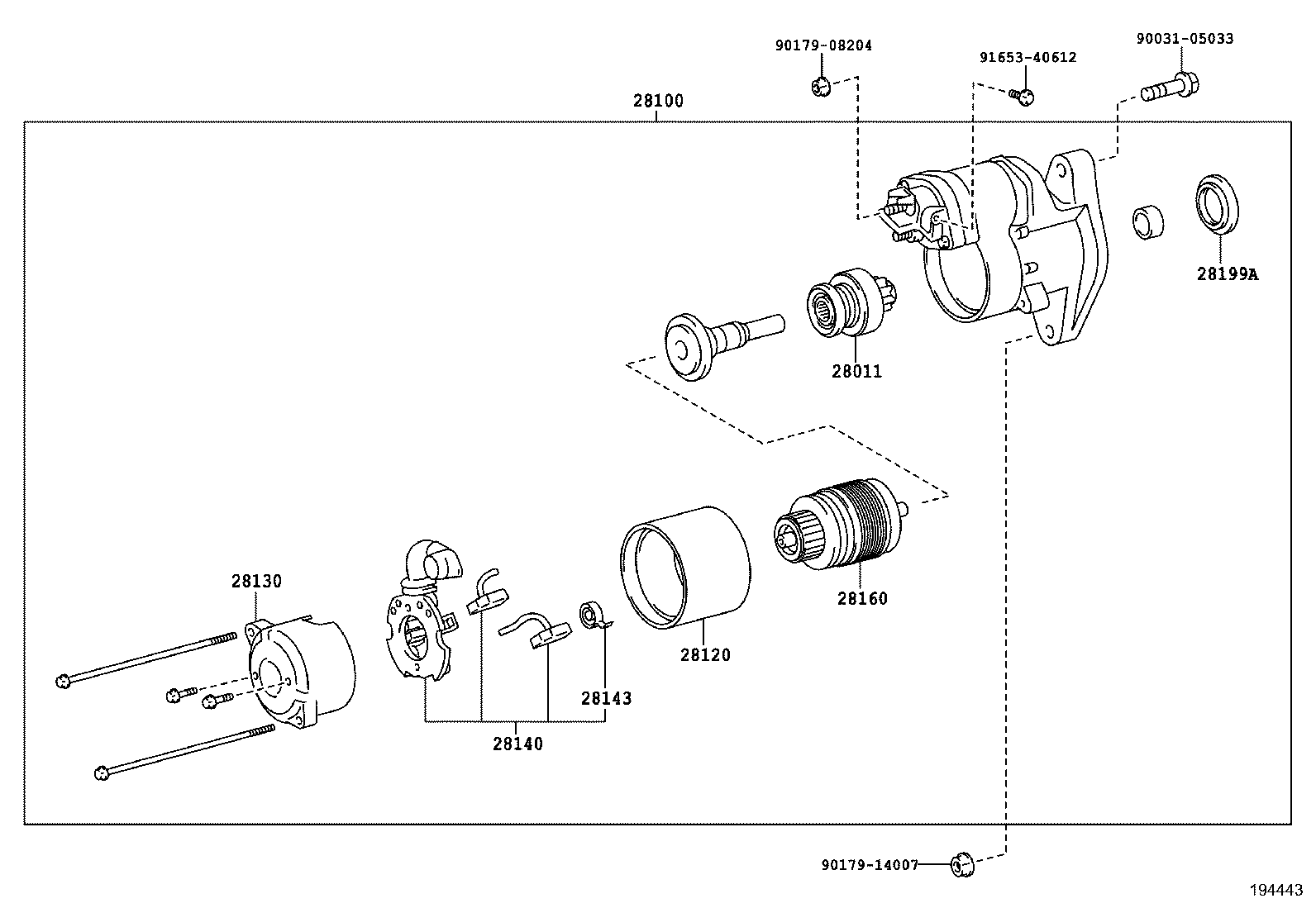

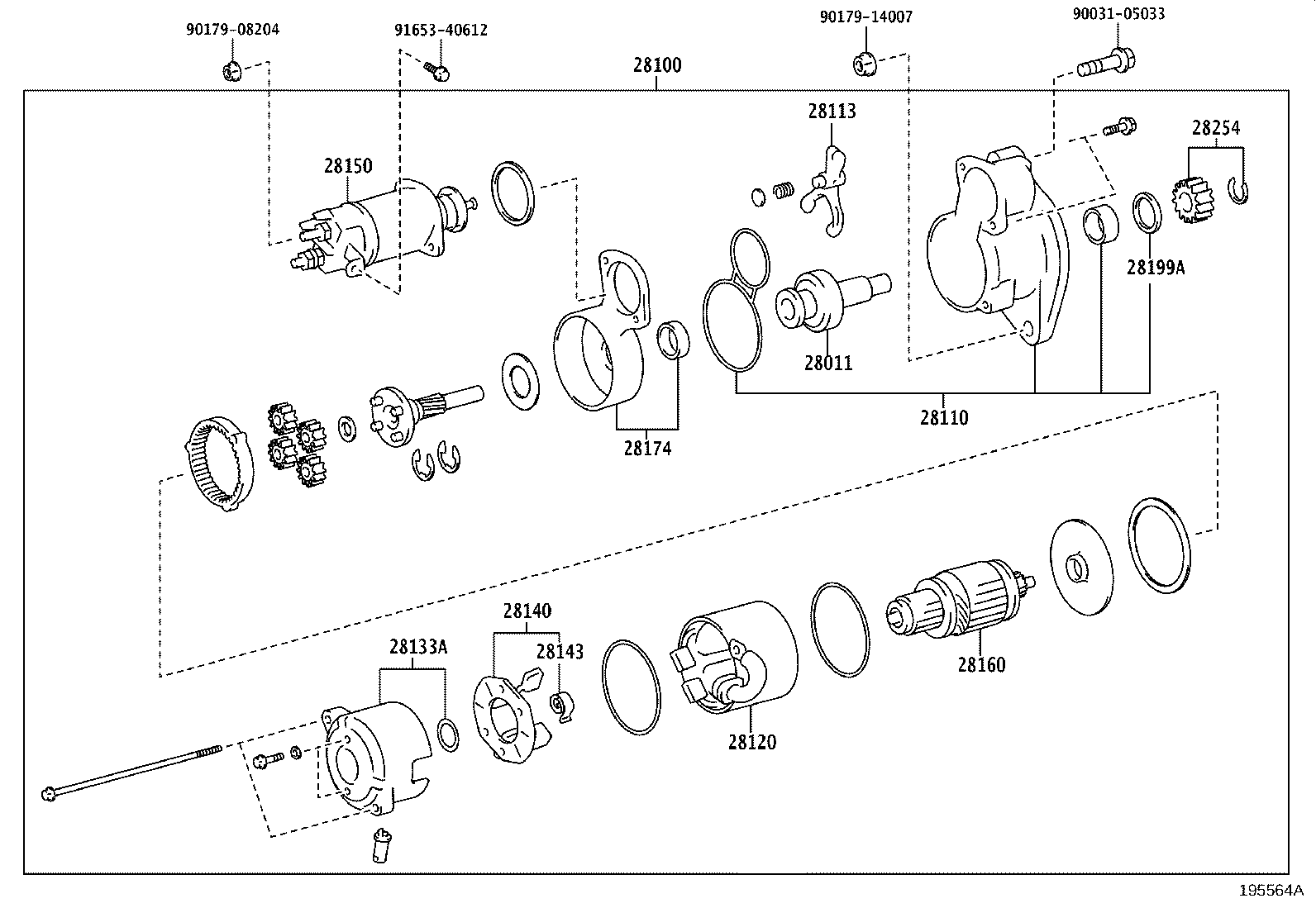

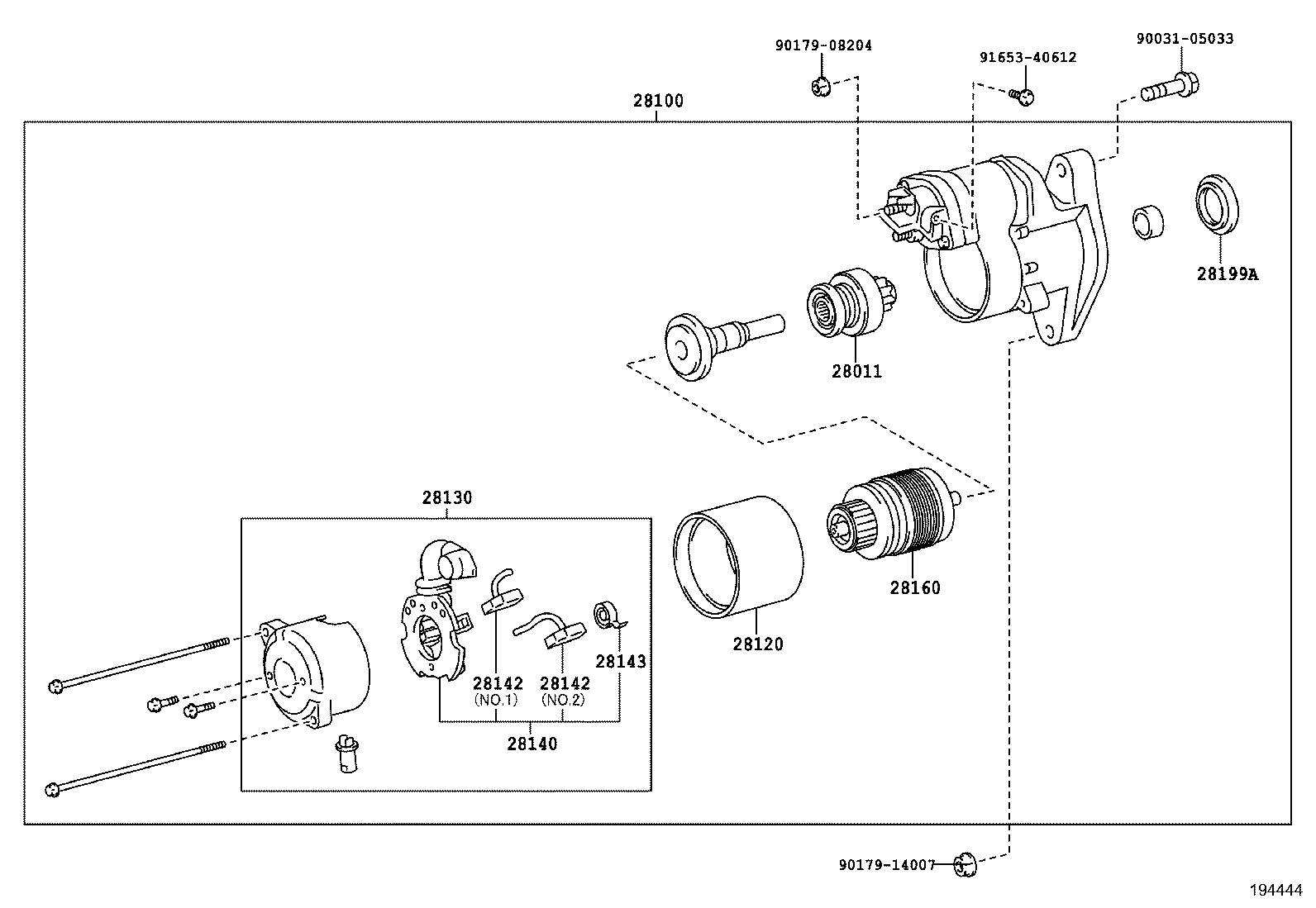

Figure 193684E 193684E 2011-07 → — Figure 193684E 193684E 2017-05 → — Figure 194443 194443 2011-07 → — Figure 194443 194443 2017-05 → — Figure 194444 194444 2011-07 → — Figure 194444 194444 2011-07 → — Figure 194444 194444 2011-07 → — Figure 194444 194444 2017-05 → — Figure 194444 194444 2017-05 → — Figure 194444 194444 2017-05 → — Figure 195564A 195564A 2019-05 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28133A Frame, Commutator End
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28174 Housing, Starter Motor
28199A Protector, Dust Starter
28254 Pinion, Starter Idle Gear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
