Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

20 part groups · 3 illustrations

Illustrations

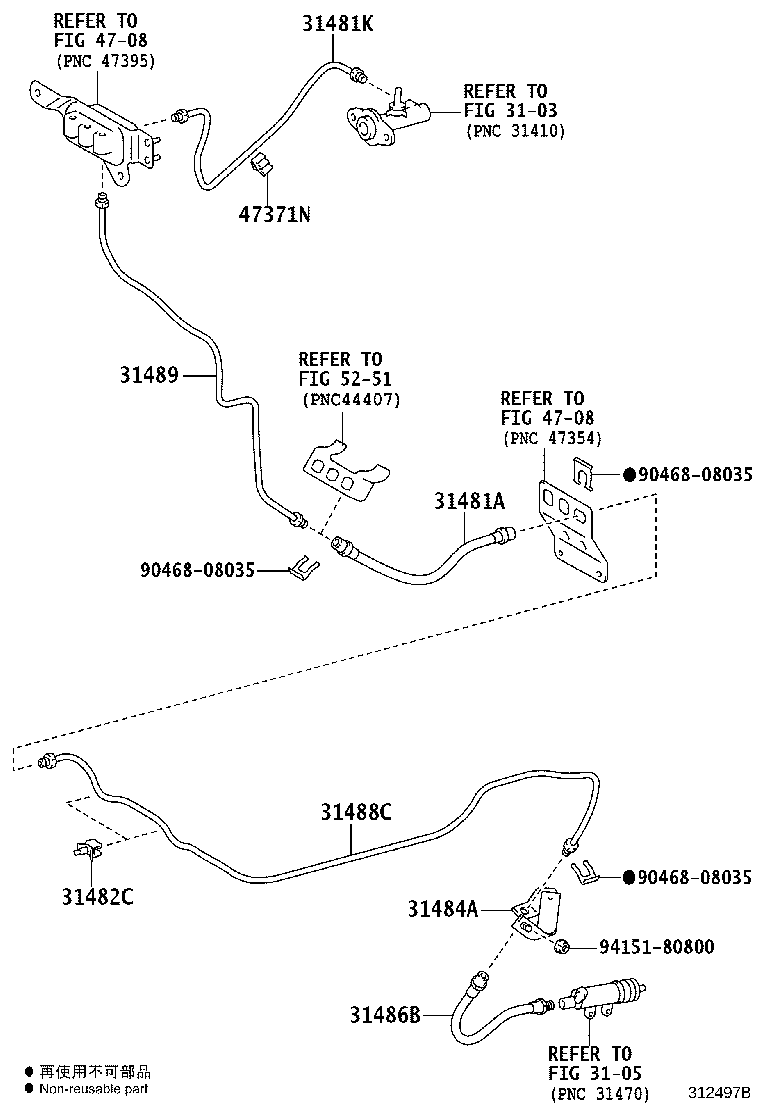

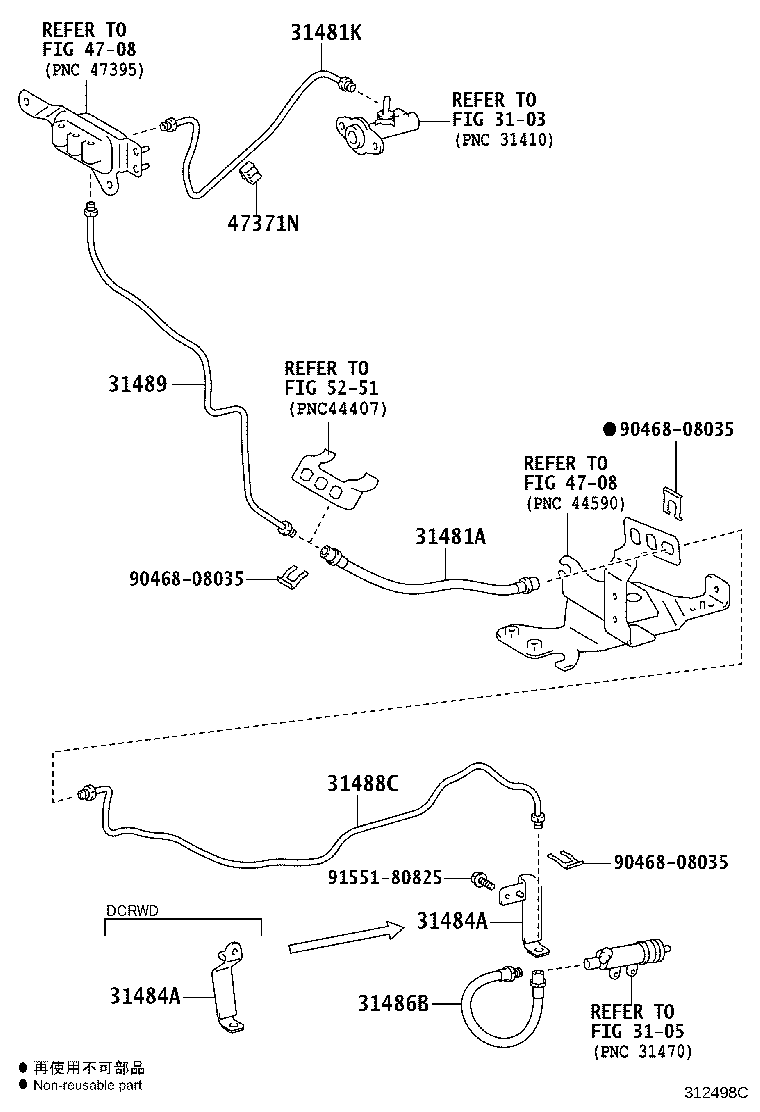

Figure 312478B 312478B 2011-07 → — Figure 312497B 312497B 2011-07 → — Figure 312498C 312498C 2011-08 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31305 Bracket Sub-assy, Clutch Pedal
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31394A Spring, Pedal W/Hook
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481A Hose, Clutch, NO.1
31481K Tube, Master Cylinder TO Tube Connector
31482C Clamp(FOR CLUTCH TUBE)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31486B Hose, Master Cylinder TO Release Cylinder
31488C Tube, Flexible Hose TO Flexible Hose
31489 Tube, Tube Connector TO Flexible Hose
31496G Cushion, Clutch Accumulator
47371N Clamp, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
