Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

11 part groups · 2 illustrations

Illustrations

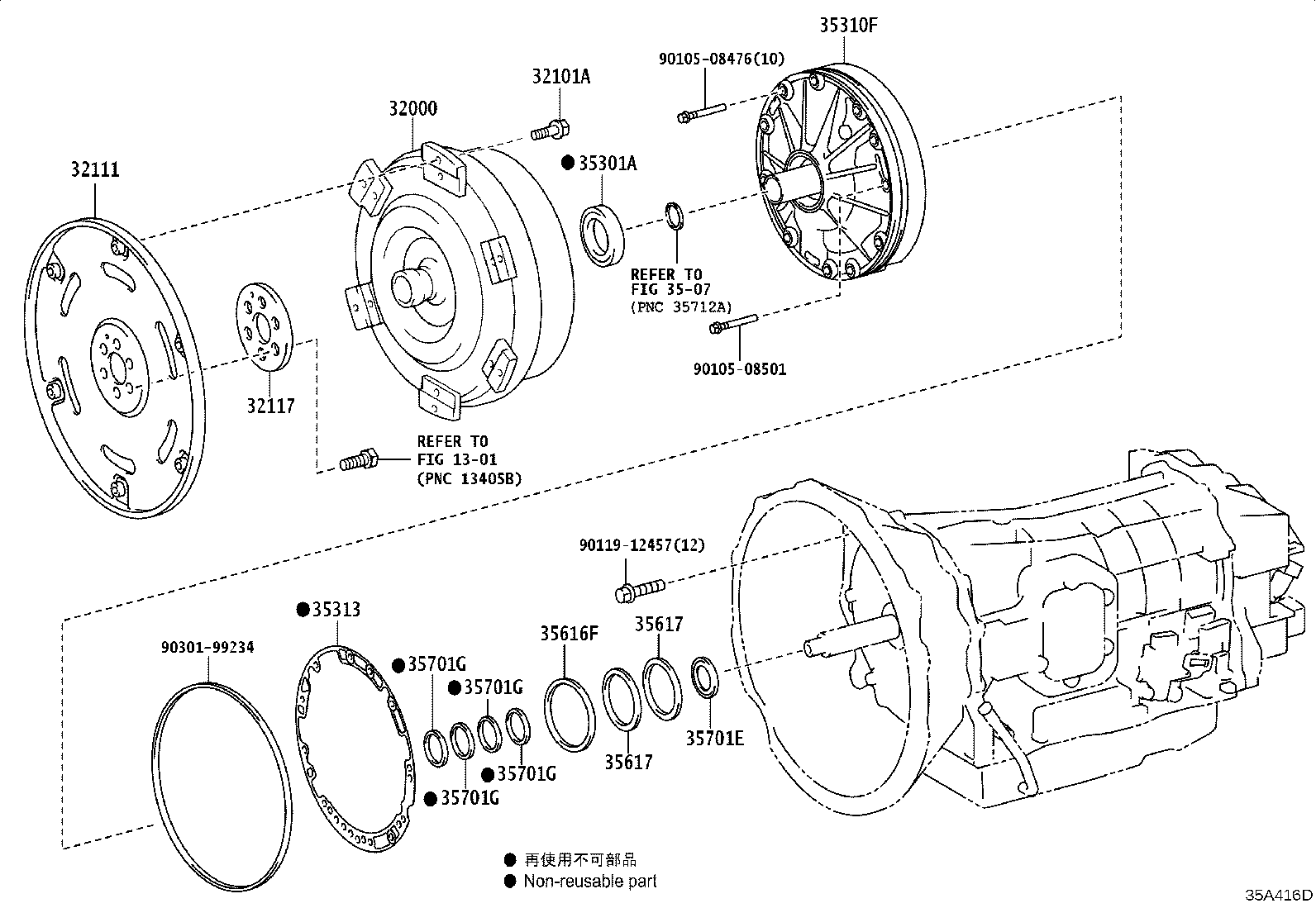

Figure 359798A 359798A 2011-07 → 2019-04 Figure 35A416D 35A416D 2019-04 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32111 Plate, Pump Impeller Drive
32117 Spacer, Drive Plate, Rear
35301A Seal, Oil (FOR FRONT OIL PUMP)
35310F Pump Assy, Front Oil
35313 Gasket, Front Oil Pump Cover
35616F Washer, Clutch Drum Thrust
35617 Ring, Clutch Drum Oil Seal
35701E Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
35701G Ring, Input Shaft Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
